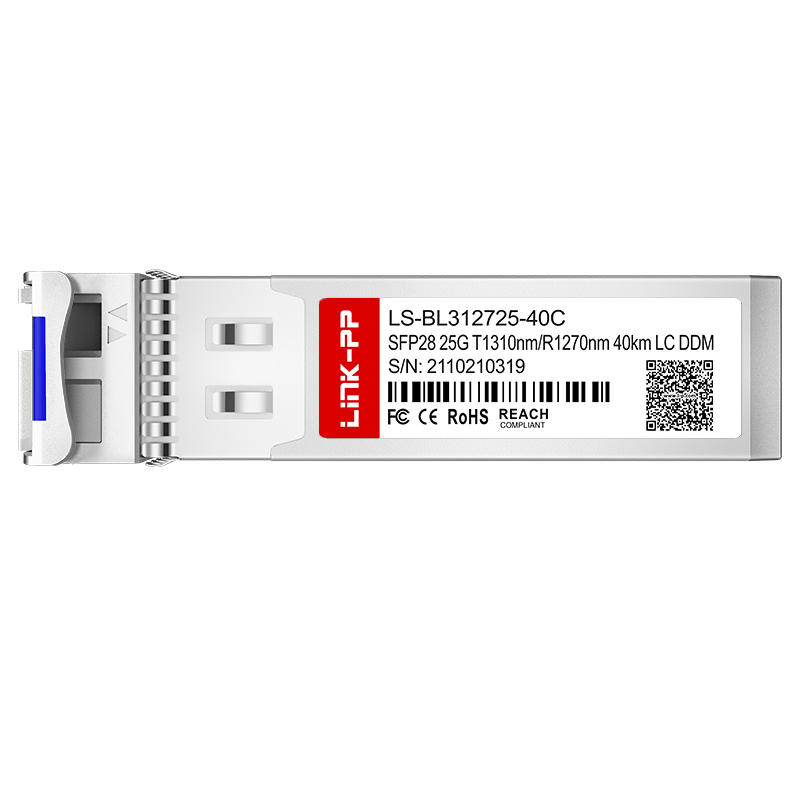

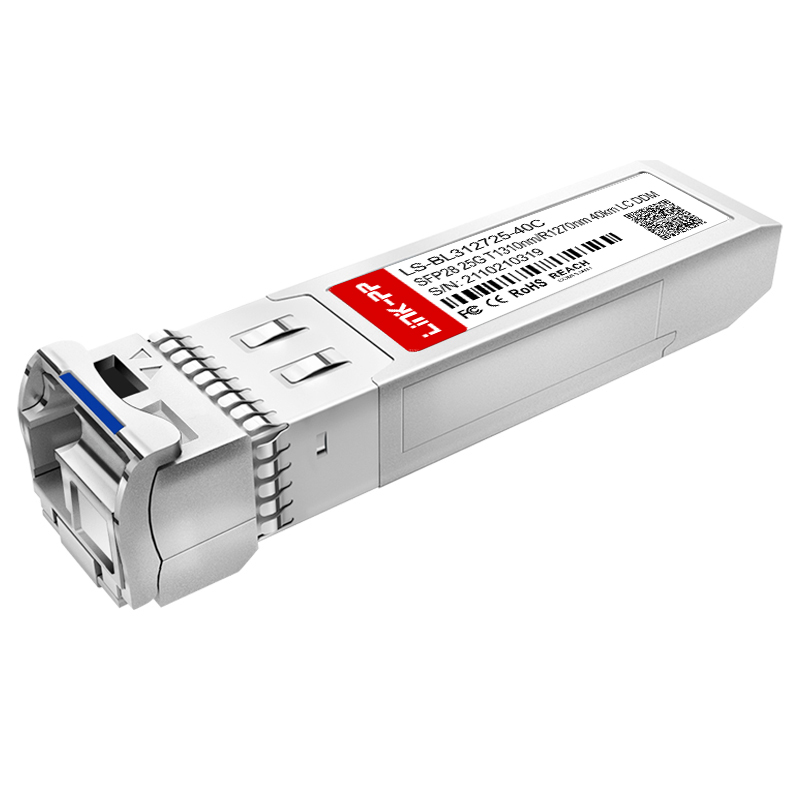

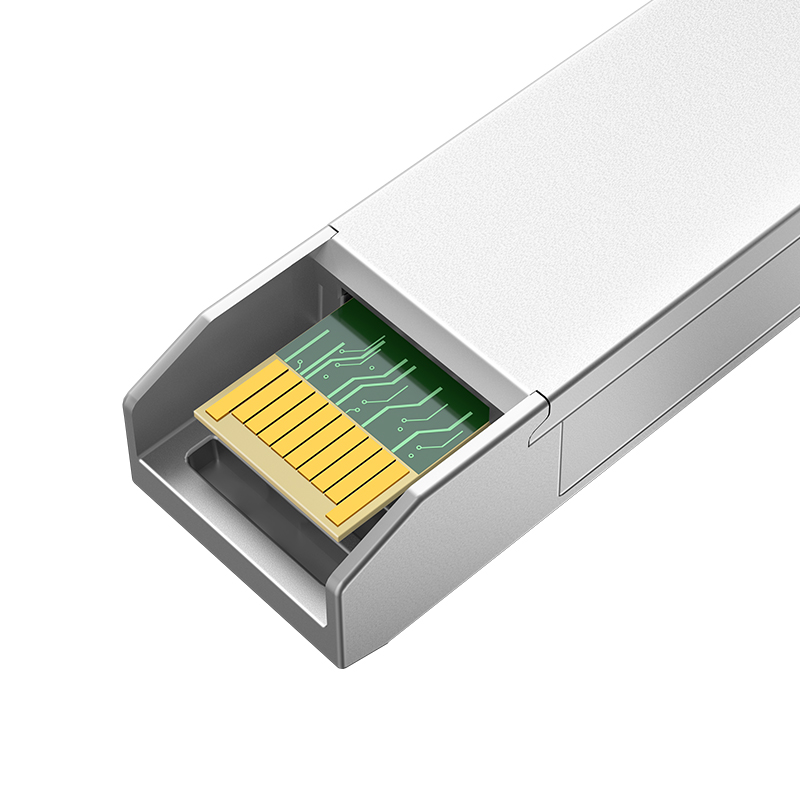

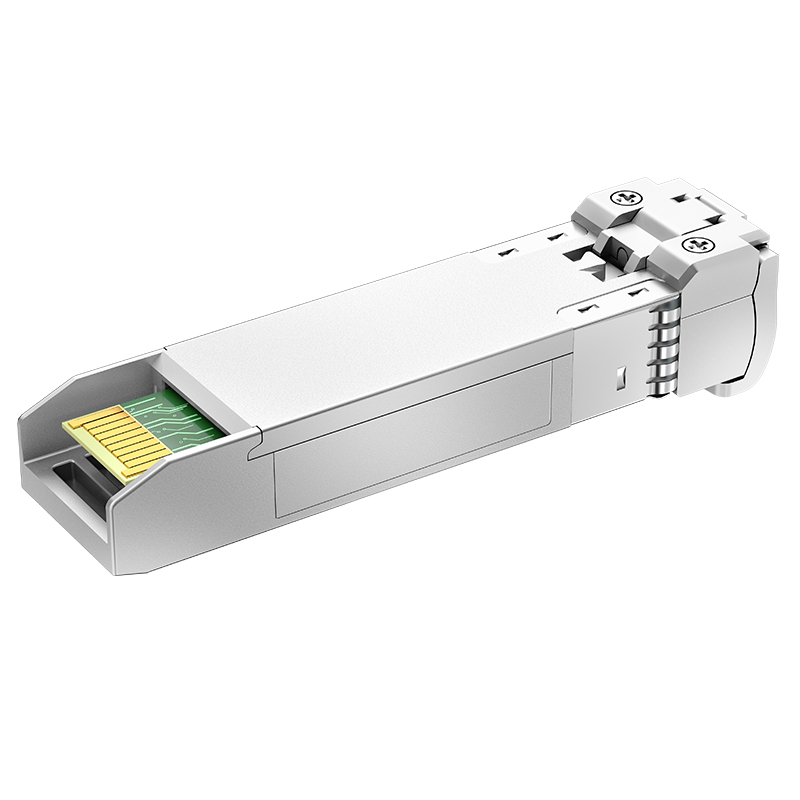

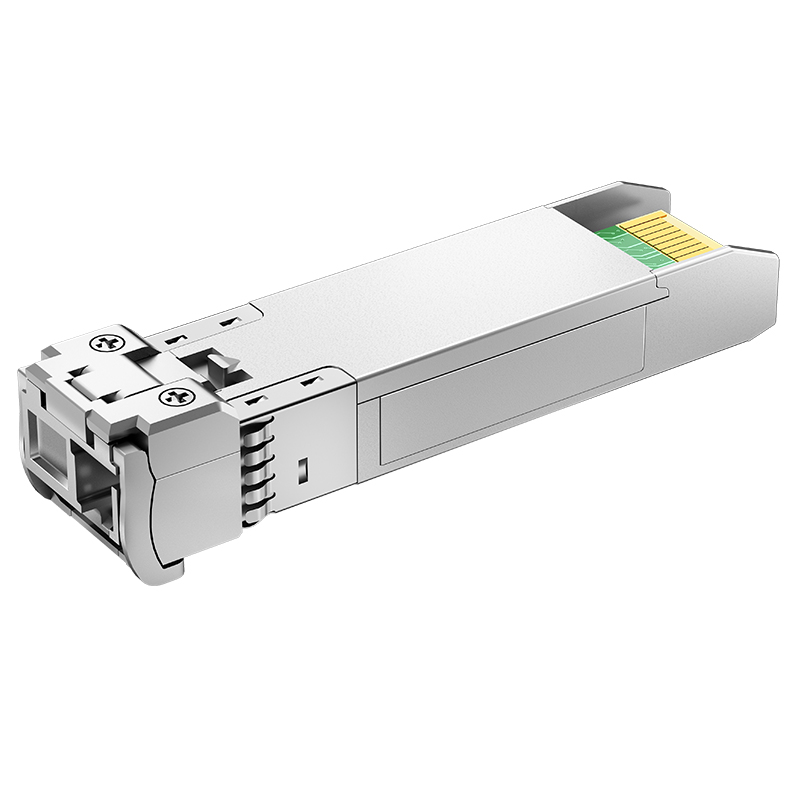

1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module

Product Description

1310nm-TX/1270nm-RX Single Mode SFP28 25G BiDi 40km Simplex LC DDM Optical Transceiver Module
Products Description
Item 25G SFP28 Transceiver
Part No. LS-BL312725-40C
Part Status Active
Form Factor SFP28
Max Data Rate 25Gbps
Wavelength 1310nm-TX/1270nm-RX
Max Cable Distance 40km
Media SMF
Connector Simplex LC
Optical Component DFB/APD
TX Power 0~6dBm
Receiver Sensitivity <-18dBm
Receiver Overload 2dBm
Power Consumption 1.2W
Extinction Ratio 3.5dB
DDM/DOM Supported
Commercial Temperature Range 0℃ to 70°C / -40℃ to 85℃
Protocols MSA Compliant, CPRI, eCPRI
Warranty 5 Years
Sample Available
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solution Overview
Products Overview
Production Detail 1 Production Detail 2 Production Detail 3
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM devices with almost all optical elements - from active modules to optical passive components, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
We provide high-reliability and high-performance products utilizing mature and efficient lasers and mainstream chip solutions to our customers around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which meet the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Manufacturing Certifications
⚙ Related Products SFP Cage ⚙
SFP Cage Related Products
Why Choose Us
Quality Standard Testing Equipment Factory Efficiency Fast Shipping
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. Our factory owns advanced manufacturing facilities and testing equipment imported from abroad.

Established in 1997, our company currently has around 2,000 staff members. With an abundant production capacity of 3,000K units per month, we are able to deliver products within a short lead time.

Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronics technologies, we develop, manufacture, and sell products to clients around the world.
Company Facility 1 Company Facility 2
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping cost.
3. What is your delivery time?
We have ready-to-ship inventory for standard stock items, and a 15-30 days lead time for mass production.
4. What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can discuss the technical details and specifications.
6. What is your advantage?
We have over 19 years of manufacturing experience and maintain long-term partnerships with leading global technology providers.
