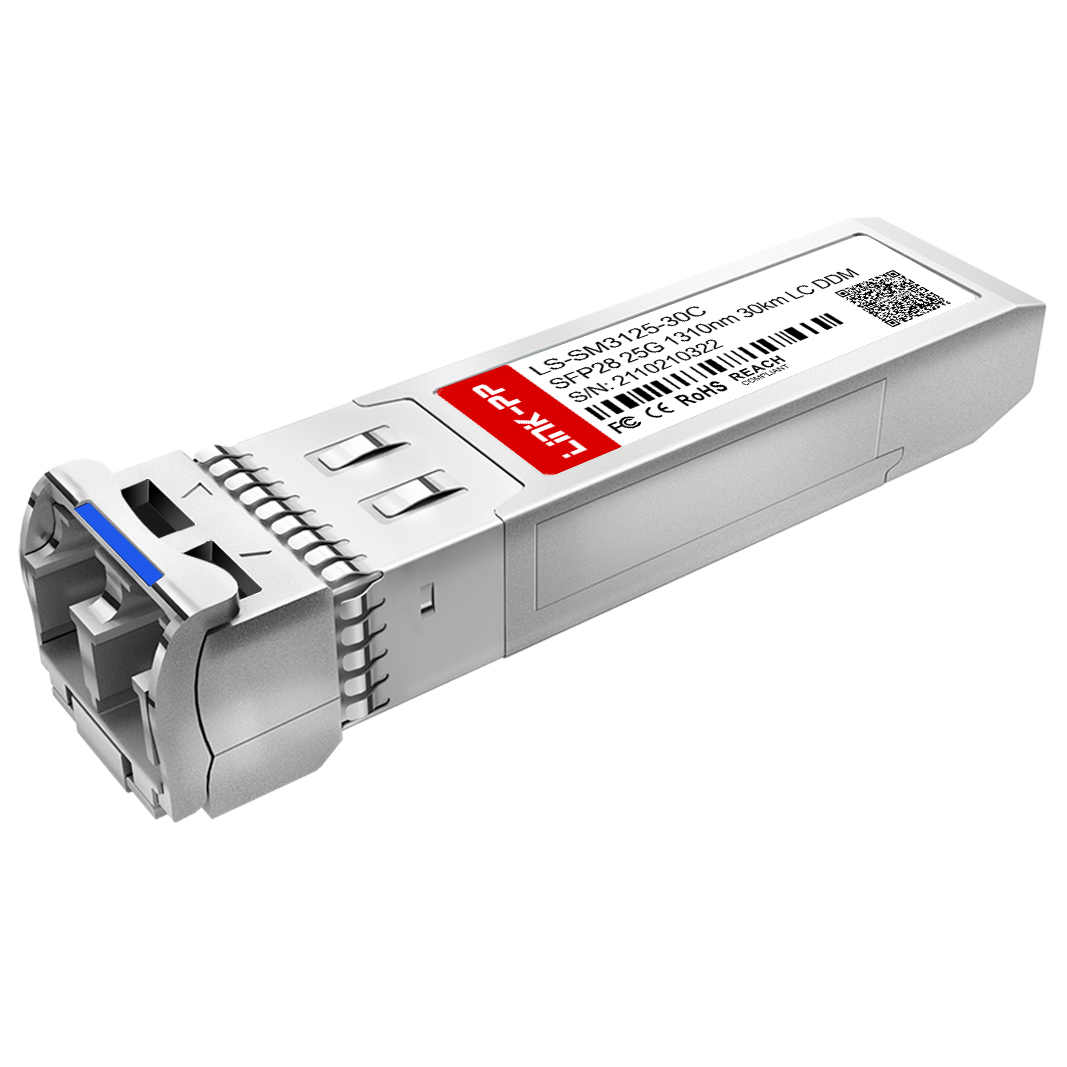

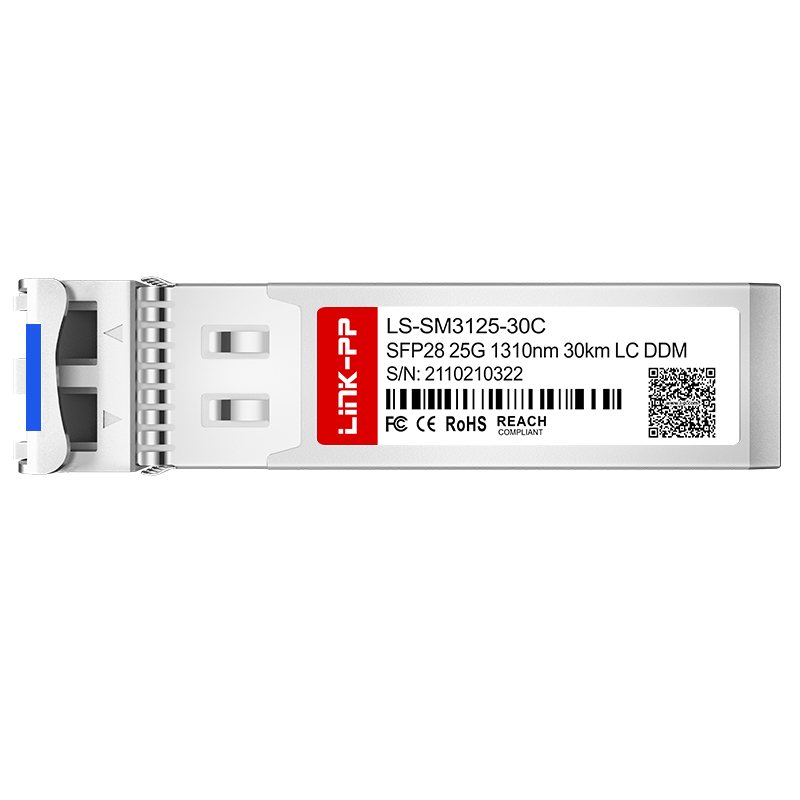

| Item | 25G SFP28 Transceiver |
| Part No. | LS-SM3125-30C |
| Part Status | Active |
| Form Factor | SFP28 |
| Max Data Rate | 25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 30km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | DML/APD |
| TX Power | 0~6dBm |
| Receiver Sensitivity | <-19dBm |
| Receiver Overload | -4dBm |
| Power Consumption | ≤2.2W |
| Extinction Ratio | 4dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0°C to 70°C / -40°C to 85°C |
| Protocols | MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
End-to-end DWDM devices can be provided with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
High reliability and performance products are provided with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which meet all the needs of various scenarios in 4G/5G systems.
Aimed at global communication network constructors, total FTTx optical fiber access solutions are provided, covering all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, optical cable O&M solutions are provided, integrating an optical line protection system (OLP) and an optical line monitoring system (OLM).
