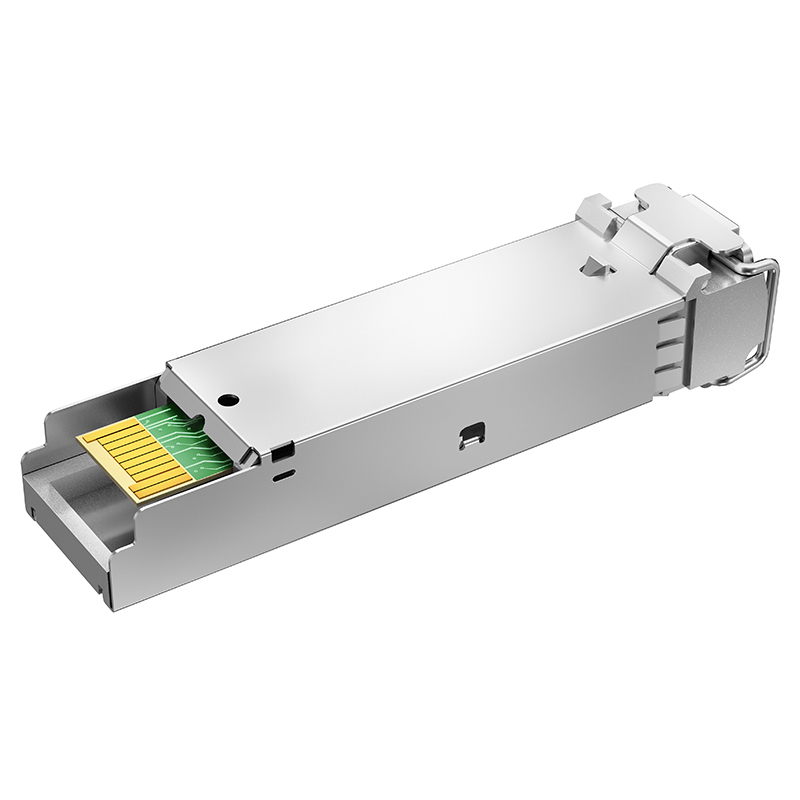

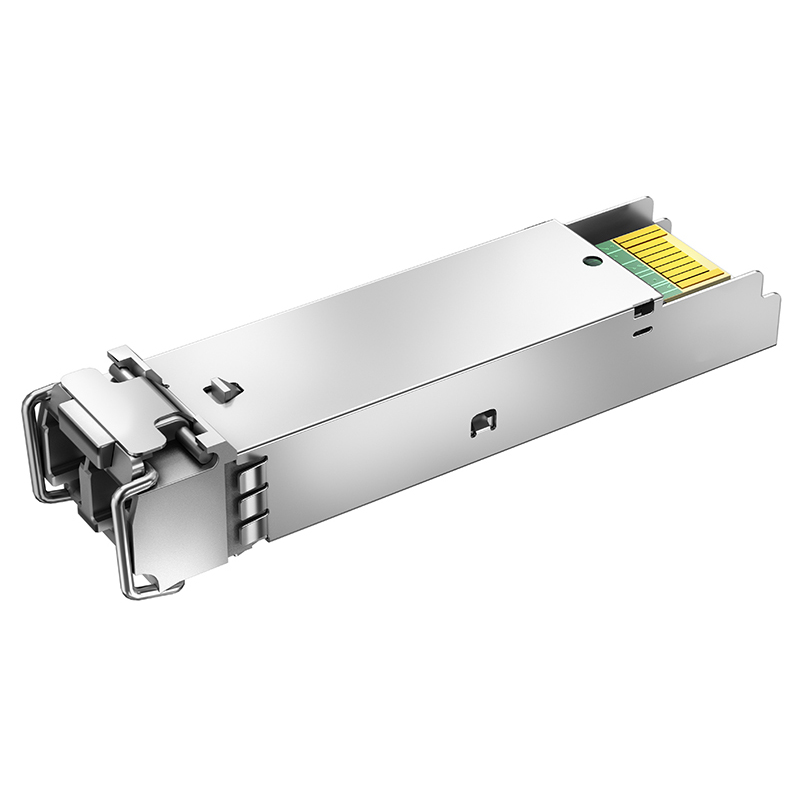

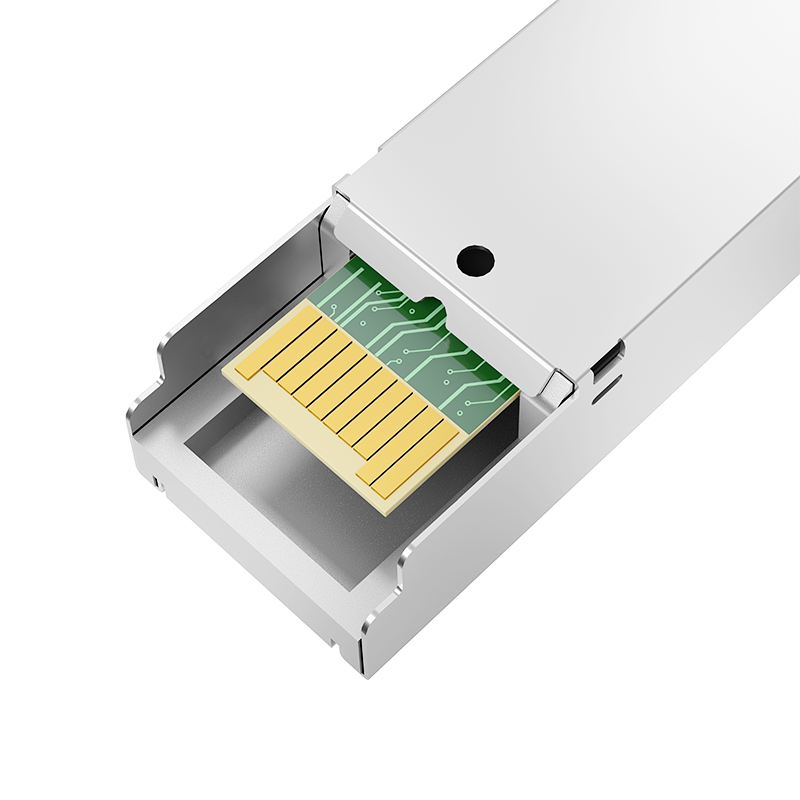

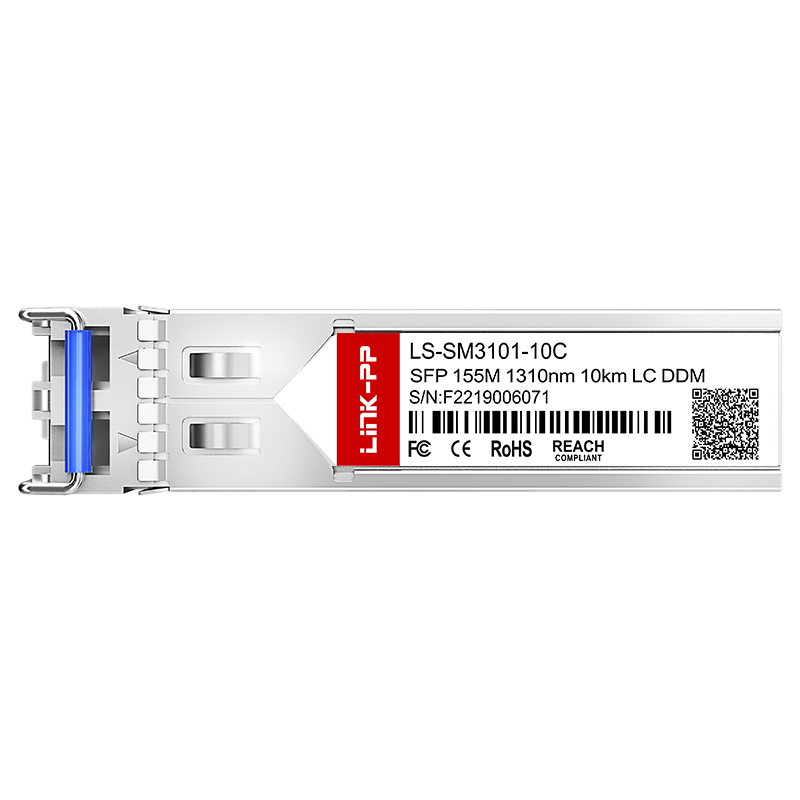

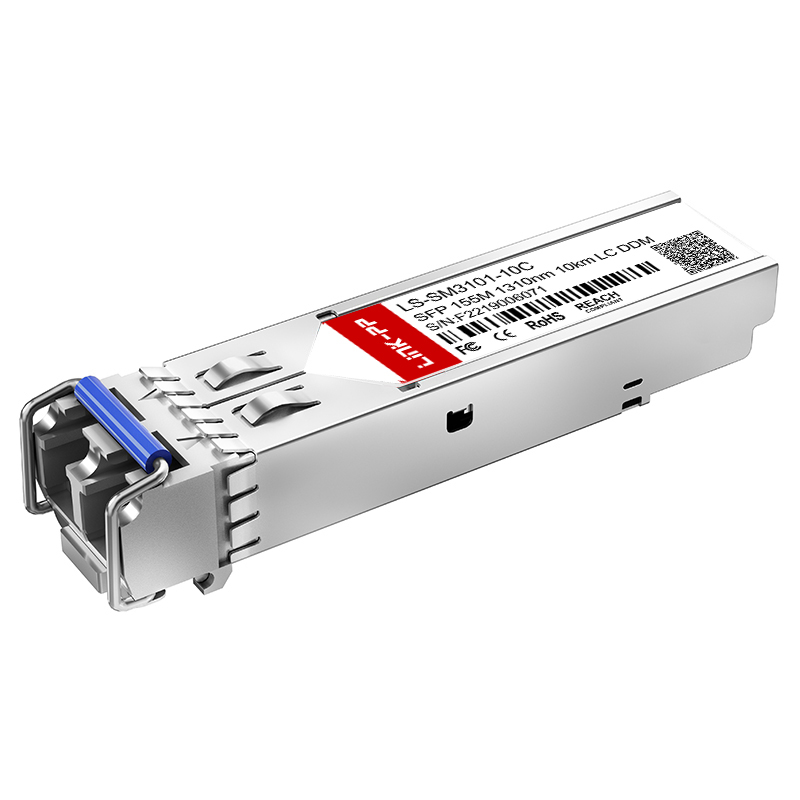

| Item | 100BASE SFP |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 100Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 10km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | FP 1310nm |
| TX Power | -15~-8dBm |
| Receiver Sensitivity | < -32.5dBm |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE802.3ab, GR-468, MSA Compliant |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
A full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
End-to-end DWDM device solutions can be provided with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
To meet the demand for mass data transmission in data centers, a series of high-speed optical modules has been developed, with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
High reliability and performance products are provided with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul, which meet all the needs of various scenarios in 4G/5G systems.
Aiming at global communication network constructors, total FTTx optical fiber access solutions are provided, covering from all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, an optical cable O&M solution is provided, which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE, and UL, owning advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, with around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver products within a short time.
Moreover, a full series of optical modules is provided for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you a free sample to test quality, but the shipping fee needs to be covered.
Ready-to-ship items are available immediately from stock, and it takes 15-30 days for mass production orders.
We offer a one-year guarantee period along with 24-hour online technical support.
Yes, custom solutions are welcome. Please contact us with your specifications so that we can have a detailed discussion.
We possess over 19 years of dedicated production experience and have partnered with global industry leaders for many years, assuring reliable and certified optical components.
