We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

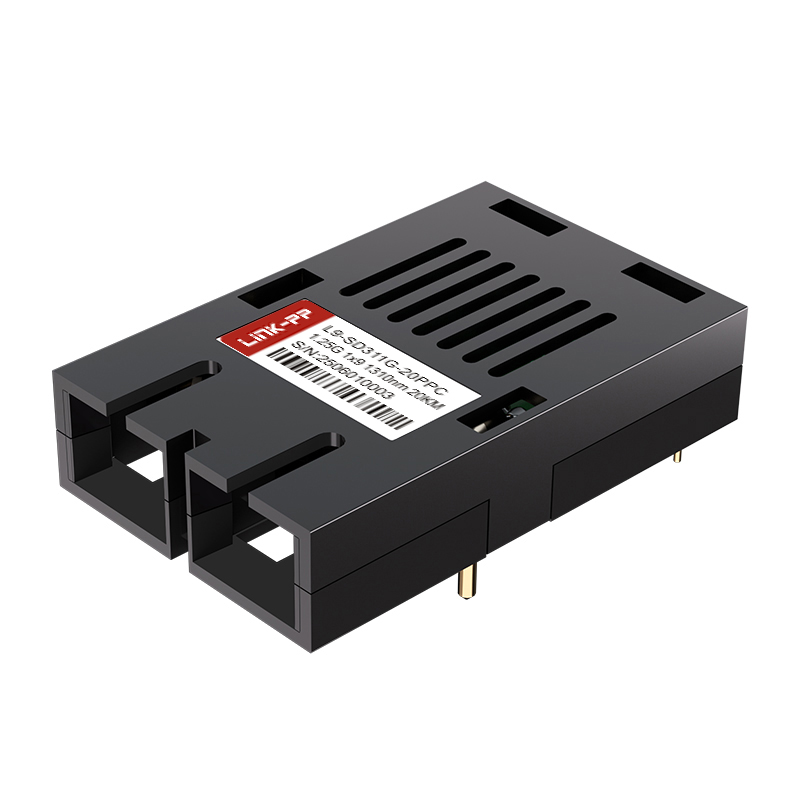

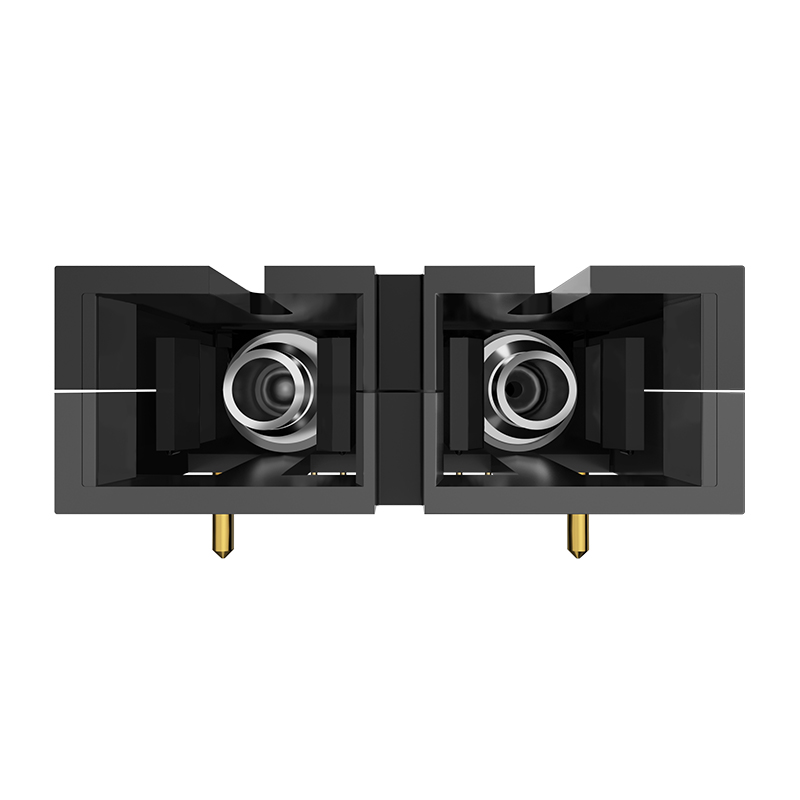

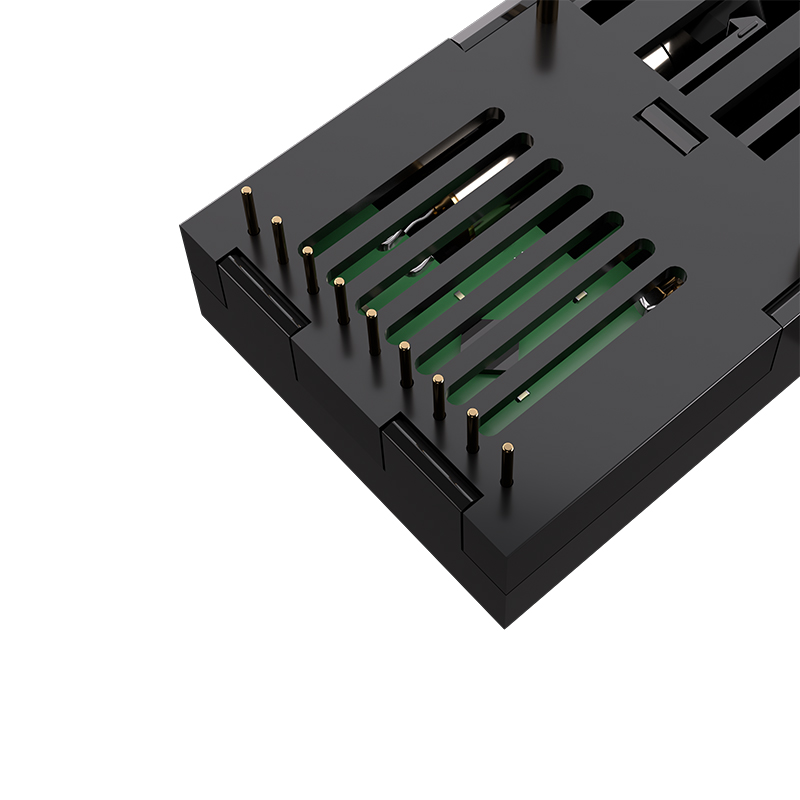

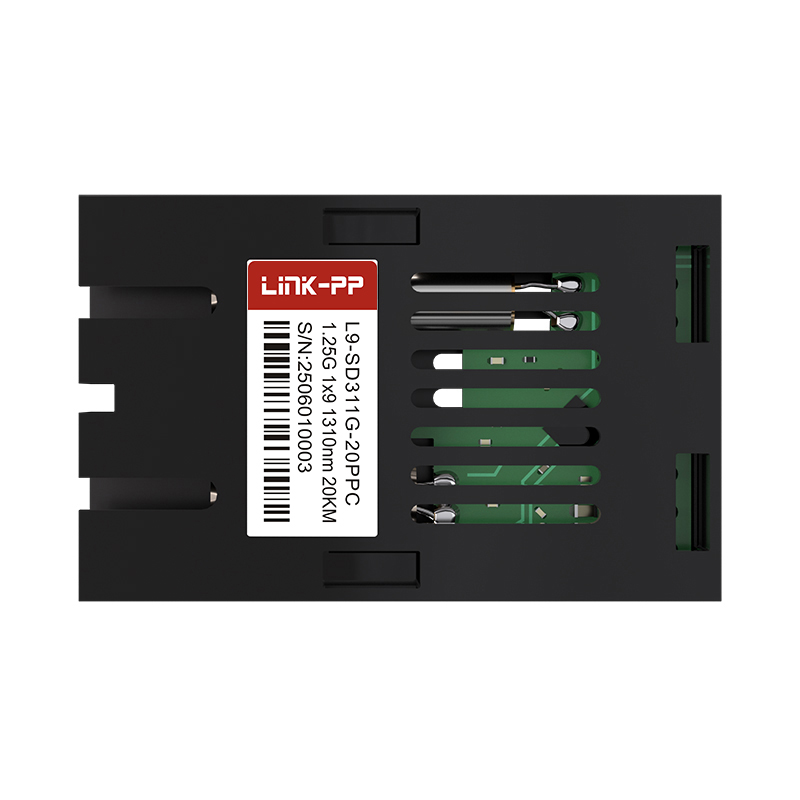

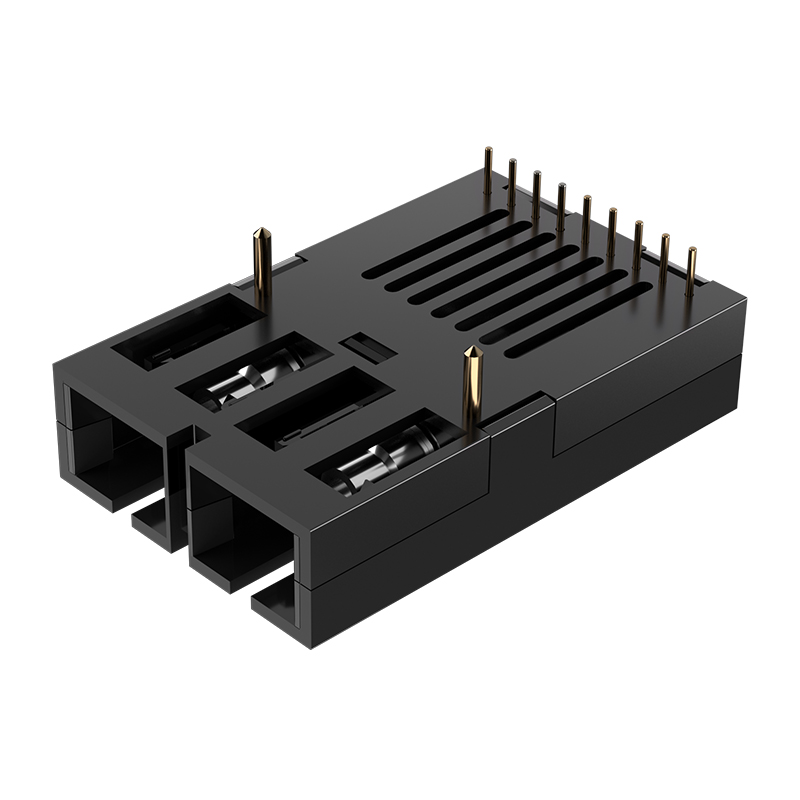

| Part No. | L9-SD311G-20PPC |
| Form Factor | 1x9 |
| Max Data Rate | 1.25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 20km |
| Connector | Duplex SC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -10 ~ -3dBm |
| Receiver Sensitivity | < -23dBm |
| Protocols | Multi-sourced 1×9 protocol. |
| Temperature Range | 0 to 70°C |
| Warranty | 5 Years |
| Sample | Available |
| Model | Description |
|---|---|
| L9-SD312M-02TTC5 | 1x9 2Mbps, 1310nm(FP), 2km, MMF, Duplex SC, 0℃-70℃ |
| L9-SD312M-02TTI5 | 1x9 2Mbps, 1310nm(FP), 2km, MMF, Duplex SC, -40℃-85℃ |
| L9-SD312M-20TTC5 | 1x9 2Mbps, 1310nm(FP), 20km, SMF, Duplex SC, 0℃-70℃ |
| L9-SD312M-20TTI5 | 1x9 2Mbps, 1310nm(FP), 20km, SMF, Duplex SC, -40℃-85℃ |
| L9-SD312M-40TTC5 | 1x9 2Mbps, 1310nm(FP), 40km, SMF, Duplex SC, 0℃-70℃ |
| L9-SD312M-40TTI5 | 1x9 2Mbps, 1310nm(FP), 40km, SMF, Duplex SC, -40℃-85℃ |
| L9-SD851G-S5CTC | 1x9 1.25Gbps, 850nm(Vcsel), 500m, MMF, Duplex SC, 0℃-70℃ |
| L9-SD311G-S5CTC | 1x9 1.25Gbps, 1310nm(FP), 550m, MMF, Duplex SC, 0℃-70℃ |
| L9-SD311G-10CTC | 1x9 1.25Gbps, 1310nm(FP), 10km, SMF, Duplex SC, 0℃-70℃ |
| L9-SD311G-20CTC | 1x9 1.25Gbps, 1310nm(FP), 20km, SMF, Duplex SC, 0℃-70℃ |
| L9-SD311G-40CTC | 1x9 1.25Gbps, 1310nm(DFB), 40km, SMF, Duplex SC, 0℃-70℃ |
| L9-SD551G-20CTC | 1x9 1.25Gbps, 1550nm(DFB), 20km, SMF, Duplex SC, 0℃-70℃ |
| L9-SD551G-40CTC | 1x9 1.25Gbps, 1550nm(DFB), 40km, SMF, Duplex SC, 0℃-70℃ |
| L9-SD551G-80CTC | 1x9 1.25Gbps, 1550nm(DFB), 80km, SMF, Duplex SC, 0℃-70℃ |
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad.
Established in 1997, we have about 2,000 employees at present. With an abundant production capacity of 3,000K per month, we are able to deliver products within a short timeframe.
In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture and sell products worldwide.
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, and more.
Yes, we can offer you free samples to test quality, but shipping costs will be covered by the buyer.
For stock items, products are ready to ship. For mass production orders, the delivery timeframe is typically 15-30 days.
We offer a one-year warranty period and provide 24-hour online technical support.
Yes, please send your inquiries to us so we can discuss the custom design and technical specifications in detail.
We have over 19 years of dedicated production experience and long-term partnerships with global industry leaders.
