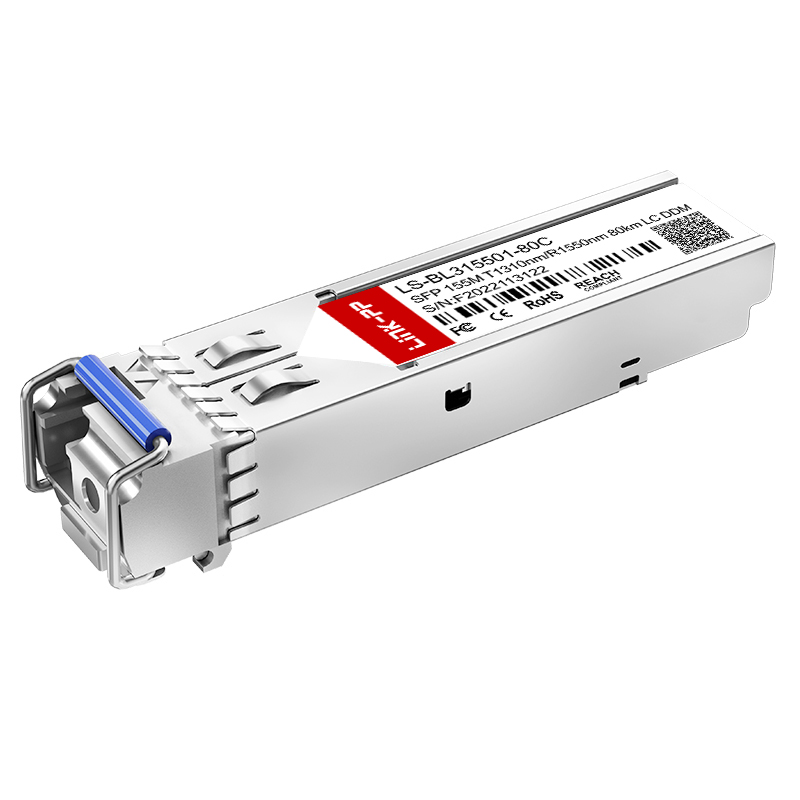

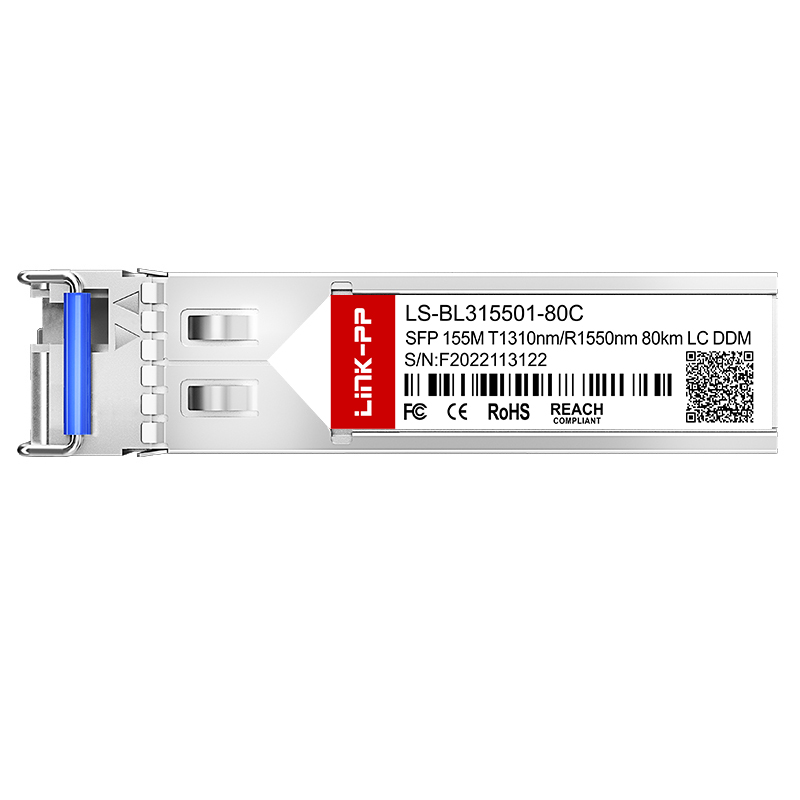

| Part No. | LS-BL315501-80C |
| Form Factor | SFP |
| Max Data Rate | 155Mbps |
| Wavelength | 1310nm-TX/1550nm-RX |
| Max Cable Distance | 80km |
| Connector | Simplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -5 ~ 2dBm |
| Receiver Sensitivity | < -32dBm |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | SFP MSA and SFF-8472 |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
| Part Number | Data Rate | Wavelength | Distance | Components | DDM |
|---|---|---|---|---|---|
| LS-BL315501-10C | 155Mbps | 1310nm-TX/1550nm-RX | 10km | FP/PIN | Yes |
| LS-BL553101-10C | 155Mbps | 1550nm-TX/1310nm-RX | 10km | FP/PIN | Yes |
| LS-BL315501-15C | 155Mbps | 1310nm-TX/1550nm-RX | 15km | FP/PIN | Yes |
| LS-BL553101-15C | 155Mbps | 1550nm-TX/1310nm-RX | 15km | FP/PIN | Yes |
| LS-BL315501-20C | 155Mbps | 1310nm-TX/1550nm-RX | 20km | FP/PIN | Yes |
| LS-BL553101-20C | 155Mbps | 1550nm-TX/1310nm-RX | 20km | FP/PIN | Yes |
| LS-BL315501-40C | 155Mbps | 1310nm-TX/1550nm-RX | 40km | FP/PIN | Yes |
| LS-BL553101-40C | 155Mbps | 1550nm-TX/1310nm-RX | 40km | FP/PIN | Yes |
| LS-BL315501-80C | 155Mbps | 1310nm-TX/1550nm-RX | 80km | FP/PIN | Yes |
| LS-BL553101-80C | 155Mbps | 1550nm-TX/1310nm-RX | 80km | FP/PIN | Yes |
| LS-BL495501-80C | 155Mbps | 1490nm-TX/1550nm-RX | 80km | DFB/PIN | Yes |
| LS-BL554901-80C | 155Mbps | 1550nm-TX/1490nm-RX | 80km | DFB/PIN | Yes |
1. Are you a manufacturer or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including connectors, LAN transformers, and SFP transceiver modules.
2. Can I get a sample before placing a mass production order?
Yes, we can provide free samples for quality evaluation, though shipping costs are to be covered by the client.
3. What is your estimated delivery time?
Stock items are ready for immediate shipment, while standard mass production orders typically take 15 to 30 days.
4. What kind of after-sales service and support do you offer?
We provide a one-year warranty period alongside online technical support to assist you with configurations and inquiries.
5. Can you accommodate OEM/ODM requirements?
Yes, we gladly accept OEM/ODM orders. Please send us your specifications for detailed project discussion.
6. What are the key advantages of your products?
We carry nearly two decades of production expertise and have maintained stable partnerships with major global technology integration corporations for many years.
