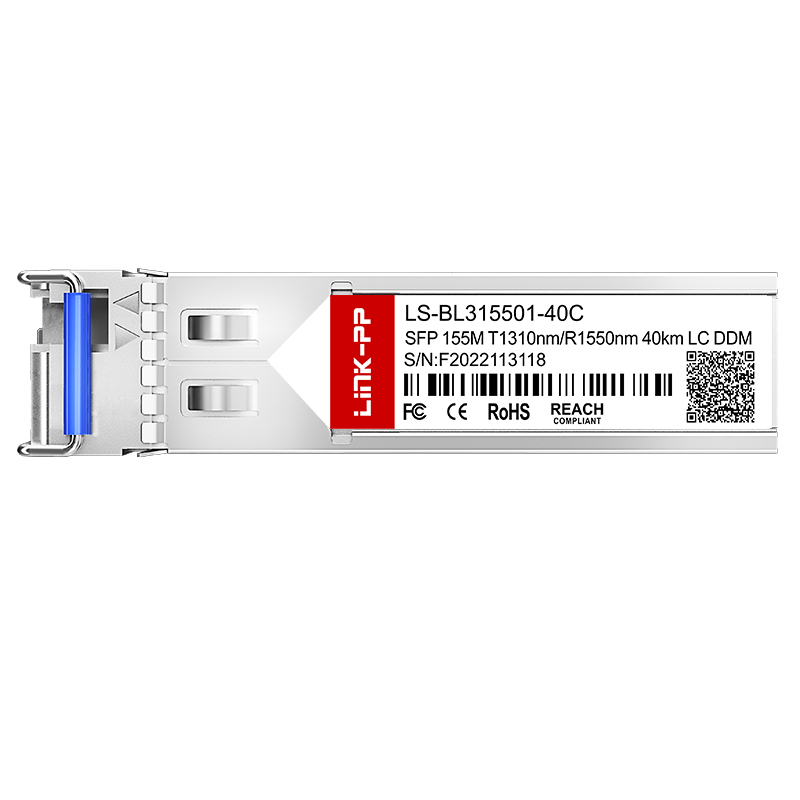

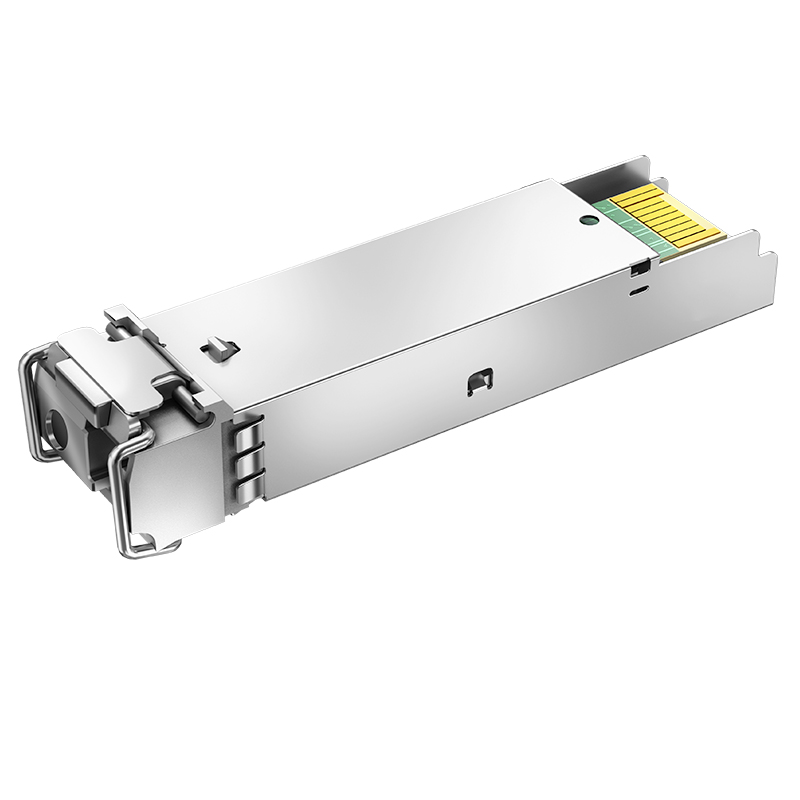

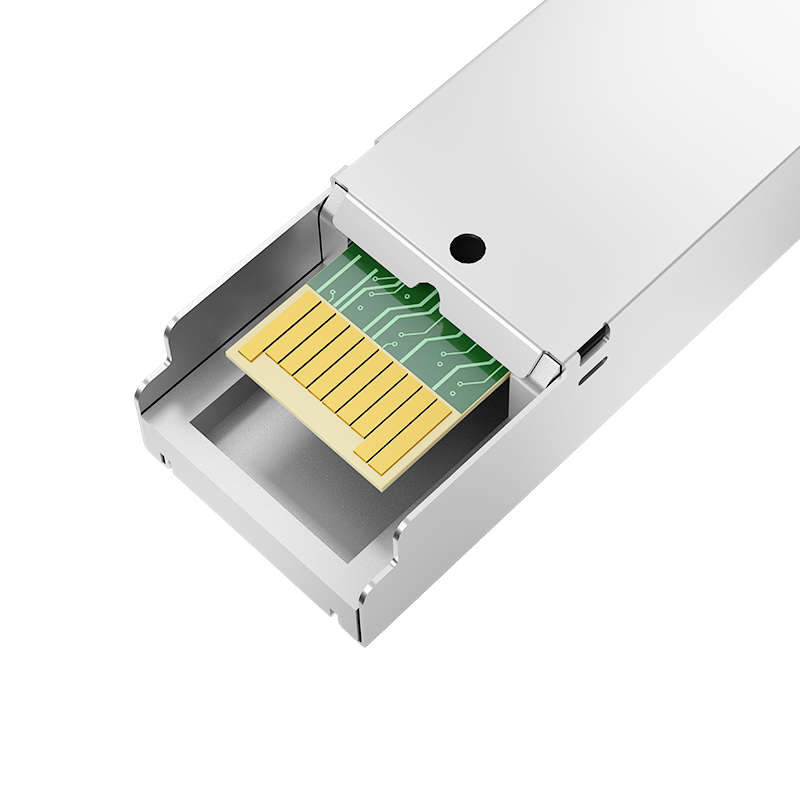

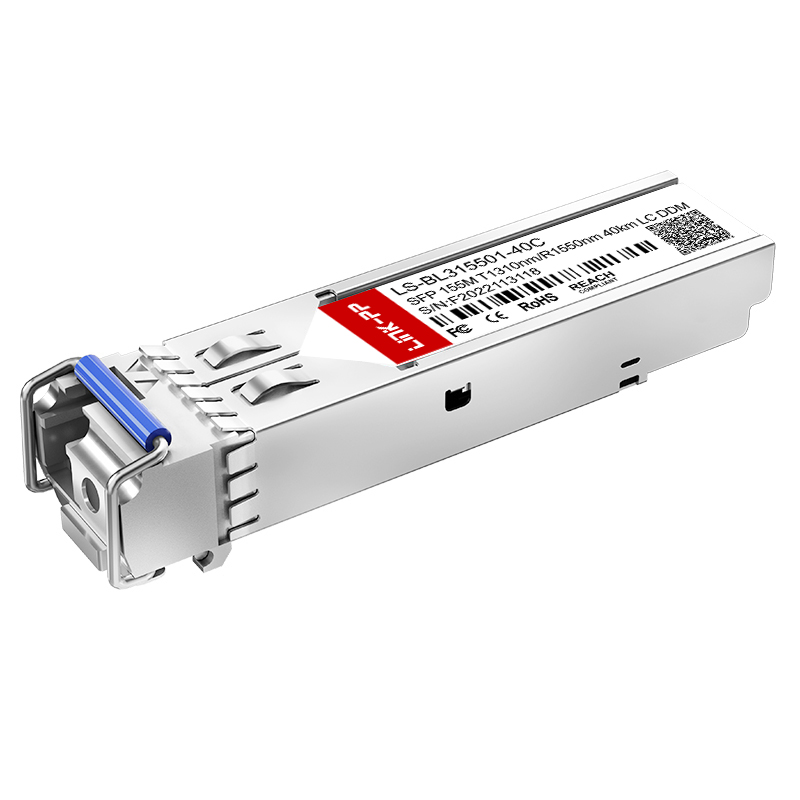

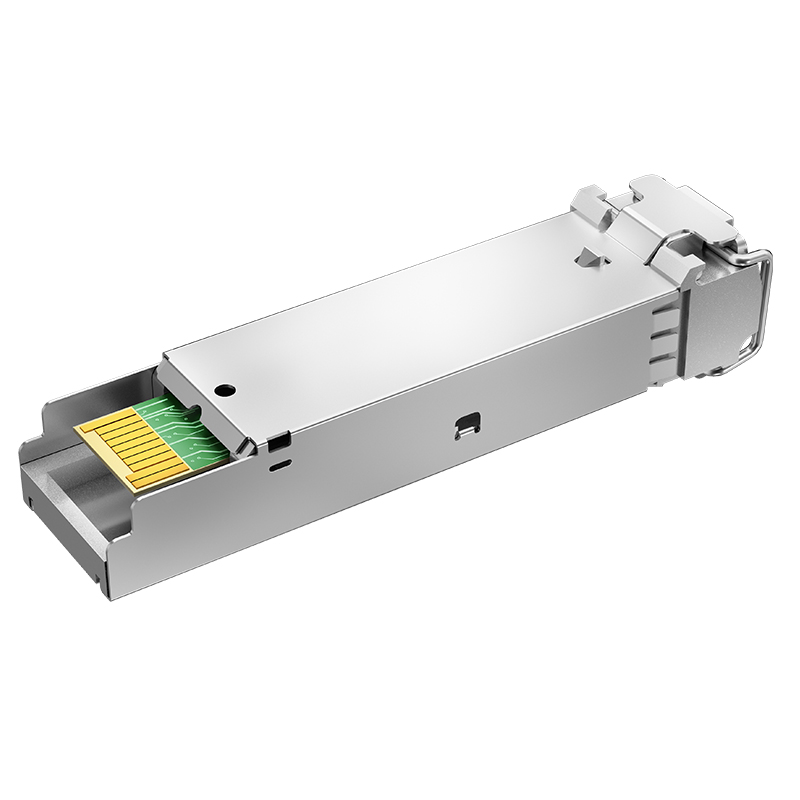

| Product Specifications | |
|---|---|
| Part No. | LS-BL315501-40C |
| Form Factor | SFP |
| Max Data Rate | 155Mbps |
| Wavelength | 1310nm-TX/1550nm-RX |
| Max Cable Distance | 40km |
| Connector | Simplex LC |
| Media | SMF |
| Transmitter Type | FP |
| Receiver Type | PIN |
| TX Power | -8 ~ -1dBm |
| Receiver Sensitivity | < -32dBm |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | SFP MSA and SFF-8472 |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Components | DDM |
|---|---|---|---|---|---|
| LS-BL315501-10C | 155Mbps | 1310nm-TX/1550nm-RX | 10km | FP/PIN | Yes |
| LS-BL553101-10C | 155Mbps | 1550nm-TX/1310nm-RX | 10km | FP/PIN | Yes |
| LS-BL315501-15C | 155Mbps | 1310nm-TX/1550nm-RX | 15km | FP/PIN | Yes |
| LS-BL553101-15C | 155Mbps | 1550nm-TX/1310nm-RX | 15km | FP/PIN | Yes |
| LS-BL315501-20C | 155Mbps | 1310nm-TX/1550nm-RX | 20km | FP/PIN | Yes |
| LS-BL553101-20C | 155Mbps | 1550nm-TX/1310nm-RX | 20km | FP/PIN | Yes |
| LS-BL315501-40C | 155Mbps | 1310nm-TX/1550nm-RX | 40km | FP/PIN | Yes |
| LS-BL553101-40C | 155Mbps | 1550nm-TX/1310nm-RX | 40km | FP/PIN | Yes |
| LS-BL315501-80C | 155Mbps | 1310nm-TX/1550nm-RX | 80km | FP/PIN | Yes |
| LS-BL553101-80C | 155Mbps | 1550nm-TX/1310nm-RX | 80km | FP/PIN | Yes |
| LS-BL495501-80C | 155Mbps | 1490nm-TX/1550nm-RX | 80km | DFB/PIN | Yes |
| LS-BL554901-80C | 155Mbps | 1550nm-TX/1490nm-RX | 80km | DFB/PIN | Yes |
We can provide end-to-end DWDM devices with almost all optical elements - from active modules to optical passive components, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROHS, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad.
Established in 1997, our facility currently employs around 2,000 professionals. With an abundant production capacity of 3,000K units per month, we ensure prompt and reliable delivery schedules.
In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture, and distribute products worldwide.
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer free samples for quality evaluation, though shipping costs are to be covered by the customer.
Items currently in stock are ready for immediate shipment, while standard mass production orders typically require 15-30 days.
We provide a one-year warranty period along with dedicated 24-hour online technical support.
Yes, OEM and ODM projects are welcome. Please send us your requirements so we can discuss the details.
We offer over 19 years of dedicated manufacturing experience, acting as a trusted optical module and component partner for global leading enterprises.
