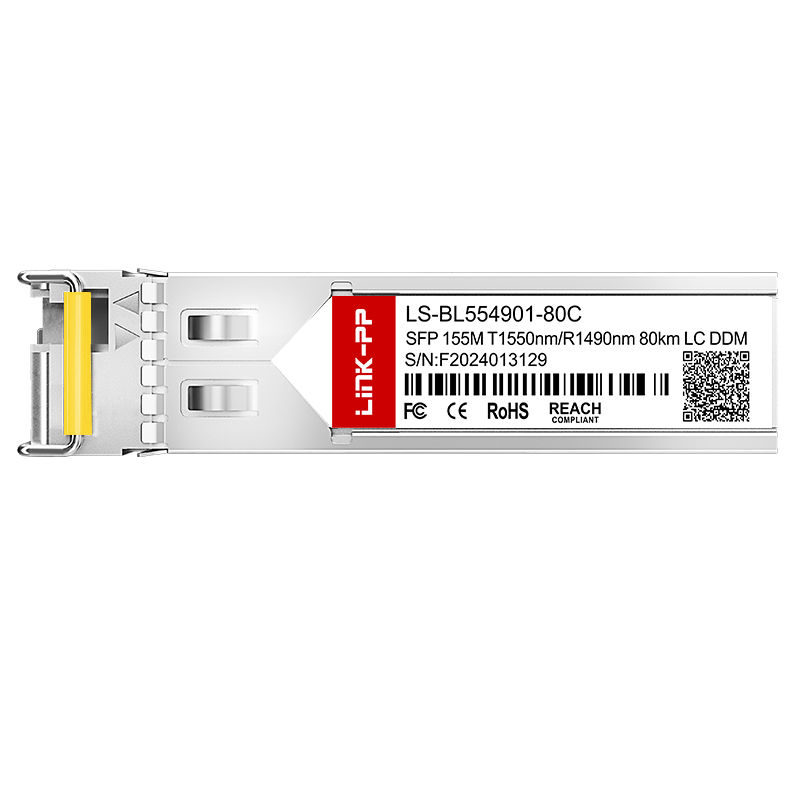

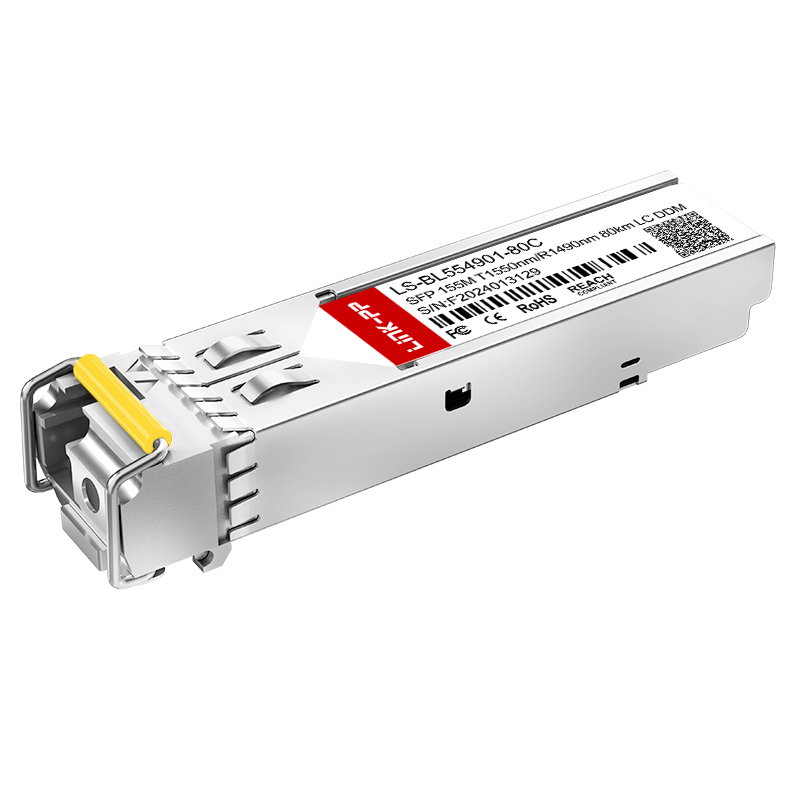

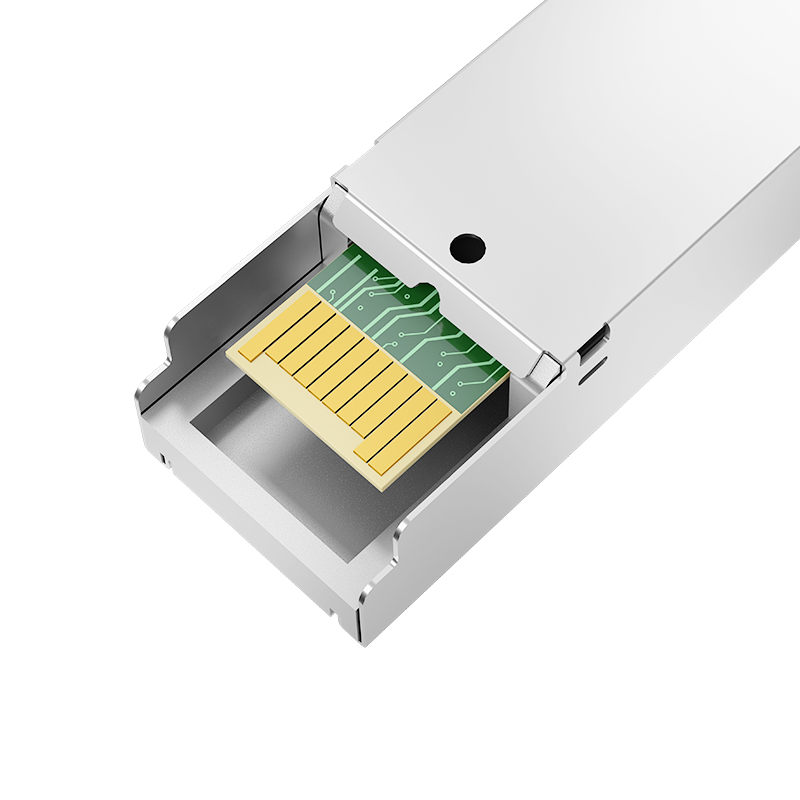

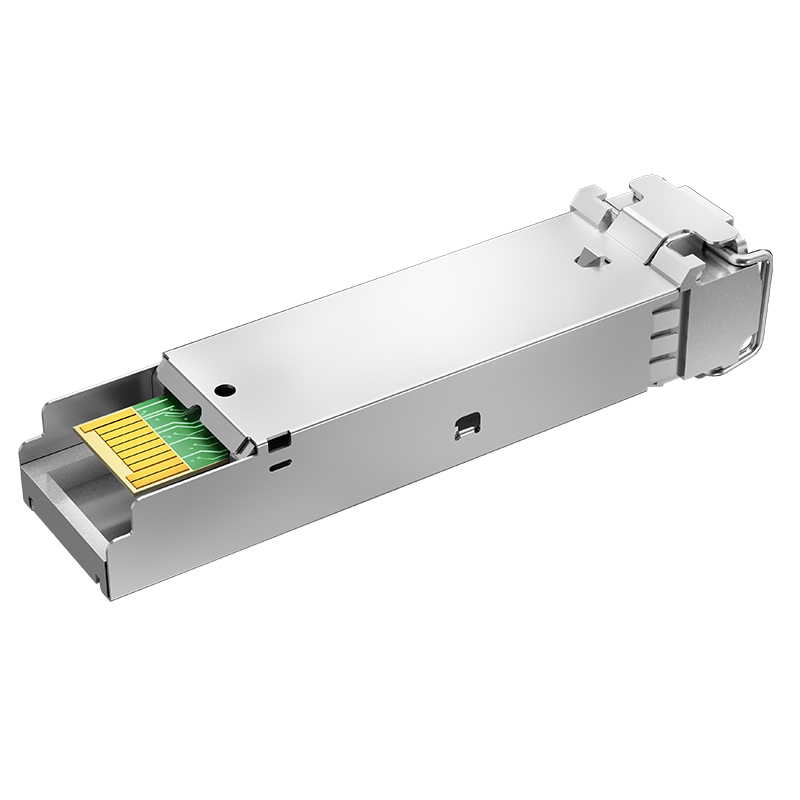

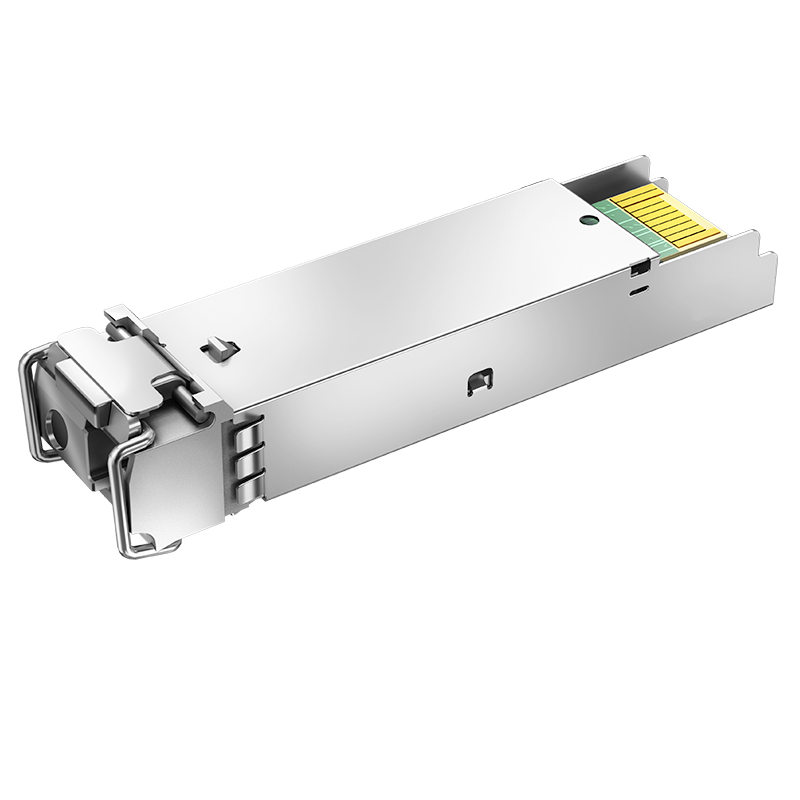

1550nm-TX/1490nm-RX Simplex LC SFP Bidi 80km 155M Single Mode LC Optic Transceiver Module

Product Description

1550nm-TX/1490nm-RX Simplex LC SFP Bidi 80km 155M Single Mode LC Optic Transceiver Module
Part No.LS-BL554901-80C
Form FactorSFP
Max Data Rate155Mbps
Wavelength1550nm-TX/1490nm-RX
Max Cable Distance80km
ConnectorSimplex LC
MediaSMF
Transmitter TypeFP
Receiver TypePIN
TX Power-5 ~ 2dBm
Receiver Sensitivity< -32dBm
EMC (Electro Magnetic Compatibility)Supported
DDM/DOMSupported
ProtocolsSFP MSA and SFF-8472
Temperature Range0 to 70°C / -40 to 85°C
Warranty5 Years
SampleAvailable
View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Module Solution
Support Full Range Of 155M BiDi SFP
Part Number Data Rate Wavelength Distance Components DDM
LS-BL315501-10C155Mbps1310nm-TX/1550nm-RX10kmFP/PINYes
LS-BL553101-10C155Mbps1550nm-TX/1310nm-RX10kmFP/PINYes
LS-BL315501-15C155Mbps1310nm-TX/1550nm-RX15kmFP/PINYes
LS-BL553101-15C155Mbps1550nm-TX/1310nm-RX15kmFP/PINYes
LS-BL315501-20C155Mbps1310nm-TX/1550nm-RX20kmFP/PINYes
LS-BL553101-20C155Mbps1550nm-TX/1310nm-RX20kmFP/PINYes
LS-BL315501-40C155Mbps1310nm-TX/1550nm-RX40kmFP/PINYes
LS-BL553101-40C155Mbps1550nm-TX/1310nm-RX40kmFP/PINYes
LS-BL315501-80C155Mbps1310nm-TX/1550nm-RX80kmFP/PINYes
LS-BL553101-80C155Mbps1550nm-TX/1310nm-RX80kmFP/PINYes
LS-BL495501-80C155Mbps1490nm-TX/1550nm-RX80kmDFB/PINYes
LS-BL554901-80C155Mbps1550nm-TX/1490nm-RX80kmDFB/PINYes
BiDi SFP Series Overview
Transceiver Module Range
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Optical Transport Networks
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Wireless Networks
FTTx Solution
FTTx
Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Subsystems Solution
Related Products SFP Cage
Related Products SFP Cage
Why Choose Us
Company Profile
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Our company was established in 1997, we have about 2000 employees at present. With the abundant production capacity of 3000K per month, we are able to deliver products within a short time. In addition, we can provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture and sell products worldwide.
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock items and 15-30 days for mass production.
4. What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion regarding your custom specifications.
6. What is your advantage?
We possess over 19 years of dedicated manufacturing experience, maintaining high standards and reliable partnerships worldwide.
