2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
1 / 5
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver

2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver

Send Inquiry

Product Description

2.5GBASE-SX Multimode 850nm 2.5G SFP Module 300m Duplex LC MMF Optical Transceiver
2.5G SFP Module Overview
Products Description
Item 2.5G SFP
Part Status Active
Form Factor SFP
Max Data Rate 2.5Gbps
Wavelength 850nm
Max Cable Distance 300m
Media MMF
Connector Duplex LC
Optical Component VCSEL/PIN
TX Power -10~-3dBm
Receiver Sensitivity <-18dBm
Receiver Overload -3dBm
Power Consumption 1W
Extinction Ratio >8.2dB
DDM/DOM Supported
Commercial Temperature Range -10 to 70°C (-37 to 158°F)
Protocols SFP MSA(INF-8074i), GR-253-CORE, ITU-T G.957, FC-PI v2.0, SFF-8472 v9.5
Warranty 5 Years
Sample Available
SFP Module Specifications Diagram
SFP Module Interface

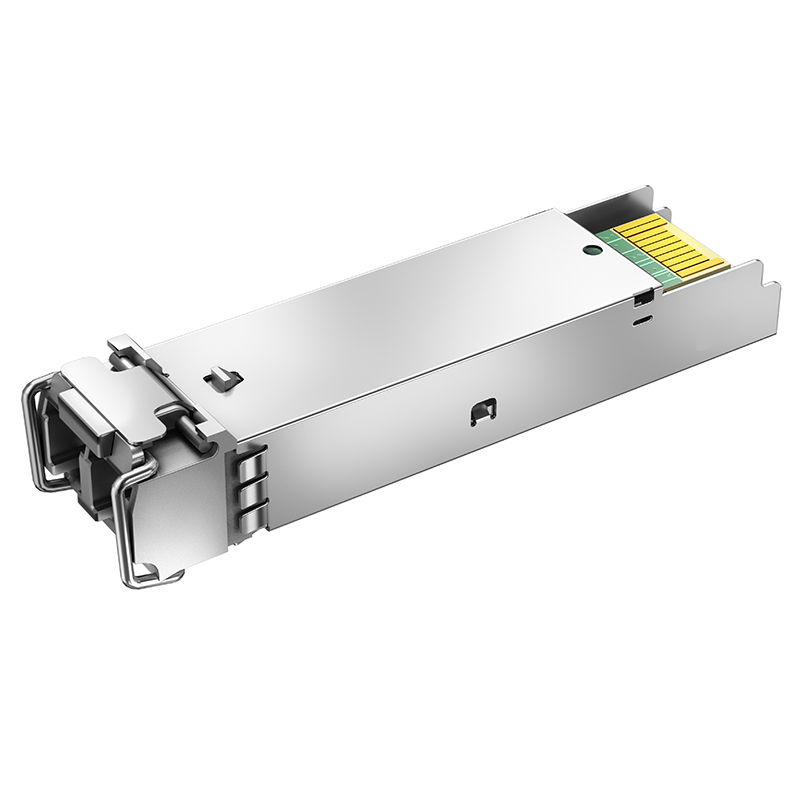

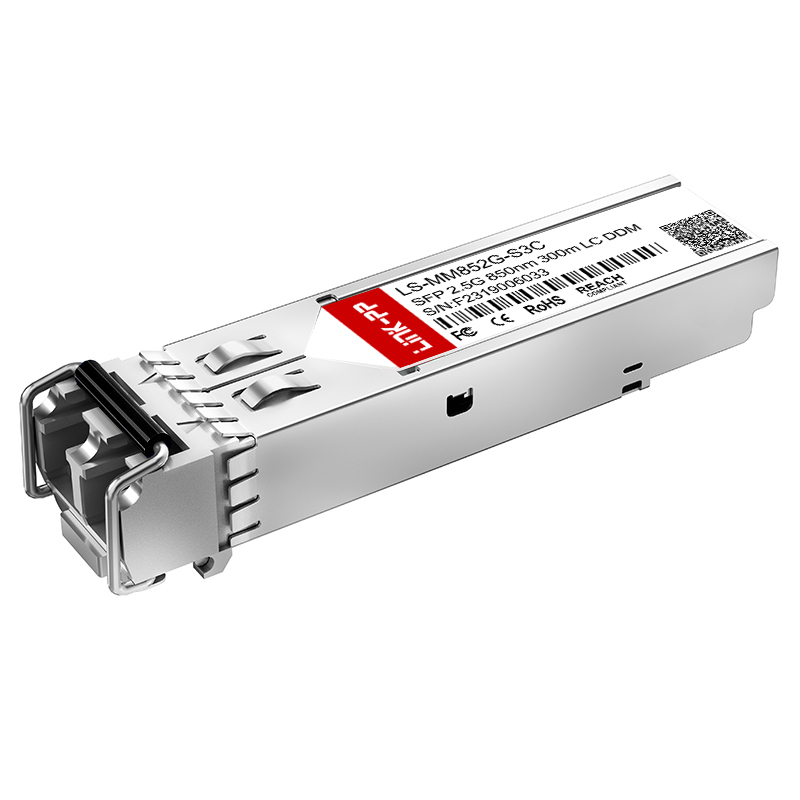

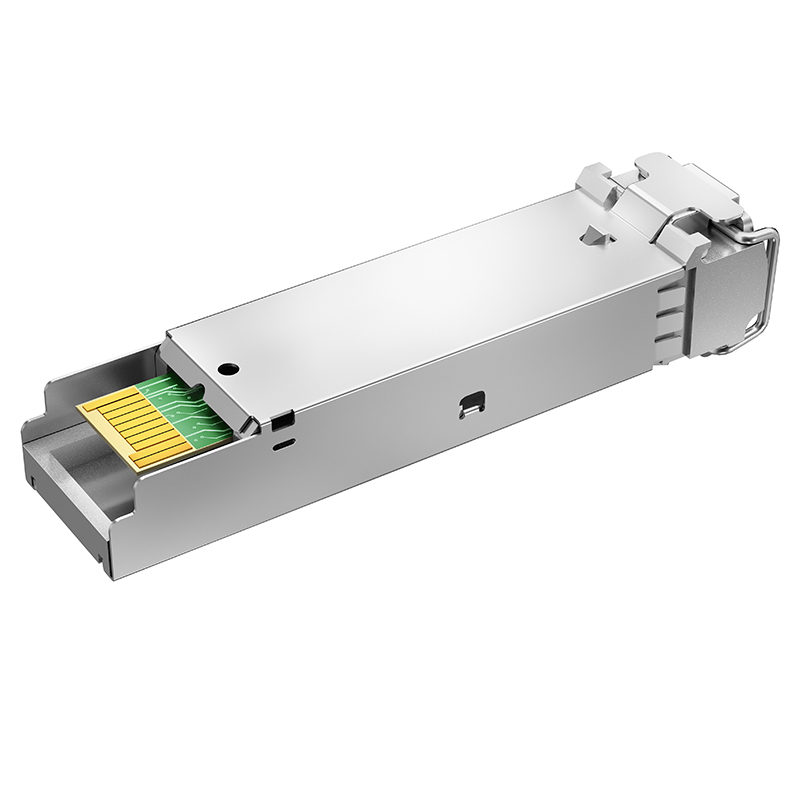

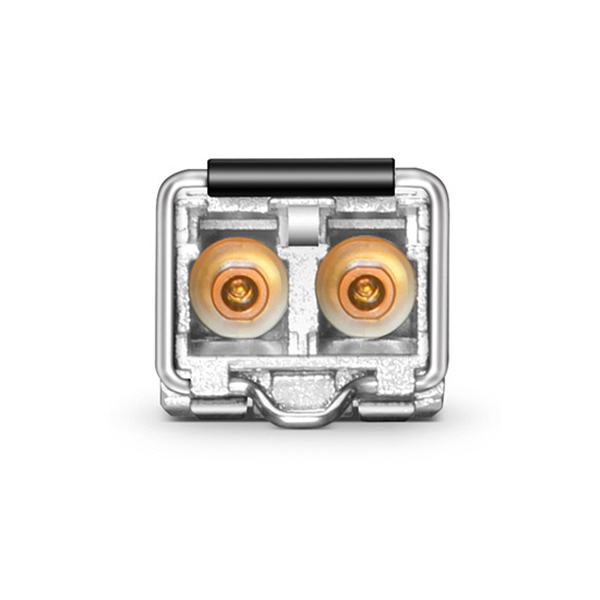

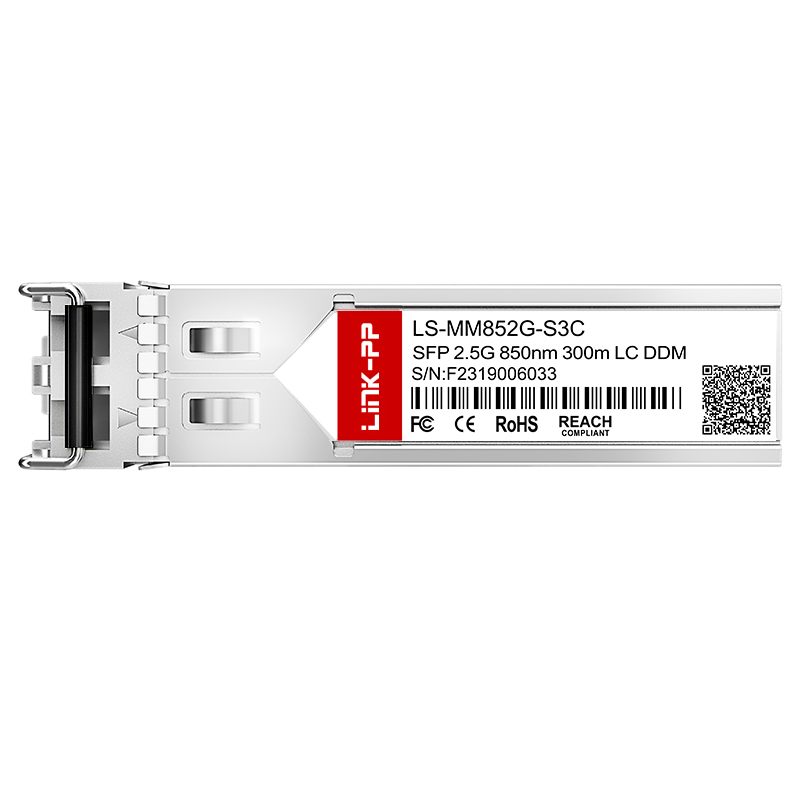

SFP Module Production View 1
SFP Module Production View 2
SFP Module Production View 3
SFP Module Production View 4
SFP Module Production View 5
SFP Cage Related Information
★ Related Products SFP Cage ★
SFP Cage Product 1
SFP Cage Product 2
Why Choose Us
Why Choose Us Reason 1
Why Choose Us Reason 2
Why Choose Us Reason 3
Why Choose Us Reason 4
Why Choose Us Reason 5
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, lan transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but shipping costs will need to be covered.
What is your delivery time?
Items currently in stock are ready to ship. For mass production, the lead time is typically between 15 to 30 days.
What after-service can you offer?
We provide a one-year warranty period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please contact us with your inquiries so we can discuss the details.
What is your advantage?
We have over 19 years of dedicated manufacturing experience and serve as partners to top-tier international technology clients.
