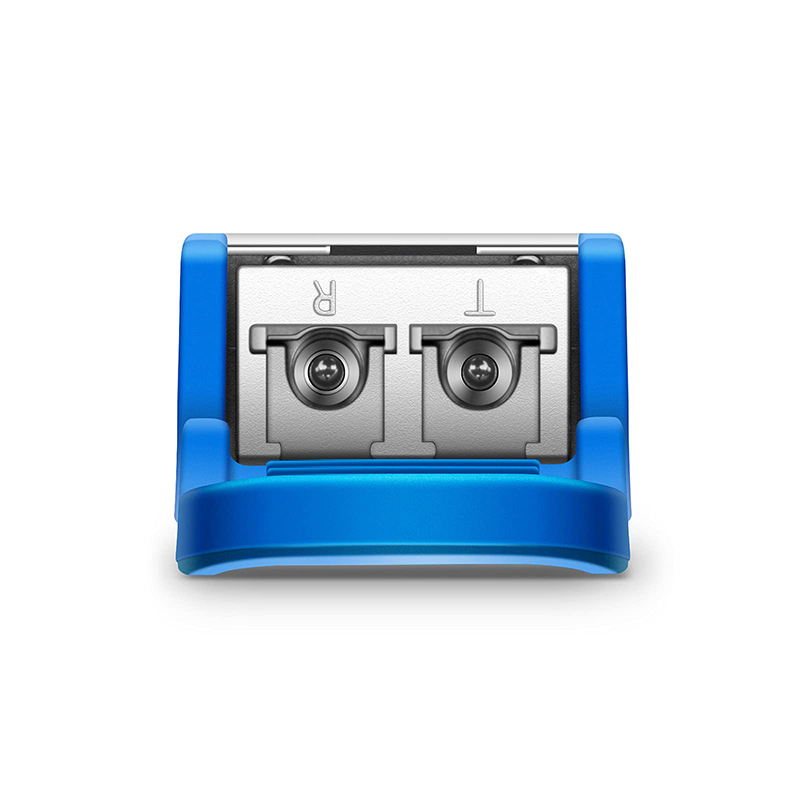

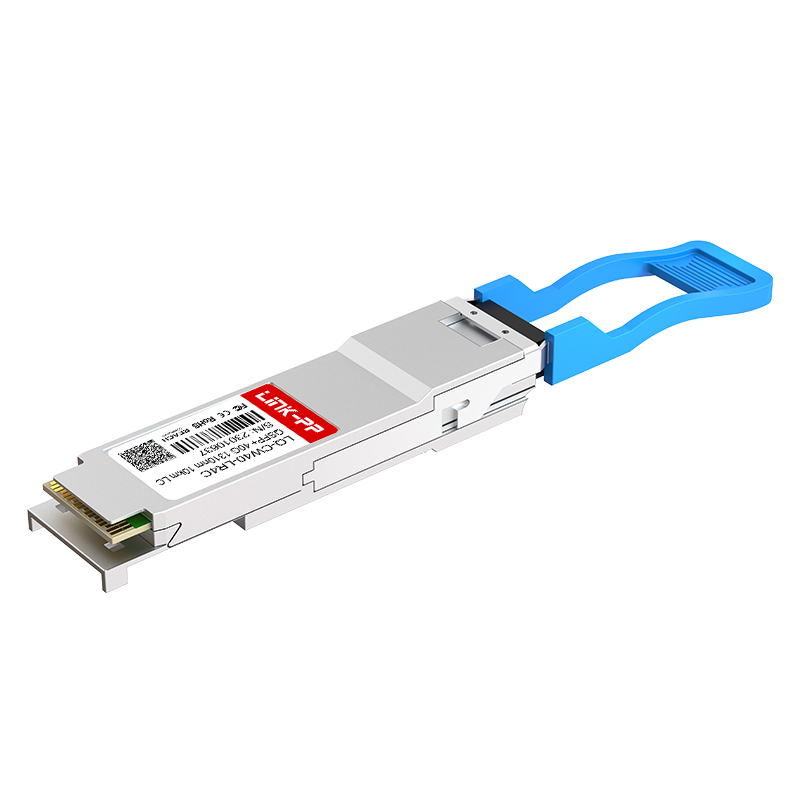

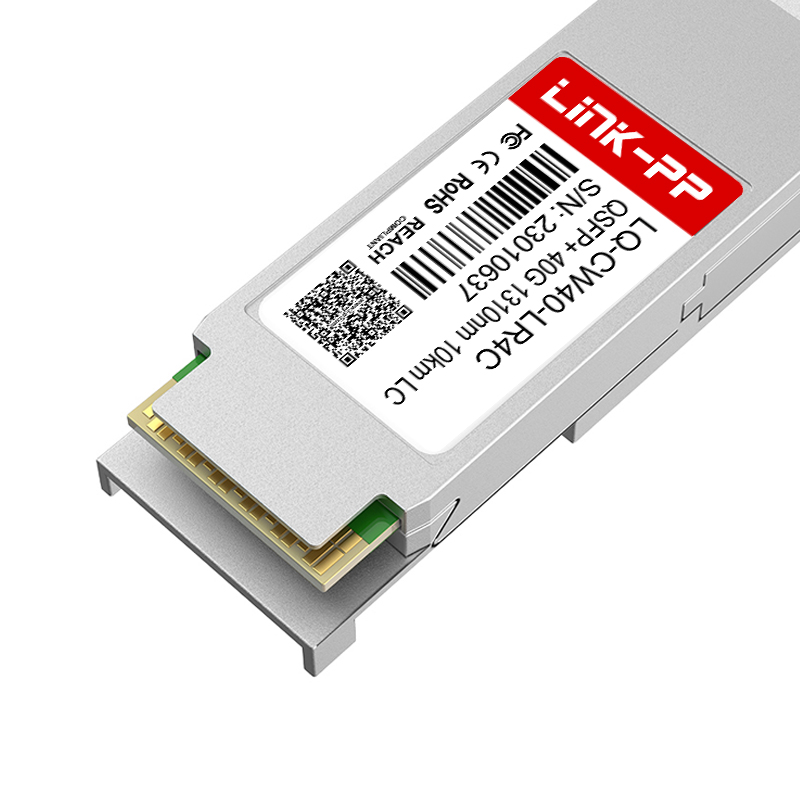

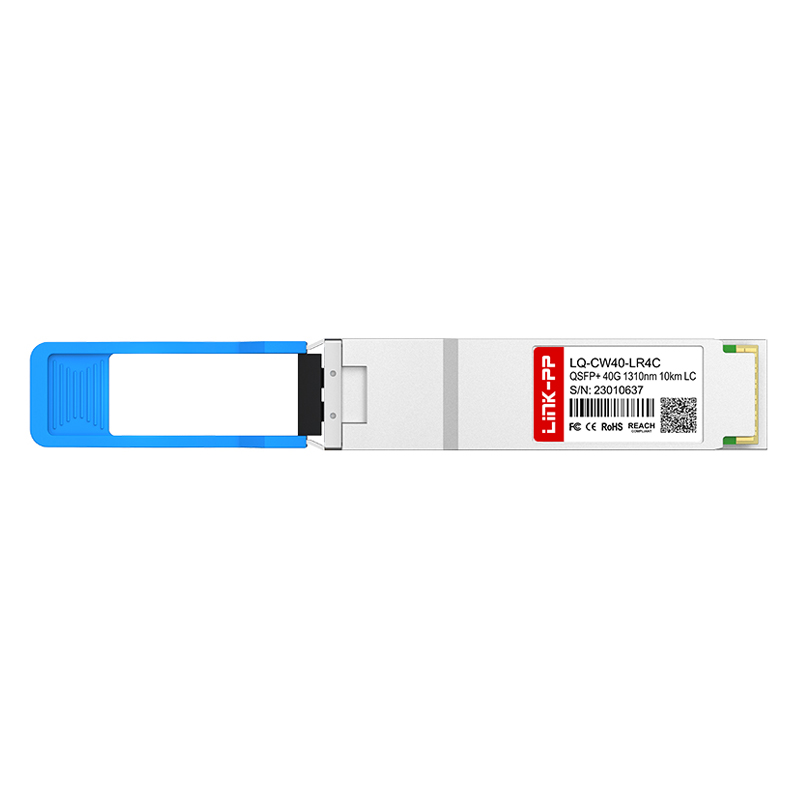

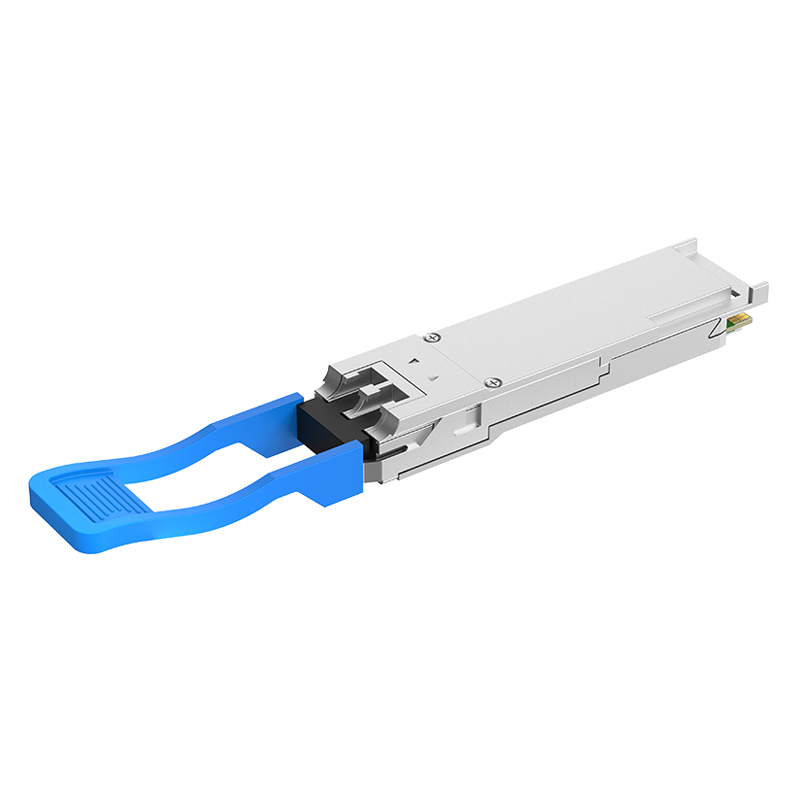

40GBASE-LR4 Duplex LC SMF Optical Transceiver Module 1310nm Single Mode 40G QSFP+ 10km
40GBASE-LR4 Duplex LC SMF Optical Transceiver Module 1310nm Single Mode 40G QSFP+ 10km
40GBASE-LR4 Duplex LC SMF Optical Transceiver Module 1310nm Single Mode 40G QSFP+ 10km
40GBASE-LR4 Duplex LC SMF Optical Transceiver Module 1310nm Single Mode 40G QSFP+ 10km
40GBASE-LR4 Duplex LC SMF Optical Transceiver Module 1310nm Single Mode 40G QSFP+ 10km
1 / 5
40GBASE-LR4 Duplex LC SMF Optical Transceiver Module 1310nm Single Mode 40G QSFP+ 10km
40GBASE-LR4 Duplex LC SMF Optical Transceiver Module 1310nm Single Mode 40G QSFP+ 10km
40GBASE-LR4 Duplex LC SMF Optical Transceiver Module 1310nm Single Mode 40G QSFP+ 10km
40GBASE-LR4 Duplex LC SMF Optical Transceiver Module 1310nm Single Mode 40G QSFP+ 10km
40GBASE-LR4 Duplex LC SMF Optical Transceiver Module 1310nm Single Mode 40G QSFP+ 10km

40GBASE-LR4 Duplex LC SMF Optical Transceiver Module 1310nm Single Mode 40G QSFP+ 10km

Send Inquiry

Product Description

40GBASE-LR4 Duplex LC SMF Optical Transceiver Module 1310nm Single Mode 40G QSFP+ 10km
📋
Products Description
Item 40G QSFP+ Module
Part Status Active
Form Factor QSFP+
Max Data Rate 40G
Max Cable Distance 10km
Wavelength 1310nm
Connector Duplex LC
Media SMF
Optical Component DFB/PIN
TX Power -7~2.3dBm
Receiver Sensitivity <-11dBm
Receiver Overload 2.4dBm
Powerbudget 4dB
Power Consumption ≤3.5W
DDM/DOM DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols OTN OTU3, 40G Ethernet, Fiber Channel, SATA/SAS3, MSA Compliant
Warranty 5 Years
Sample Available
⚡
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solution Banner
Module Details 1
Module Details 2
Product Options Mapping Product Category Matrix
🌐
Network Applications & Scenarios
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless Networks
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx Access
FTTx
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems & Line Protection
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Production Process 1
Production Process 2
⚙️ Related Products SFP Cage ⚙️
Related Products SFP Cage
🛡️
Why Choose Us
Quality Standard 1
Quality Standard 2
Quality Standard 3
Quality Standard 4
❓
Frequently Asked Questions
Q1: Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q2: Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs are covered by the customer.
Q3: What is your delivery time?
We have products ready to ship for stock items. For mass production, the lead time typically ranges between 15 to 30 days.
Q4: What after-sales service do you offer?
We provide a one-year warranty period and offer round-the-clock (24 hours) online technical support.
Q5: Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM custom requirements. Please reach out with your specifications so we can begin a detailed discussion.
Q6: What is your primary advantage?
We offer extensive production experience and serve as a reliable partner for global networking and hardware systems companies.
