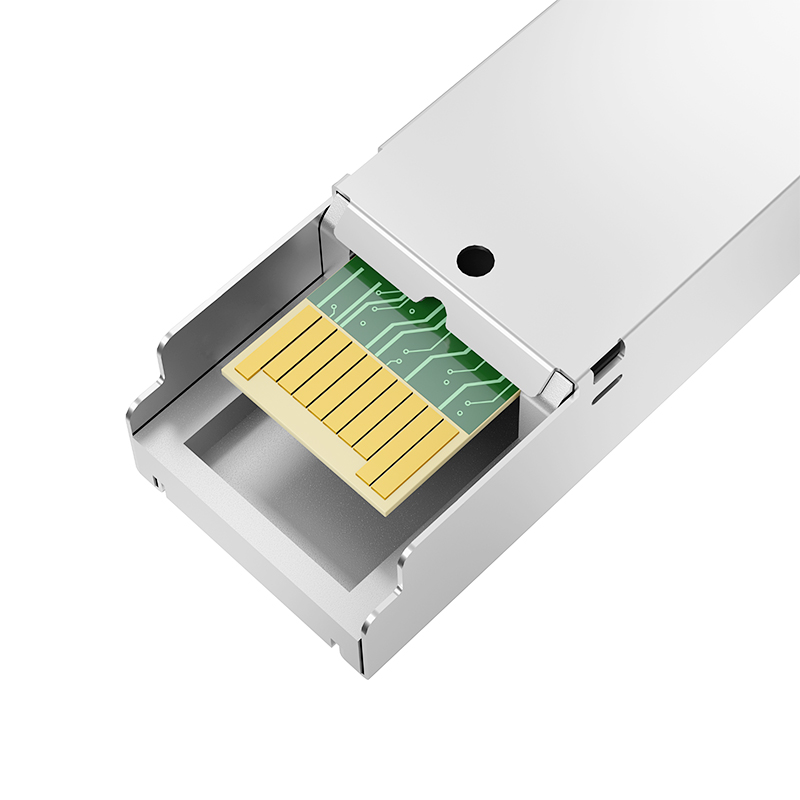

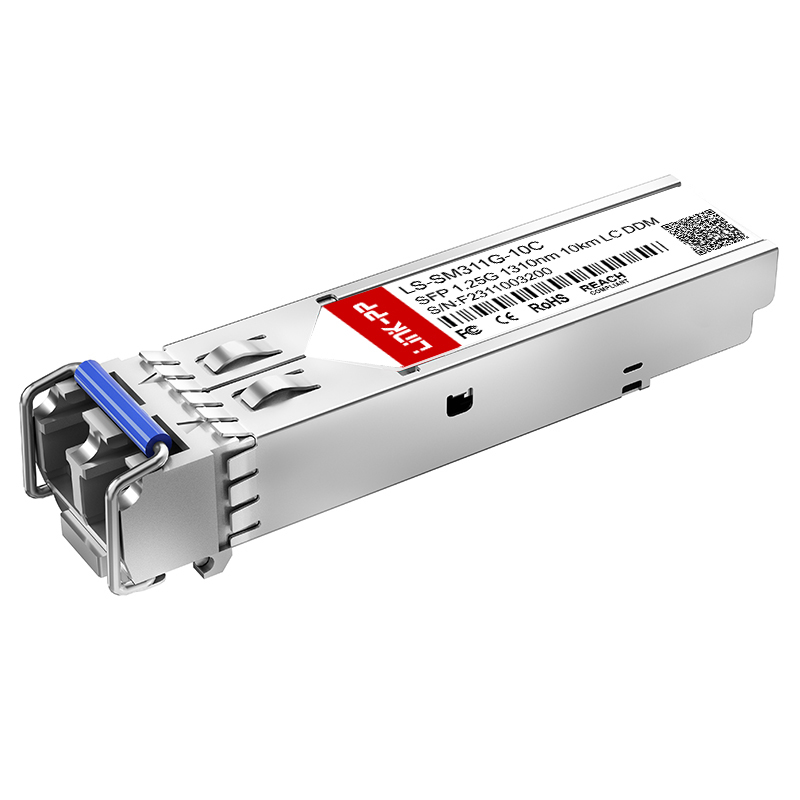

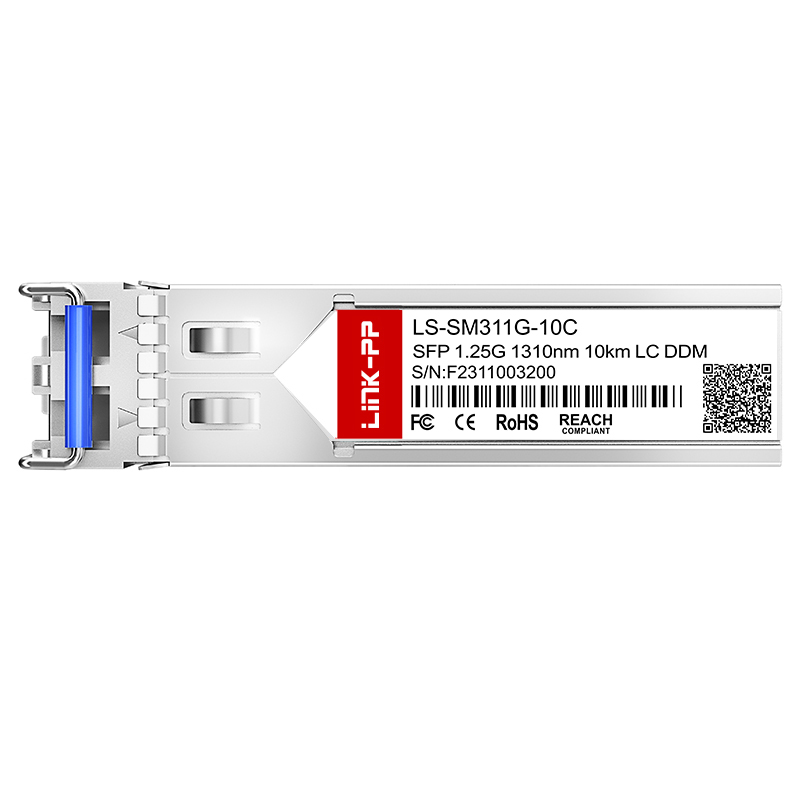

Duplex LC SMF Fiber Optic Transceiver Single Mode 1310nm 1.25G SFP Optical Module 10km
| Item |
1.25G SFP Module |
| Part Status |
Active |
| Form Factor |
SFP |
| Max Data Rate |
1.25Gpps |
| Wavelength |
1310nm |
| Max Cable Distance |
10KM |
| Connector |
Duplex LC |
| Media |
SMF |
| Optical Component |
FP/PIN |
| TX Power |
-9.5 ~ -3dBm |
| Receiver Sensitivity |
< -20dBm |
| Power Consumption |
≤1W |
| Receiver Overload |
-3dBm |
| DDM/DOM |
Supported |
| Temperature Range |
0 to 70°C (32 to 158°F) |
| Protocols |
IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant |
| Warranty |
5 Years |
| Sample |
Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
✦ Related Products SFP Cage ✦
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we currently have around 2000 staff members. With an abundant monthly productive capacity of 3000K, we are able to deliver products within a short time.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though you will be responsible for covering the shipping costs.
3. What is your delivery time?
Items currently in stock are ready to ship immediately, while mass production orders generally take 15 to 30 days.
4. What after-sales service do you provide?
We offer a one-year warranty period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, we gladly accept OEM and ODM requests. Please send us your specific inquiry details so we can discuss the options further.
6. What is your competitive advantage?
We bring over 19 years of dedicated production experience and have maintained partnerships with leading global enterprises for many years.
