Home > Vertical RJ45 Connector > HFJV1-E2450-L12RL 10/100 Base-t Vertical Top Entry Female Magnetic Ethernet RJ45 Connector With Leds

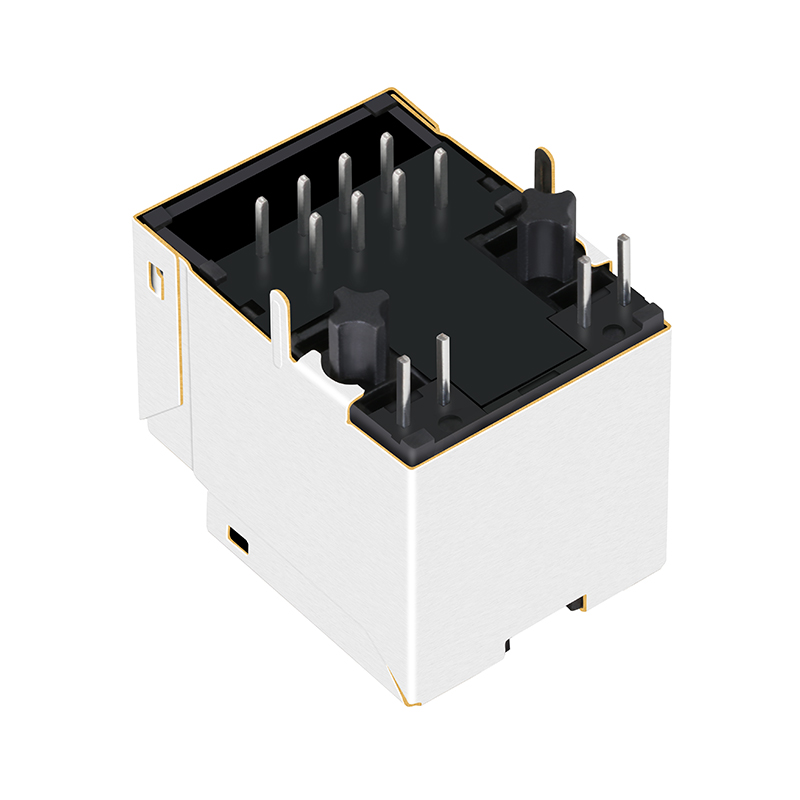

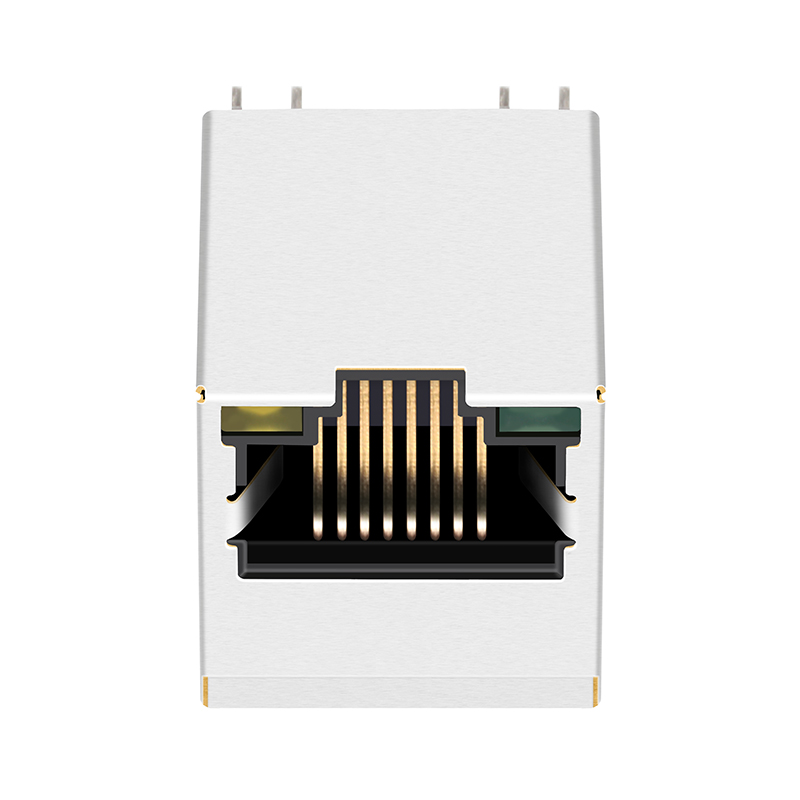

HFJV1-E2450-L12RL 10/100 Base-t Vertical Top Entry Female Magnetic Ethernet RJ45 Connector With Leds
HFJV1-E2450-L12RL 10/100 Base-t Vertical Top Entry Female Magnetic Ethernet RJ45 Connector With Leds
HFJV1-E2450-L12RL 10/100 Base-t Vertical Top Entry Female Magnetic Ethernet RJ45 Connector With Leds
HFJV1-E2450-L12RL 10/100 Base-t Vertical Top Entry Female Magnetic Ethernet RJ45 Connector With Leds
HFJV1-E2450-L12RL 10/100 Base-t Vertical Top Entry Female Magnetic Ethernet RJ45 Connector With Leds
1 / 5
HFJV1-E2450-L12RL 10/100 Base-t Vertical Top Entry Female Magnetic Ethernet RJ45 Connector With Leds
HFJV1-E2450-L12RL 10/100 Base-t Vertical Top Entry Female Magnetic Ethernet RJ45 Connector With Leds
HFJV1-E2450-L12RL 10/100 Base-t Vertical Top Entry Female Magnetic Ethernet RJ45 Connector With Leds
HFJV1-E2450-L12RL 10/100 Base-t Vertical Top Entry Female Magnetic Ethernet RJ45 Connector With Leds
HFJV1-E2450-L12RL 10/100 Base-t Vertical Top Entry Female Magnetic Ethernet RJ45 Connector With Leds

HFJV1-E2450-L12RL 10/100 Base-t Vertical Top Entry Female Magnetic Ethernet RJ45 Connector With Leds

Send Inquiry

Product Description

Magnetic Ethernet RJ45 Connector Overview
HFJV1-E2450-L12RL 10/100 Base-t Vertical Top Entry Female Magnetic Ethernet RJ45 Connector With Leds
Products Description
Item RJ45 Female Connector
Part Status Active
Part Number LPJD5011BDNL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Options Graphic
Related Product Classifications
Technical Specifications & Diagram
Dimensions Drawing
PCB Layout details
Schematic Diagram
Quality & Certificate Standards
Testing Process
Certification Standard 1
Certification Standard 2
Support Banner
Company Profile
Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Manufacturing Plant
Testing Laboratory
Warehouse Inventory
FAQ
1 Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2 Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs are covered by the buyer.
3 What is your delivery time?
Products in stock are ready to ship immediately, while mass production orders typically take 15 to 30 days.
4 What after-service support do you offer?
We provide a one-year warranty period and offer 24-hour online technical support.
5 Do you accept OEM/ODM orders?
Yes, OEM/ODM orders are accepted. Please send us your specific technical requirements for detailed discussion.
6 What are your main advantages?
We bring over 19 years of professional production experience and have been a trusted component supply partner to top-tier enterprise clients for many years.
