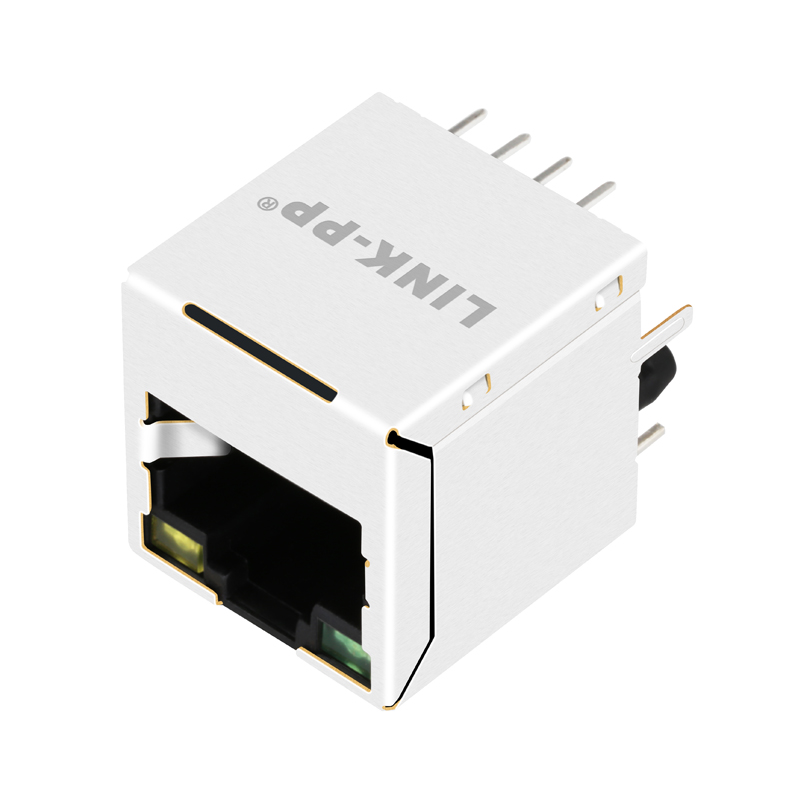

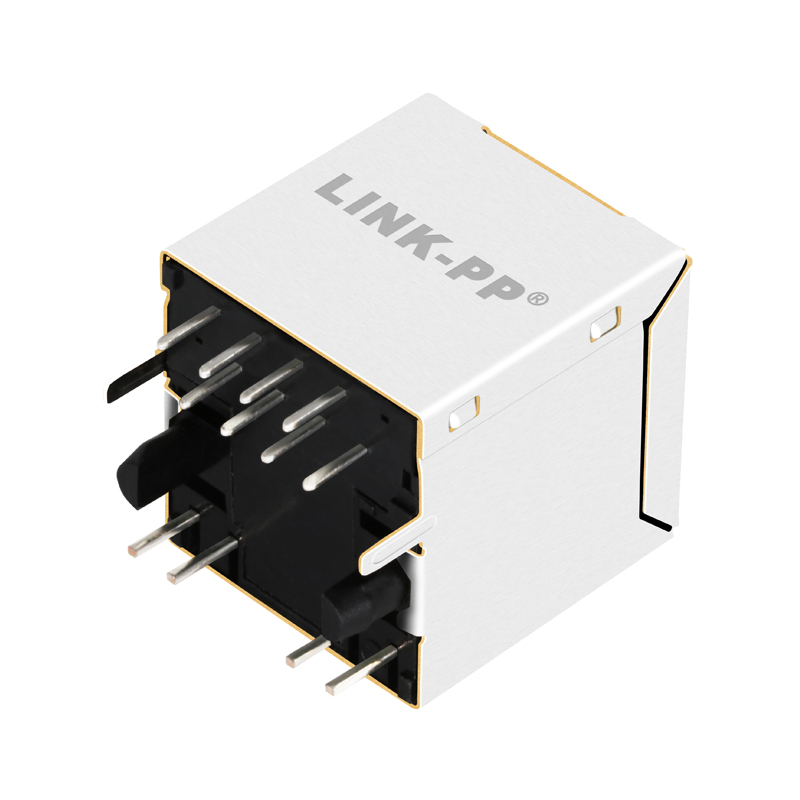

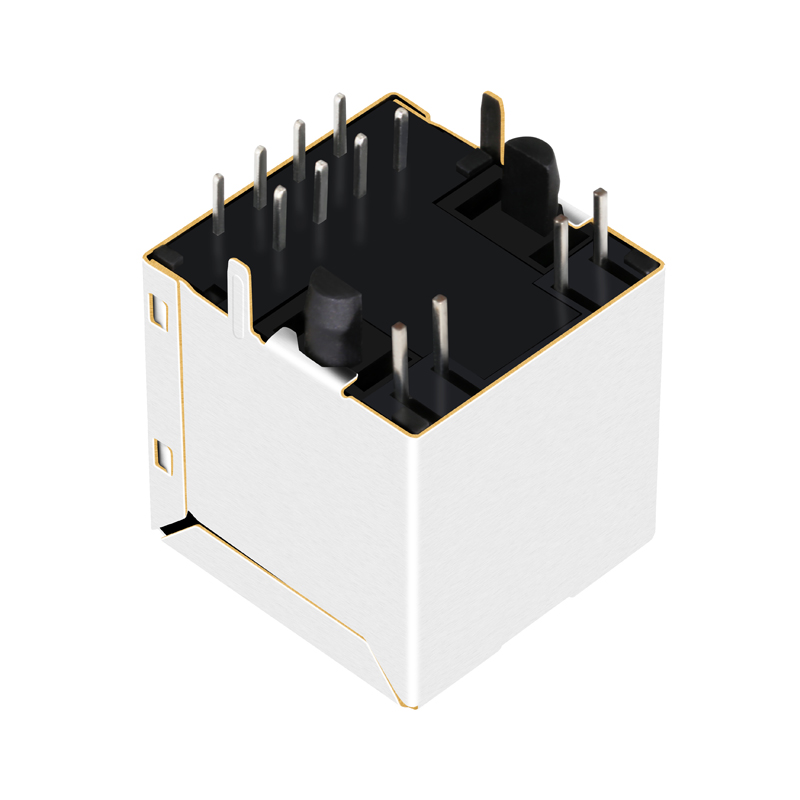

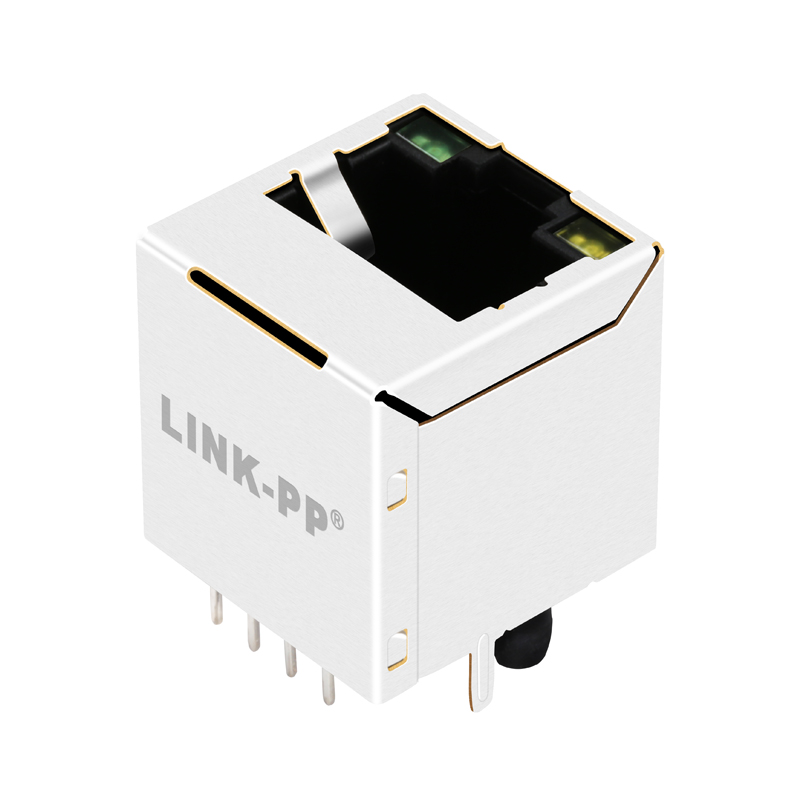

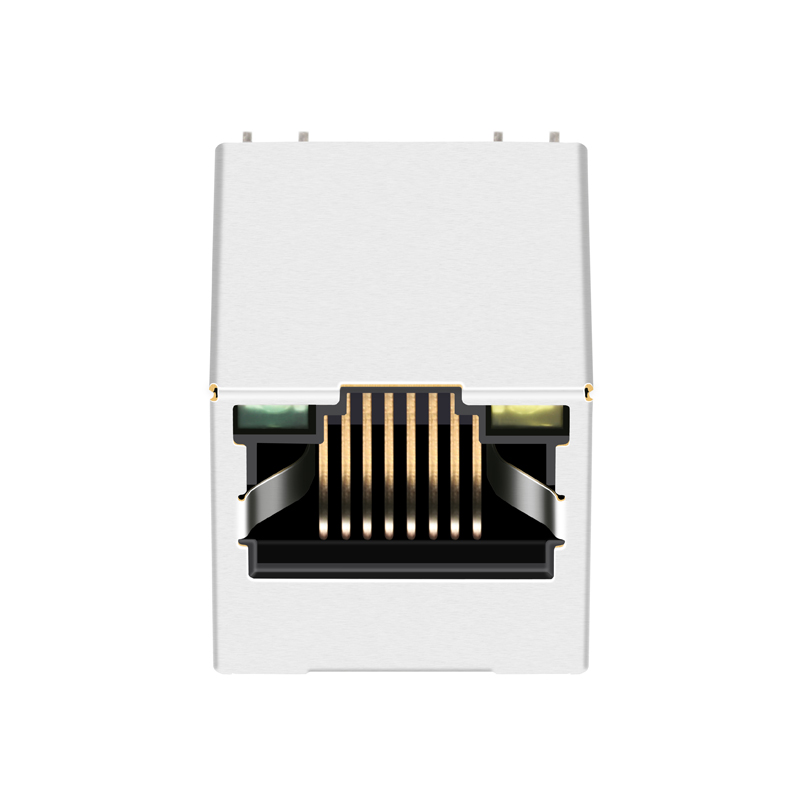

| Item | RJ45 Female Connector |
| Compatible With | 1840456-1 |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 1x1 Port |
| Speed | 10/100/1000 Base-T |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | Top Entry |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T Post |
| Temperature | 0°C to 70°C / -40°C to 85°C |
| Bst Circuit | Yes |
| AutomDX | Yes |
| Contact Mating Area Plating | Gold 6u" / 15u" / 30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T, C |
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test the quality, but the shipping fee needs to be covered by the recipient.
Ready-to-ship for in-stock products, and 15-30 days for standard mass production orders.
We provide a one-year warranty period and offer online technical support 24 hours a day.
Yes, please send your inquiries to us so we can proceed with a detailed discussion regarding your specific design requirements.
We have over 19 years of professional production experience and have been a trusted partner to major industry leaders for many years.
