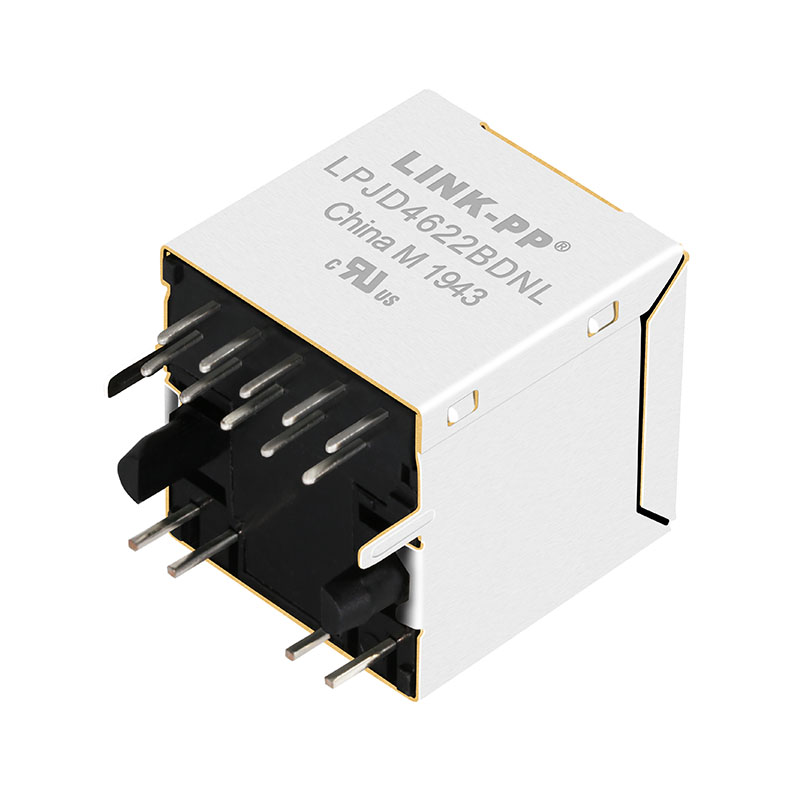

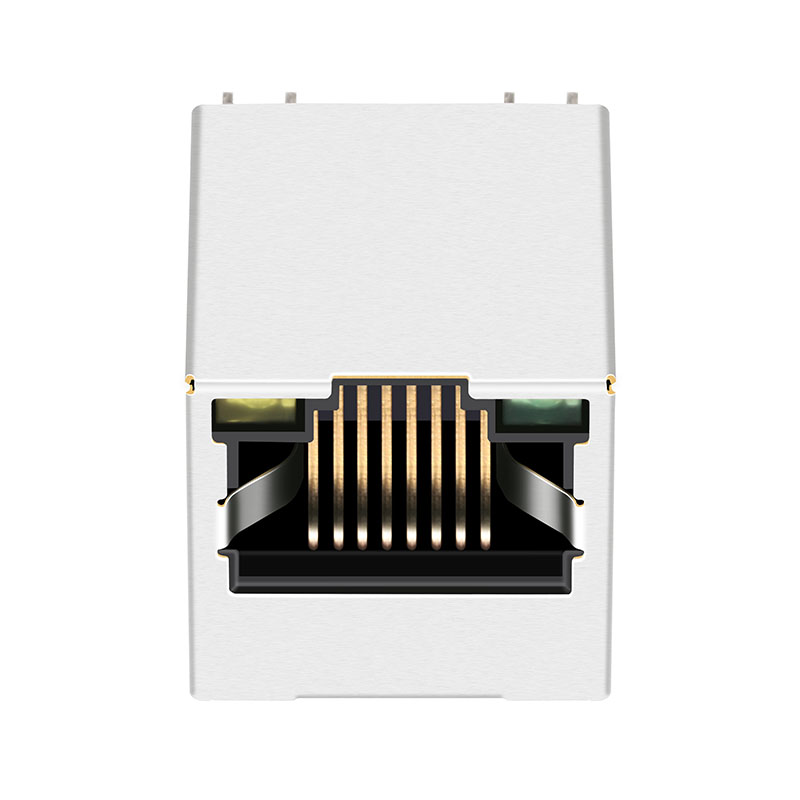

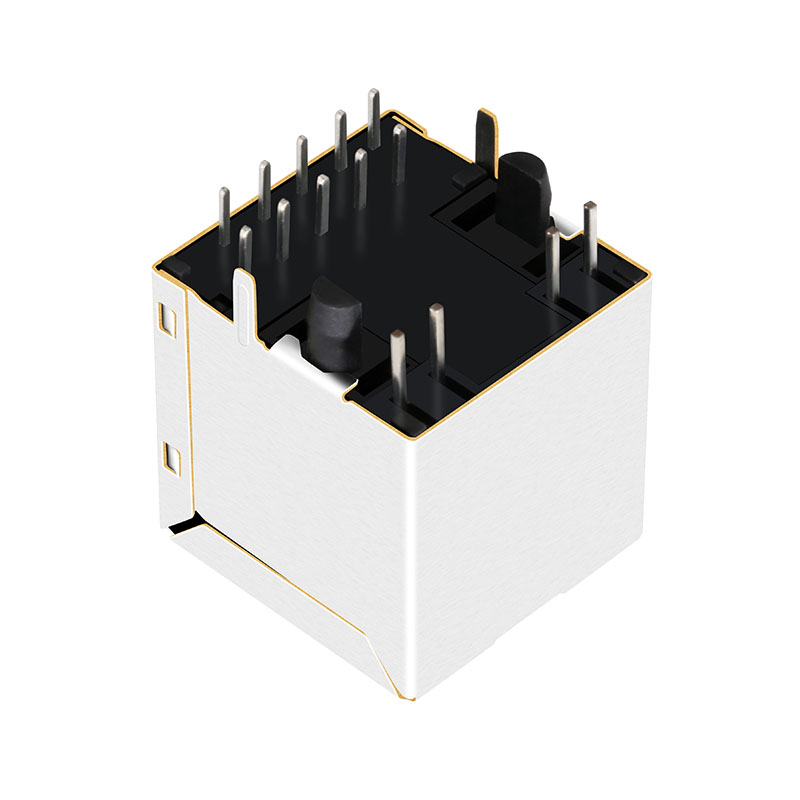

1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector
1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector
1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector
1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector
1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector
1 / 5
1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector
1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector
1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector
1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector
1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector

1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector

Send Inquiry

Product Description

RJ45 Connector and Lan Transformer Overview
1840472-1 7499110120A JXD2-0015NL with Leds 1000Base-T Vertical RJ45 Connector
Products Description
Item RJ45 Female Connector
Part Number LPJD4622BDNL
Alternate Part Number 1840472-1 7499110120A JXD2-0015NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 8
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature -40℃ TO 85℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

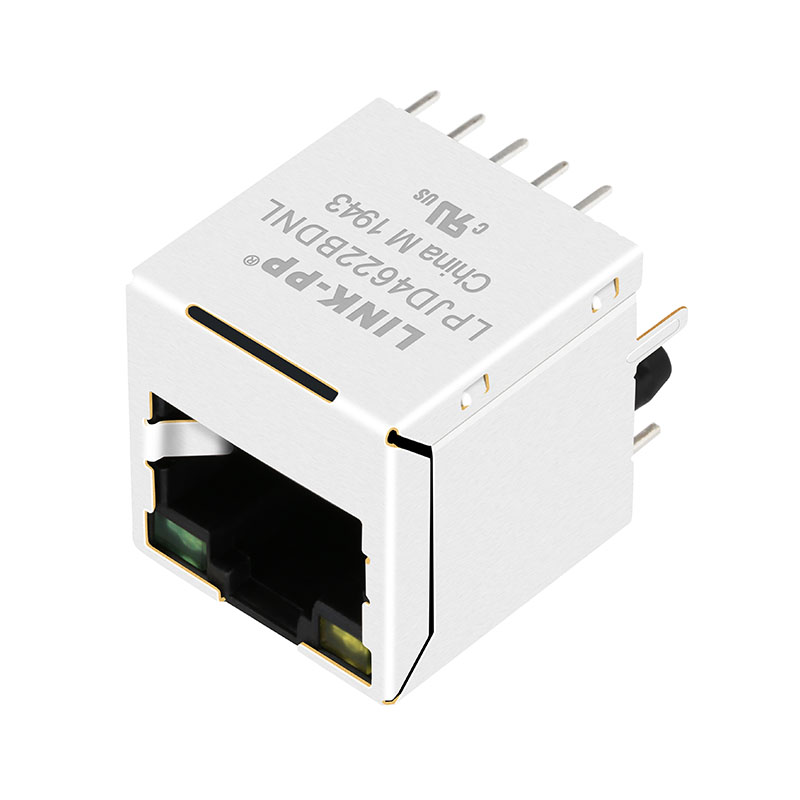

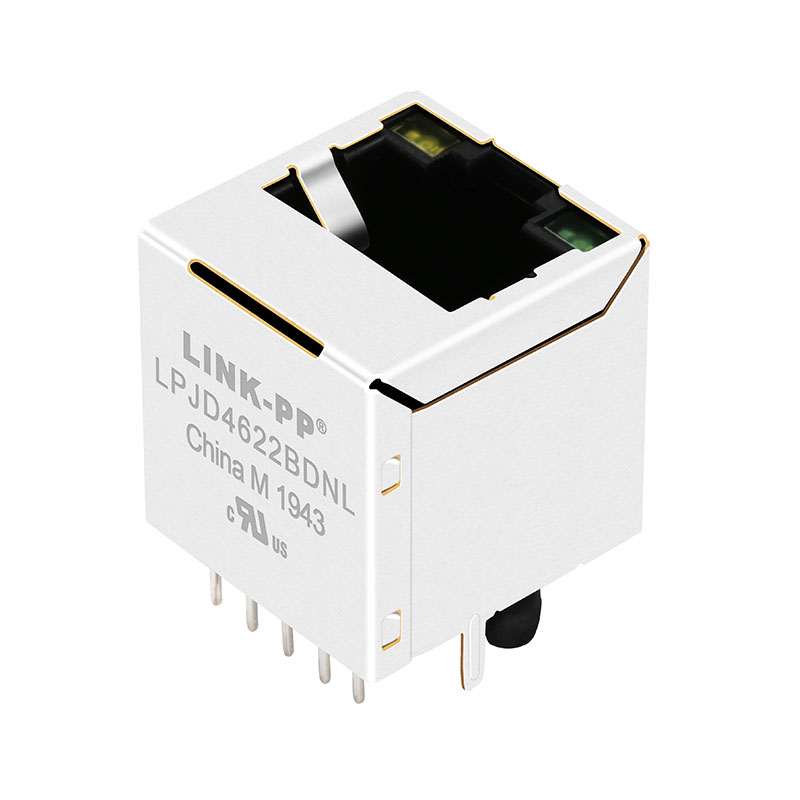

Product View 1 Product View 2
Product Detail 1 Product Detail 2 Product Detail 3 Product Detail 4
Below Products to Get More
Product Category Matrix Product Information
Quality Control 1 Quality Control 2 Quality Control 3
Manufacturing Process 1 Manufacturing Process 2 Manufacturing Process 3
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Factory Warehouse Factory Facility
FAQ
1. Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
19 years of production experience and we are strategic partners with industry-leading electronics contract manufacturers.
