Home > Low Profile RJ45 Connector > With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector

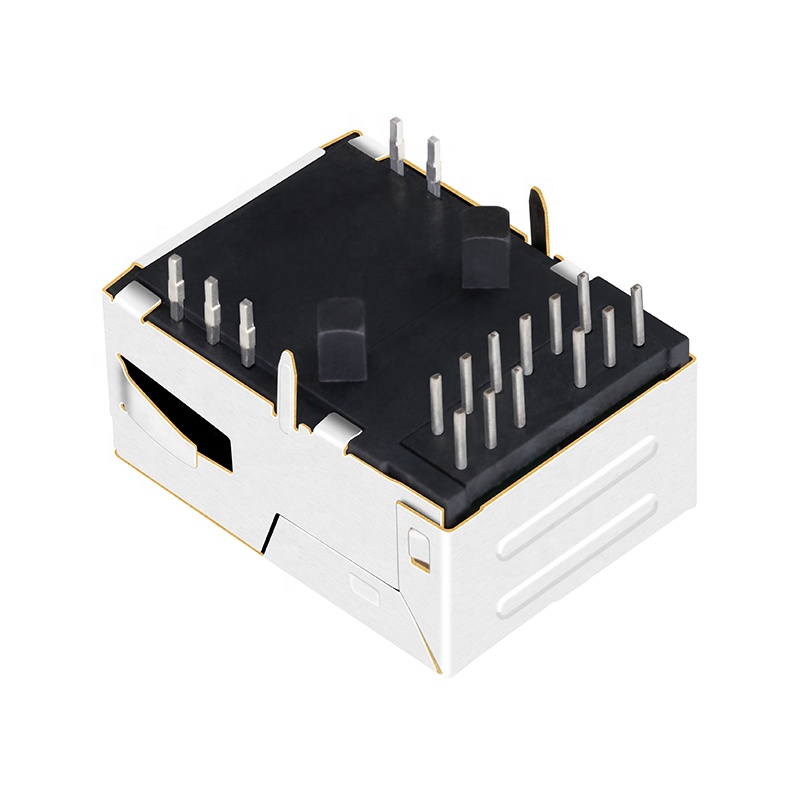

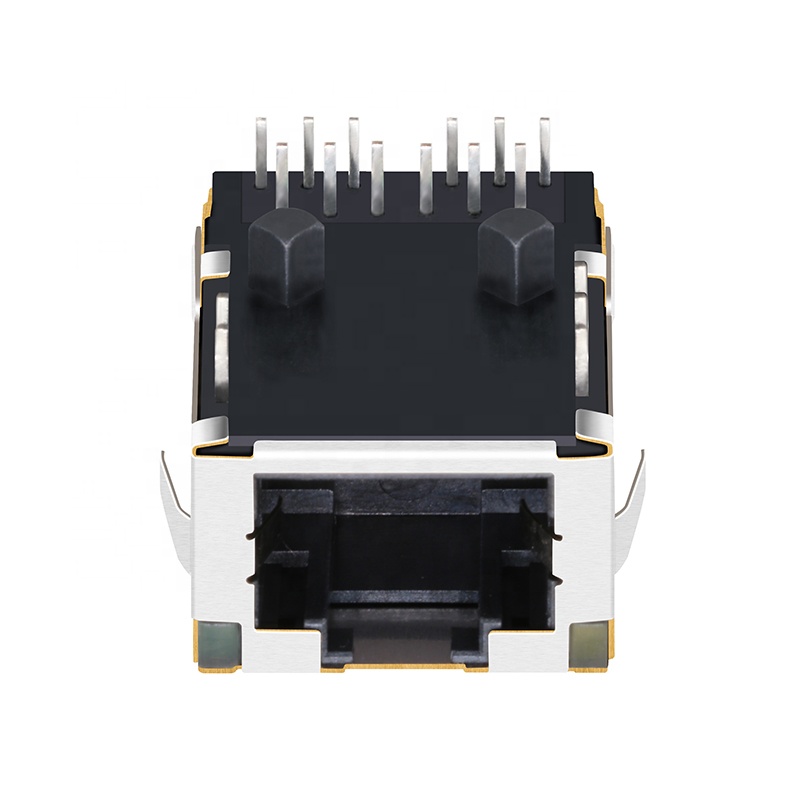

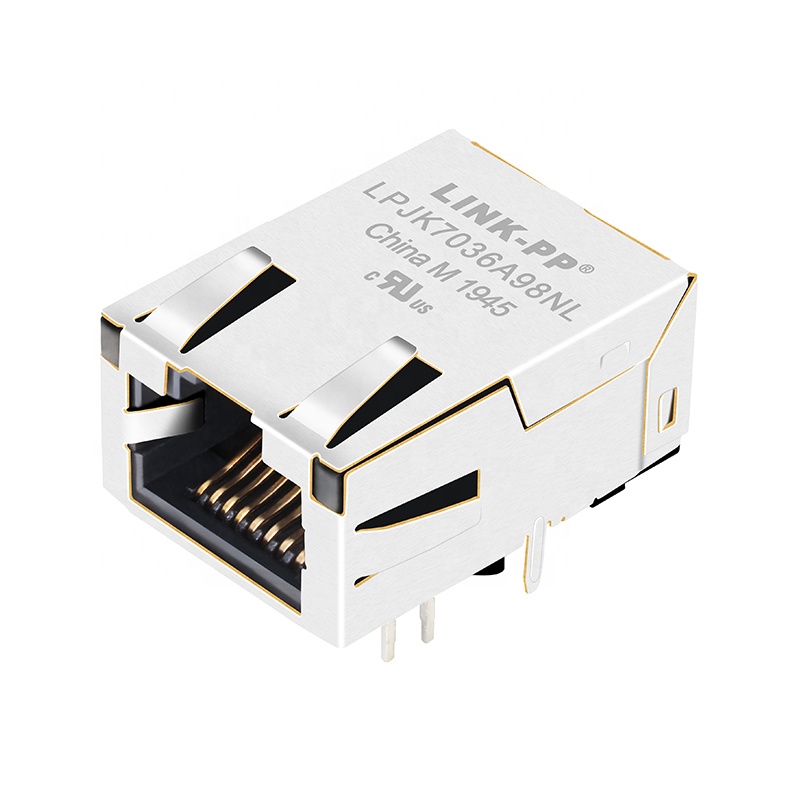

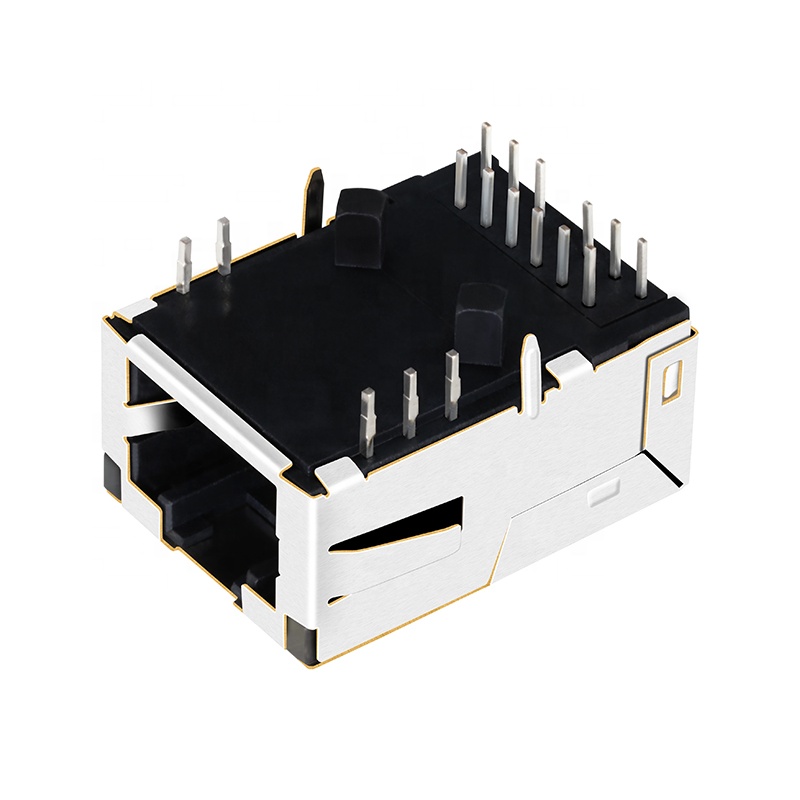

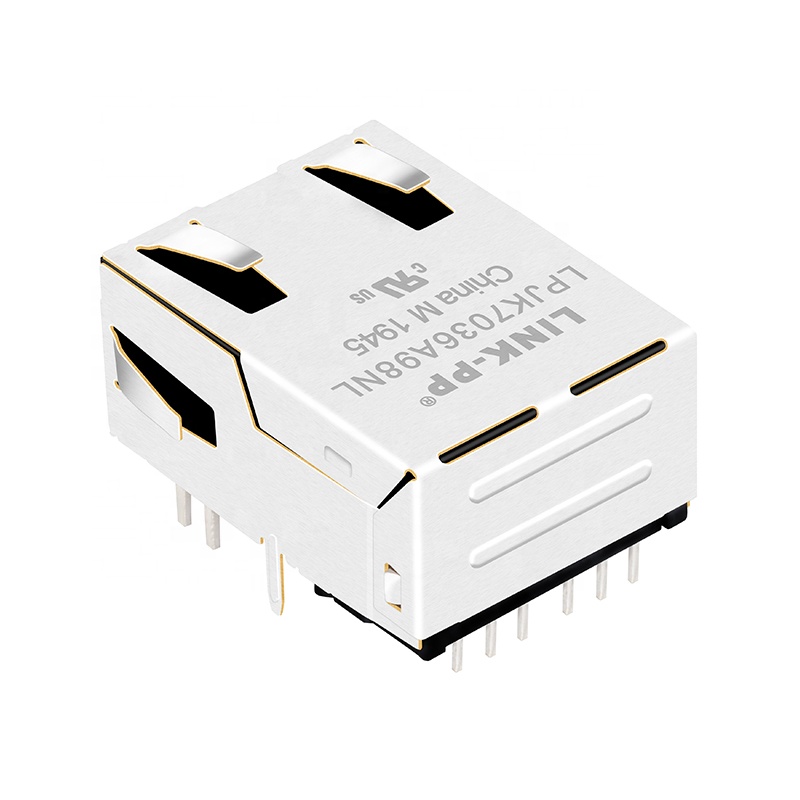

With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
1 / 5
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector

With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector

Send Inquiry

Product Description

RJ45 Connector Overview
With LEDs 1000 Base-T Low-Profile Right Angle RJ45 Connector
Products Description
Item RJ45 Female Connector
Part Number LPJK7036A98NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Product Specification Drawing
❖ Product Categories & Varieties
Product Category Series
Product Showcase
Product Angle 1 Product Angle 2 Product Angle 3
Product Inner Details Product Cross Section Product Diagram Details
Product Performance Chart
Company Profile
Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom capabilities.
As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Manufacturing Facility 1 Manufacturing Facility 2 R&D Department
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though the shipping fee needs to be covered by the customer.
What is your delivery time?
Items currently in stock are ready to ship. For mass production orders, the delivery time is approximately 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM requests. Please send us your requirements so we can discuss the details.
What is your advantage?
We have over 19 years of production experience and have partnered with major global industry leaders for many years.
Product Quality Certification
