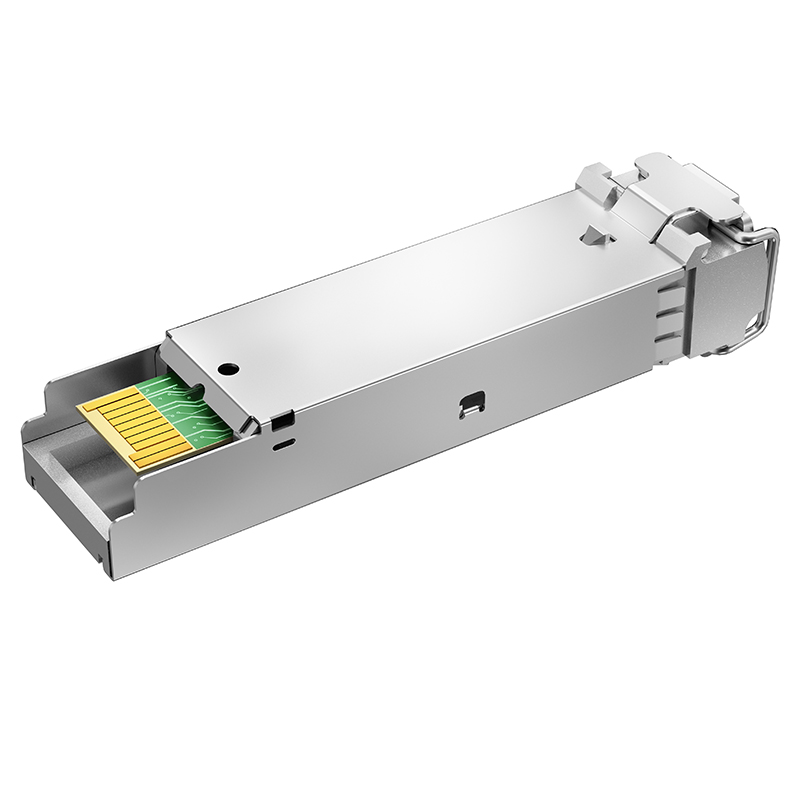

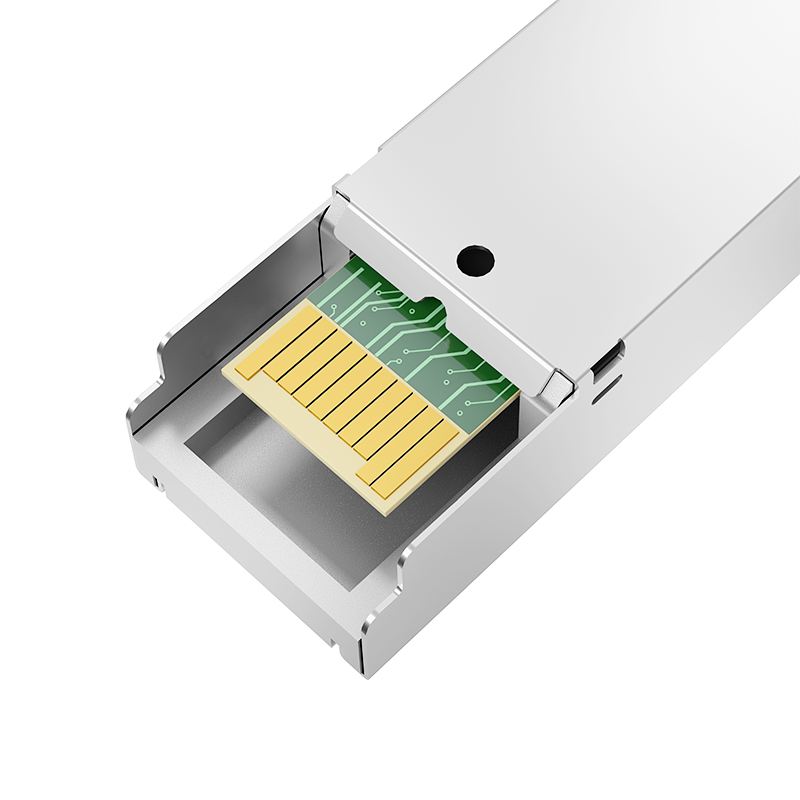

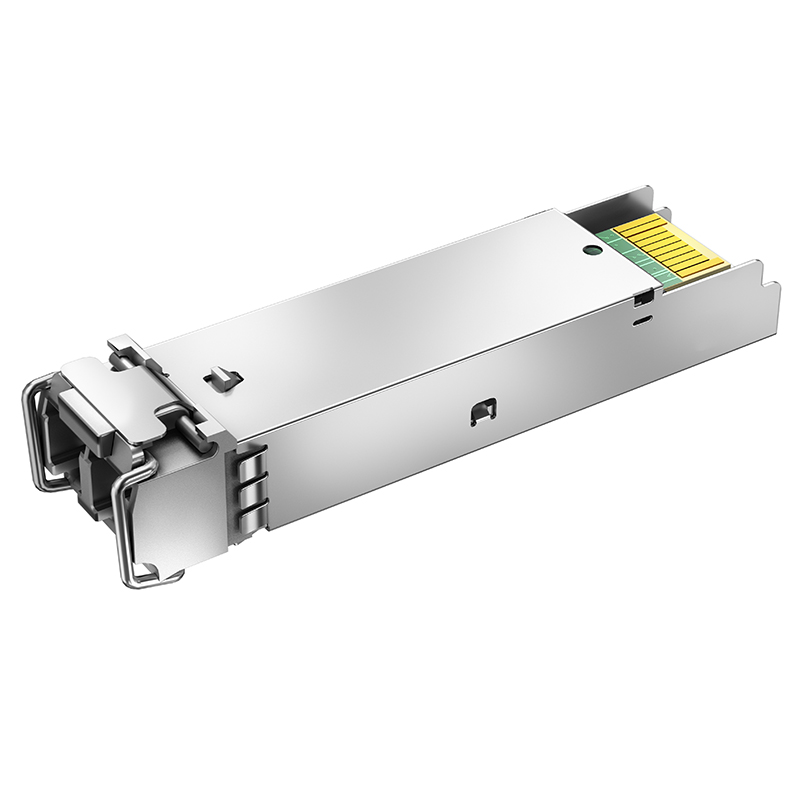

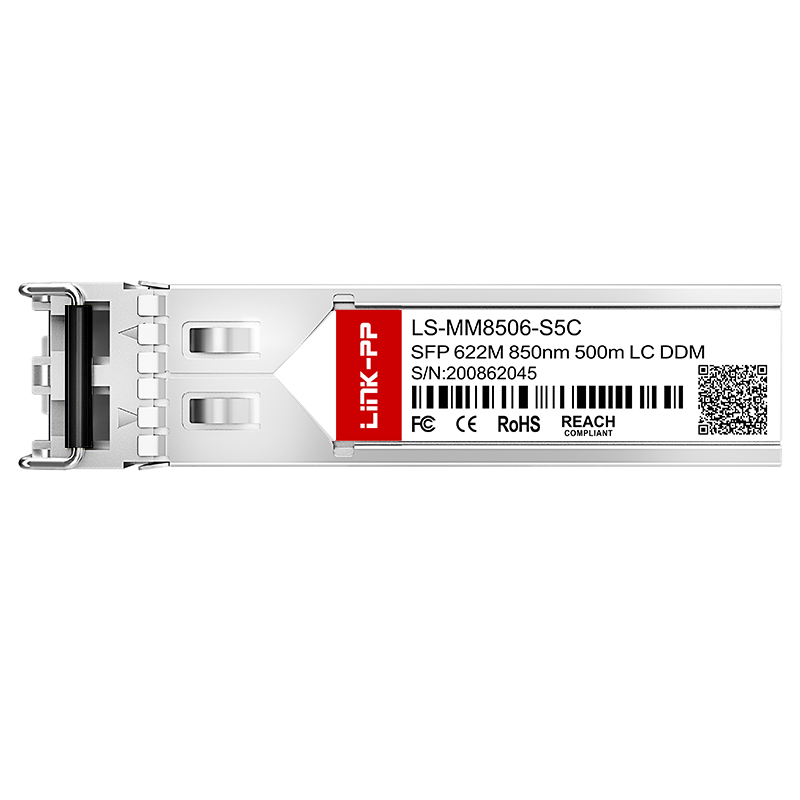

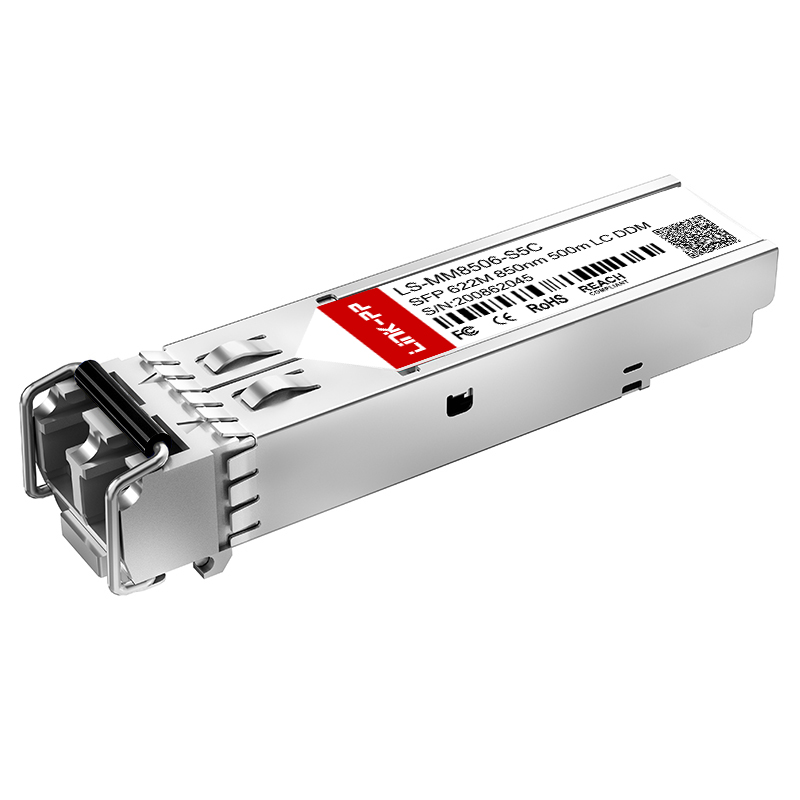

| Technical Specifications | |
|---|---|
| Part No. | LS-MM8506-S5C |
| Form Factor | SFP |
| Max Data Rate | 622Mbps |
| Wavelength | 850nm |
| Max Cable Distance | 500m |
| Connector | Duplex LC |
| Media | MMF |
| Transmitter Type | VCSEL |
| Receiver Type | PIN |
| EMC (Electro Magnetic Compatibility) | Supported |
| DDM/DOM | Supported |
| Protocols | MSA Compliant |
| Temperature Range | 0 to 70°C / -40 to 85°C |
| Warranty | 5 Years |
| Sample | Available |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.
We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
| Part Number | Data Rate | Wavelength | Distance | Media | DDM |
|---|---|---|---|---|---|
| LS-MM8506-S5C | 622Mbps | 850nm | 500m | Multi-mode | Yes |
| LS-SM3106-S5C | 622Mbps | 1310nm | 500m | Single Mode | Yes |
| LS-SM3106-02C | 622Mbps | 1310nm | 2km | Single Mode | Yes |
| LS-MM3106-02C | 622Mbps | 1310nm | 2km | Multi-mode | Yes |
| LS-SM3106-20C | 622Mbps | 1310nm | 20km | Single Mode | Yes |
| LS-SM3106-40C | 622Mbps | 1310nm | 40km | Single Mode | Yes |
| LS-SM5506-80C | 622Mbps | 1550nm | 80km | Single Mode | Yes |
| LS-SM5506-A0C | 622Mbps | 1550nm | 100km | Single Mode | Yes |
| LS-SM5506-A2C | 622Mbps | 1550nm | 120km | Single Mode | Yes |
We can provide end-to-end DWDM devices with almost all optical elements—from active modules to optical passive components, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with data rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for cloud and enterprise infrastructures.
We provide high reliability and performance products with mature, efficient lasers and mainstream chip solutions to customers globally. The solution encompasses Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul links to fit various 4G/5G scenarios.
Aimed at global communication network constructors, we provide total FTTx optical fiber access solutions covering all-optical or combined optical-copper access architectures.
To ensure stable operation of the communication line, we offer robust optical cable operations & maintenance (O&M) solutions integrating optical line protection (OLP) and optical line monitoring (OLM) systems.
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE, and UL, operating with advanced manufacturing and testing systems imported from abroad. Established in 1997, our workforce now numbers approximately 2,000 employees. With a steady production capacity of 3,000K units per month, we ensure fast delivery times for standard and custom orders.
In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture and sell products worldwide.
