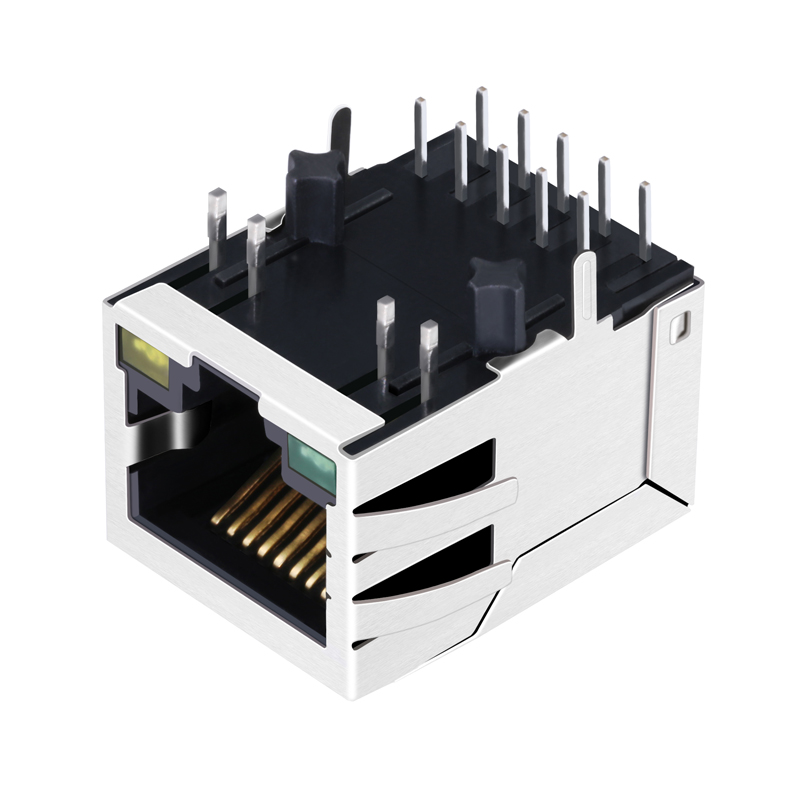

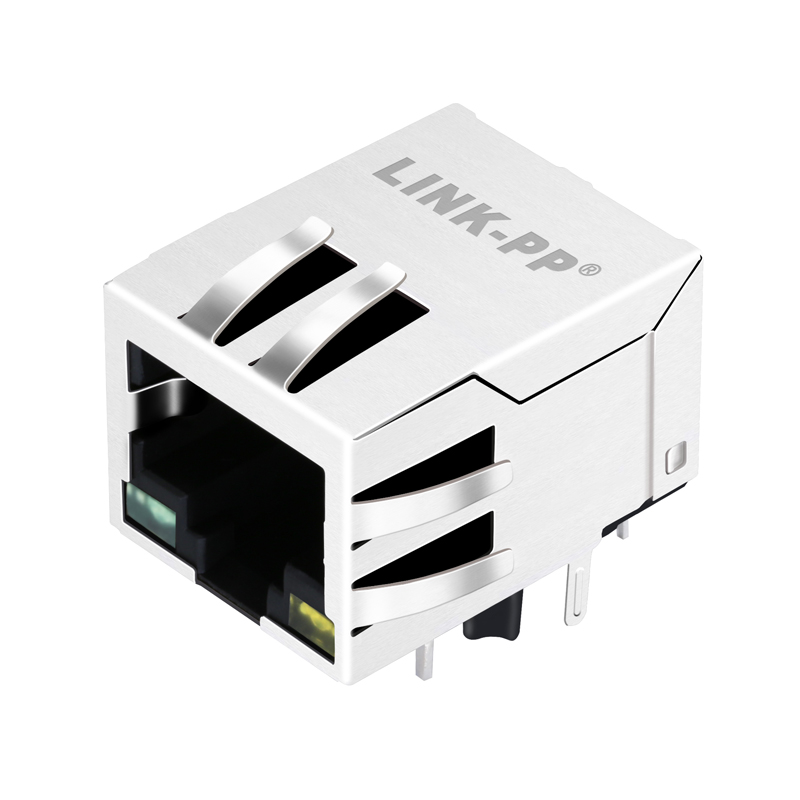

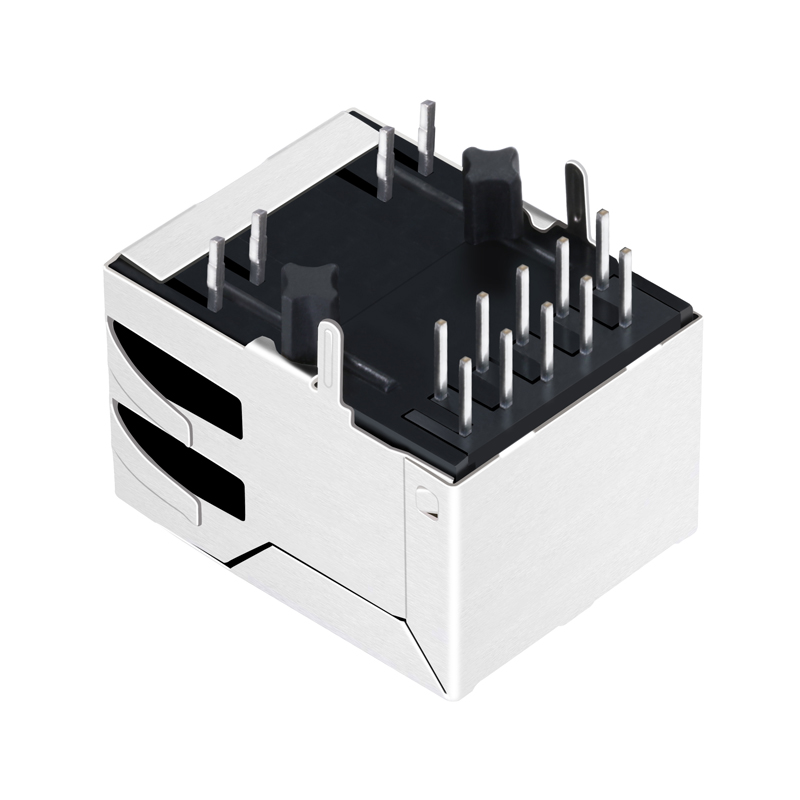

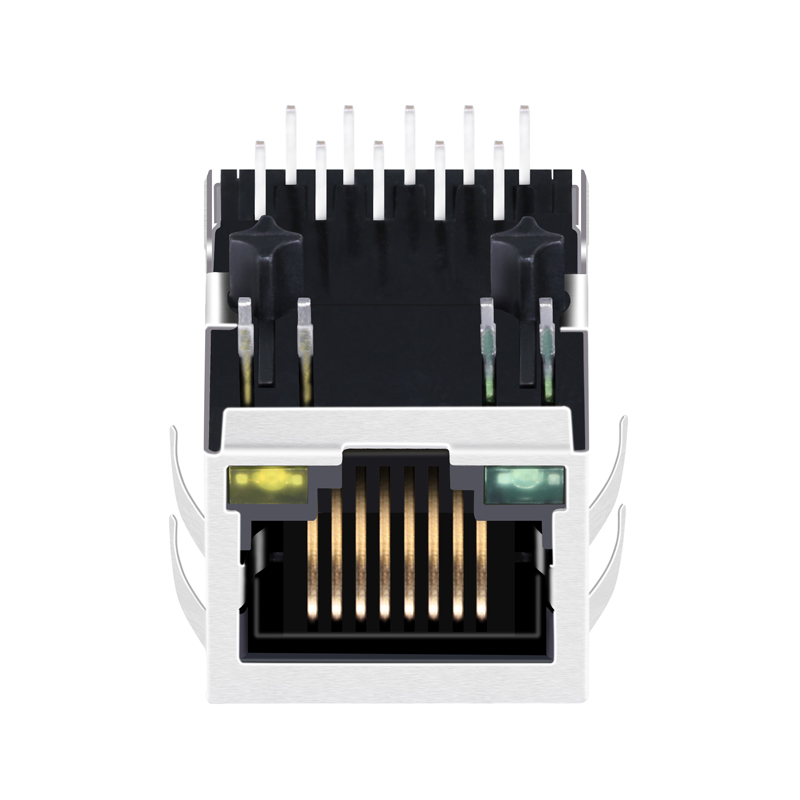

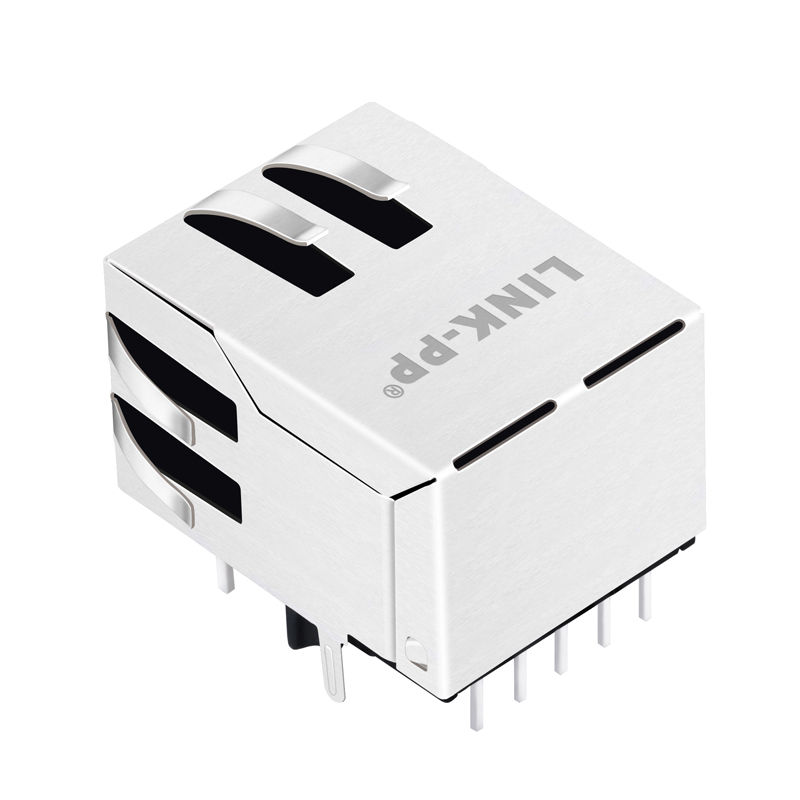

RJ 45 Connectors with POE RJ45 Ethernet Jack 1-6605833-1 SFE-PRT-08534 ARJ11E-MCSS
| Part Number |
ARJ11E-MCSS |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
GREEN/RED |
| Latch |
UP |
| Number of Ports |
1X1 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH OR WITHOUT |
| Speed |
1000 BASE-T |
| Temperature |
0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
⚙ World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy

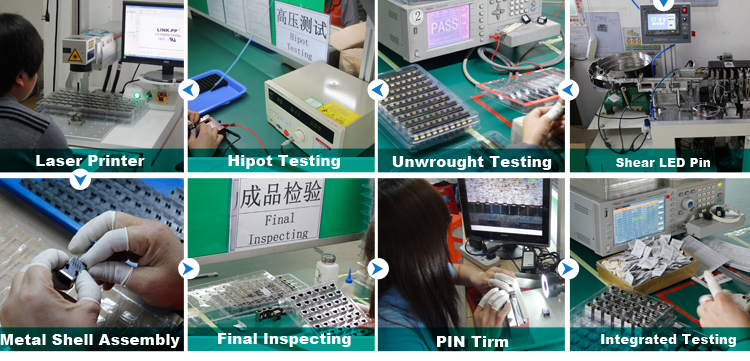

- Manufactured Under Strict Controls.
- 100% Tested (Not Just Batch Tested)
- Quality Guarantee: 6 Years
- More Competitive Price than Competitor Brands
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By Major Carriers
- The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
- Committed To And Expects Quality Performance From Every Employee
- The Company Standard Is Defect-Free Products And Services
RJ 45 Connectors with POE RJ45 Ethernet Cable 1-6605833-1 SFE-PRT-08534 ARJ11E-MCSS
Frequently Asked Questions
Q
What is the speed performance of the ARJ11E-MCSS RJ45 connector?
This connector supports high-speed data transmission up to 1000 BASE-T (Gigabit Ethernet) speeds.
Q
What are the operating temperature ranges for this POE RJ45 connector?
It supports operating temperature options of 0 to 70°C for standard applications, and -40 to 85°C for industrial-grade environments.
Q
What quality certifications do these RJ45 connectors hold?
The manufacturing process adheres to strict controls and is certified under ISO 9001:2008, UL Certification, Reach Certification, and RoHS Compliance.
Q
Are there different gold plating options available for the contact mating area?
Yes, you can choose from different gold plating thicknesses including 6u", 15u", 30u", or 50u" based on your project requirements.
Q
Do you provide custom design services and product samples?
Yes, free samples are available for testing, and we can provide new designs customized to your specific requirements.
