Home > Vertical RJ45 Connector > 74990101241 10/100 Base-t Ethernet Vertical Top Entry Straight Magnetic RJ45 Female Connector

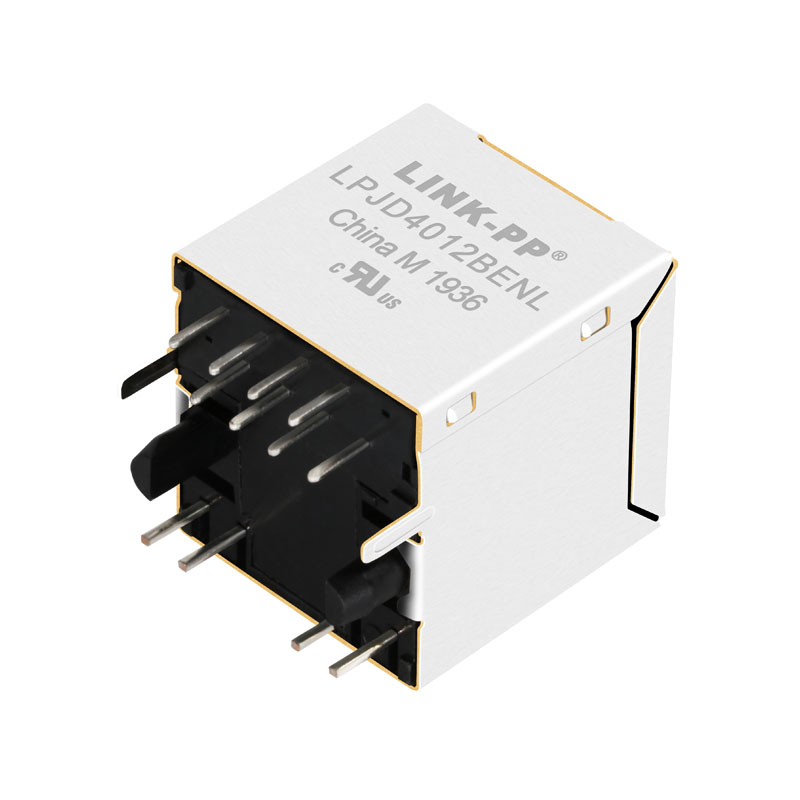

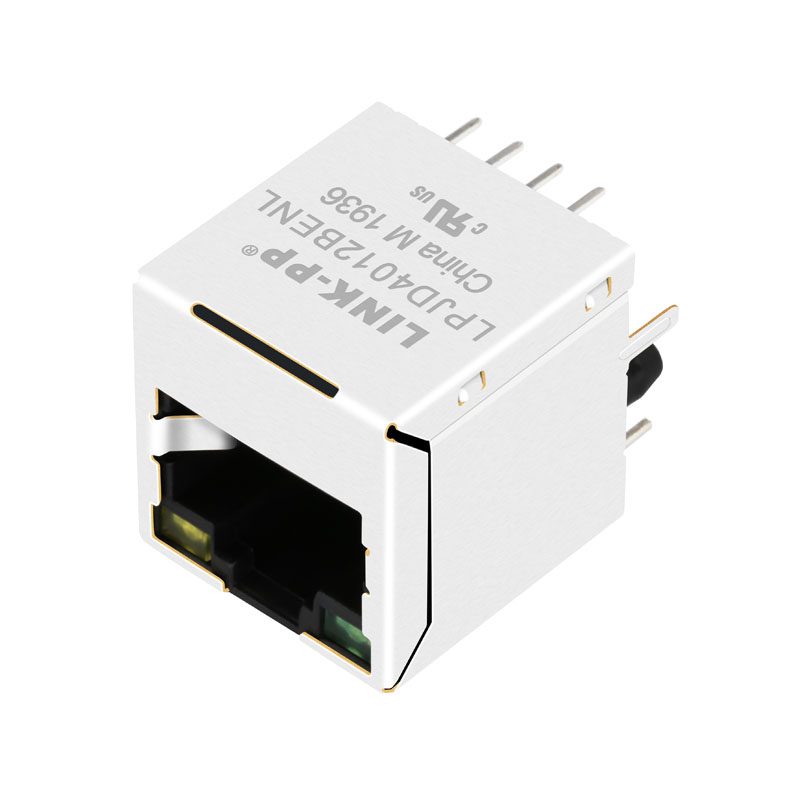

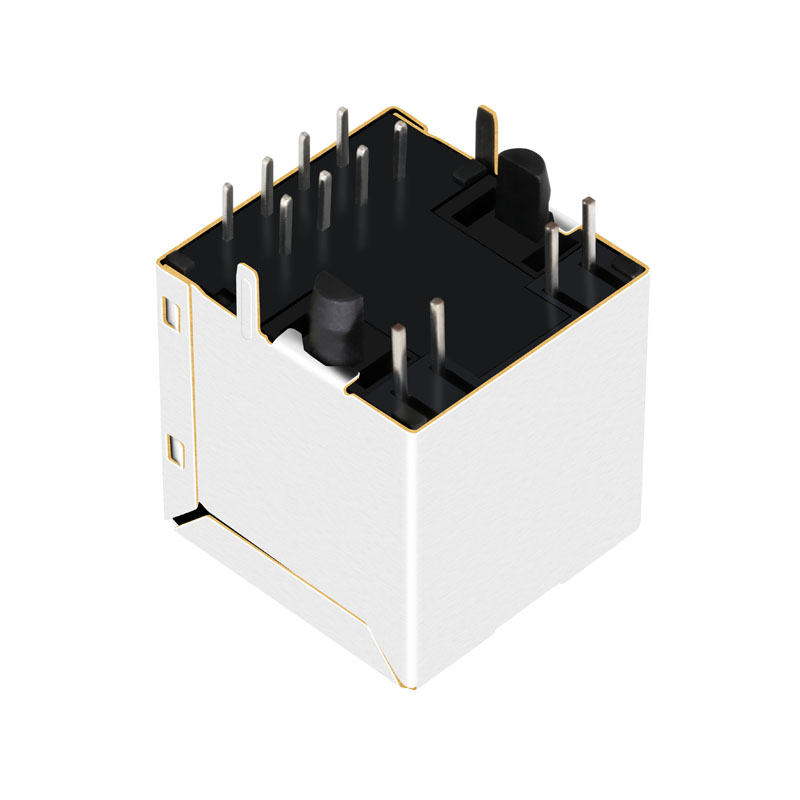

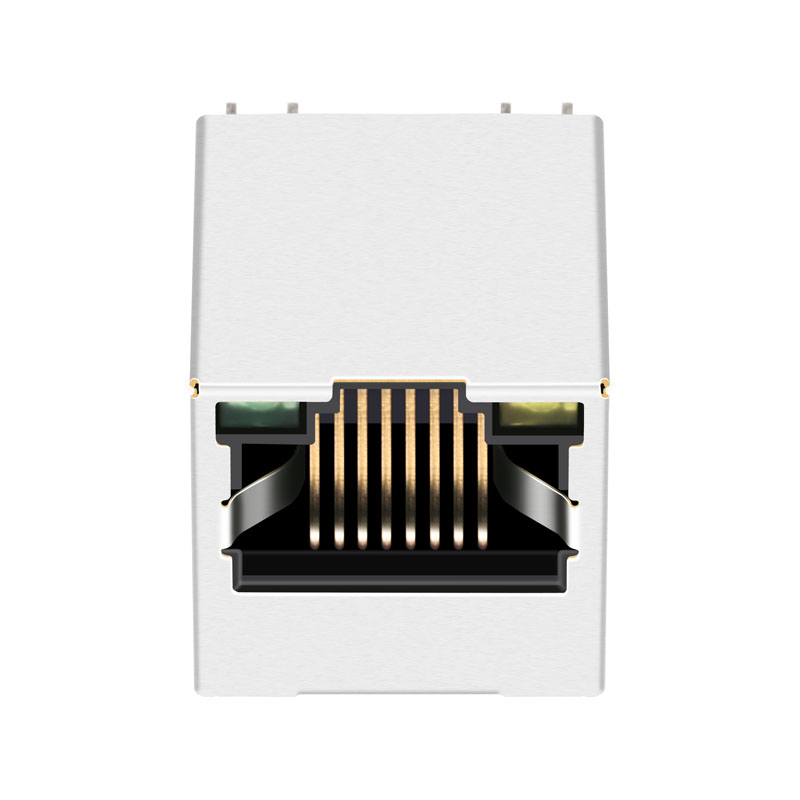

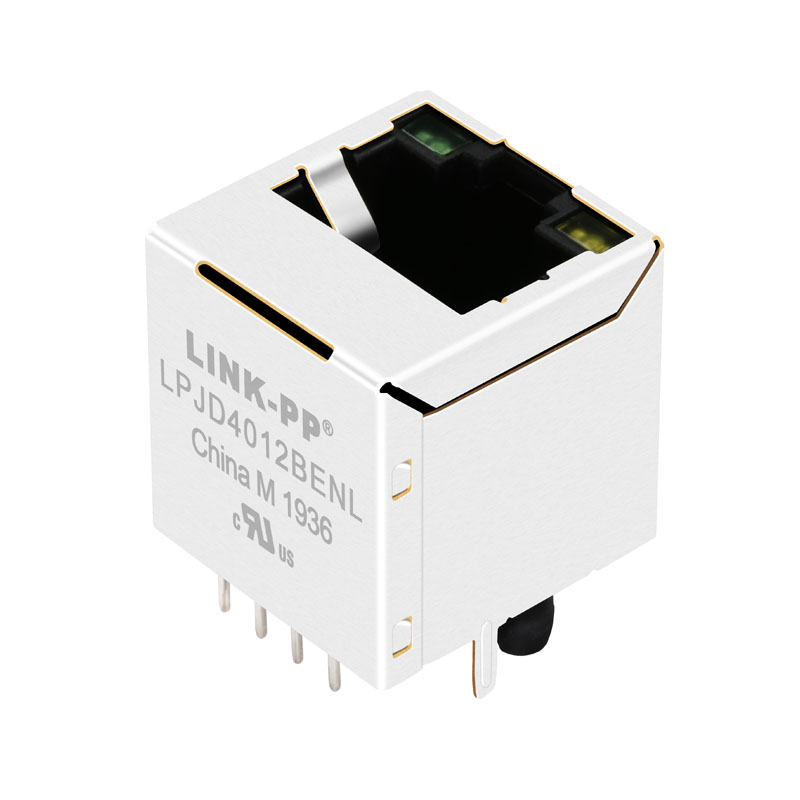

74990101241 10/100 Base-t Ethernet Vertical Top Entry Straight Magnetic RJ45 Female Connector
74990101241 10/100 Base-t Ethernet Vertical Top Entry Straight Magnetic RJ45 Female Connector
74990101241 10/100 Base-t Ethernet Vertical Top Entry Straight Magnetic RJ45 Female Connector
74990101241 10/100 Base-t Ethernet Vertical Top Entry Straight Magnetic RJ45 Female Connector
74990101241 10/100 Base-t Ethernet Vertical Top Entry Straight Magnetic RJ45 Female Connector
1 / 5
74990101241 10/100 Base-t Ethernet Vertical Top Entry Straight Magnetic RJ45 Female Connector
74990101241 10/100 Base-t Ethernet Vertical Top Entry Straight Magnetic RJ45 Female Connector
74990101241 10/100 Base-t Ethernet Vertical Top Entry Straight Magnetic RJ45 Female Connector
74990101241 10/100 Base-t Ethernet Vertical Top Entry Straight Magnetic RJ45 Female Connector
74990101241 10/100 Base-t Ethernet Vertical Top Entry Straight Magnetic RJ45 Female Connector

74990101241 10/100 Base-t Ethernet Vertical Top Entry Straight Magnetic RJ45 Female Connector

Send Inquiry

Product Description

Ethernet RJ45 Connector Overview
74990101241 10/100 Base-t Ethernet Vertical Top Entry Straight Magnetic RJ45 Female Connector

Products Description

Item RJ45 Female Connector
Part Status Active
Part Number LPJD4012BENL
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Cores per Port 4
Orientation 180° Angle (Right)
PCB Mount Angle Top Entry
Shield EMI Tabs Without
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX Yes
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Feature Details
See Below Products for More Information
Low Profile and SMT RJ45 Connectors Connector Specifications and Dimensions Quality Assurance Parameters Testing Procedures Vertical RJ45 Design Schematics Production Process Standards Packaging and Shipping Standard Network Terminal Applications

Company Profile

Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components, featuring an extensive line of state-of-the-art catalog products as well as custom design capabilities.
As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Manufacturing Plant Overview Assembly Line Process Precision Control Systems

Frequently Asked Questions

Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping cost needs to be covered by the client.
What is your delivery time?
Products in stock are ready to ship immediately, while mass production items typically require 15 to 30 days.
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, OEM and ODM orders are accepted. Please send us your requirements so we can initiate a detailed discussion.
What is your advantage?
We bring over 19 years of dedicated production experience and work closely with global industry leaders.
