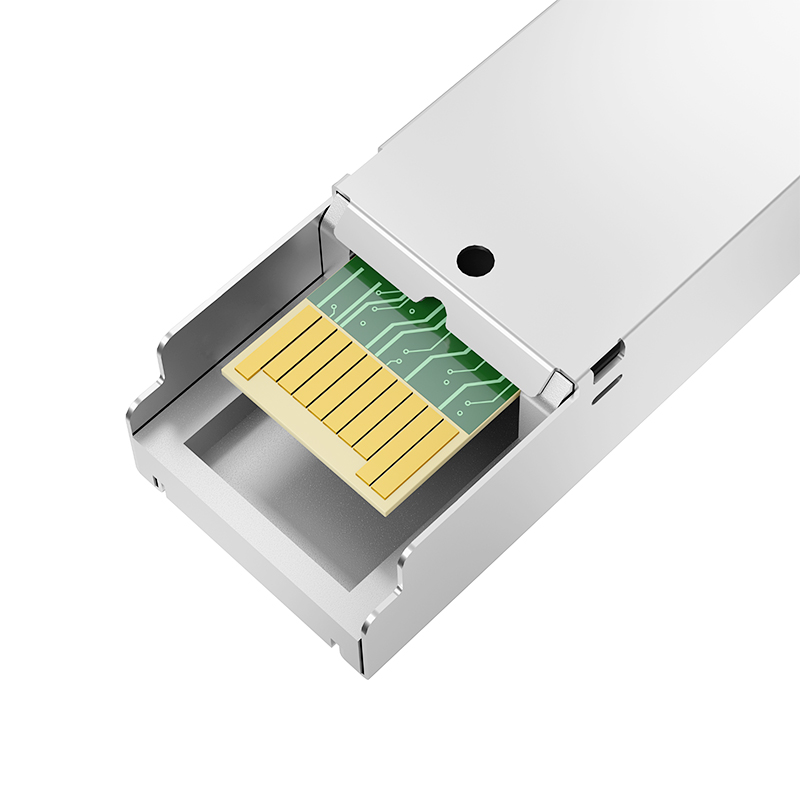

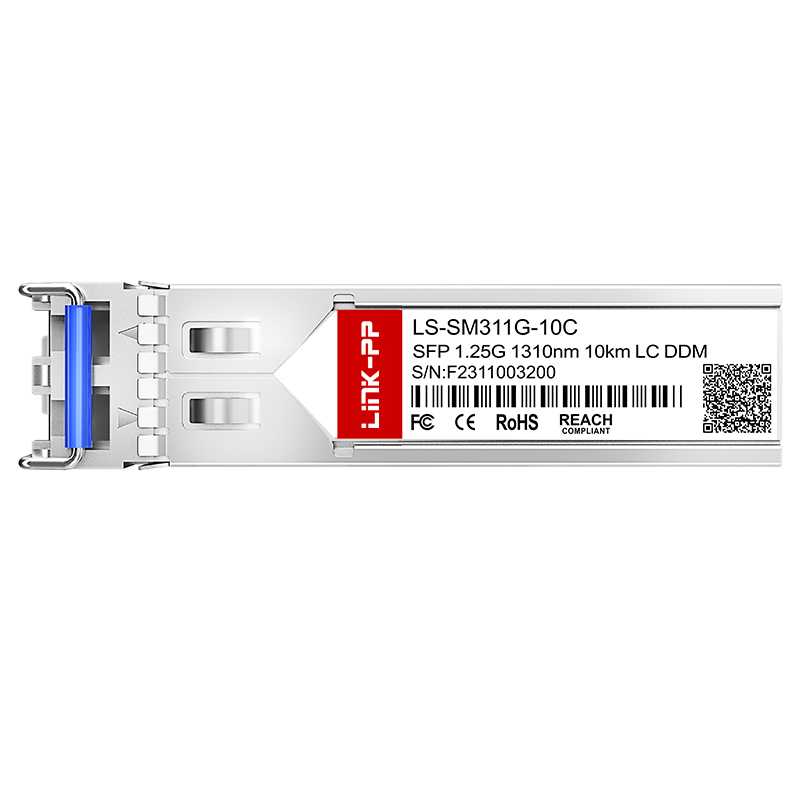

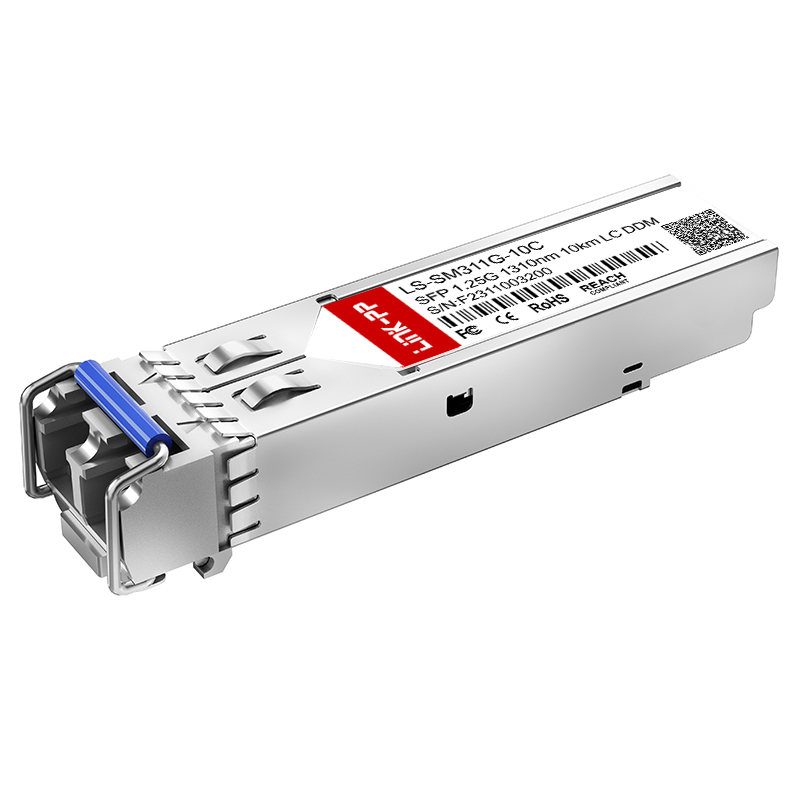

SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km

Product Description

SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
📦 Products Description
Item 1000BASE SFP
Compatible SFP-GE-LX-SM1310
Vendor Name Compatible
Part Status Active
Form Factor SFP
Max Data Rate 1.25Gbps
Wavelength 1310nm
Max Cable Distance 10Km
Media SMF
Connector Duplex LC
Optical Component FP/PIN
TX Power -9.5~-3dBm
Receiver Sensitivity <-20dBm
Receiver Overload -3dBm
Power Consumption ≤1W
Extinction Ratio >9dB
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
Warranty 5 Years
Sample Available
Optical Transceiver Overview
💡 View Our Solution

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Solution Chart
Optical Transport Networks

Optical Transport Networks

We provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.

Cloud and Enterprise

Cloud and Enterprise

To meet the demand for mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

FTTx

Aiming at global communication network constructors, we provide total FTTx optical fiber access solutions covering from all-optical or optical copper combined access solutions and products.

Subsystems

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Manufacturing Details
Component Image 1
Component Image 2
⚙️ Related Products SFP Cage
SFP Cage Option 1
SFP Cage Option 2
Why Choose Us
Quality Standard Assurance
Advanced Testing
High Performance Equipment
Global Operations
🏢 Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. Our production facility is equipped with advanced manufacturing systems and test instruments imported from abroad.

Established in 1997, our current staff consists of around 2,000 highly trained employees. With an abundant monthly production capacity of 3,000K, we are fully capable of delivering high-quality products within short lead times.

Moreover, we offer a comprehensive series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also features high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Leveraging the latest optoelectronics technologies, we develop, manufacture, and distribute our products globally.

Manufacturing Facility
Testing Lab
💬 FAQ

Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer free samples to test product quality, with shipping costs to be covered by the requester.

What is your delivery time?

Products in stock are ready to ship immediately. For mass production orders, the standard lead time is 15 to 30 days.

What after-sales service do you provide?

All products come with a one-year warranty period, and we provide 24-hour online technical support.

Do you accept OEM/ODM orders?

Yes, OEM/ODM orders are welcome. Please send us your specific design requirements to start a detailed technical discussion.

What are your core advantages?

We have over 19 years of dedicated production experience and have partnered with major industry leaders and global enterprise clients for many years.
