Shielded 10/100/1000 Base-T Low-Profile RJ45 Magjack RJMG212021210NR RJMG2018226A0ER RJMG2012228A0ER

Product Description

RJ45 Connectors & Networking Modules
Shielded 10/100/1000 Base-T Low-Profile RJ45 Magjack RJMG212021210NR RJMG2018226A0ER RJMG2012228A0ER
Products Description
Item RJ45 Female Connector
Bothhand Part Number RJMG212021210NR RJMG2018226A0ER RJMG2012228A0ER
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Up
Cores per Port 12
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Orange & Green / Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutoMDIX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C

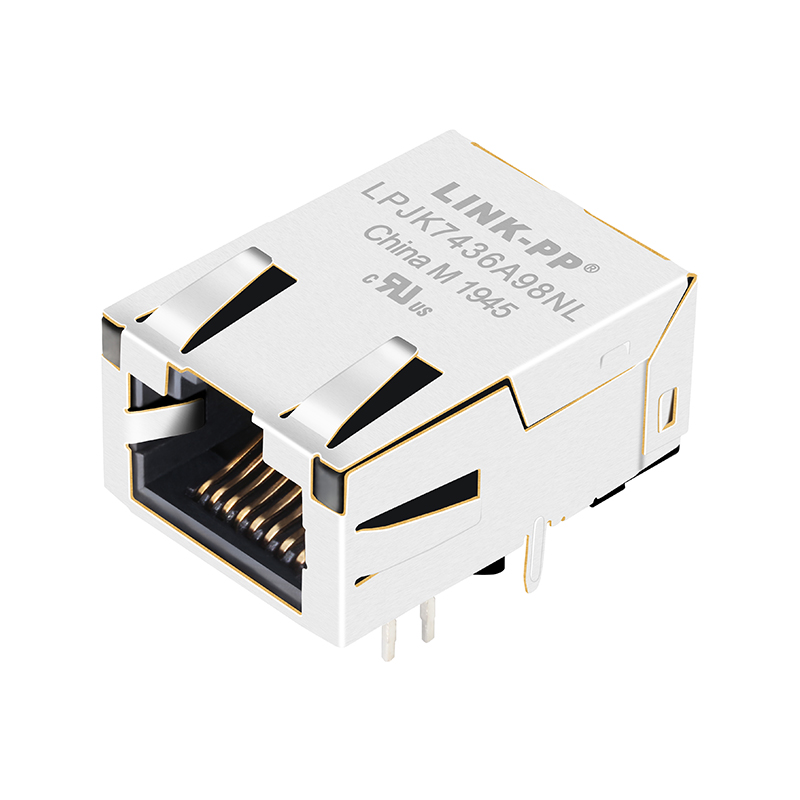

RJ45 Magjack Front View
RJ45 Magjack Side View
RJ45 Inside Details
Product Structure
Pin Configuration
Technical Specifications Diagram
