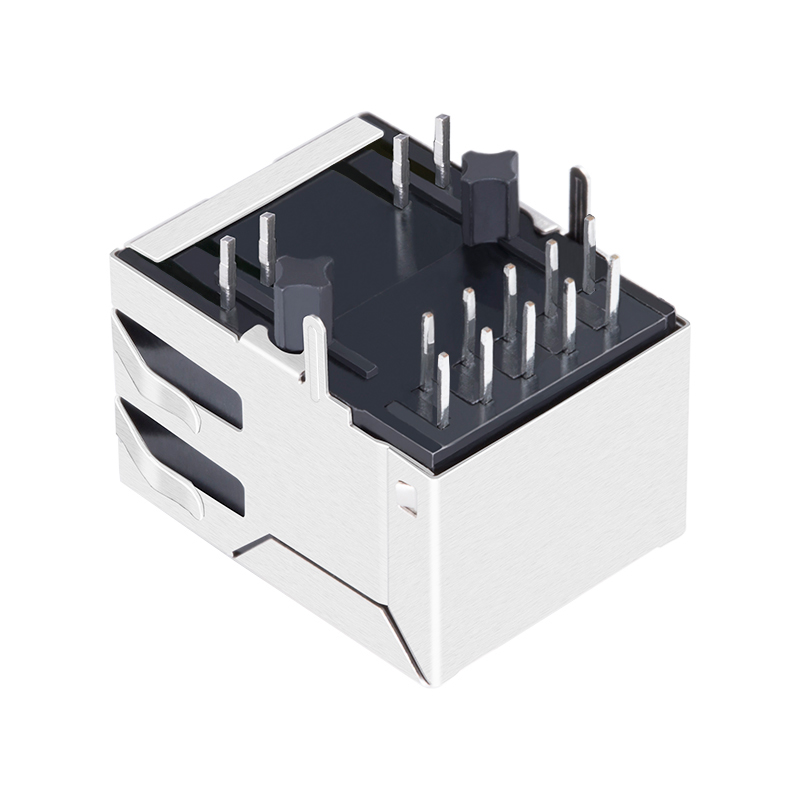

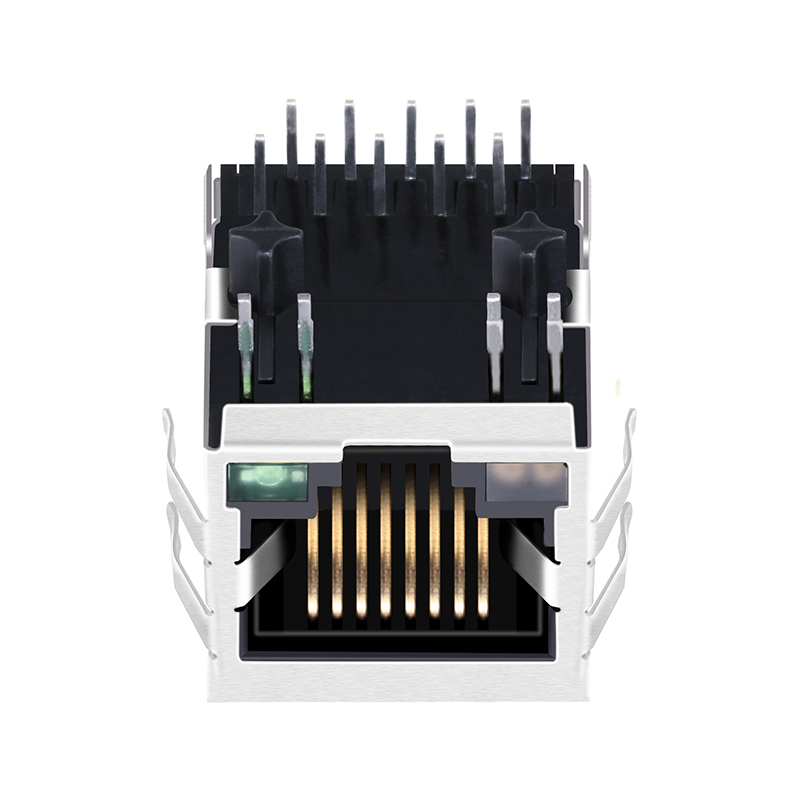

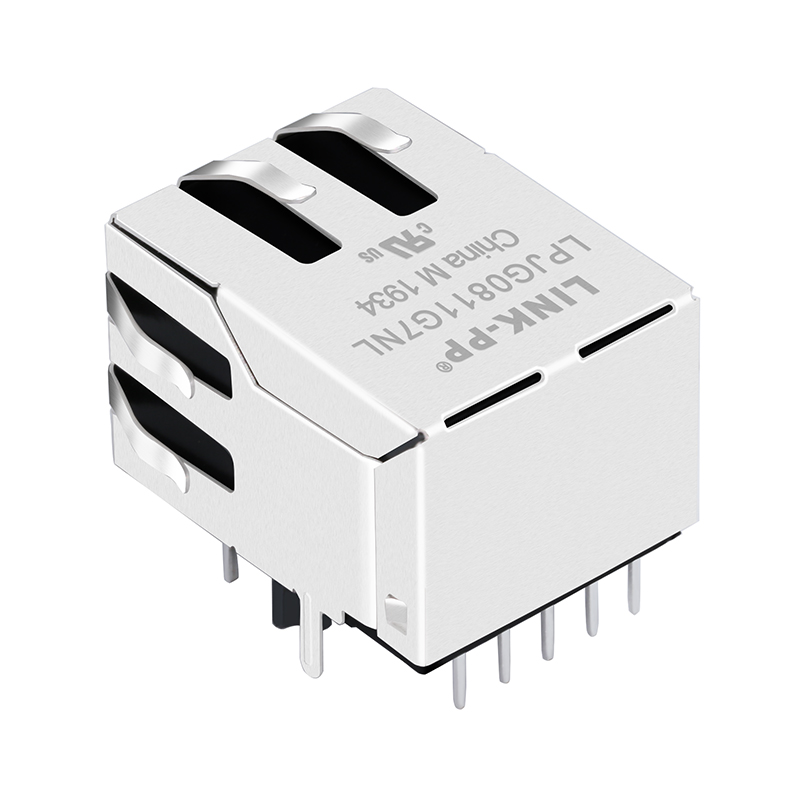

Tyco 1840434-5 RJ45 Connector Modular Jack With Magnetics
Tyco 1840434-5 RJ45 Connector Modular Jack With Magnetics
Tyco 1840434-5 RJ45 Connector Modular Jack With Magnetics
Tyco 1840434-5 RJ45 Connector Modular Jack With Magnetics
Tyco 1840434-5 RJ45 Connector Modular Jack With Magnetics
1 / 5
Tyco 1840434-5 RJ45 Connector Modular Jack With Magnetics
Tyco 1840434-5 RJ45 Connector Modular Jack With Magnetics
Tyco 1840434-5 RJ45 Connector Modular Jack With Magnetics
Tyco 1840434-5 RJ45 Connector Modular Jack With Magnetics
Tyco 1840434-5 RJ45 Connector Modular Jack With Magnetics

Tyco 1840434-5 RJ45 Connector Modular Jack With Magnetics

Send Inquiry

Product Description

Modular Jack Connectors
Products Description
Tyco 1840434-5 RJ45 Connector Modular Jack With Magnetics
Item RJ45 Female Connector
Bothhand Part Number 1840434-5
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 1000 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

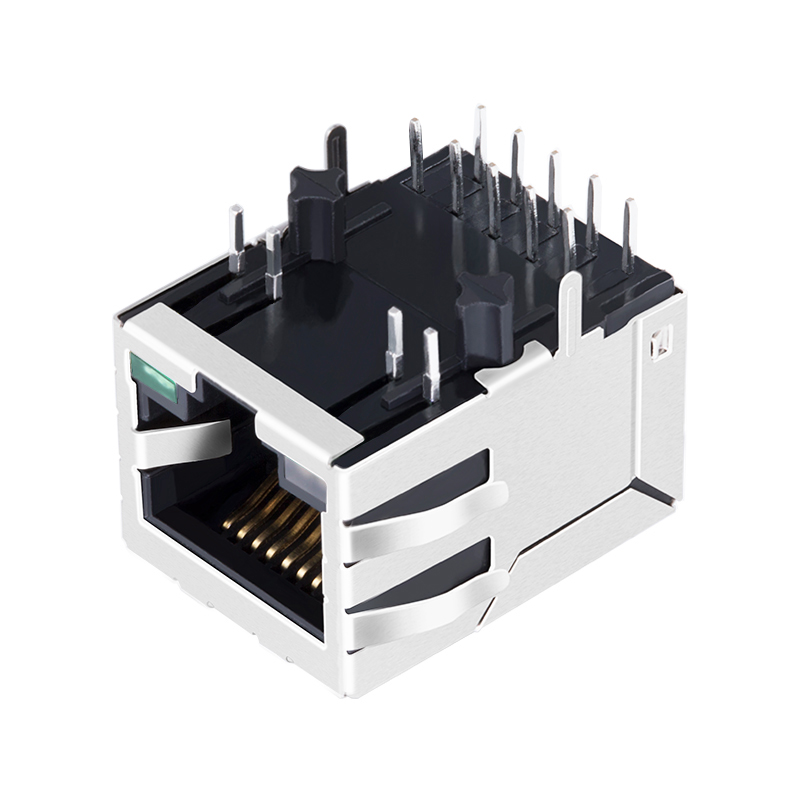

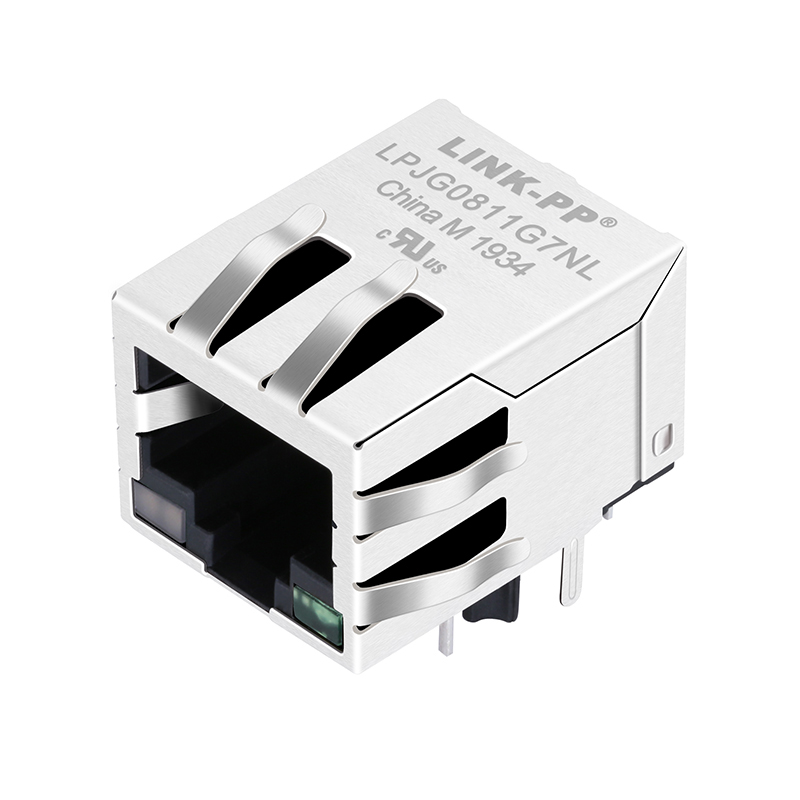

Connector Side View Connector Bottom View
Technical Drawing 1 Technical Drawing 2 Technical Drawing 3 Technical Drawing 4
Explore Product Range
Product Options Matrix Information Banner Quality Standard 1 Quality Standard 2 Testing Process 1 Testing Process 2 Testing Process 3 Certificate Overview
Company Profile
Established in 1997, the professional designer and manufacturer specializes in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer provider.
Production Workshop Automatic Machinery
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees apply.
What is your delivery time?
We are ready to ship for stock items, and it takes 15-30 days for mass production.
What after-sales service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
What is your advantage?
We possess over 19 years of production experience and maintain long-term partnerships with industry-leading global enterprises.
