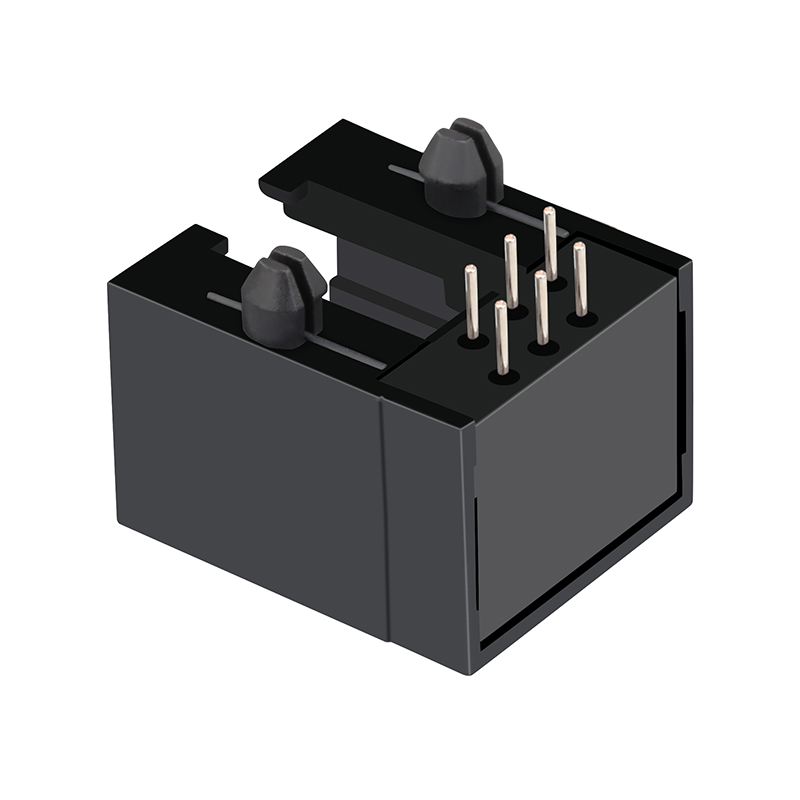

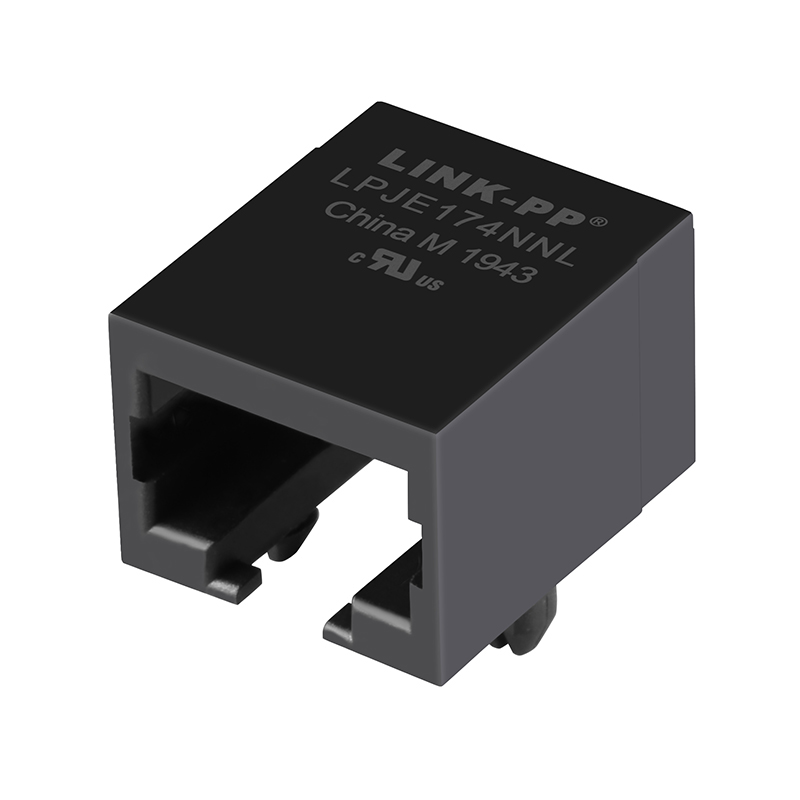

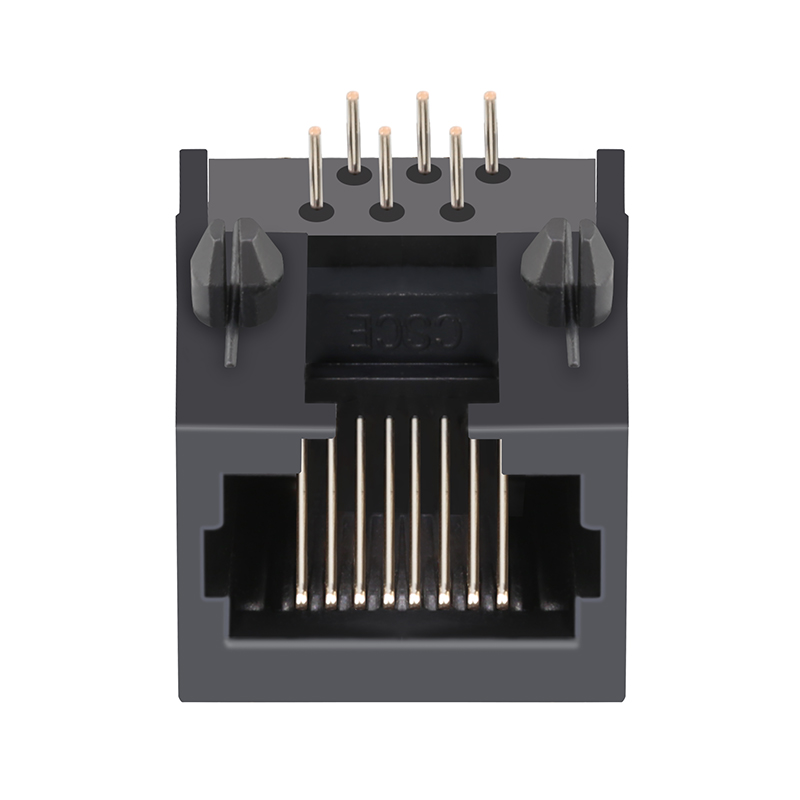

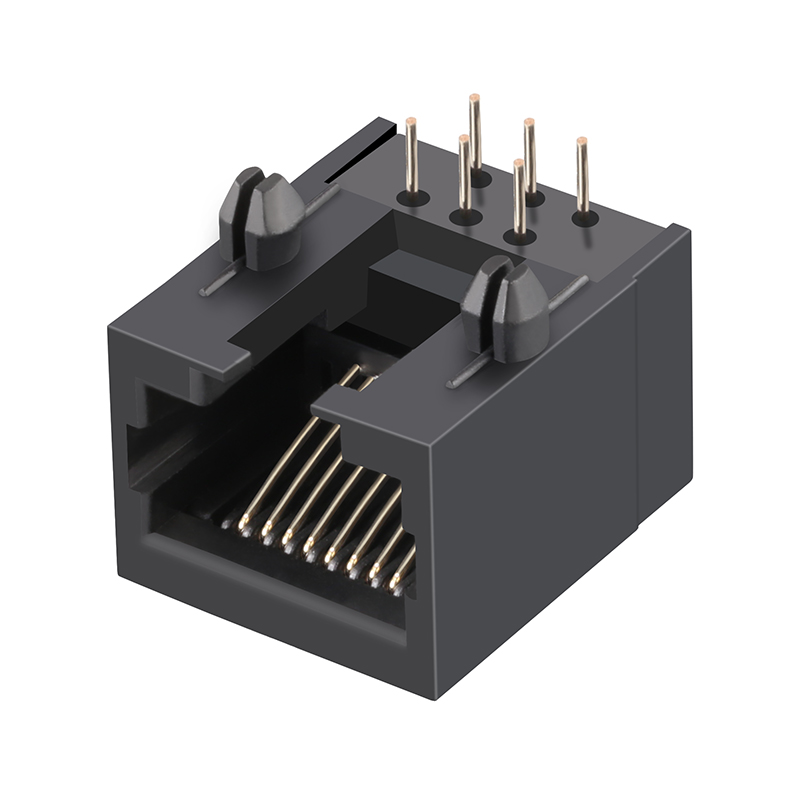

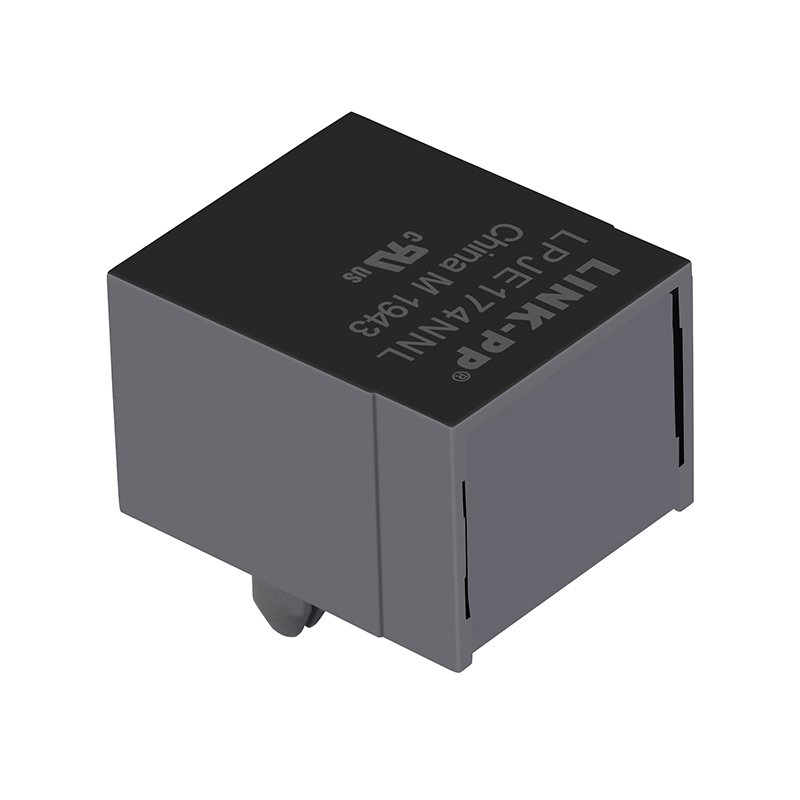

TS6P6C-PCB-U Unshielded Tab Down Without LEDs 1X1 Port RJ45 Modular Jack
Products Description
| Item |
RJ45 Female Connector |
| Part Number |
LPJE174NNL |
| Compatible With |
S11-ZZ-0159 |
| Part Status |
Active |
| Connector Type |
Jack |
| Number of Positions/Contacts |
6p6c (RJ45, Ethernet) |
| Application-Lan |
Ethernet(Non PoE) |
| Number of Ports |
1x1 Port |
| Speed |
10/100/1000 Base-T |
| Latch |
Down |
| Cores per Port |
4 |
| Orientation |
90° Angle (Right) |
| PCB Mount Angle |
SIDE ENTRY |
| Shield EMI Tabs |
Without |
| LED Option |
Without |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
-40°C TO 85°C |
| Bst Circuit |
Yes |
| AutoMDIX |
YES |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C |
Company Profile
Established in 1997, the manufacturer is a professional designer and producer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, the company has become a trusted partner worldwide.
As a global supplier of magnetic telecom and networking components serving OEMs, contract manufacturers, and CEMs, we provide high-quality parts to over 10,000+ customers in more than 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a leading provider in the global Ethernet RJ45 connector and LAN transformer market.
FAQ
Q
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, with shipping fees covered by the buyer.
Q
What is your delivery time?
In-stock items are ready to ship immediately, while mass production orders generally take 15 to 30 days.
Q
What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Q
Can you accept OEM/ODM orders?
Yes, OEM and ODM orders are welcome. Please contact us with your details so we can discuss your specifications.
Q
What is your primary advantage?
With over 19 years of professional production experience, we have established long-term partner relationships with global industry leaders.
