Vertical 10/100BASE-T POE RJ45 Female Connector Modular Jack 1840469-4
Vertical 10/100BASE-T POE RJ45 Female Connector Modular Jack 1840469-4
Vertical 10/100BASE-T POE RJ45 Female Connector Modular Jack 1840469-4
Vertical 10/100BASE-T POE RJ45 Female Connector Modular Jack 1840469-4
Vertical 10/100BASE-T POE RJ45 Female Connector Modular Jack 1840469-4
1 / 5
Vertical 10/100BASE-T POE RJ45 Female Connector Modular Jack 1840469-4
Vertical 10/100BASE-T POE RJ45 Female Connector Modular Jack 1840469-4
Vertical 10/100BASE-T POE RJ45 Female Connector Modular Jack 1840469-4
Vertical 10/100BASE-T POE RJ45 Female Connector Modular Jack 1840469-4
Vertical 10/100BASE-T POE RJ45 Female Connector Modular Jack 1840469-4

Vertical 10/100BASE-T POE RJ45 Female Connector Modular Jack 1840469-4

Send Inquiry

Product Description

Vertical 10/100BASE-T POE RJ45 Female Connector
Vertical 10/100BASE-T POE RJ45 Female Connector Modular Jack 1840469-4
Products Description
Item RJ45 Female Connector
Bothhand Part Number 1840469-4
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

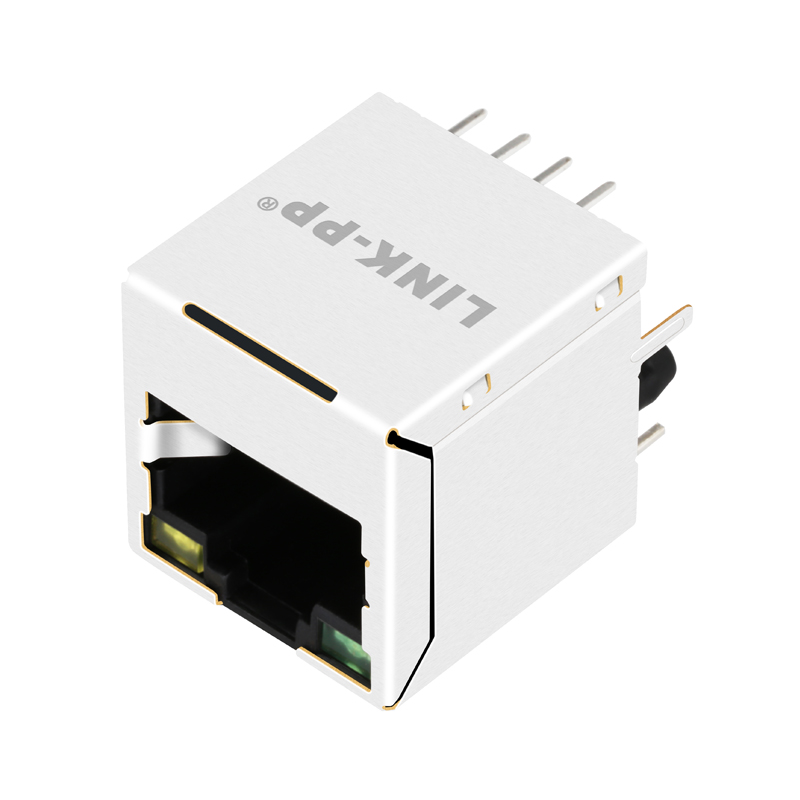

Product View 1

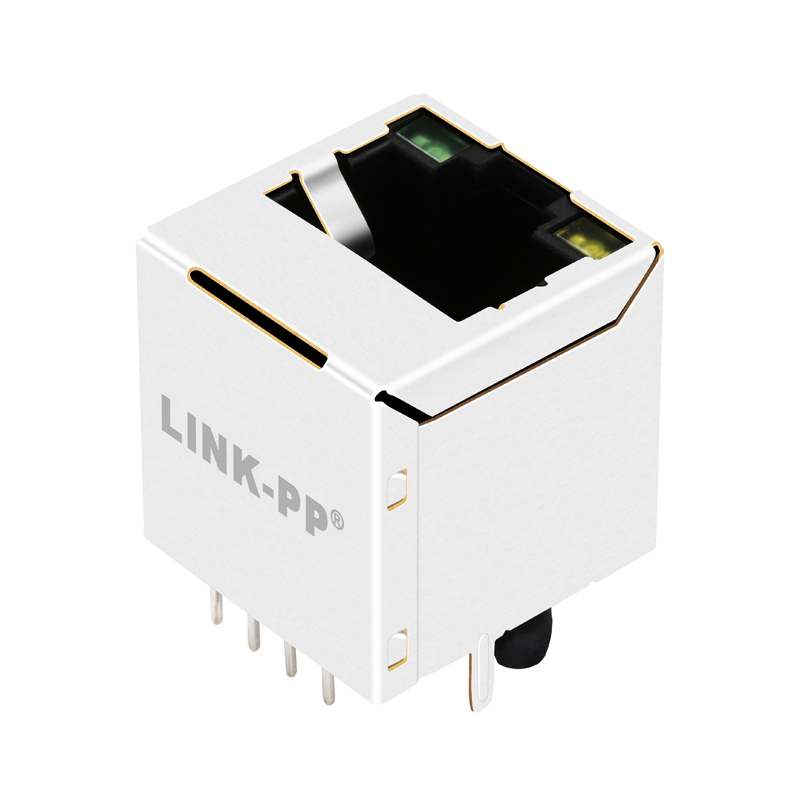

Product View 2
Product Detail 1
Product Detail 2
Product Detail 3
Product Detail 4
Product Categories Overview
Dimensional Drawing 1
Dimensional Drawing 2
Dimensional Drawing 3
Technical Specifications 1
Technical Specifications 2
Technical Specifications 3
FAQ
Q Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you are responsible for the shipping fees.
Q What is your delivery time?
Products in stock are ready to ship immediately, while mass production orders typically require 15-30 days.
Q What after-service support do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM orders. Please contact us with your specifications to discuss your requirements in detail.
Q What is your manufacturing advantage?
We possess 19 years of professional production experience and have been a trusted partner for leading global technology enterprises for many years.
