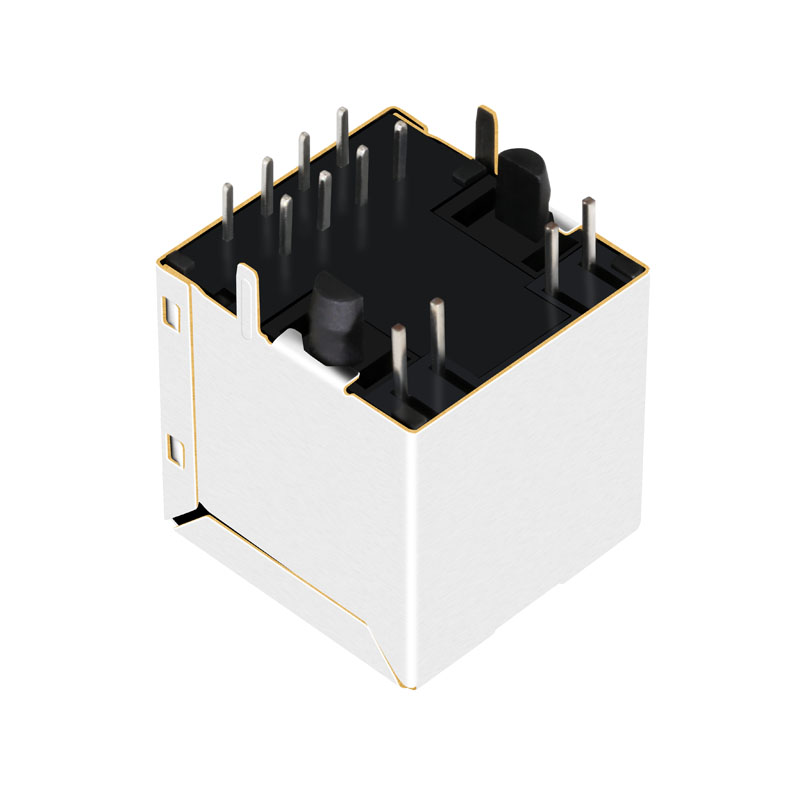

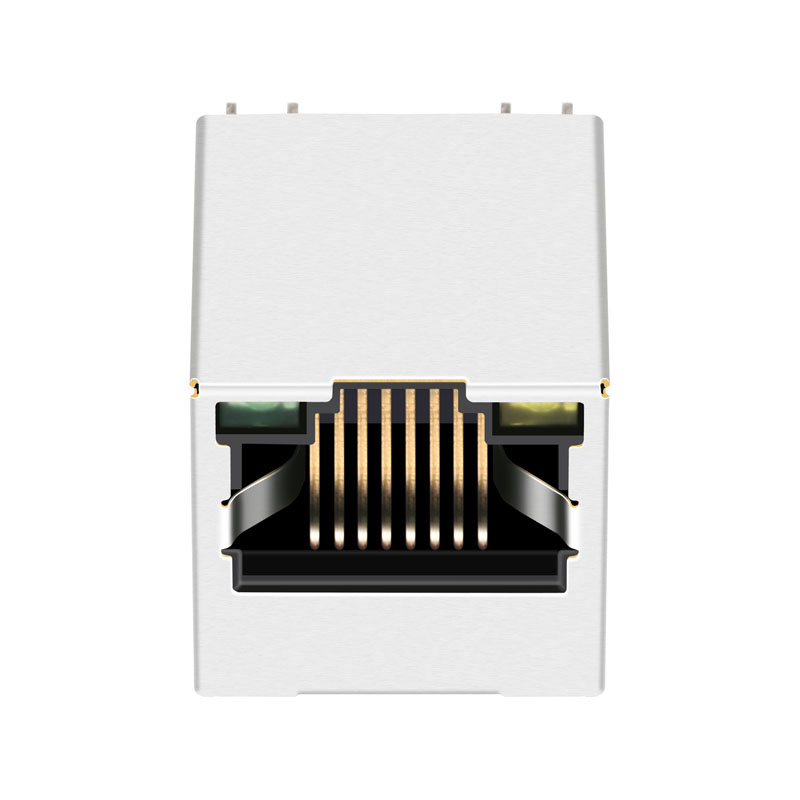

XRJV-01V-4-D12-380 Vertical Top Entry 10/100 Base-t Ethernet Magnetic RJ45 Jack With Leds
| Item |
RJ45 Female Connector |
| Part Status |
Active |
| Part Number |
LPJD0012BENL |
| Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet(NoN PoE) |
| Number of Ports |
1x1 Port |
| Speed |
10/100 Base-T |
| Cores per Port |
4 |
| Orientation |
180° Angle (Right) |
| PCB Mount Angle |
Top Entry |
| Shield EMI Tabs |
Without |
| LED Option |
With |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
0°C TO 70°C |
| Bst Circuit |
Yes |
| AutomDX |
Yes |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C |
☞ Explore Our Wide Range of Connector Products Below ☞
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Q
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee needs to be covered by the customer.
Q
3. What is your delivery time?
Products in stock are ready to ship immediately, while mass production orders generally take 15 to 30 days.
Q
4. What after-service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q
5. Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM orders. Please send your inquiries to us so we can discuss the details.
Q
6. What is your advantage?
We have over 19 years of professional manufacturing experience and have established long-term partnerships with leading global enterprises.
