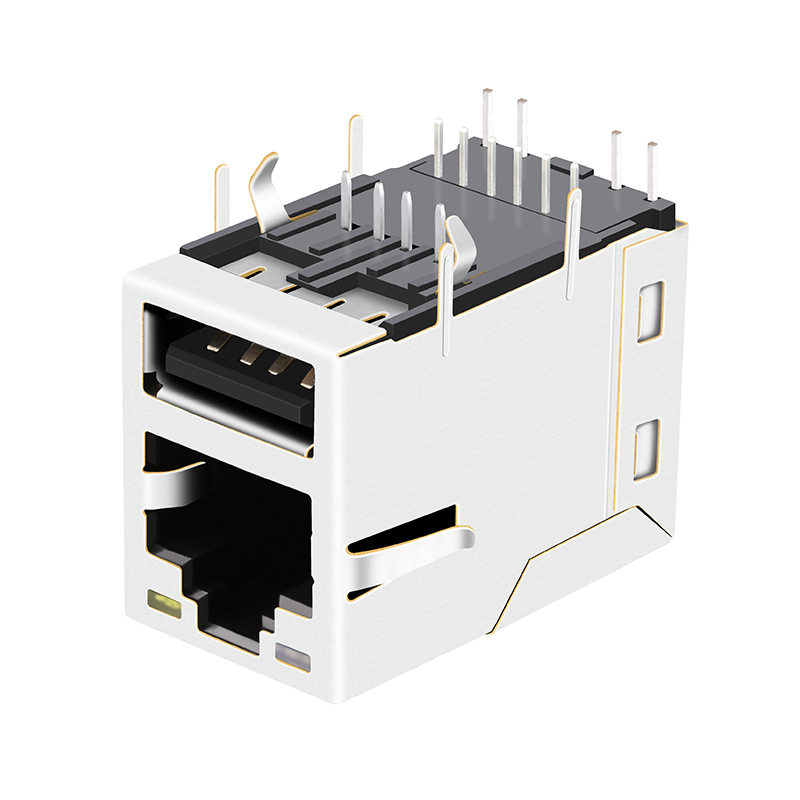

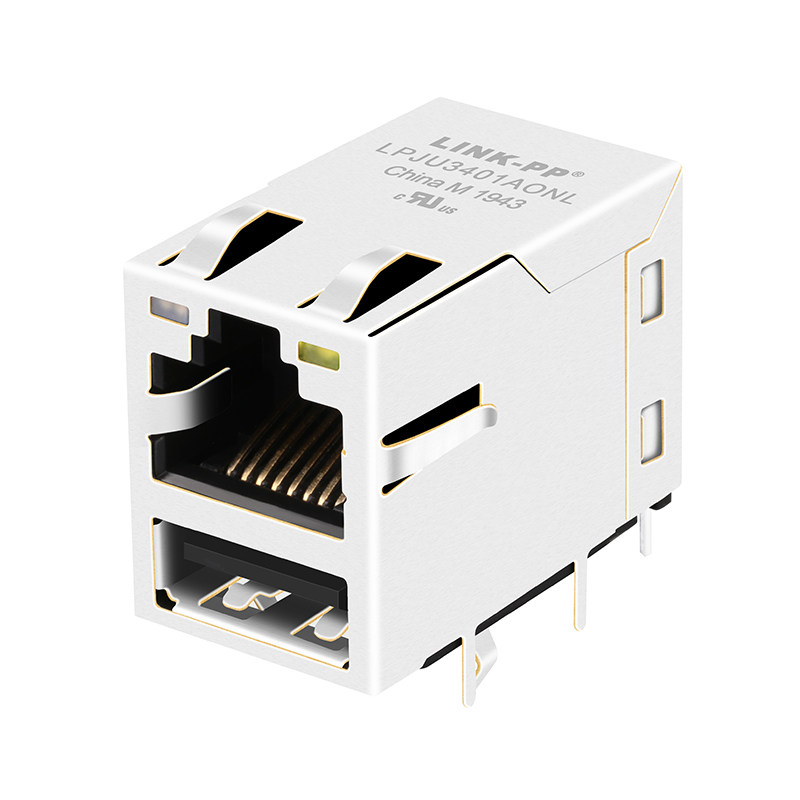

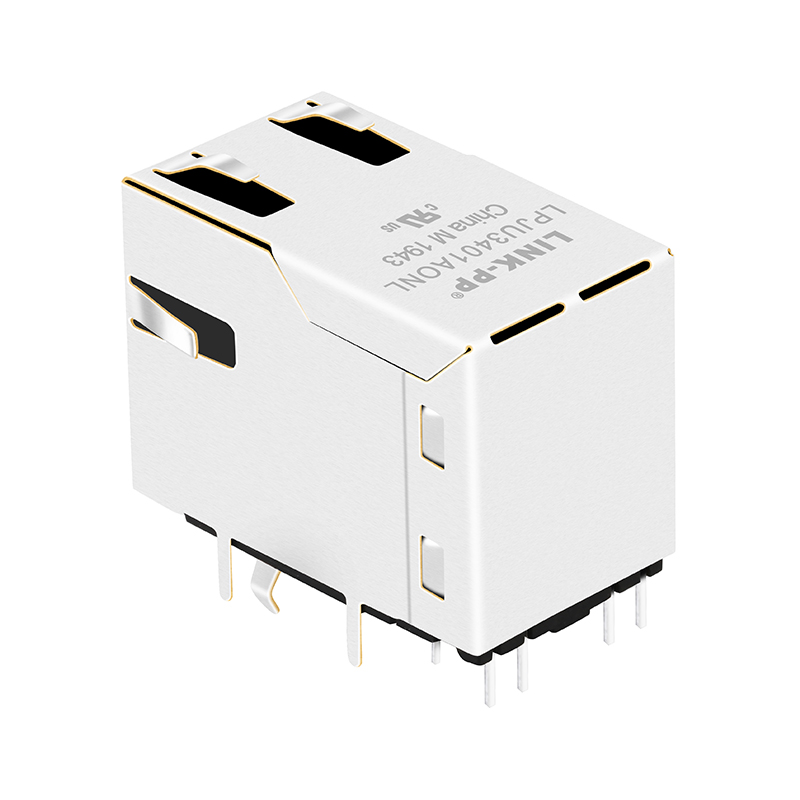

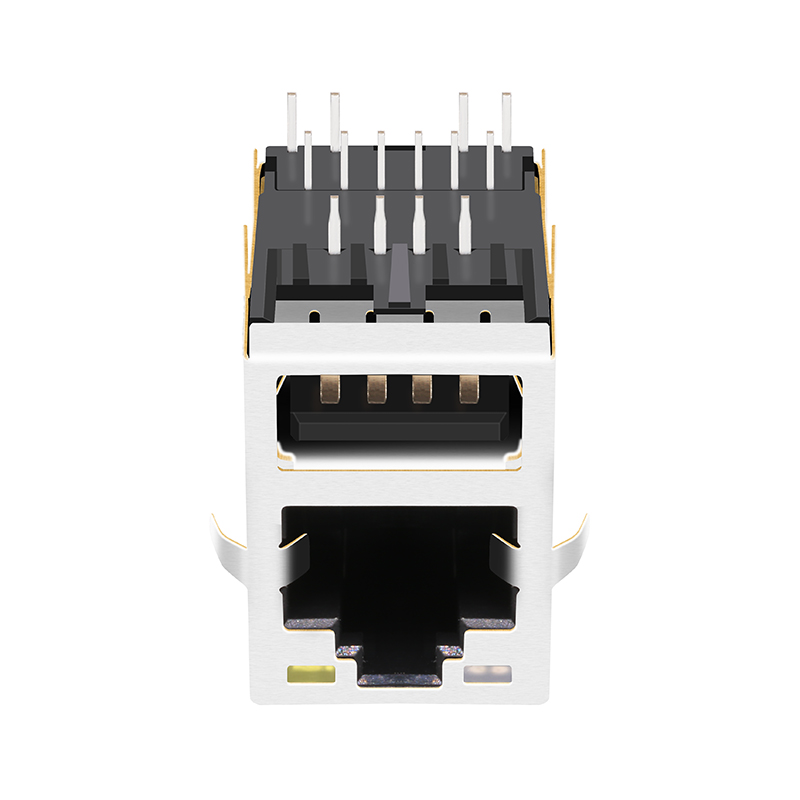

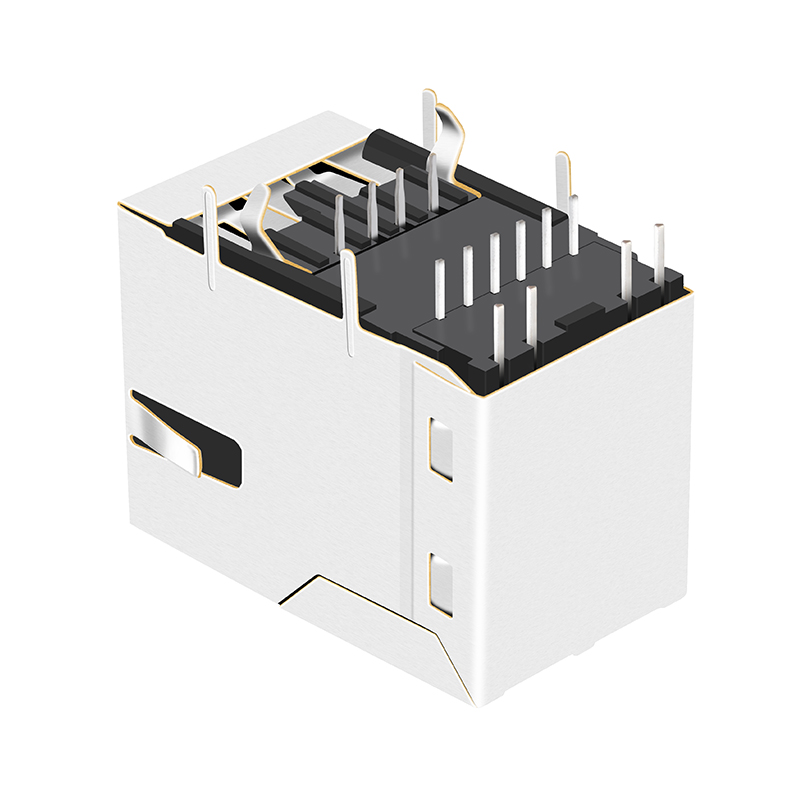

7497011611A 10/100 Base-t Tab up Magnetic USB RJ45 Ethernet Female RJ45 Connector With Led

Product Description

Ethernet Connectors
7497011611A 10/100 Base-t Tab Up Magnetic USB RJ45 Ethernet Female RJ45 Connector With Led
Product Specifications
Item RJ45 Female Connector
Part Number LPJU3401AONL
Compatible With 7497011611A
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle Side Entry
Shield EMI Tabs With
LED Option With
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Diagram
Explore Our Extensive Product Range Below
Product Categories Overview
Technical Drawings & Quality Standards
Technical Drawing 1 Technical Drawing 2 Technical Drawing 3
Technical Specification Sheet Structural Dimensions Pin Configuration
Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer supplier.
Manufacturing Plant Overview Production Line Testing Laboratory
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you will need to cover the shipping fee.
What is your delivery time?
For items in stock, they are ready to ship. For mass production orders, the lead time is approximately 15-30 days.
What after-service can you offer?
We provide a one-year guarantee period and offer online technical support 24 hours a day.
Can you accept OEM/ODM orders?
Yes, we support both OEM and ODM services. Please send us your specific inquiry so we can have a detailed discussion.
What is your advantage?
We have over 19 years of professional production experience and have partnered with major industry leaders for many years.
