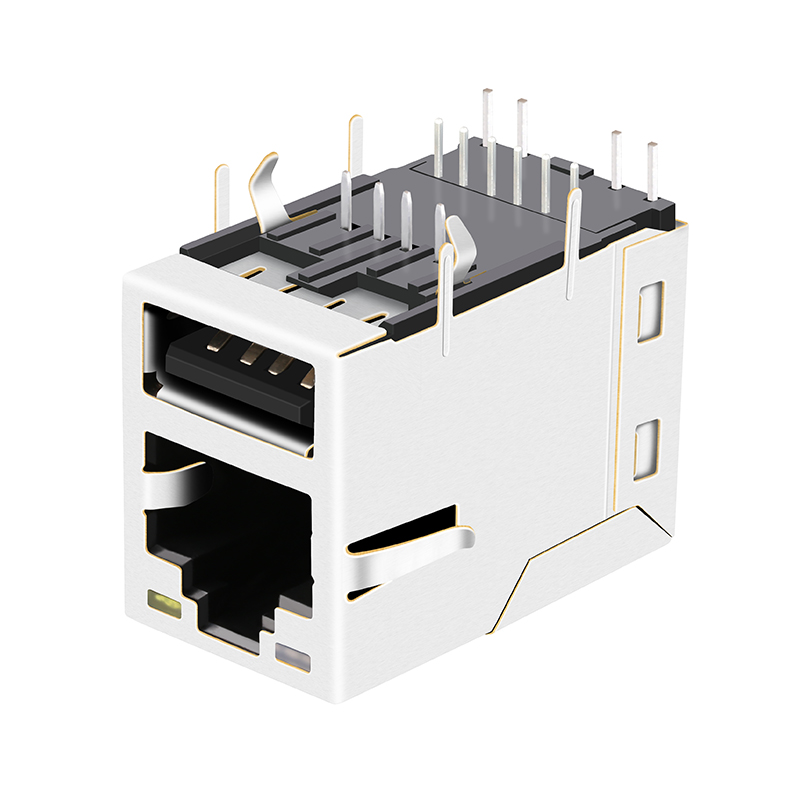

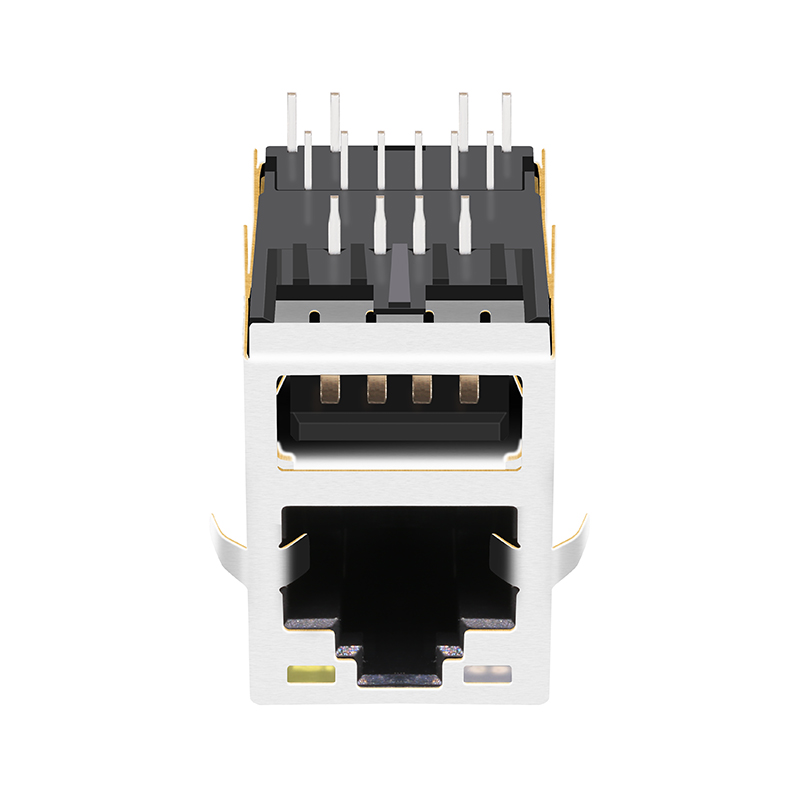

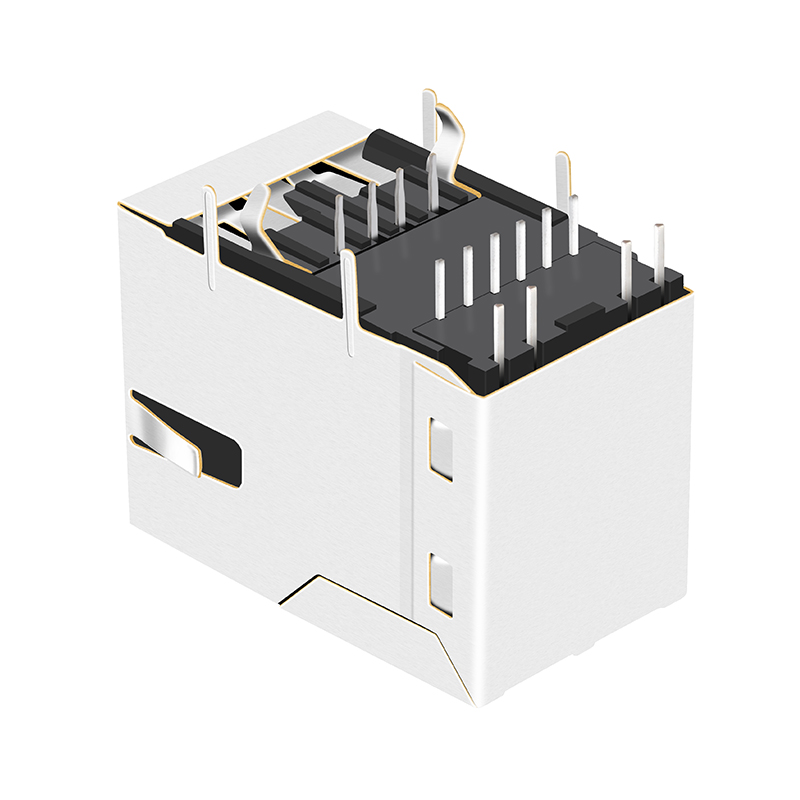

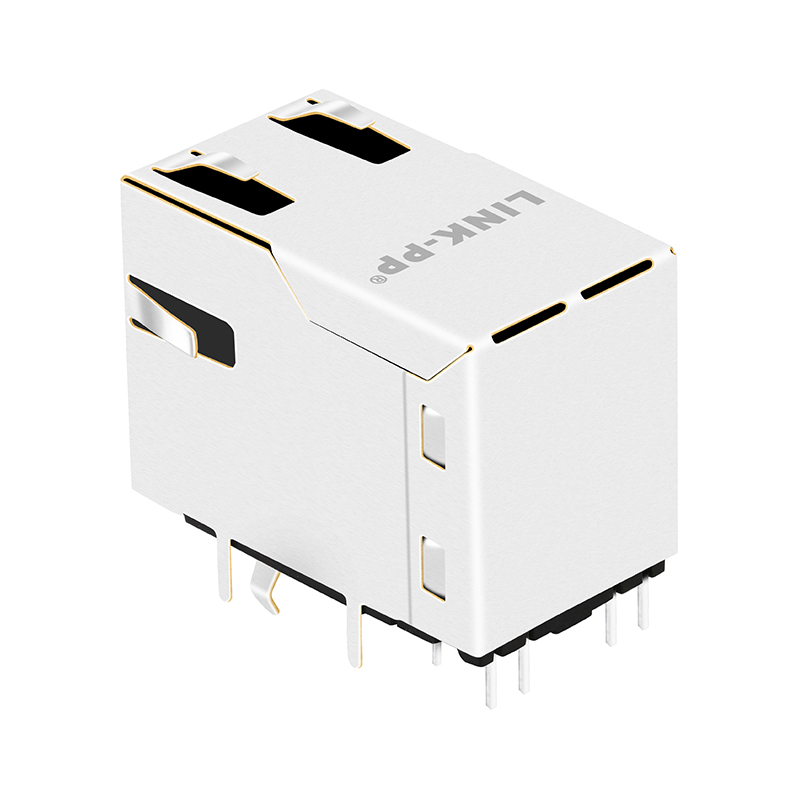

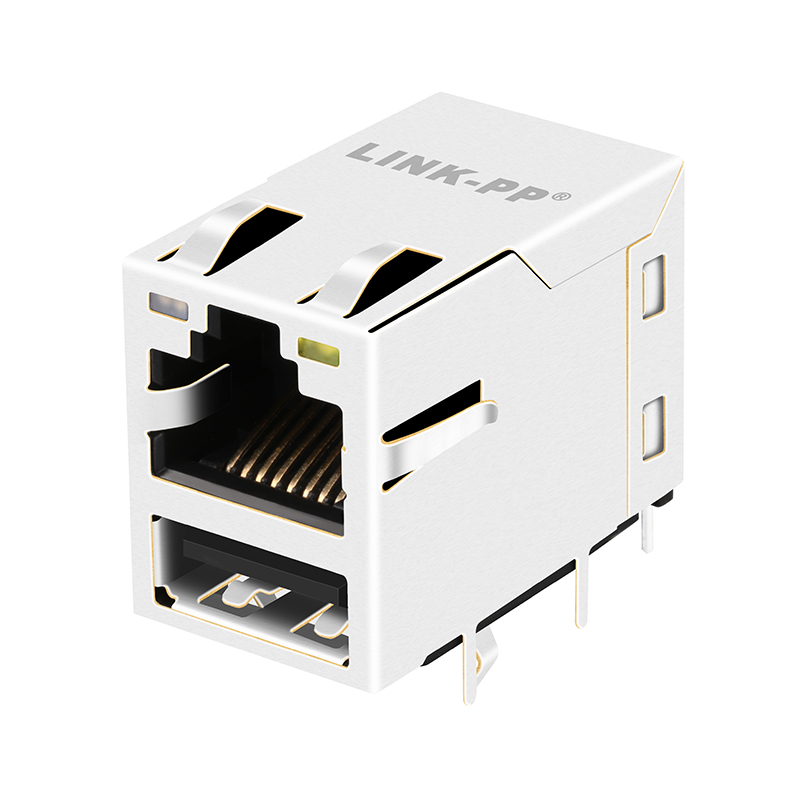

Tyco 1-1840012-2 RJ45 USB Combo Connector

Product Description

RJ45 USB Connector Drawing
RJ45 USB Combo Connector Specifications
Tyco 1-1840012-2 RJ45 USB Combo Connector
Products Description
Item RJ45 Female Connector
Part Number LPJU3836AONL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports Single Port With 1 USB
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Single Port RJ45 Connector Variants
Lan Transformer Specifications
Send Inquiry To Get Latest Price List
Production Process 1
Production Process 2
Production Process 3
Production Process 4
Production Process 5
Production Process 6
Production Process 7
Factory Overview
Why Choose Us
Certifications and Standards
Quality Management System
Advanced Testing Equipment
Manufacturing Capability
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions in the world, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.

Main Customers: ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will convince you to be our long-term friend.
Office and Workshop
Automation Equipment
Inspection Standards
Certificates Display
FAQ
Q1: Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q2: Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
Q3: What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
Q4: What after-service can you offer?
We offer a one-year guarantee period and provide technical support online 24 hours.
Q5: Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion.
Q6: What is your advantage?
We have 19 years of production experience and have been a trusted partner for Intel and Jabil for many years.
