CAT6 Network Jack Stack Dual USB 3.0 RJ45 Combo Connector TS-70030-1 RJU51-93EK17-G2BL JFM24U13-21U6-4x JFM24U10-21U6-4x

Product Description

Category Options
CAT6 Network Jack Stack Dual USB 3.0 RJ45 Combo Connector
Compatible Models: TS-70030-1 | RJU51-93EK17-G2BL | JFM24U13-21U6-4x | JFM24U10-21U6-4x
Products Description
Specification Item Details / Parameters
Item RJ45 Female Connector
Compatible With TS-70030-1
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle Side Entry
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T Post
Temperature 0℃ to 70℃ / -40℃ to 85℃
Bst Circuit Yes
AutoMDIX Yes
Contact Mating Area Plating Gold 6u" / 15u" / 30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C

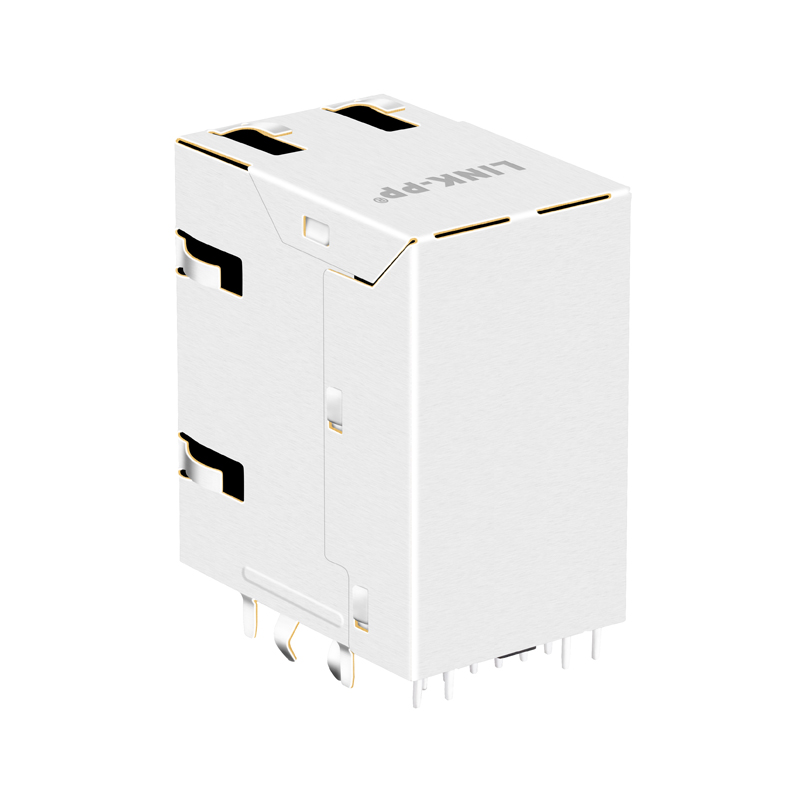

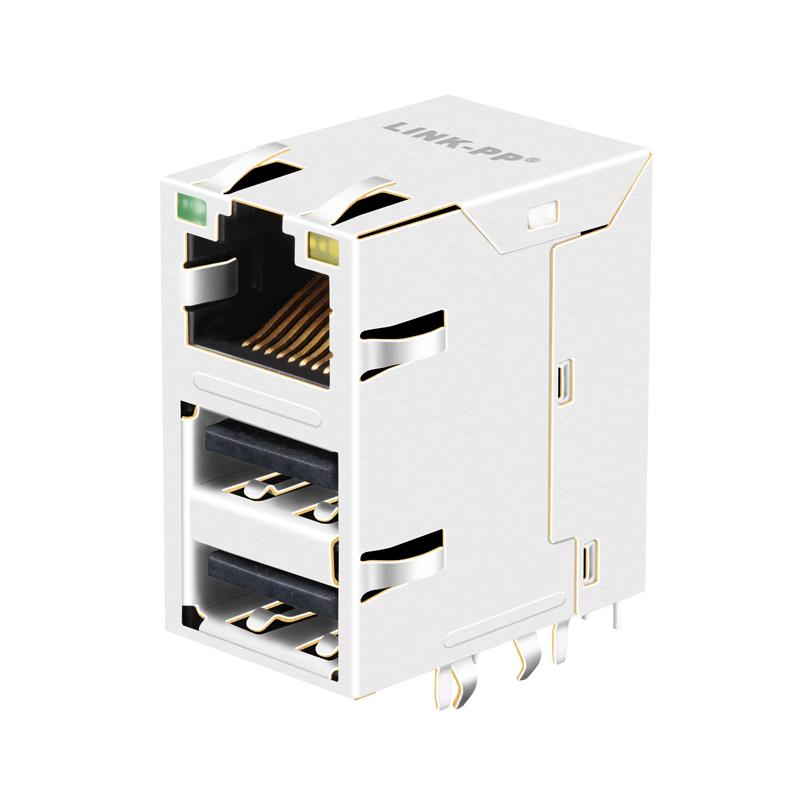

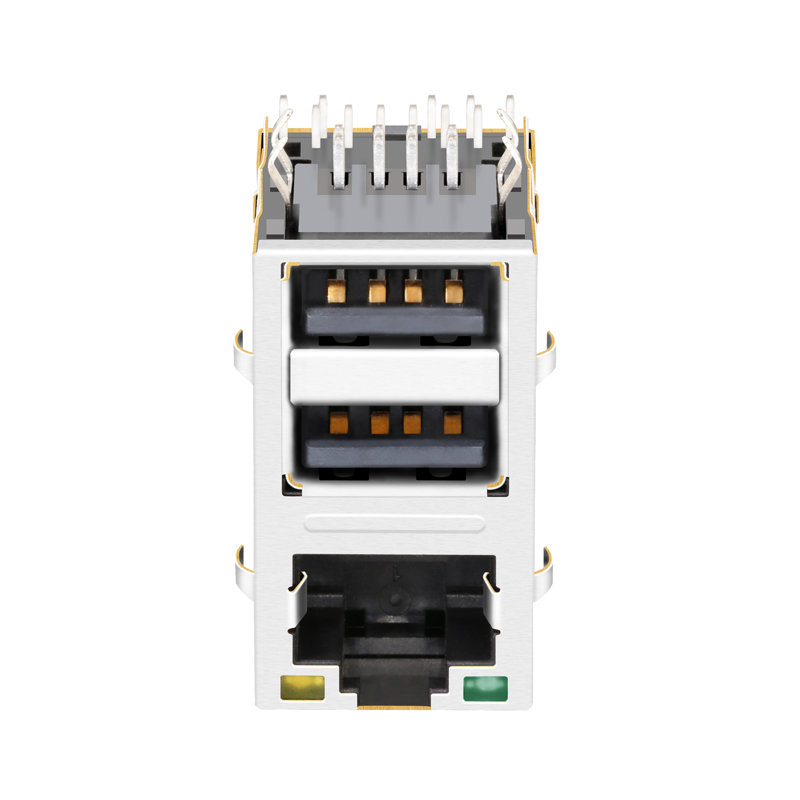

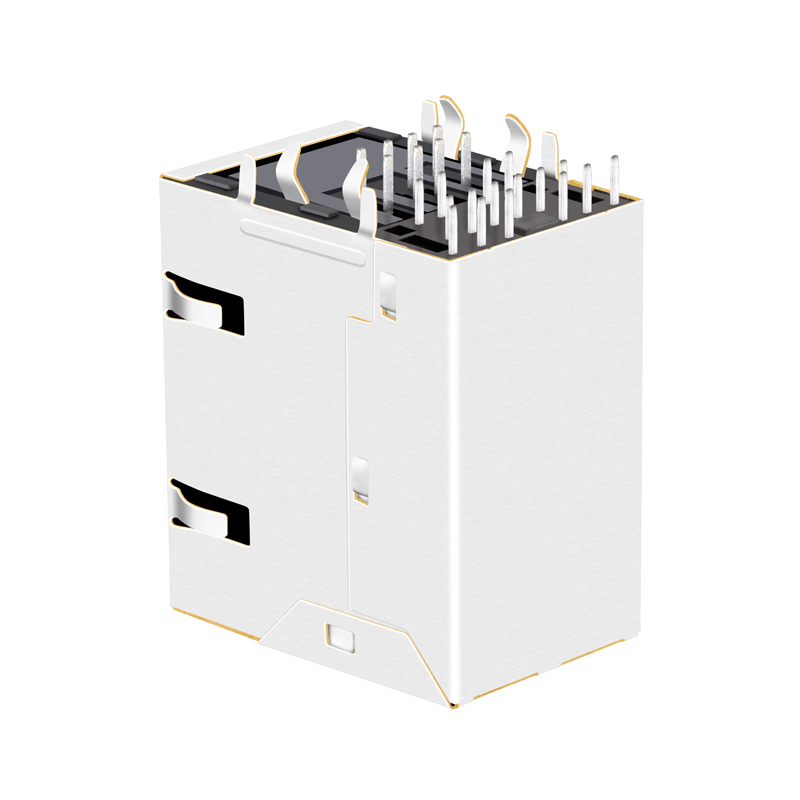

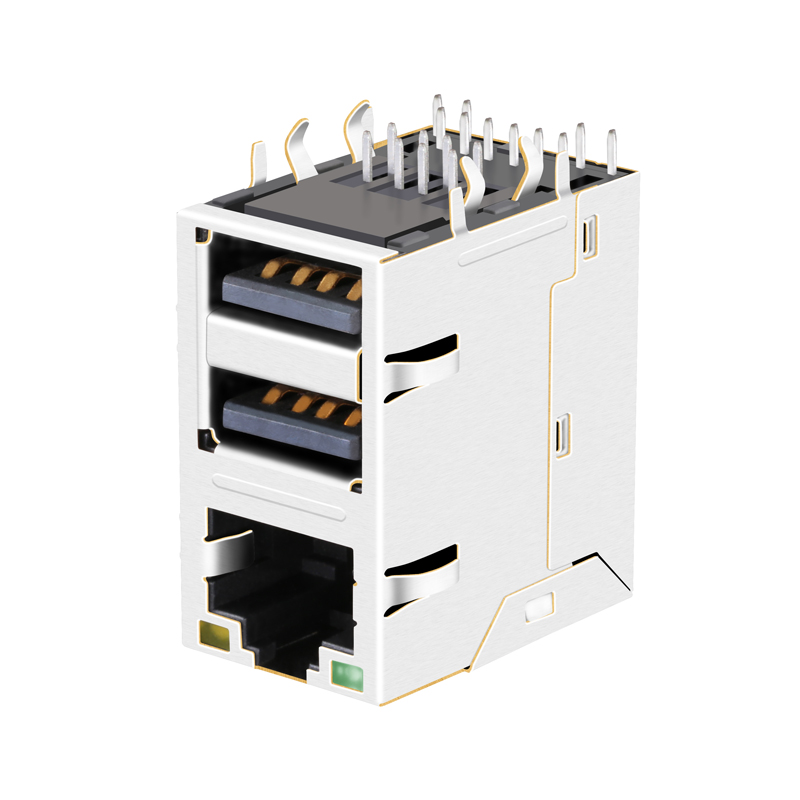

Product Image Main
Diverse Configuration Portfolio
Product Range Grid
Technical Drawing 1 Technical Drawing 2
Production Facility Testing Operations
Quality Analysis Inventory and Storage
Company Profile
Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components, offering an extensive line of state-of-the-art catalog products as well as custom design capabilities.
We operate as a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, serving more than 10,000+ customers across over 200 countries. By building multi-warehouse systems in key areas and continuously expanding our inventory, we are committed to being a world-leading provider of Ethernet RJ45 connectors and LAN transformers.
Facility Standard Quality Compliance Logistics Center
Frequently Asked Questions
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping and logistics fees should be covered by the customer.
3. What is your standard delivery time?
Products currently in stock are ready to ship immediately, while custom or mass production orders typically require 15 to 30 days.
4. What after-sales service guarantees do you offer?
We offer a comprehensive one-year guarantee period along with round-the-clock (24-hour) online technical support.
5. Can you accept OEM/ODM orders?
Yes, we fully support custom OEM and ODM specifications. Please send us your detailed requirements to begin technical discussions.
6. What advantages do you bring to your customers?
With nearly 20 years of production experience, we maintain strict manufacturing standards and have been a trusted partner to global technology leaders for many years.
