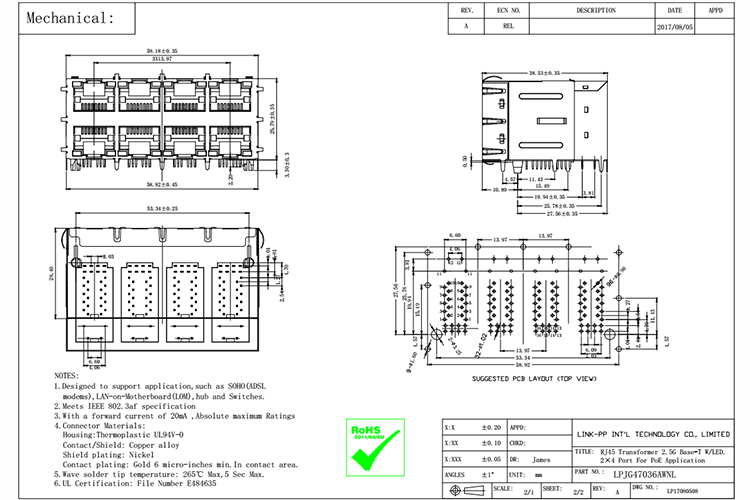

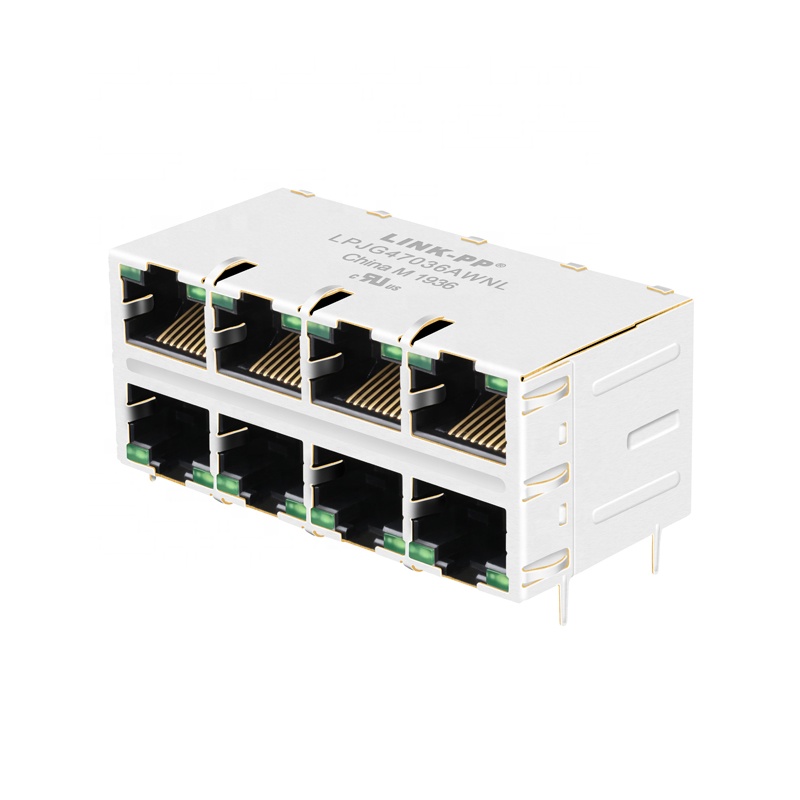

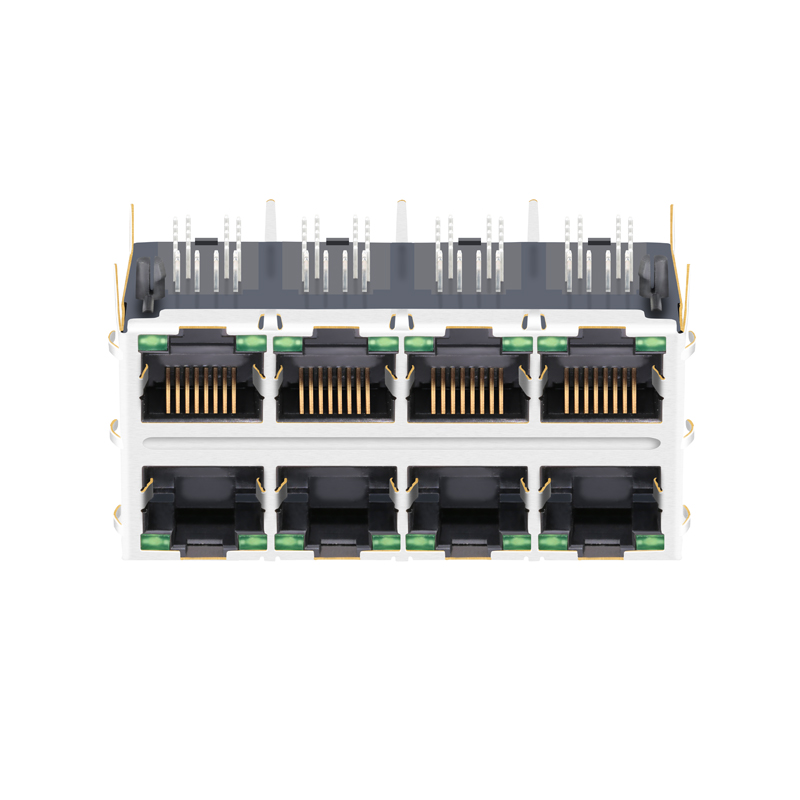

2x4 Port For PoE Cat5e 2.5G Jack RJ45 Female Connector
| Part Number |
LPJG47036AWNL |
| Application-LAN |
ETHERNET(POE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u"/50u" |
| Cores Per Port |
8 |
| Diodes |
NO DIODES |
| LED Option |
GREEN/GREEN |
| Latch |
UP/DOWN |
| Number of Ports |
2X4 |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
WITH |
| Shielding |
Shielded |
| Speed |
2.5G BASE-T |
| Temperature |
-20~+70℃ |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
100% Guarantee Quality
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- Quality Guarantee: 6 Years
Competitive Price And Service
- More Competitive Price Than Major Competitors
- Delivery Time: 2-3 Weeks After Orders
- Free Samples Are Available
- Provide New Design For Customer Requirements
- 90% Off Shipping Cost By DHL UPS FEDEX Or TNT
Frequently Asked Questions
What applications is this 2x4 RJ45 connector designed for?
This connector is specifically designed for Ethernet (PoE) applications, operating at speeds up to 2.5G BASE-T. It is ideal for high-density networking devices.
What is the operating temperature range?
The product is designed to function reliably in environments ranging from -20℃ to +70℃.
Is this RJ45 connector RoHS compliant?
Yes, it is RoHS compliant (RoHS-5 with lead in solder exemption) and conforms to international environmental policies.
What LED configurations are available?
This model features a Green/Green LED option for port activity and connection status indication.
What quality testing processes do these connectors undergo?
Every single connector undergoes 100% testing (not just batch testing) under strict controls, and comes with a 6-year quality guarantee.
Can you provide custom designs based on our requirements?
Yes, new designs can be custom-engineered to meet specific customer requirements, and free samples are available for evaluation.
