China Manufactures 2x1 Port Shielded RJ45 Modular Jack

1 / 5

China Manufactures 2x1 Port Shielded RJ45 Modular Jack

Send Inquiry

Product Description

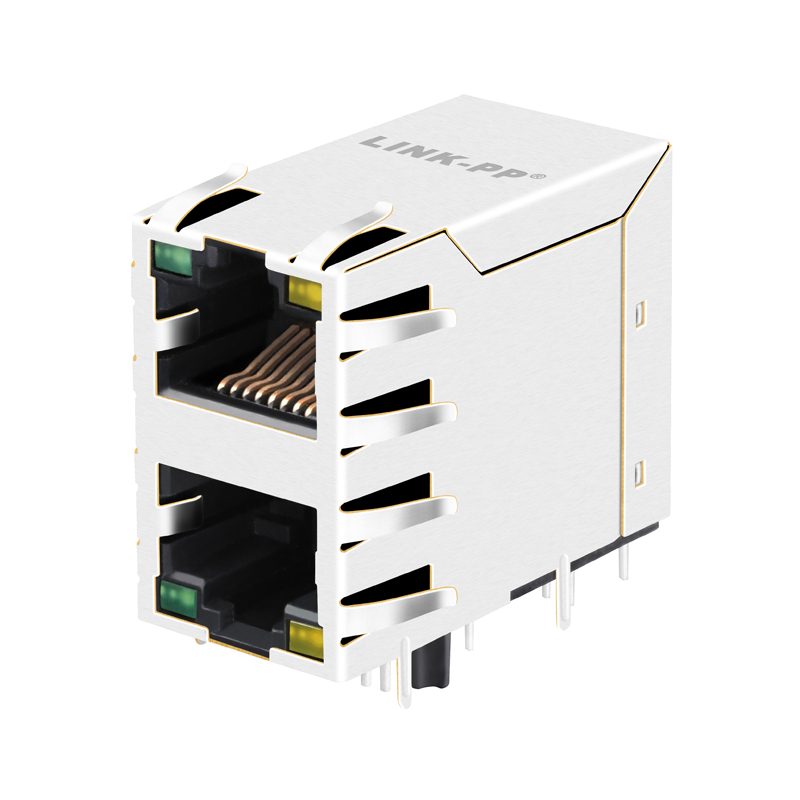

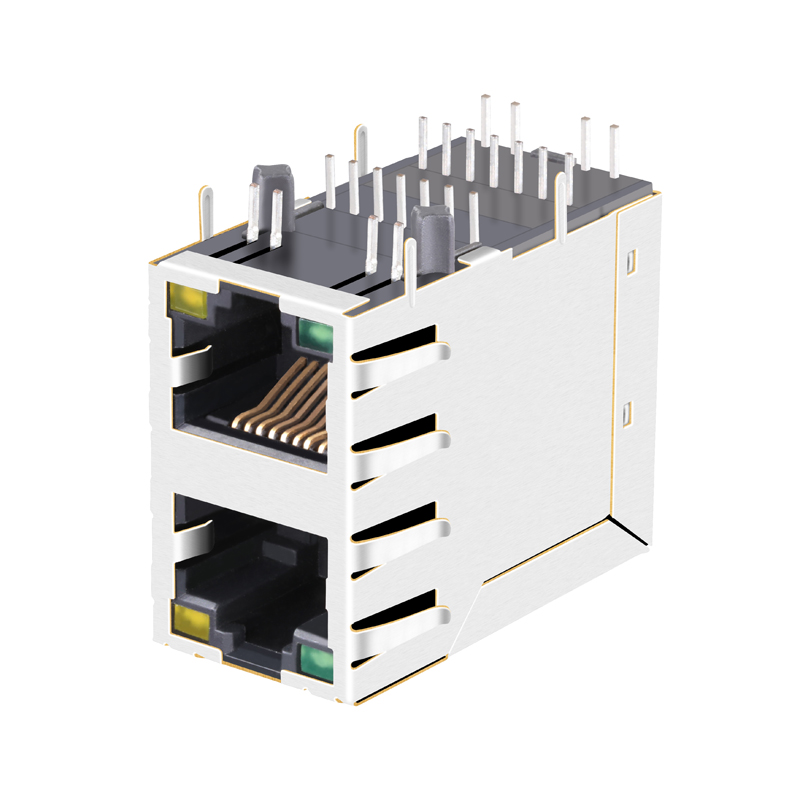

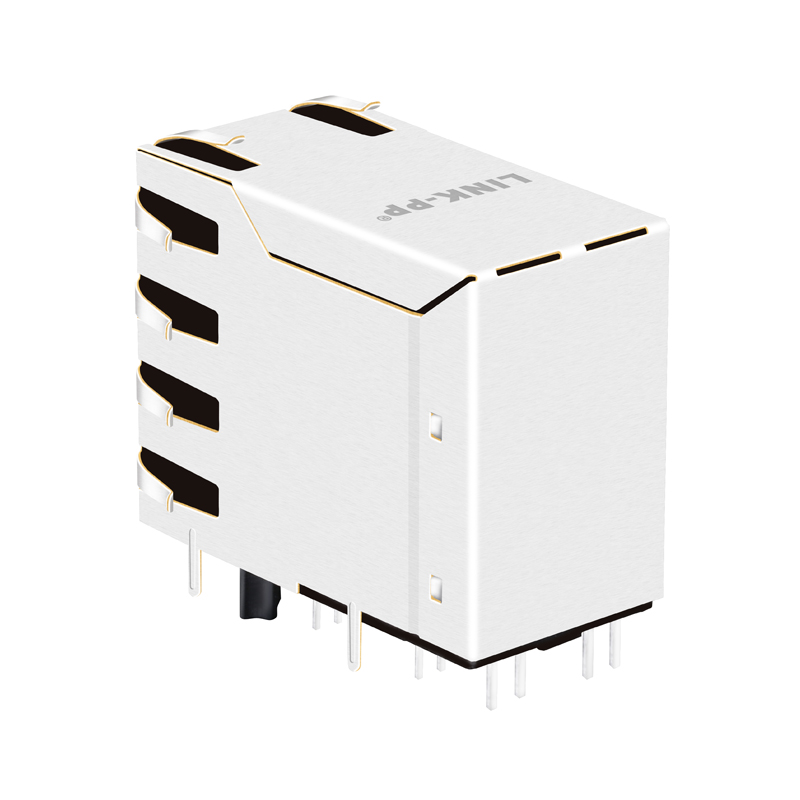

China Manufactures 2x1 Port Shielded RJ45 Modular Jack

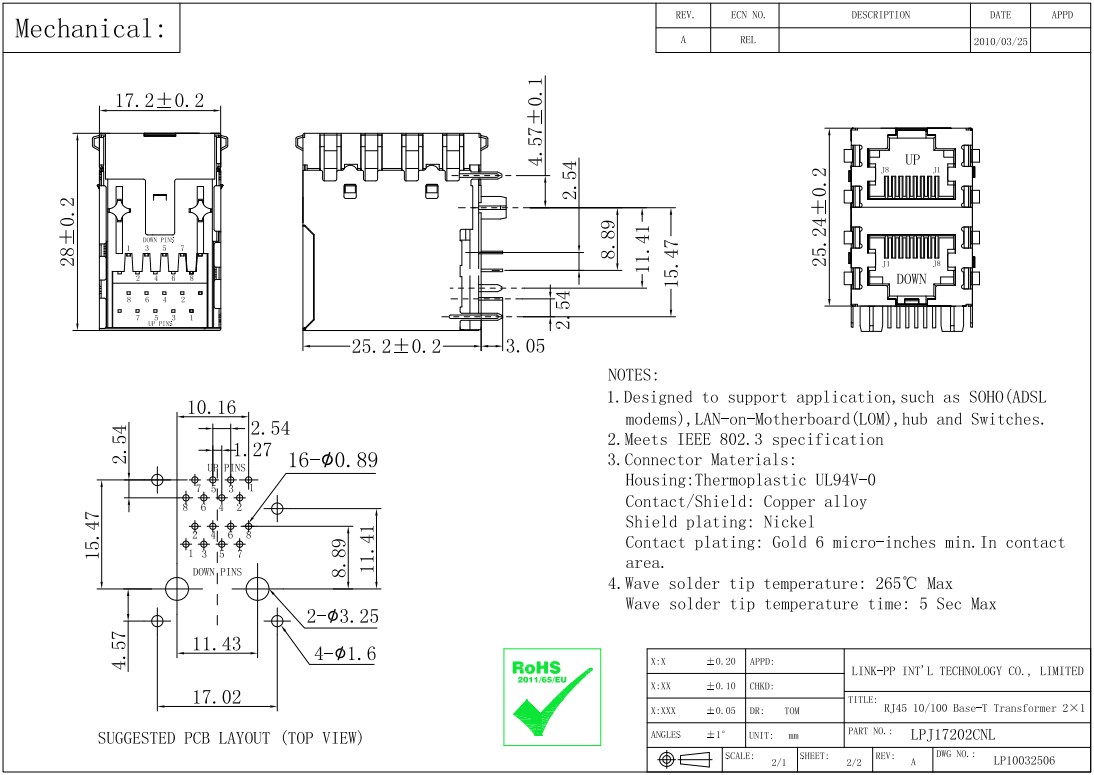

2x1 Port Shielded RJ45 Modular Jack Diagram

2x1 Port RJ45 Connector 10/100 Base-t Integrated Magnetics, Without LED, Tab Down/Up, RoHS
Manufacturer Part Number	LPJ17202CNL
Cross Part Number	MIC24A10-0101W-LF3 / 7499051002
Application-Lan	ETHERNET(NoN PoE)
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	NO
Diodes	NO DIODES
LED Option	Without
Latch	TAB DOWN / Up
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	With
Speed	10/100 Base-T
Temperature	-40 TO 85℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

Why Choose Us

World’s Leading Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

🛡️ Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

🏆 100% Guarantee Quality

Manufactured Under Strict Controls.
100% Tested (Not Just Batch Tested)
OEM Partner of TE (Tyco) For 9 Years
Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
Preferred Supplier of TI (Texas Instruments)
Quality Guarantee: 6 Years

💰 Competitive Price And Service

More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Provide New Design For Customer Requirements
90% Off Shipping Cost By DHL UPS FEDEX Or TNT

⚙️ Corporate Policy

The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
Committed To And Expects Quality Performance From Every Employee
The Company Standard Is Defect-Free Products And Services

2x1 Port RJ45 Modular Jack Dimension Details

• Preferred Supplier of TI Samsung Cisco Siemens ...

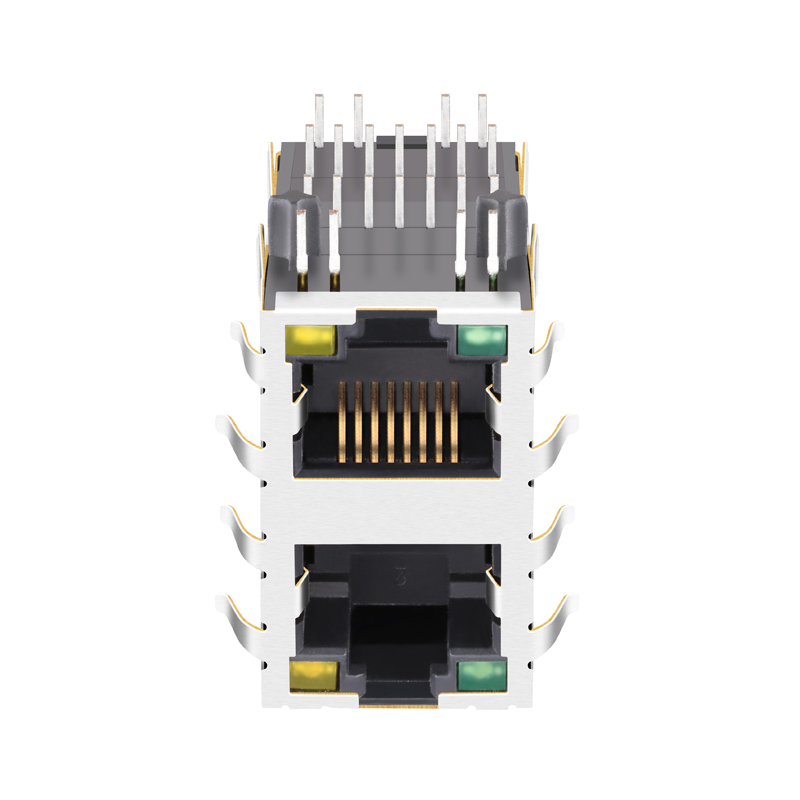

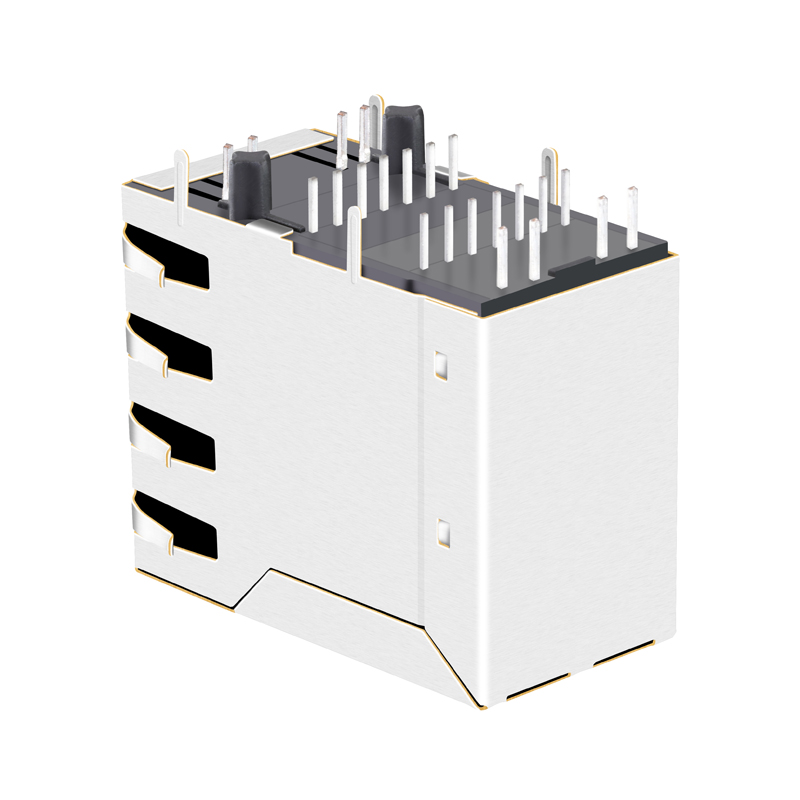

China Manufactures 2x1 Port Shielded RJ45 Modular Jack

Frequently Asked Questions

What are the primary applications for this 2x1 Port RJ45 Modular Jack?

This connector is specifically designed for Ethernet (Non-PoE) LAN applications, offering reliable 10/100 Base-T transmission speed for standard network communication.

What is the operating temperature range for this connector?

It features an industrial-grade operating temperature range of -40°C to +85°C, making it suitable for standard network deployments and harsh environmental conditions.

Does this model come with built-in LED indicators?

No, this particular configuration is designed without integrated LEDs. Check the specific part numbers if your system requires LED indicator capabilities.

What type of certifications do these RJ45 modular jacks comply with?

The manufacturing processes and materials comply with ISO 9001:2008, UL certification, REACH regulations, and RoHS environmental compliance standards.

Can we request samples of the RJ45 connectors for testing?

Yes, free samples are available to clients for testing, evaluation, and design verification before committing to bulk purchases.

What is the average lead time for batch orders?

The standard delivery timeline is approximately 2 to 3 weeks after order confirmation. Logistics options include highly discounted shipping via DHL, UPS, FEDEX, or TNT.
