| Part Number | RJ45 connector |
| Application-LAN | ETHERNET(NON POE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 8 |
| Diodes | NO DIODES |
| LED Option | WITH LEDS |
| Latch | Up/Down |
| Number of Ports | 2x8 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | Shield, EMI Finger |
| Speed | 10/100/1000 Base-T |
| Temperature | -40°C ~ 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |
• Preferred Supplier Of TI Samsung Cisco Siemens …
• Featured on BeagleBone Board
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

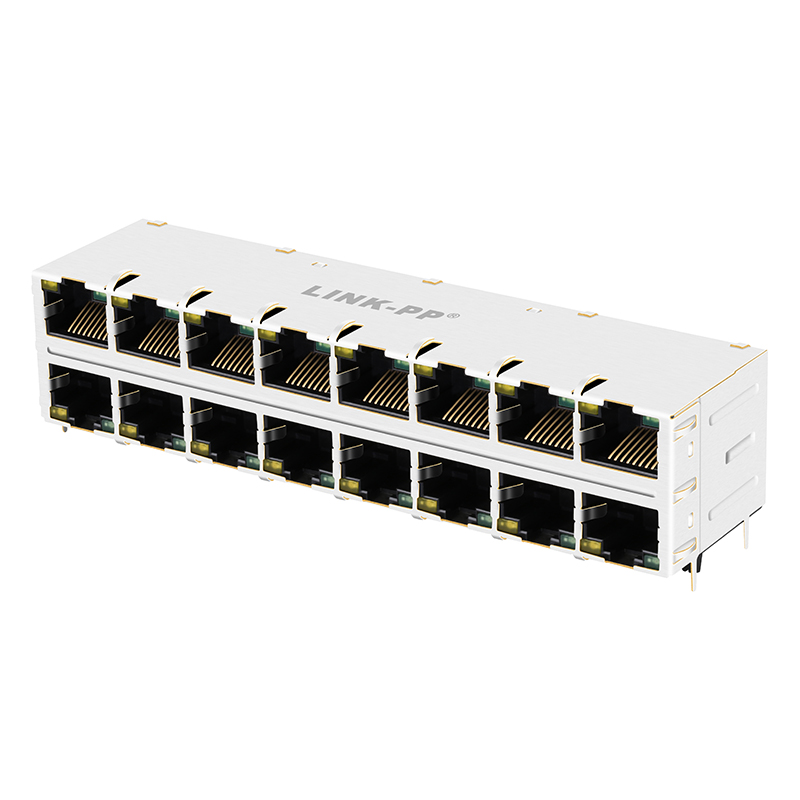

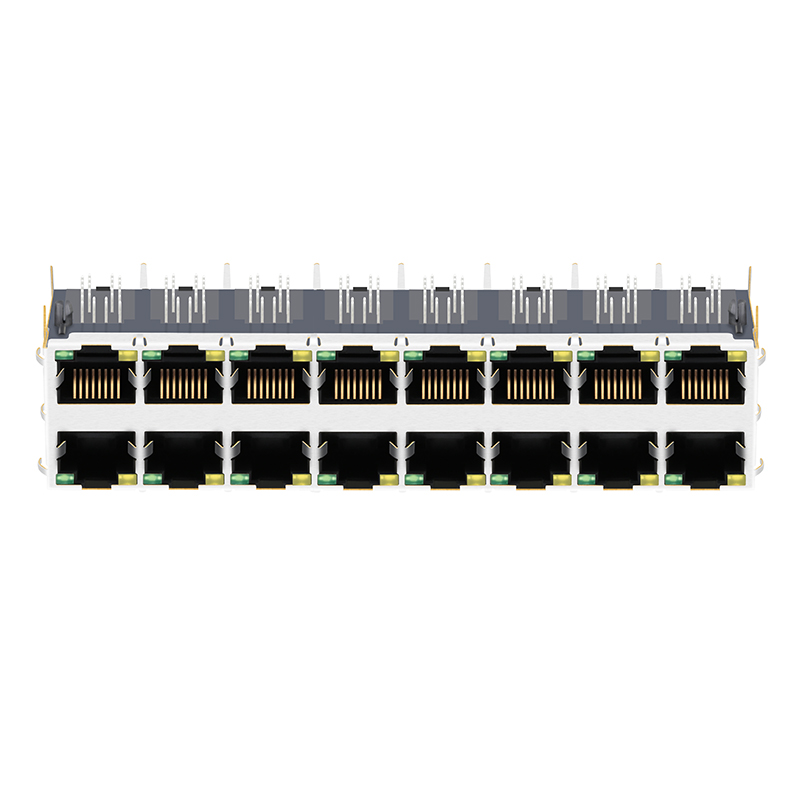

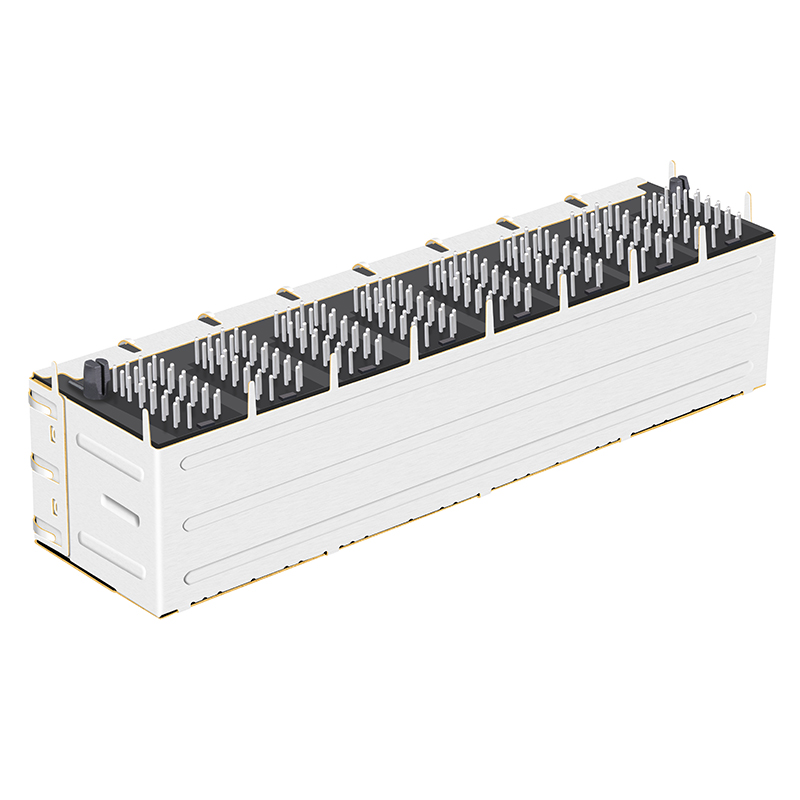

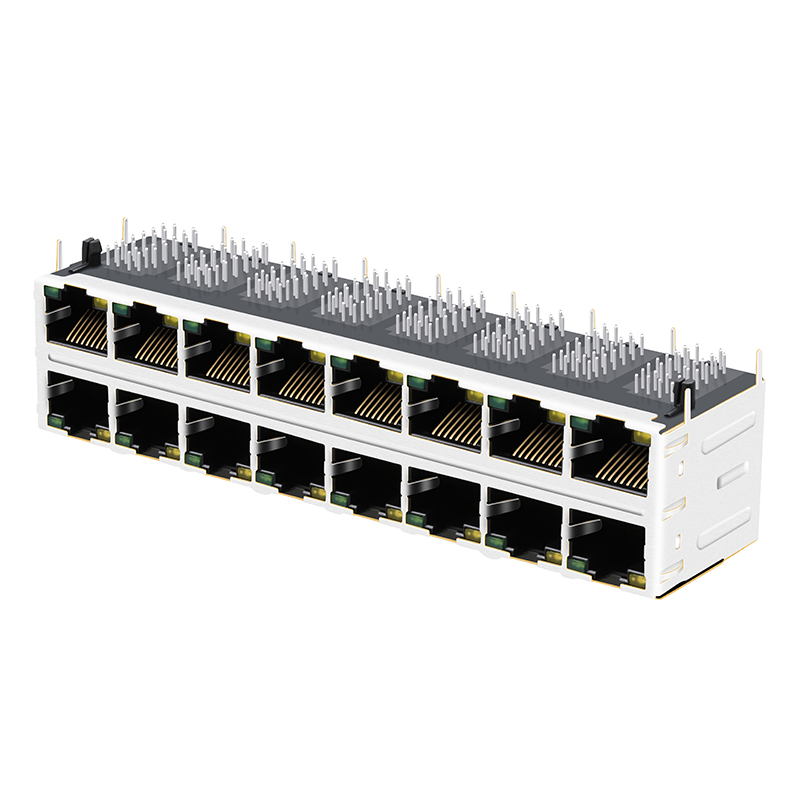

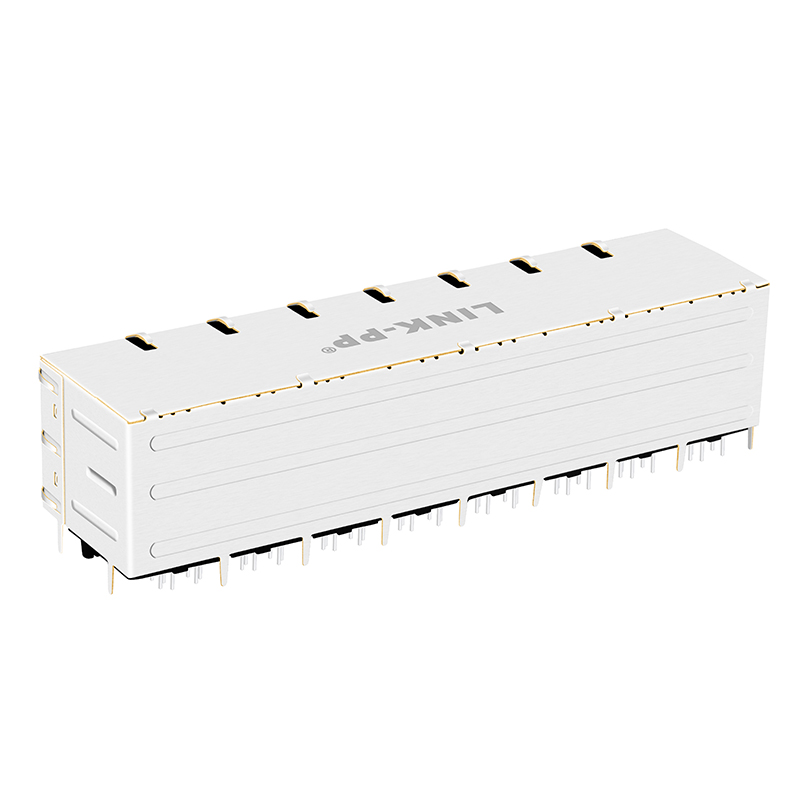

What are the primary applications for this 2x8 Port RJ45 Jack?
This connector is specifically designed for non-PoE Ethernet applications requiring high-density ports, matching 10/100/1000 Base-T speeds.
What is the operating temperature range for these shielded RJ45 connectors?
These connectors are highly durable and are certified to operate efficiently within an industrial temperature range of -40°C to 85°C.
Are there options for contact mating area plating?
Yes, we provide options for gold plating in the contact mating area, including 6u", 15u", and 30u" specifications based on your product requirements.
Does the J2042H3B/J2045H3C/J2039H3C series support AutoMDIX?
Yes, AutoMDIX configuration is fully supported, ensuring flexible cable connectivity adjustments automatic detection.
What certifications do these 16-port RJ45 connectors comply with?
The components are manufactured under strict controls complying with ISO 9001:2008 standards, UL Certification, Reach Certification, and RoHS Compliance requirements.
What is the delivery time and sample policy for custom requirements?
Standard delivery is within 2-3 weeks after placing the order. Free samples are available, and custom engineering designs can be developed based on specific requirements.
