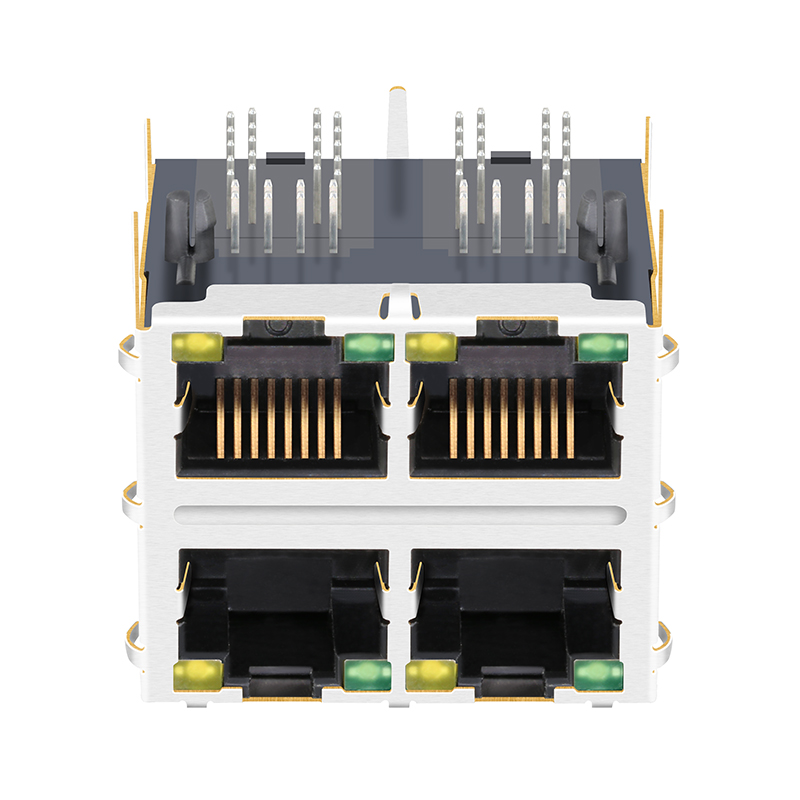

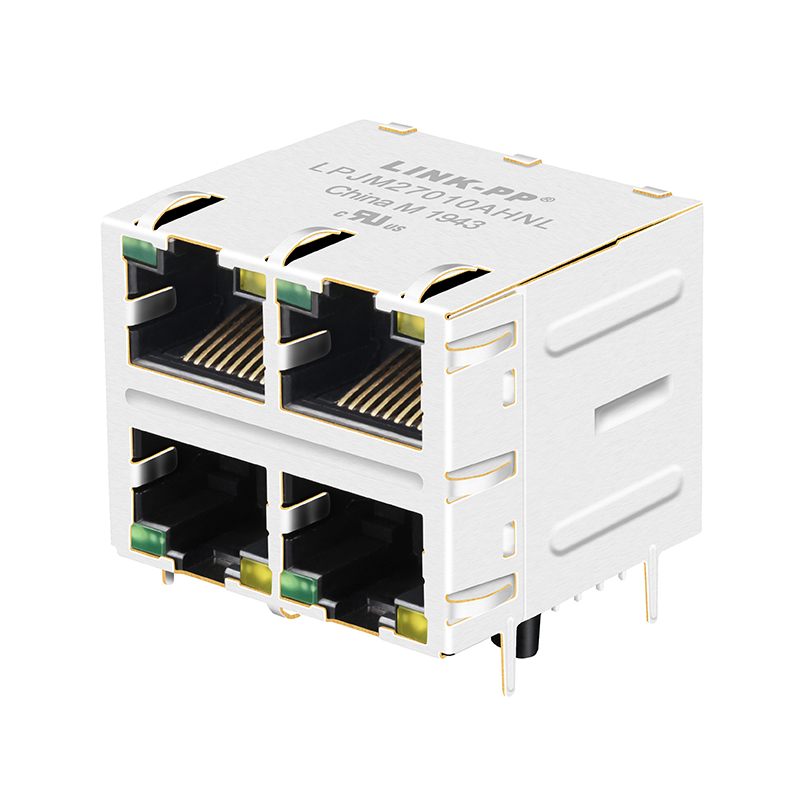

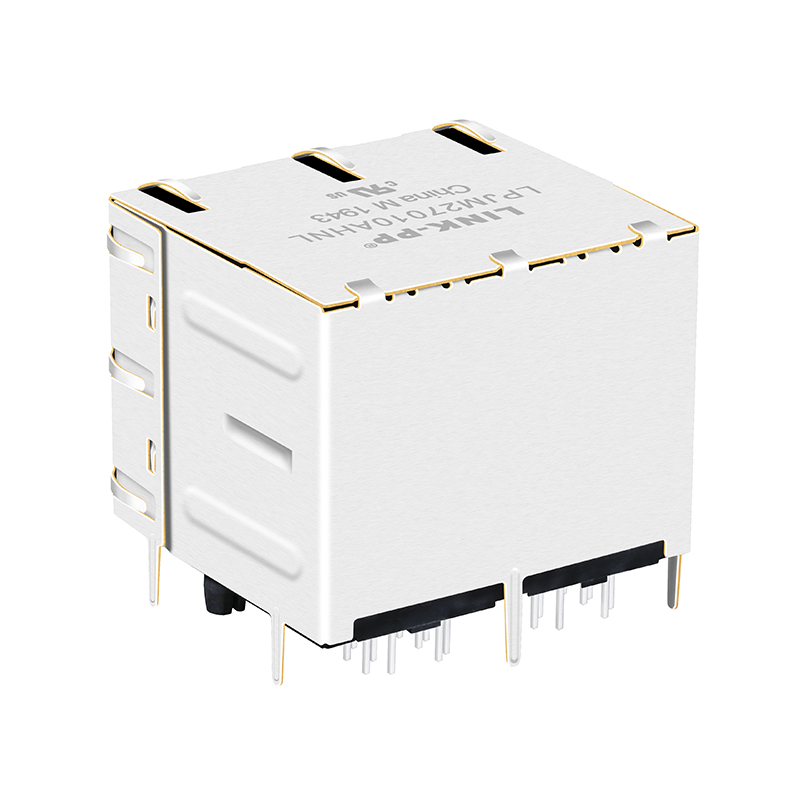

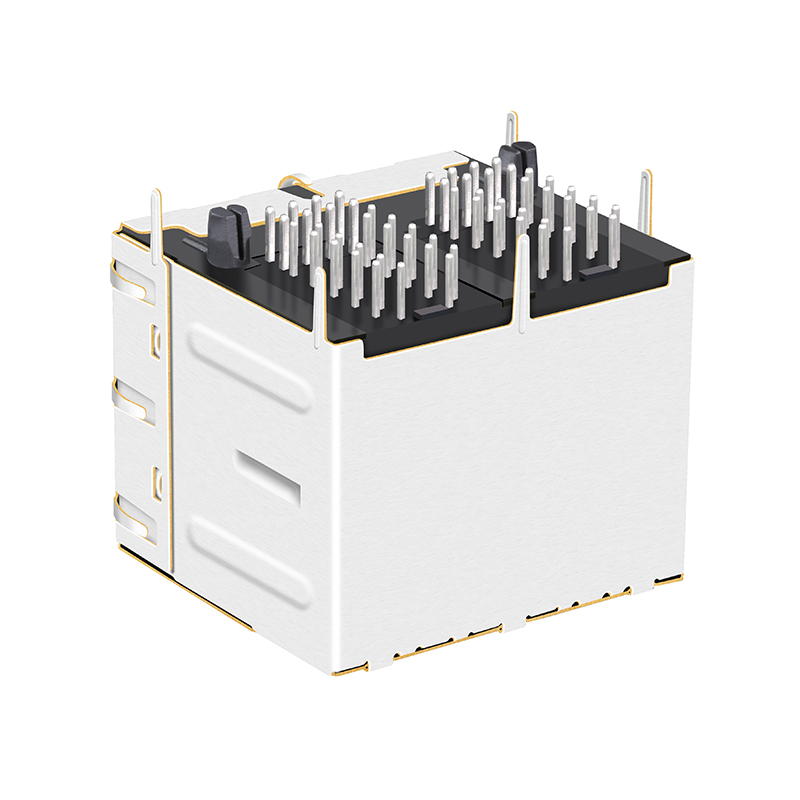

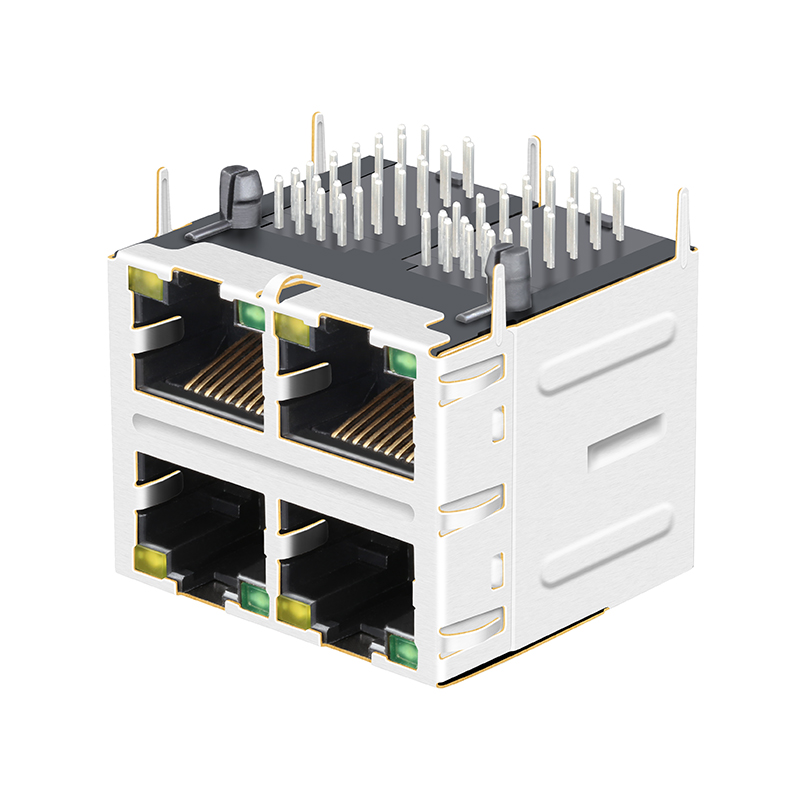

| Item | RJ45 Female Connector |
| Part Number | LPJM27010AHNL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 2x2 Port |
| Speed | 2.5G Base-T |
| Latch | Down |
| Cores per Port | 8 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0°C TO 70°C |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Yes, we can offer you free samples to test quality, but you will need to pay the shipping fee.
Products in stock are ready to ship immediately, while mass production orders typically require 15-30 days.
We provide a one-year guarantee period along with 24-hour online technical support.
Yes, please send your inquiry to us so that we can have a detailed discussion about your custom requirements.
We have over 19 years of production experience and have partnered with global technology leaders for many years.
