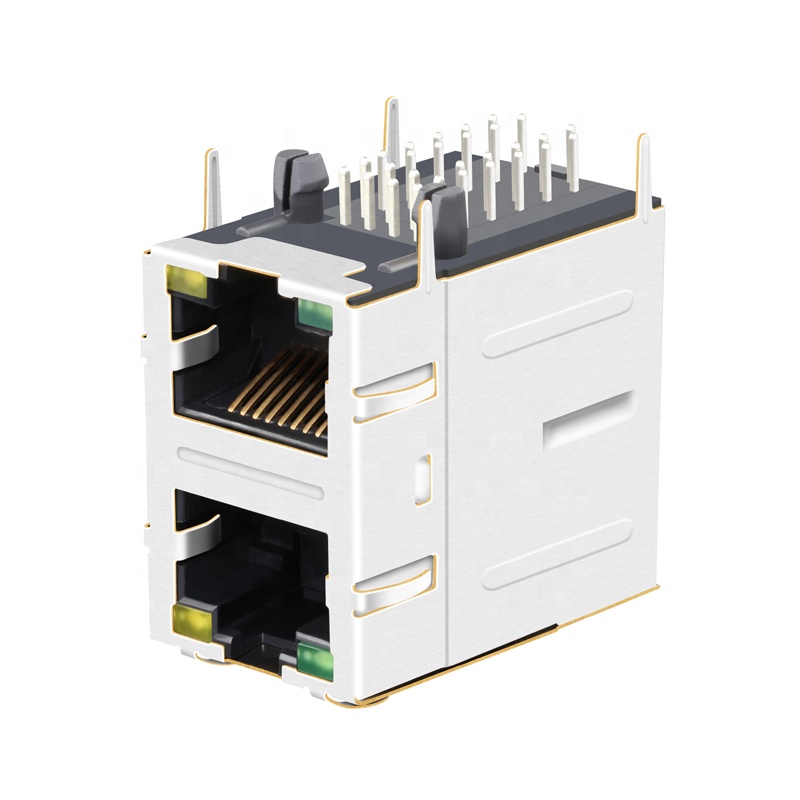

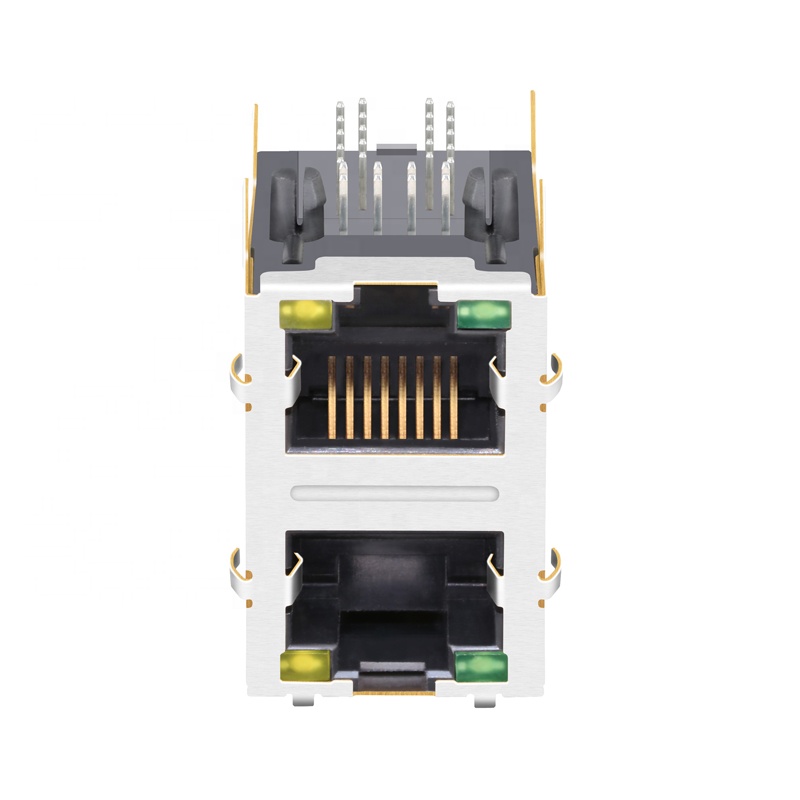

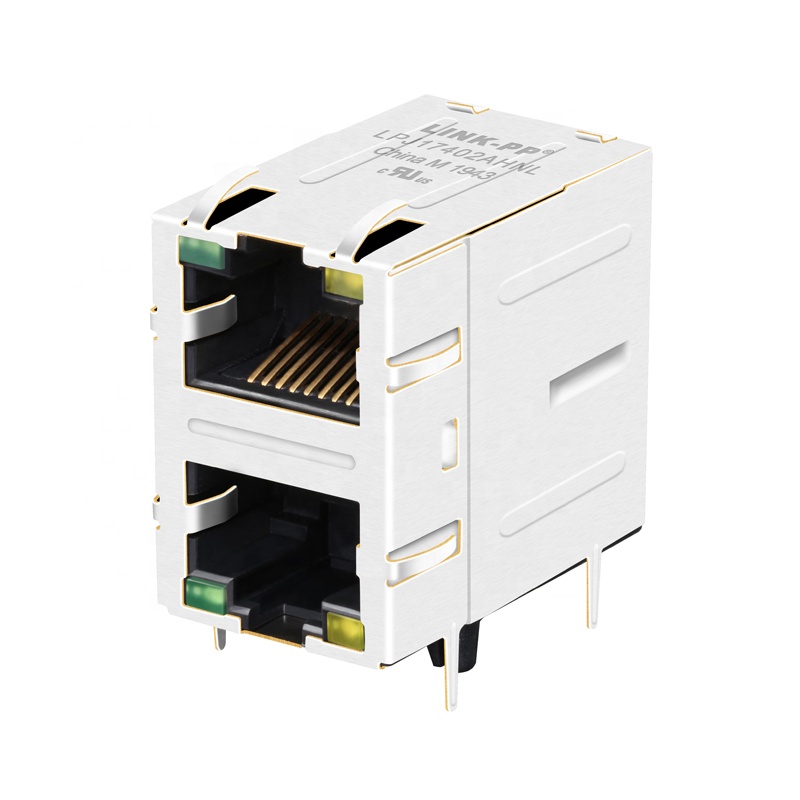

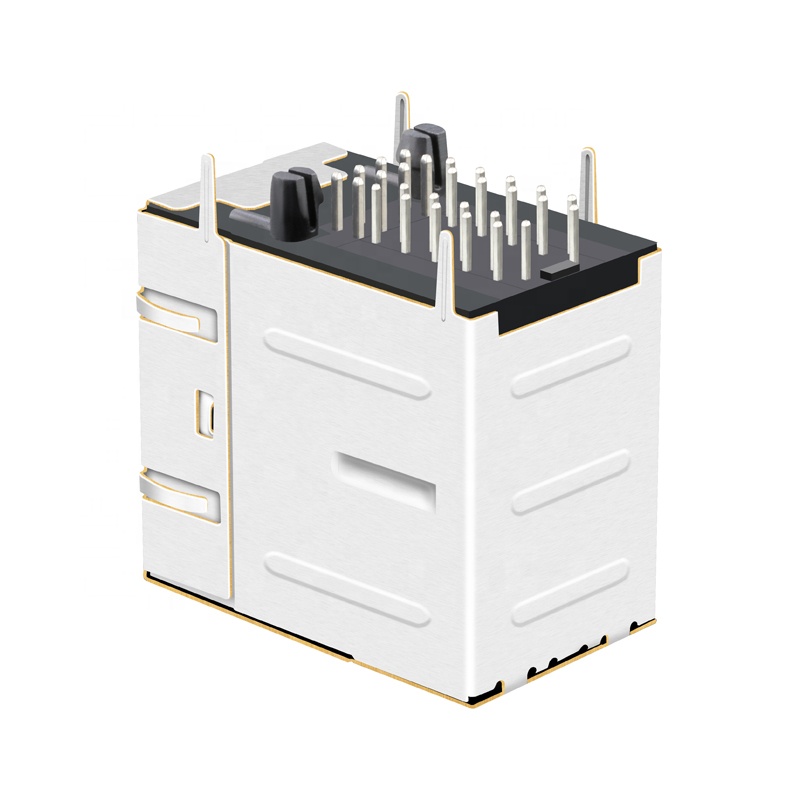

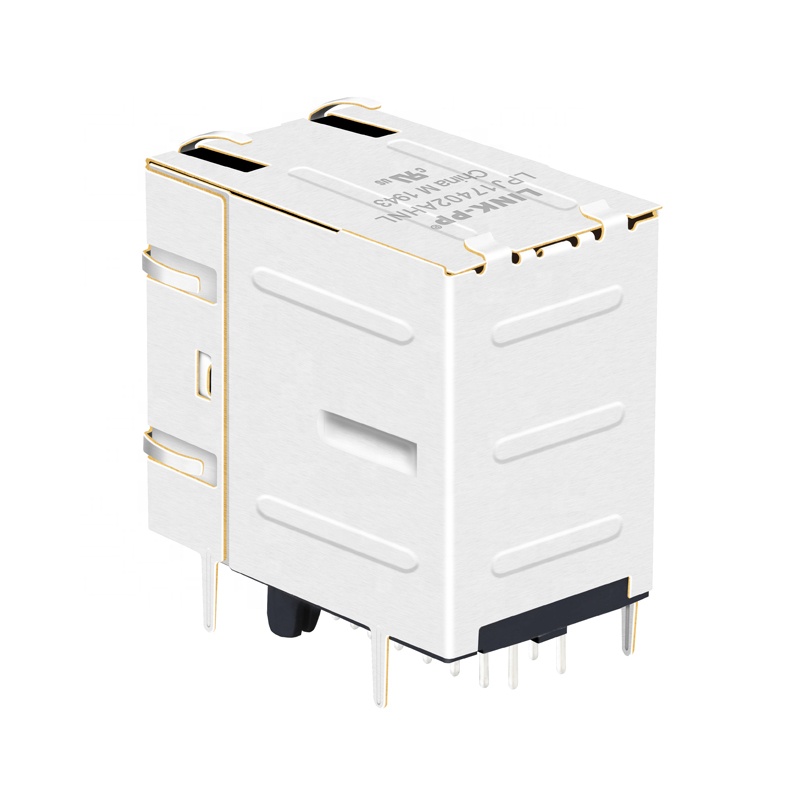

| Item | RJ45 Female Connector |
| Part Number | LPJ17402AHNL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 2x1 Port |
| Speed | 10/100 Base-T |
| Latch | Down |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2,000 staff members at present. With an abundant production capacity of 3,000K per month, we are able to deliver goods in a short time. Moreover, we provide professional, comprehensive solutions for magnetic components along with strong technical support.
Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported our products to more than 30 countries and regions worldwide, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
Main Customers: ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, and TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC.
Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solutions for our customers' unique requirements. We trust that our strength in the field and our commitment to excellence will make us your trusted long-term partner.
