0811-2X6R-19-F DU6T201A1 J20-0015NL 100 Base-T 2X6 Port RJ45 Jack Socket Connector

Product Description

0811-2X6R-19-F DU6T201A1 J20-0015NL 100 Base-T 2X6 Port RJ45 Jack Socket Connector

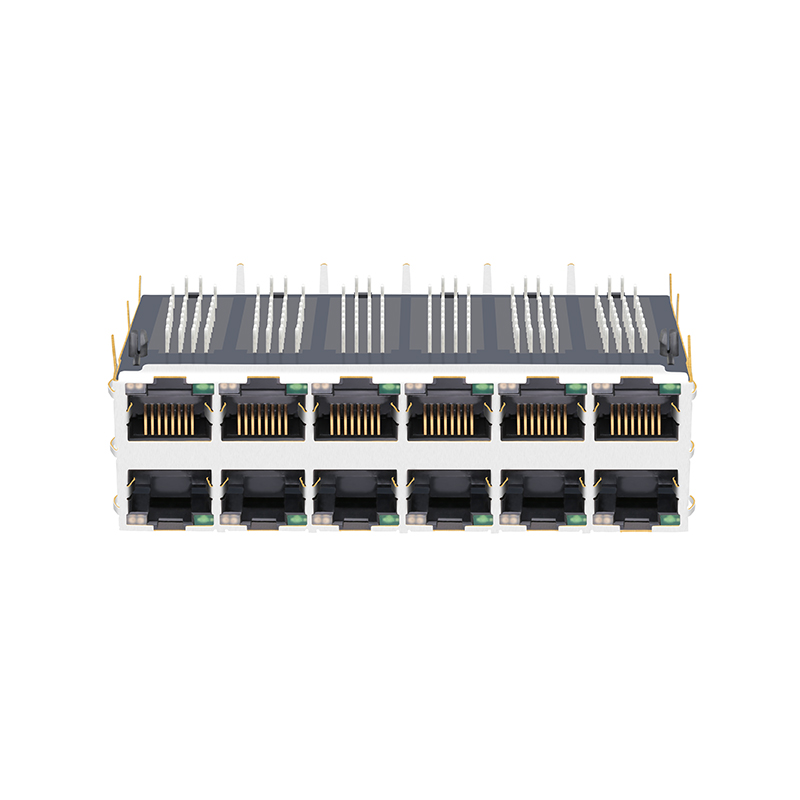

RJ45 Jack Socket Connector Front View

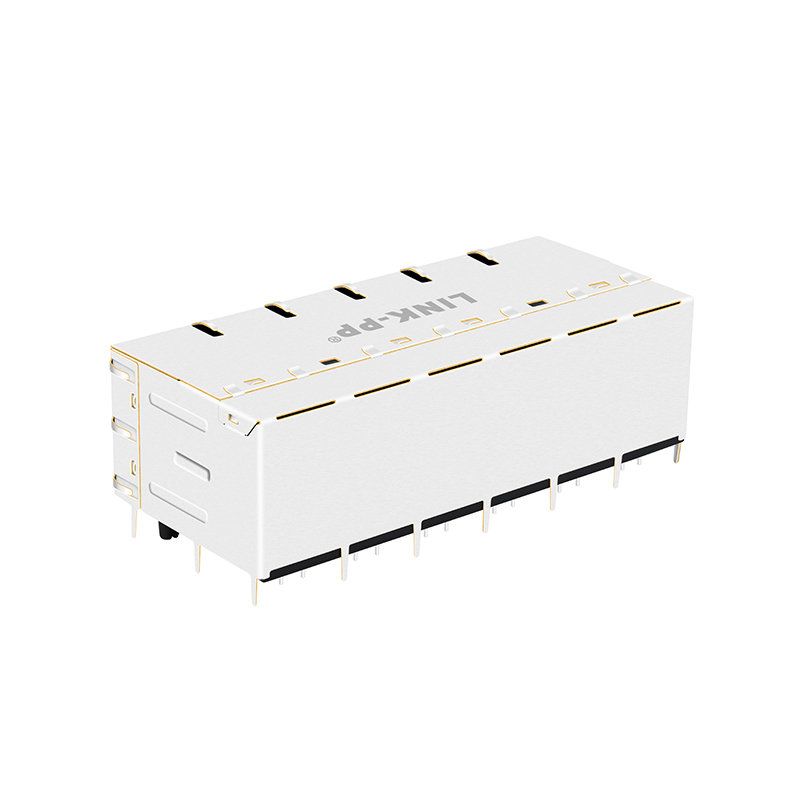

RJ45 Jack Socket Connector Angle View
Products Description
Item RJ45 Female Connector
Part Number LPJ67312A43NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 2x6 Port
Speed 10/100 Base-T
Latch Up/Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Category Matrix
Related Lan Components
Send Inquiry To Get Latest Price List
Connector Detail view 1

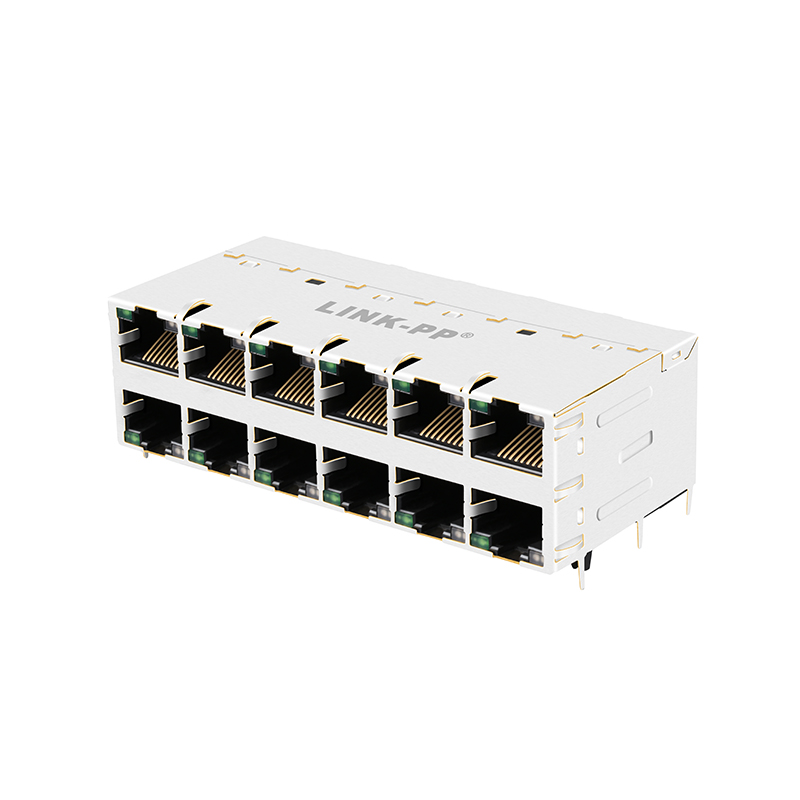

Connector Detail view 2

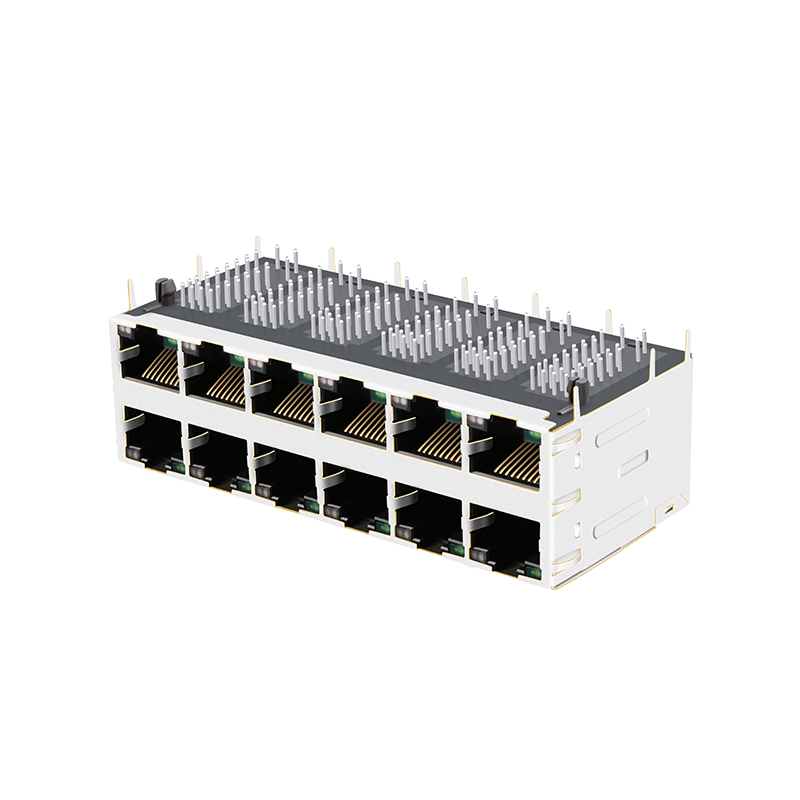

Connector Detail view 3

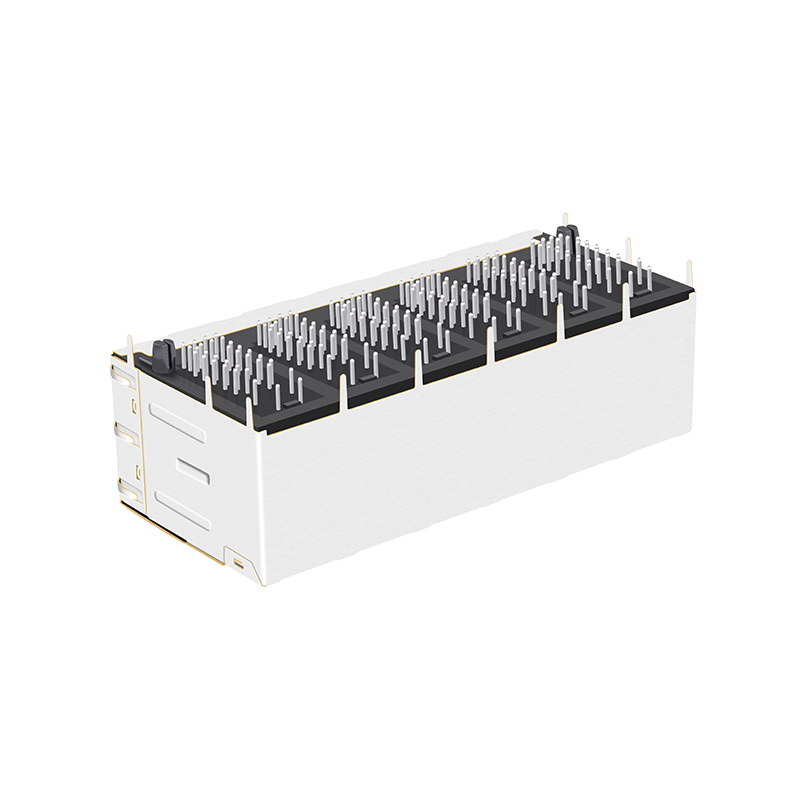

Connector Detail view 4
Connector Detail view 5
Connector Detail view 6
Connector Detail view 7
Quality Standard Specifications
Why Choose Us
Design Capability
Quality Control
Automated Production
Fast Shipping and Service
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver goods within a short time. Moreover, we provide professional complete solutions for magnetic components and strong technical support. Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem. We have exported products to more than 30 countries and regions worldwide, covering Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will convince you to be our long-term partner.
Production Workshop
Testing Equipment
Quality Inspection
Warehouse Storage
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping costs.
What is your delivery time?
We have items ready to ship for stock orders, and it takes 15-30 days for mass production.
What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion regarding your custom requirements.
What is your advantage?
We offer over 19 years of professional production experience and have partnered with industry-leading global companies for many years.
