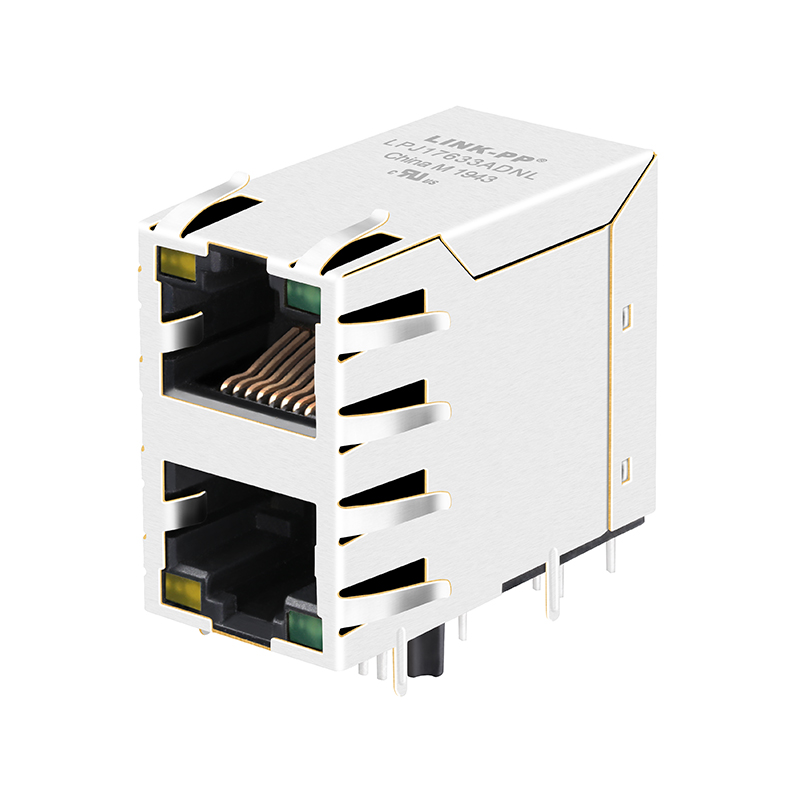

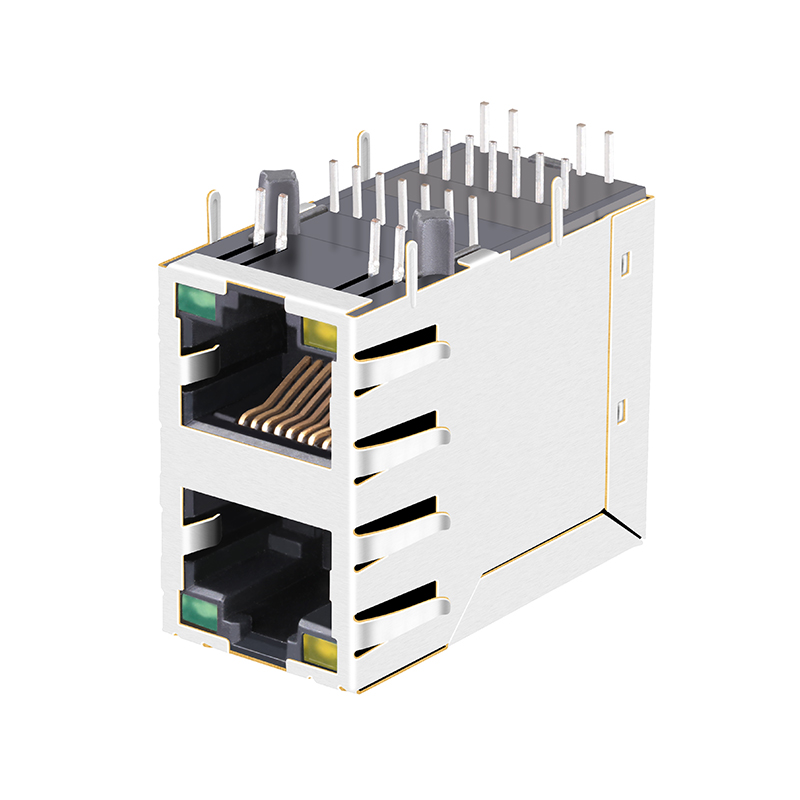

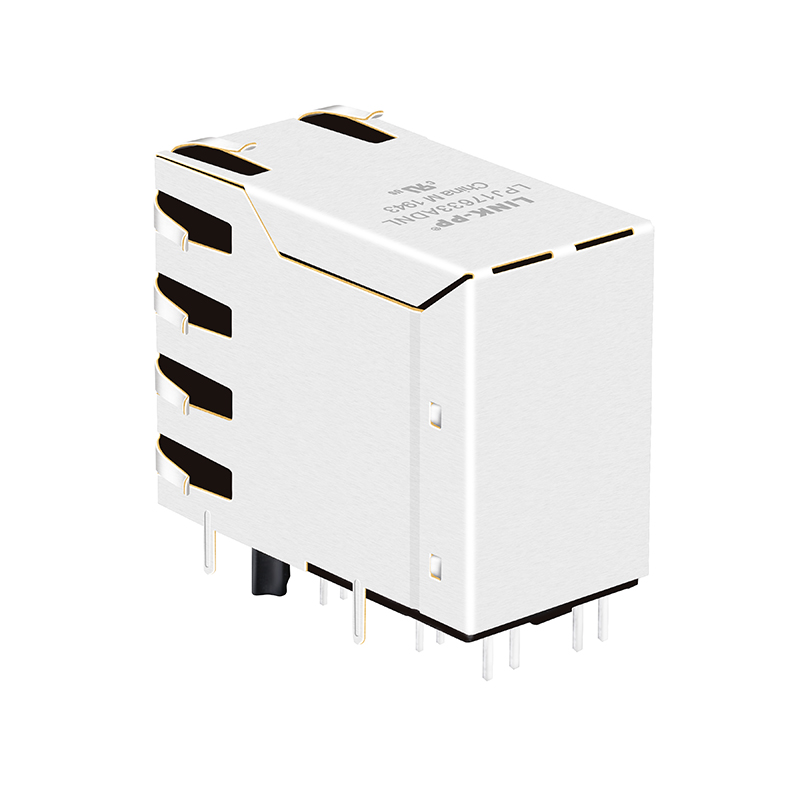

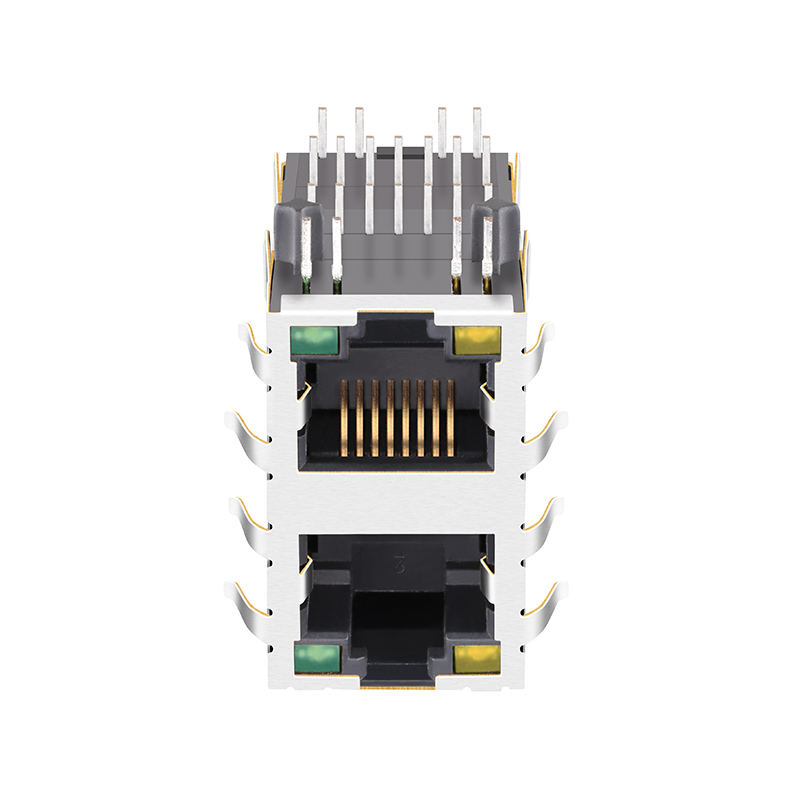

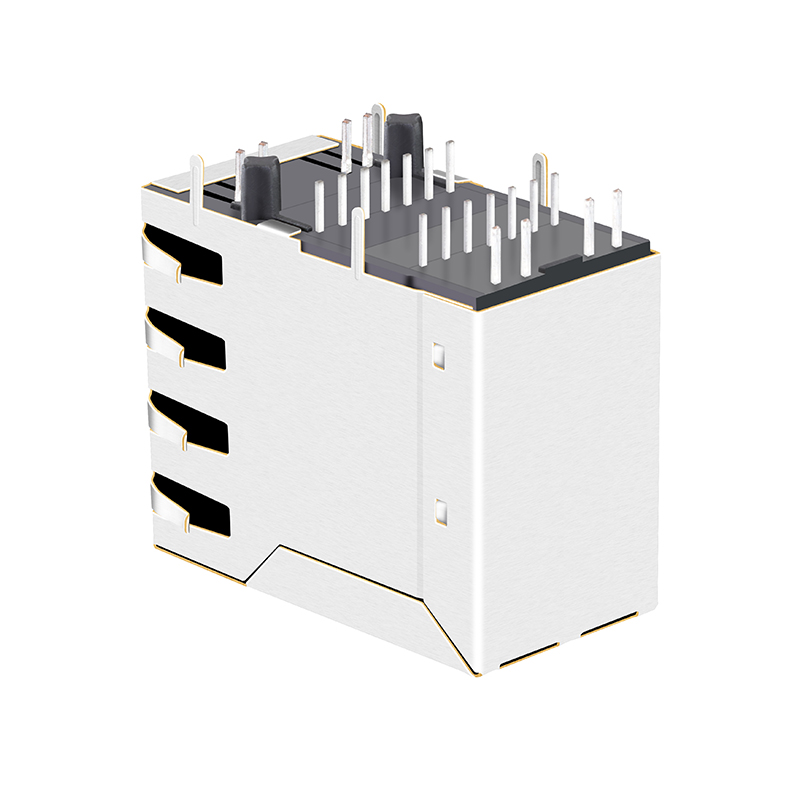

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack
| Part Number |
0845-2D1T-H5 / 0845-2D1T-S4 / RM3-ZZ-0020 |
| Application-LAN |
ETHERNET(NON PoE) |
| AutomDX |
YES |
| Bst Circuit |
YES |
| Configuration RX |
T,C |
| Configuration TX |
T,C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
4 |
| Diodes |
NO DIODES |
| LED Option |
Yellow/Green LEDS |
| Latch |
UP/Down |
| Number of Ports |
2x1 Port |
| PCB |
FR4 |
| PCB Mount Angle |
SIDE ENTRY |
| PCB Retaining Post |
T POST |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search |
YES |
| Shield EMI Tabs |
With |
| Speed |
10/100 Base-T Magnetics |
| Temperature |
-40 TO 85°C / 0 TO 70°C |
| Turns Ratio RX |
1CT:1 |
| Turns Ratio TX |
1CT:1 |
Why Choose Us
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
- ISO 9001:2008
- UL Certification
- Reach Certification
- RoHS Compliance
- Active Environmental Policy
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- OEM of TE (Tyco) for 9 Years
- Preferred Supplier of TI (Texas Instruments)
- Successful Customer Portfolio: Samsung, Cisco, Siemens, Intel, etc.
- Quality Guarantee: 6 Years
- More Competitive Price than Pulse, Tyco, Halo, Wurth, and Amphenol
- Fast Delivery Time: 2-3 Weeks after orders
- Free Samples are Available
- New Design Capabilities based on customer requirements
- Highly Discounted Shipping Costs by DHL, UPS, FEDEX, or TNT
- Achieve the highest level of customer satisfaction through continuous improvements in quality, delivery, and service
- Committed to and expecting quality performance from every employee
- Standard policy is defect-free products and services
Preferred Supplier Of TI, Samsung, Cisco, Siemens ...
Frequently Asked Questions (FAQ)
What are the main application standards for 0845-2D1T-H5 and 0845-2D1T-S4?
These part numbers correspond to a 10/100 Base-T 2 Port 8P8C RJ45 modular jack designed for standard non-PoE Ethernet applications requiring a reliable side-entry connection.
Does this modular jack support Power over Ethernet (PoE)?
No, this specific series is designed for Non-PoE Ethernet configurations as detailed in the technical specifications.
What is the operating temperature range for these RJ45 modular jacks?
They support operating temperature levels ranging from -40°C to +85°C, as well as 0°C to +70°C, making them adaptable for diverse environmental conditions.
What LED options are available on this modular jack?
This product is equipped with integrated Yellow and Green LED options for signaling connection status and network traffic.
Is this product RoHS compliant?
Yes, it is RoHS-5 compliant with a lead-in-solder exemption, meeting strict industrial environmental standards.
What are the contact mating area plating options?
The contact mating area is available with gold plating options of 6u", 15u", or 30u" to ensure superior durability and signal integrity.
