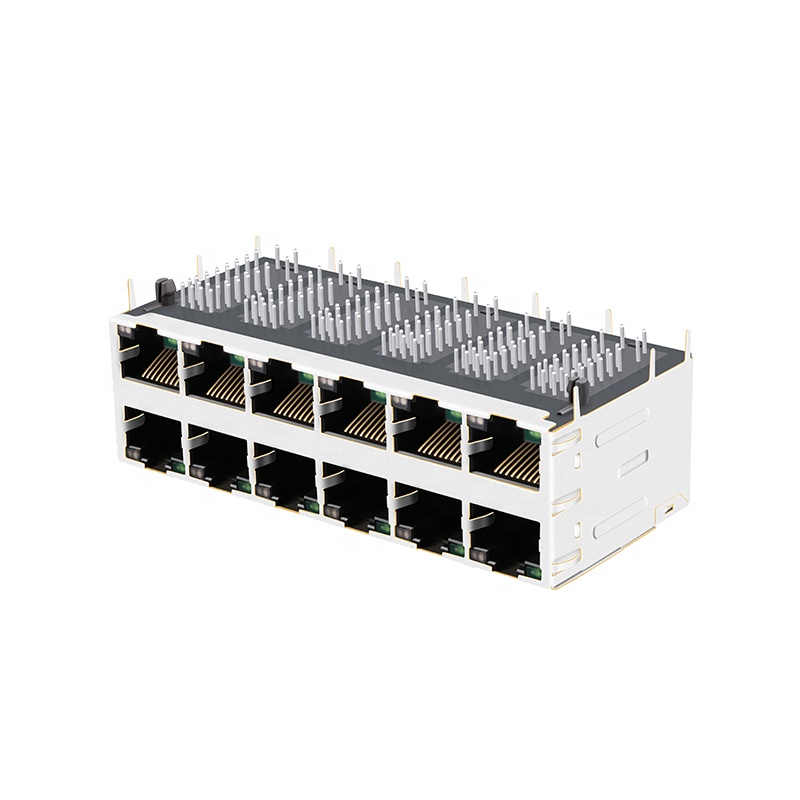

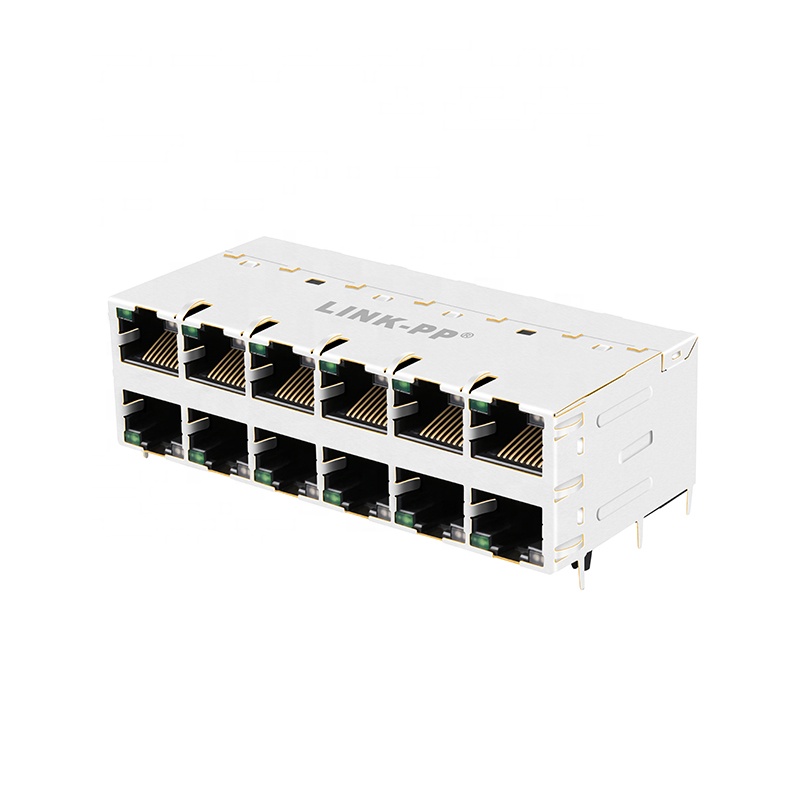

XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector

Product Description

RJ45 Female Connector Options
XFATM8-STACK12-4 Shielded 2x6 Port Stacked RJ45 Female Connector
Products Description
Item RJ45 Female Connector
Compatible With XFATM8-STACK12-4
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 2x6 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Technical Specifications and Dimensions
Click Below Products Link To Get More
Product Categories Grid
Product Overview & Features
Connector Construction Feature

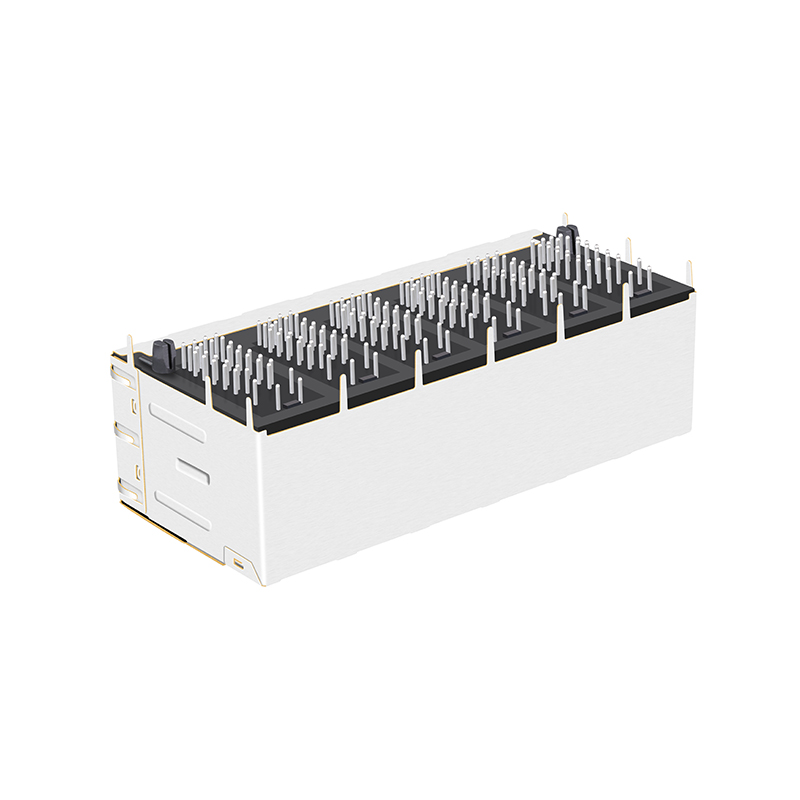

Connector Backside View

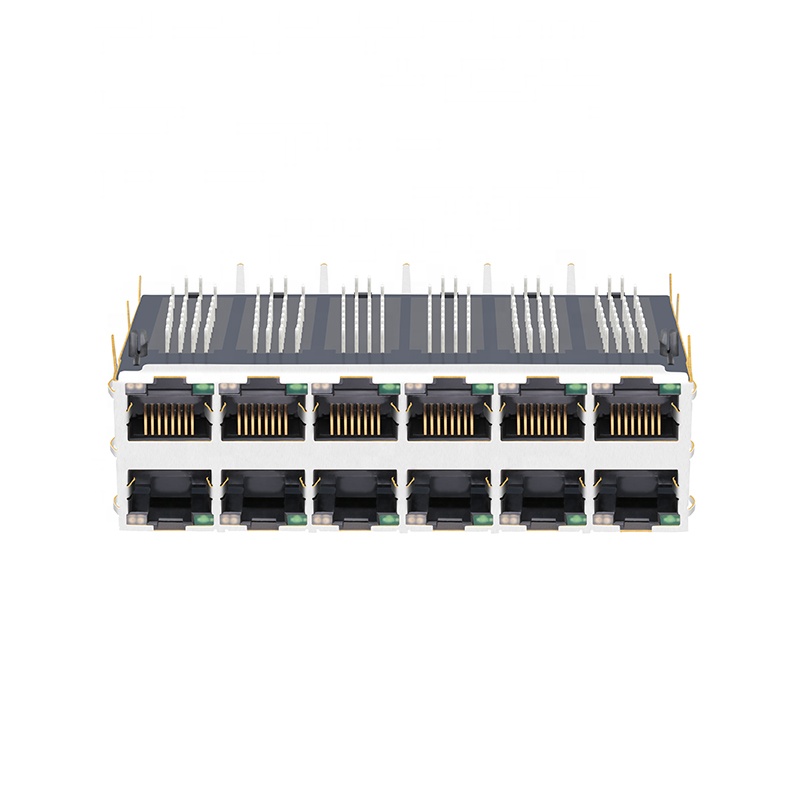

Connector Frontal Interface
Inner Assembly View

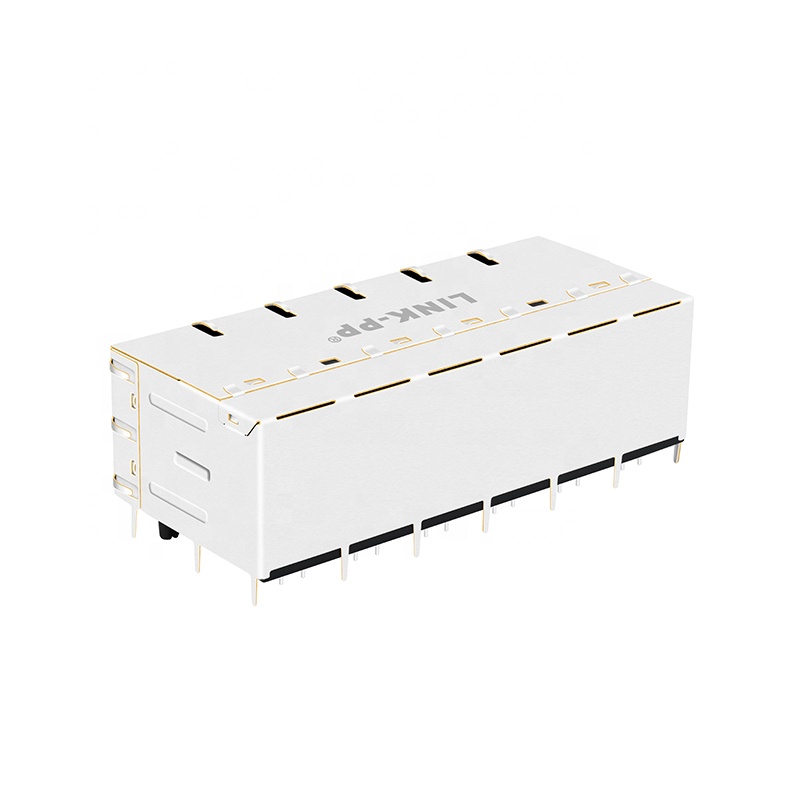

Shielding Components Details
Alternative Configuration Diagram
Company Profile
Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Production Facility Area 1
Automated Manufacturing Machinery
Quality Testing Center
Frequently Asked Questions
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee is covered by the customer.
What is your delivery time?
Items currently in stock are ready to ship immediately, while mass production typically takes 15 to 30 days.
What after-sales service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we accept OEM/ODM customization. Please send your inquiries to us so we can discuss the technical details.
What is your advantage in this industry?
We have 19 years of professional production experience and have served as a trusted partner for industry leaders like Intel and Jabil for many years.
