| Item | Value |
|---|---|
| Place of Origin | China |
| LINK-PP Part Number | LP6062ANL |
| Halo Part Number | TG1G-S012NZRL |
| Transformer Type | Lan Transformer |
| Application-Lan | Ethernet(PoE+) |
| Number of Ports | Single Port |
| Speed | 10/100/1000 Base-T |
| Package | Tape & Reel |
| Cores per Port | 8 |
| PIN number | 24 Pin |
| Mounting Type | Surface Mount |
| Temperature | -40℃ TO +85℃ |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C,S |
The compatible cross-reference part number for LP6062ANL is TG1G-S012NZRL from Halo.
It supports Gigabit speeds (10/100/1000 Base-T) and is designed specifically for Ethernet (PoE+) applications.
This Lan Transformer is built for harsh environments, supporting an operating temperature range of -40℃ to +85℃.
It is packaged using Tape & Reel format (Reel), containing 400 pieces per reel (SPQ), and packed inside 37*37*25cm boxes with a capacity of 1600 pieces per carton.

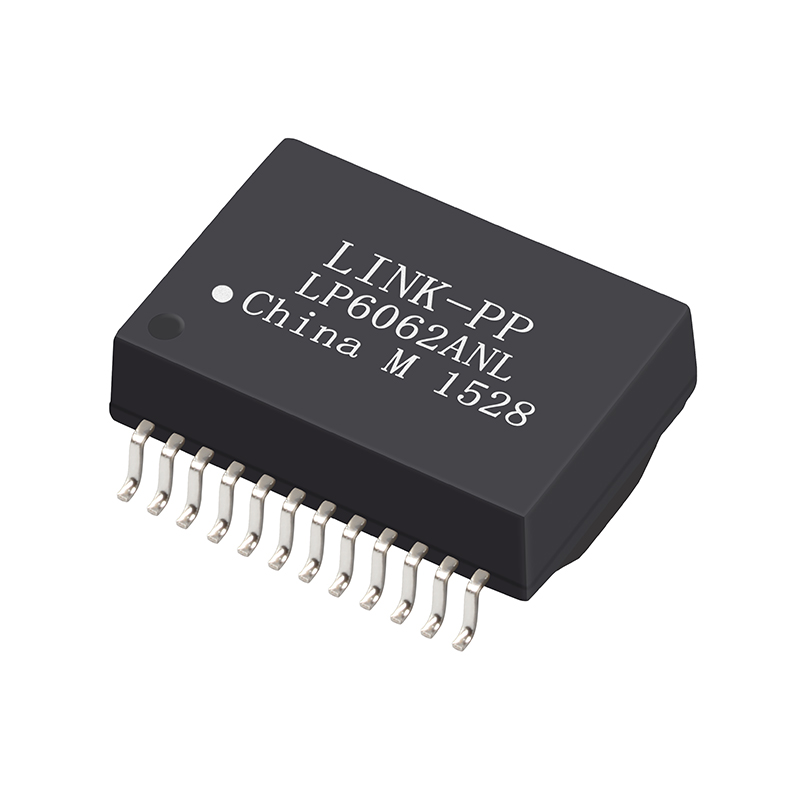

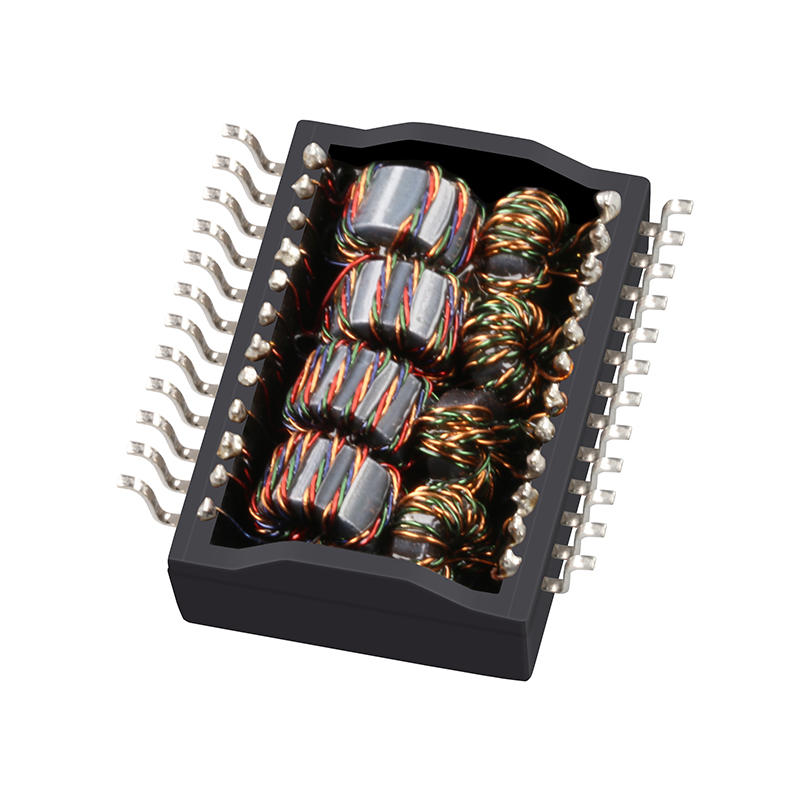

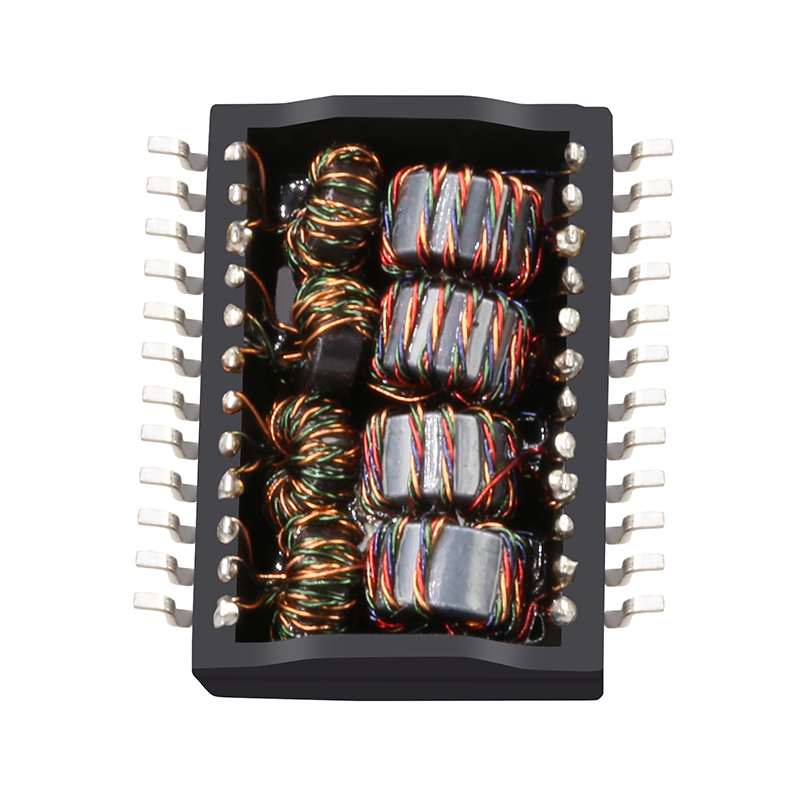

The LP6062ANL features a Surface Mount (SMD) design with 24 PINs, 8 cores per port, a turns ratio of 1CT:1CT, and a T,C,S configuration.
