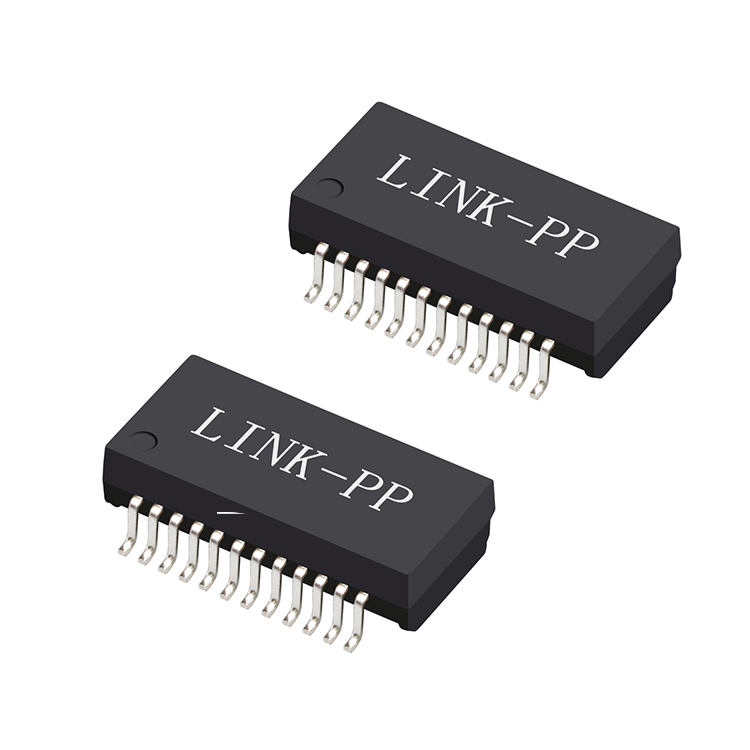

NS0013BLF 10/100 Base-T SMD Lan Filter Module Magnetic Transformer

Product Description

NS0013BLF 10/100 Base-T SMD Lan Filter Module Magnetic Transformer
Lan Filter Module Magnetic Transformer

Products Description

Item Lan Transformer
Replaceable Brand Model NS0013BLF
Part Status Active
Construction Open frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports Single / Dual / Quad
Speed 10 / 100 / 1000 Base-t
Cores per Port 4 / 8 / 12
Pin Number 10 Pin / 12 Pin / 24 Pin / 48 Pin
Mounting Type Dip / Smt
Temperature 0℃ To 70℃ / -40℃ To 85℃
AutomDX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Tape & Reel
Lan Filter Detail 1
Lan Filter Detail 2
Lan Filter Detail 3
Lan Filter Detail 4
Lan Filter Detail 5
Lan Filter Structural Diagram
Lan Filter Performance Chart

Why Choose Us

Our Advantage 1
Our Advantage 2
Our Advantage 3
Our Advantage 4

Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well.
Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, and xDSL modem. We have exported our products to more than 30 countries and regions in the world. Our customers cover most of the countries in the world, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
Main Customers: ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our long-term partner.
Production Workshop 1
Production Workshop 2
Quality Inspection
Testing Equipment

Frequently Asked Questions

1. Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.

2. Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but the shipping fee needs to be paid by your side.

3. What is your delivery time?

We are ready to ship from stock, and it takes 15-30 days for mass production.

4. What after-service can you offer?

We offer a one-year guarantee period along with 24-hour online technical support.

5. Can you accept OEM/ODM orders?

Yes, please send an inquiry to us so that we can have a detailed discussion.

6. What is your advantage?

We have 19 years of production experience and have been a trusted partner to global market leaders for many years.
