Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
1 / 5
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT
Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Huge Stocks 100 Base-T 40 Pin Quad Port SMD Discrete Magnetic Transformer H1164NLT

Send Inquiry

Product Description

Product Description

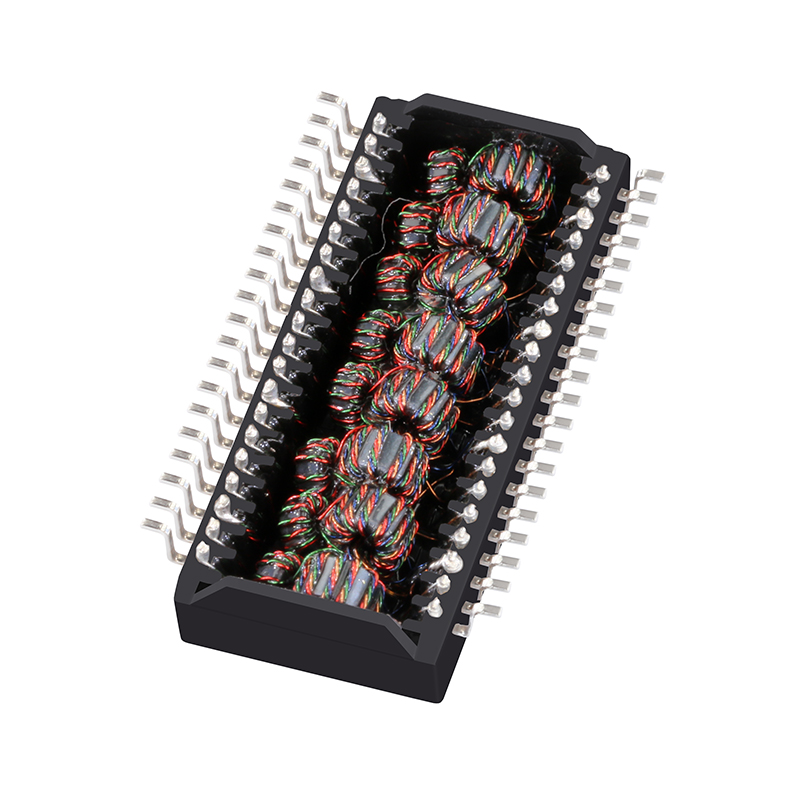

Product Image 1

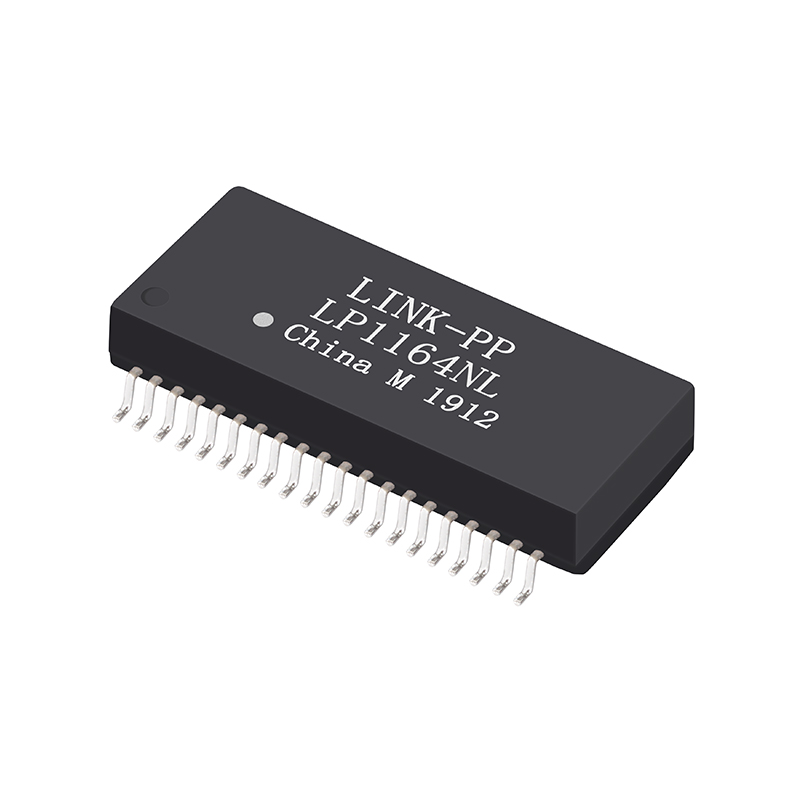

Product Image 2
Specification
Item Value
Place of Origin China
Part Number LP1164NL
Cross Reference Part Number H1164NLT
Transformer Type Lan Transformer
Application-Lan Ethernet(Non PoE)
Number of Ports Quad Port
Speed 10/100 Base-T
Package Tape & Reel
Cores per Port 16
PIN number 40
Mounting Type Surface Mount
Temperature 0℃ TO +70℃
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Packing & Delivery
Packing Image
Net Weight (N.W) 0.005 kg / pcs
Standard Package Reel
SPQ 400 pcs
Quantity per Carton 1600 pcs
Carton Size 36 * 35.5 * 23 cm
Gross Weight (G.W) 7.5 kg / carton
Manufacturing & Testing Gallery
Production Facility 1
Production Facility 2
Production Facility 3
Production Facility 4
Production Facility 5
Production Facility 6
Production Facility 7
Main Product Ranges
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Frequently Asked Questions
What is the primary function of this LAN transformer?
This product functions as a LAN pulse transformer and filter designed for 10/100 Base-T network interfaces. It provides galvanic isolation, noise reduction, and impedance matching to ensure clean, reliable data transmission.
Can this transformer be used in PoE (Power over Ethernet) environments?
No, this specific model (LP1164NL / H1164NLT) is designed strictly for Non-PoE Ethernet applications as listed in the technical specifications.
What mounting technology is supported by this component?
It is designed for Surface Mount (SMD) technology, which allows for easy pick-and-place automated assembly processes.
What are the packaging dimensions and reel quantities?
The items are shipped on Tape & Reel with a standard package quantity (SPQ) of 400 pieces per reel. A master carton holds 1,600 pieces with dimensions of 36 * 35.5 * 23 cm.
What is the operating temperature range for this product?
The operating temperature range is commercial grade, rated from 0℃ to +70℃, making it suitable for standard networking environments.
Is there a cross-reference model available?
Yes, the standard part number is LP1164NL, and it is direct-cross compatible with the industry part number H1164NLT.
