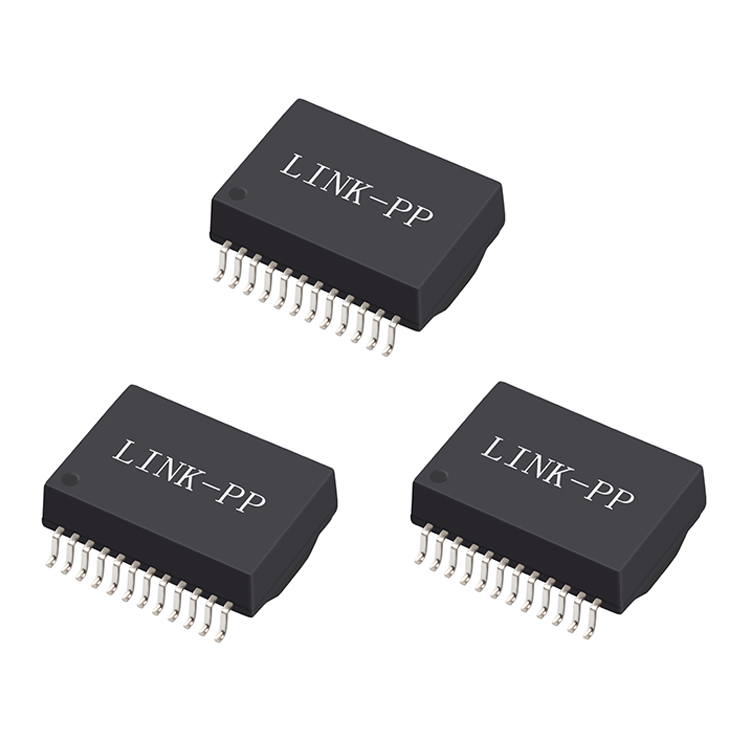

1000BASE-TX 1000mA Max Telecom Magnetics Modules HST-24040SXR

Product Description

Telecom Magnetics Modules
1000BASE-TX 1000mA Max Telecom Magnetics Modules HST-24040SXR
Products Description
Item Lan Transformer
Replaceable Brand Model HST-24040SXR
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1 Port
Speed 1000 Base-t
Pin Number 24 Pin
Mounting Type SMT
Temperature 0℃ TO 70℃
AutomDX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Tape & Reel
Lan Transformer Detail 1
Lan Transformer Detail 2
Lan Transformer Detail 3
Lan Transformer Detail 4
Lan Transformer Detail 5
HST-24040SXR Specification Dimensions
HST-24040SXR Schematic Diagram
Why Choose Us
Why Choose Us Point 1
Why Choose Us Point 2
Why Choose Us Point 3
Why Choose Us Point 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, and we own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant production capacity of 3000K per month, we are able to deliver goods within a short timeframe. Moreover, we can provide professional complete solutions for magnetic components and offer strong technical support.
Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported our products to more than 30 countries and regions globally. Our customers span across most parts of the world, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
Main Customers: ZNE, JABIL, FOXCONN, H3C, FLEXTRONICS, IBM, TEXAS INSTRUMENTS TELECOMMUNICATION TECHNOLOGIES LLC. Our engineering staff is dedicated to identifying, developing, and manufacturing optimal solutions for our customers' unique requirements. We trust that our strength in the field and our faith in pursuing higher standards will build a long-term partnership.
Production Facility 1
Production Facility 2
Production Facility 3
Production Facility 4
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee is covered by the customer.
What is your delivery time?
Items are ready to ship for stock orders, and it takes 15-30 days for mass production.
What after-sales service can you offer?
We provide a one-year guarantee period and offer technical support online 24 hours a day.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion about your specific needs.
What is your advantage?
We have over 19 years of professional production experience and have been a trusted industry partner for many years.
