| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | QSFP56 |
| Max Data Rate | 200Gbps |
| Max Cable Distance | 70m@OM3/100m@OM4 |
| Wavelength | 850nm |

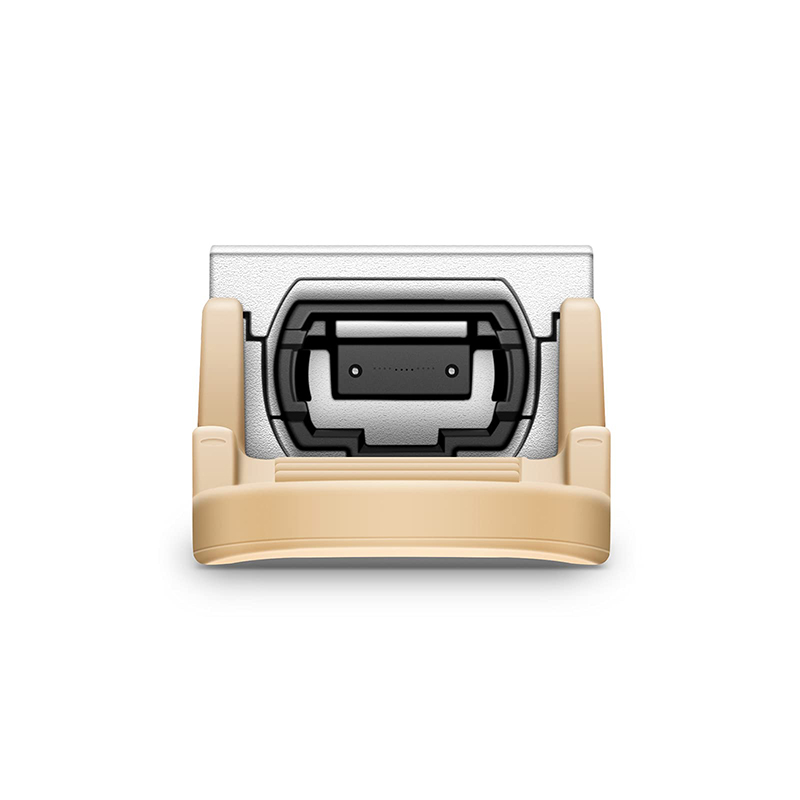

| Connector | MTP/MPO-12 UPC |
| Media | MMF |
| Optical Component | VCSEL/PIN |
| TX Power | -3~3dBm |
| Receiver Sensitivity | -6.5dBm |
| Powerbudget | 3.5dB |
| Receiver Overload | 5dBm |
| Power Consumption | ≤5W |
| Extinction Ratio | 3dB |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Warranty | 5 Years |
| Sample | Available |
| Protocols | 200G Ethernet, Data centers Interconnect, High performance computing |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, and more.
Yes, we can offer you free samples to test the quality, but shipping costs will need to be covered.
Products in stock are ready to ship. For mass production orders, the lead time is typically 15-30 days.
We offer a one-year warranty period and provide 24-hour online technical support.
Yes, OEM/ODM orders are accepted. Please send us your requirements so we can discuss the details.
We have 19 years of professional production experience and have partnered with major industry leaders for many years.
