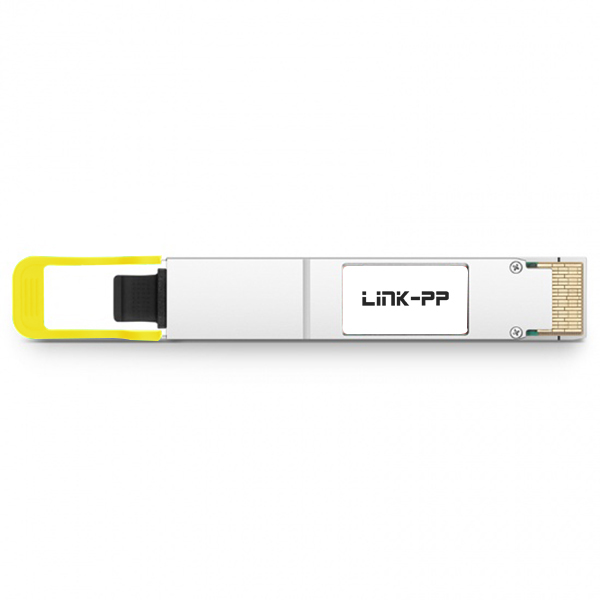

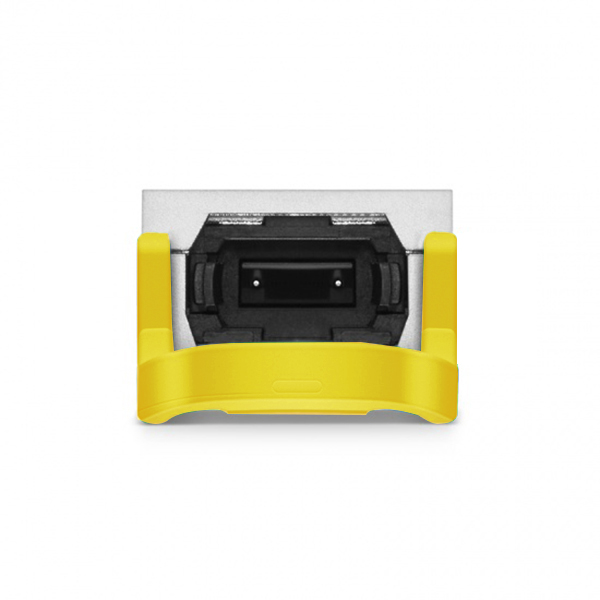

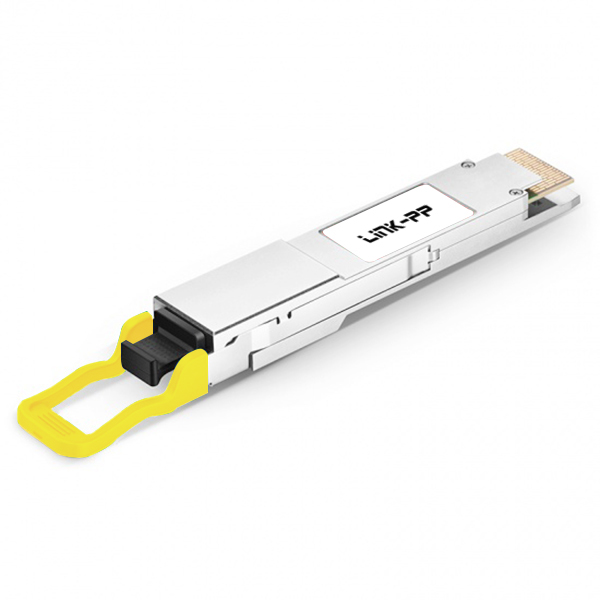

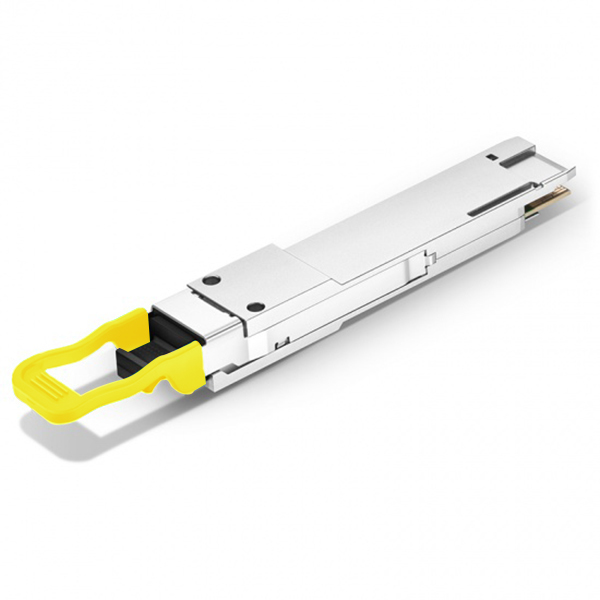

400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
Products Description
| Item |
Fiber Optical Modules |
| Part Status |
Active |
| Form Factor |
QSFP-DD |
| Max Data Rate |
425Gbps (4x106.25Gb/s) |
| Max Cable Distance |
500m |
| Wavelength |
1310nm |
| Connector |
MTP/MPO-12 APC |
| Media |
SMF |
| Optical Component |
DFB/PIN |
| TX Power |
-2.9~4dBm |
| RX Power |
-5.9~4.0dBm |
| Receiver Sensitivity |
-6.5dBm |
| Powerbudget |
3dB |
| Power Consumption |
≤10W |
| Extinction Ratio |
3.5dB |
| DDM/DOM |
DDM Supported |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| Warranty |
5 Years |
| Sample |
Available |
| Protocols |
IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1 |
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
⚙ Related Products SFP Cage ⚙
Why Choose Us
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, we currently have around 2000 staff. With an abundant production capacity of 3000K per month, we are able to deliver products within a short timeframe.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Utilizing the latest optoelectronics technologies, we develop, manufacture, and distribute products worldwide.
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, with shipping costs covered by the buyer.
What is your delivery time?
Items are ready to ship for stock orders, and mass production orders typically take 15-30 days.
What after-service do you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please contact us with your specifications so we can discuss details.
What is your competitive advantage?
We possess over 19 years of production experience along with partnerships with key global industry leaders.
