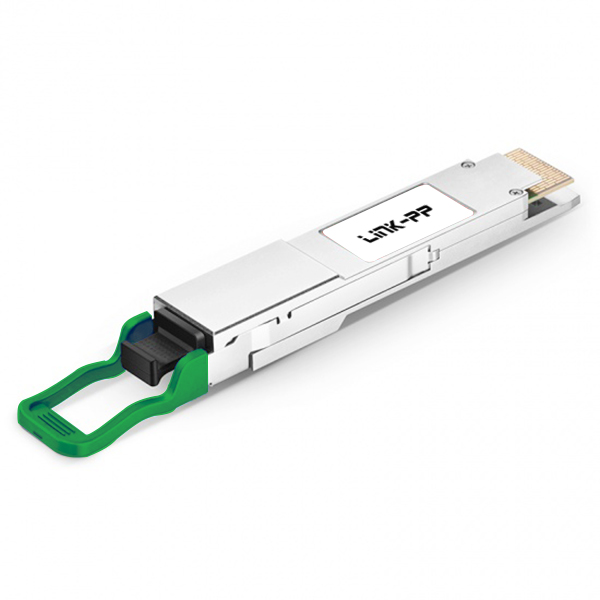

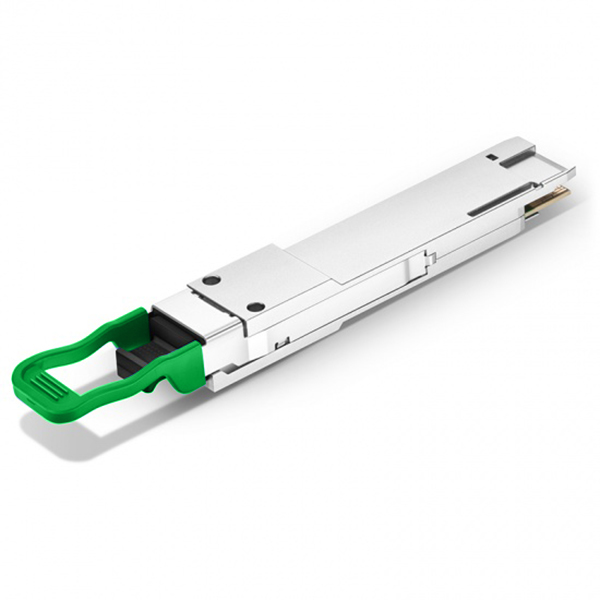

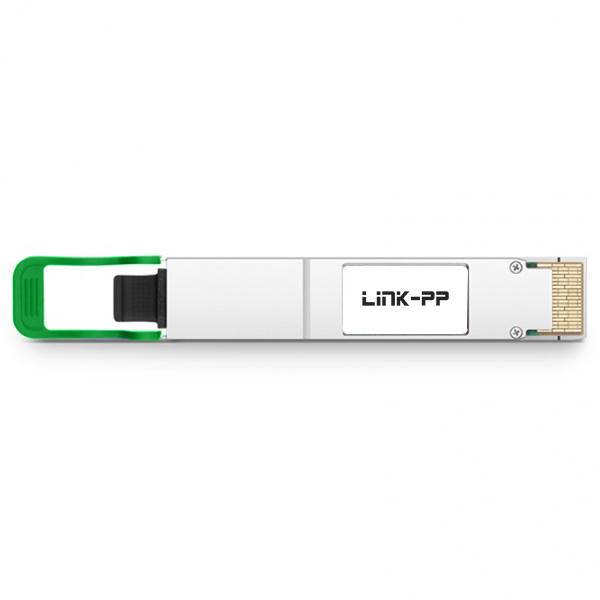

400GBASE-FR4 Duplex LC Optical Module 400G CWDM QSFP-DD PAM4 2km DDM SMF Optical Transceiver
| Item |
Specifications |
| Fiber Optical Modules |
Active |
| Part Status |
Active |
| Form Factor |
QSFP-DD |
| Max Data Rate |
400Gbps |
| Max Cable Distance |
2km |
| Wavelength |
1271nm, 1291nm, 1311nm, 1331nm |
| Connector |
Duplex LC |
| Media |
SMF |
| Optical Component |
CWDM EML/PIN |
| TX Power |
-3.3~3.5dBm |
| RX Power |
-7.3~3.5dBm |
| Modulation |
8x 50G PAM4 |
| Powerbudget |
4dB |
| Power Consumption |
≤10W |
| Extinction Ratio |
3.5dB |
| DDM/DOM |
DDM Supported |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| Warranty |
5 Years |
| Sample |
Available |
| Protocols |
IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1 |
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and testing equipment imported from abroad. Established in 1997, we currently have around 2000 staff members. With an abundant productive capacity of 3000K per month, we are able to deliver products within a short timeframe.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products worldwide.
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you will need to cover the shipping fees.
3. What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
4. What after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion regarding your custom needs.
6. What is your advantage?
We bring over 19 years of dedicated production experience in the networking components industry, offering robust reliability and global partnership support.
