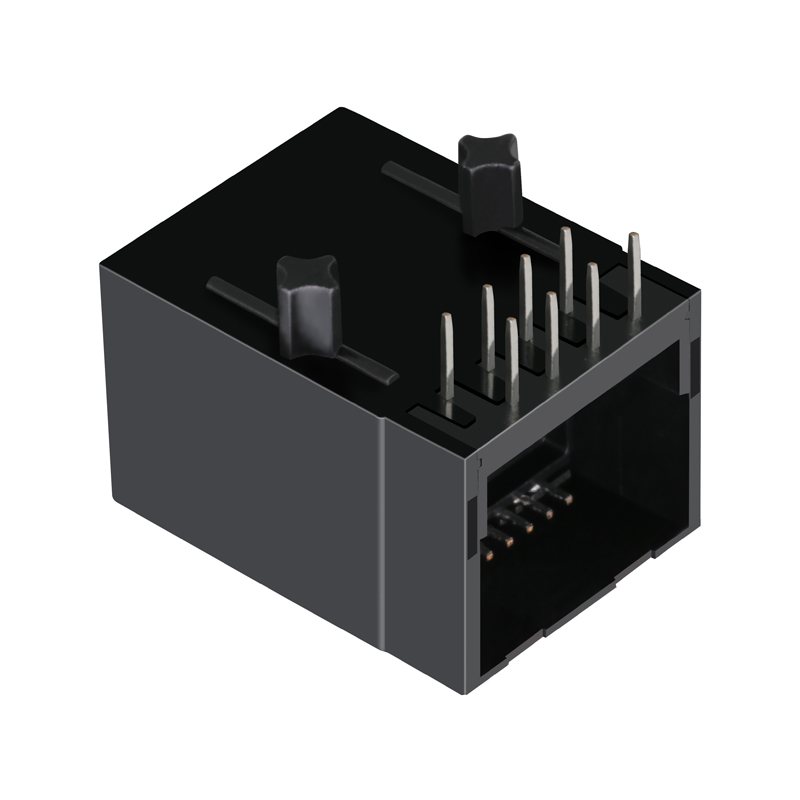

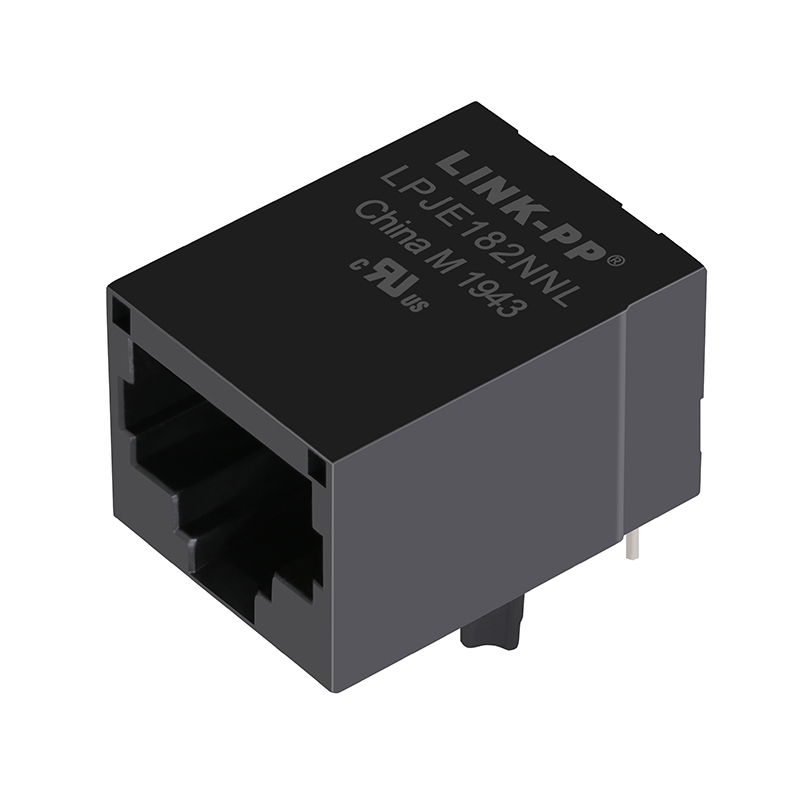

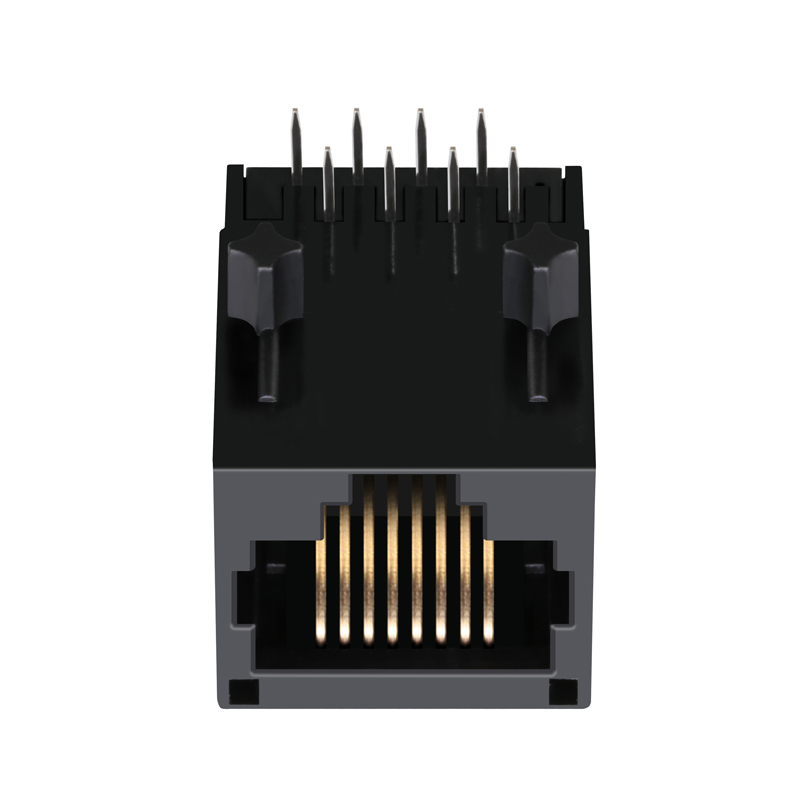

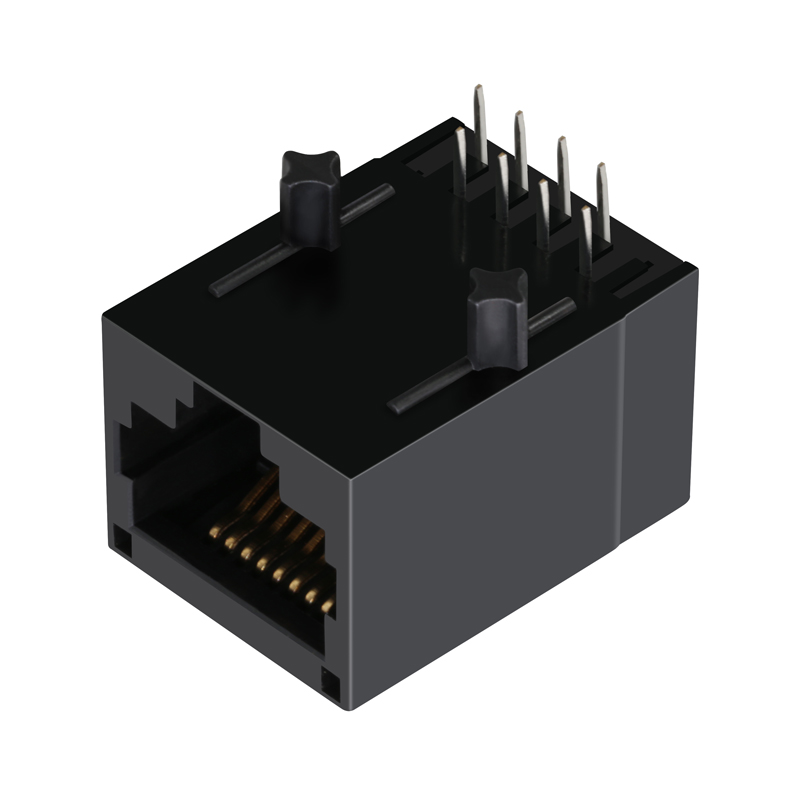

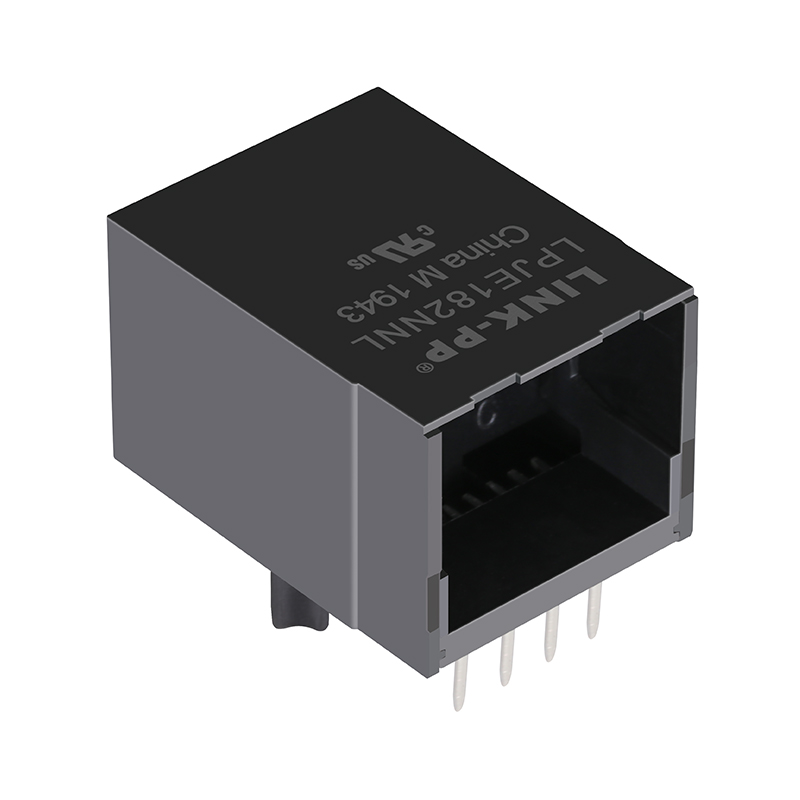

Without Magnetics 8P8C Ethernet RJ45 Network Female Jack

Without Magnetics 8P8C Ethernet RJ45 Network Female Jack

■ Products Description

Item	RJ45 Modular Jack
Part Number	LPJE182NNL
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet(Non PoE)
Number of Ports	1x1 Port
Latch	Down
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without
LED Option	Without
PCB	FR4
PCB Retaining Post	T POST
Temperature	0°C TO 70°C
Bst Circuit	Yes
AutomDX	YES
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

■ Product Technical Drawings & Dimensions

■ Internal Structure & PCB Layout

■ Product Categories Matrix

■ Quality Assurance & Certification

■ Manufacturing Facility & Warehouse

? Frequently Asked Questions (FAQ)

QAre you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, providing high-quality products such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

QCan I get a sample before mass production?

Yes, we can offer you free samples to test quality, but the shipping fee needs to be covered by the buyer.

QWhat is your delivery time?

Items currently in stock are ready to ship immediately, while mass production orders typically take 15 to 30 days.

QWhat after-sales service do you offer?

We provide a one-year guarantee period along with 24-hour online technical support to assist you with any questions.

QCan you accept OEM/ODM orders?

Yes, please send your specific inquiries and requirements to us so that we can begin a detailed discussion.

QWhat are your core advantages?

We boast over 19 years of professional production experience and have proudly served as a reliable partner to leading technology corporations for many years.
