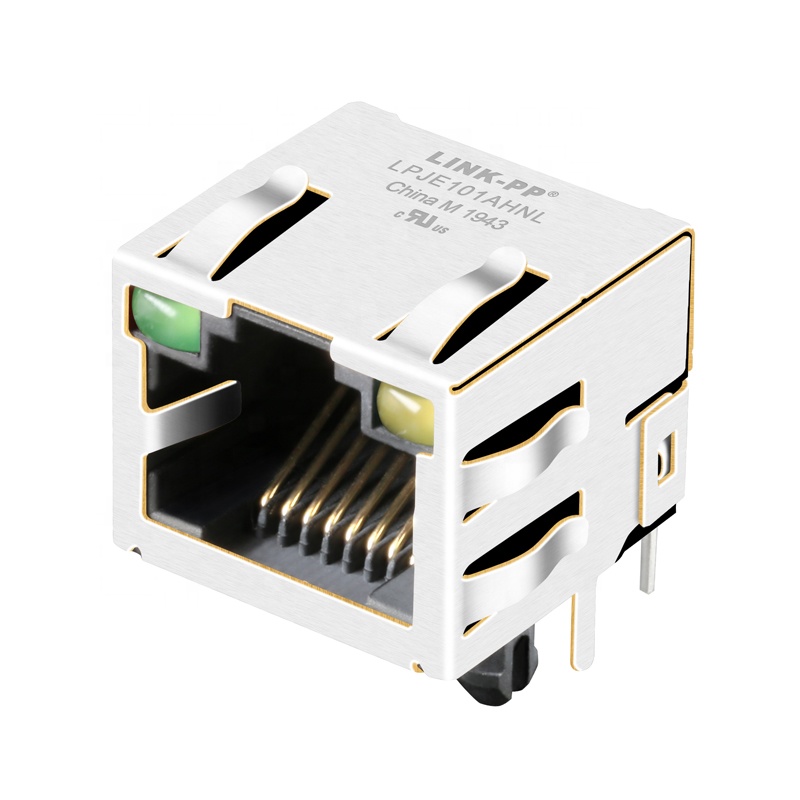

Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
1 / 5
Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4

Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4

Send Inquiry

Product Description

Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4

Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
Through Hole Networking Plastic RJ45 Modular Jack W/Y LED 1116173-4
Reference Part Number 1 1116173-4
Reference Part Number 2 LPJE101AHNL
Application-LAN ETHERNET(NON POE)
AutomDX YES
Package Height (Inches/mm) 0.516/13.10
Package Length (Inches/mm) 0.620/15.75
Package Width (Inches/mm) 0.640/16.26
Configuration TX/RX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores Per Port -
Diodes No
Latch Up
LED Option Green/Yellow LEDS
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed -
Temperature -40 TO 85°C
Turns Ratio RX 1CT:1
Turns Ratio TX 1CT:1

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification
  • ISO 9001:2008
  • UL Certification
  • Reach Certification
  • RoHS Compliance
  • Active Environmental Policy
100% Guarantee Quality
  • Manufactured Under Strict Controls
  • 100% Tested (Not Just Batch Tested)
  • Quality Guarantee: 6 Years
Competitive Price & Service
  • More Competitive Price
  • Delivery Time: 2-3 Weeks After Orders
  • Free Samples Are Available
  • Provide New Design For Customer Requirements
  • Highly Optimized Shipping Cost Options
Through Hole Networking Plastic RJ45 Modular Jack Detail
Through Hole Networking Plastic RJ45 Modular Jack Parameters
Through Hole Networking Plastic RJ45 Modular Jack Diagram
Through Hole Networking Plastic RJ45 Modular Jack Specifications
Through Hole Networking Plastic RJ45 Modular Jack Footer Border
Through Hole Networking Plastic RJ45 Modular Jack Production
Through Hole Networking Plastic RJ45 Modular Jack Certificate

Frequently Asked Questions (FAQ)

What is the operating temperature range for this RJ45 modular jack?
This connector is designed to operate reliably within a temperature range of -40°C to +85°C, making it suitable for both standard and demanding industrial applications.
Does this RJ45 connector support Power over Ethernet (PoE)?
No, this specific model is designed for standard Ethernet applications and is specified as ETHERNET (NON POE).
What color option is integrated for the LED indicator?
This modular jack features integrated Green and Yellow LEDs to facilitate network speed and activity status indications.
What type of mounting configuration does this product use?
It features a Through-Hole Technology (THT solder) pin type with a side entry (right angle) PCB mounting angle and a T-post retaining design.
What are the contact mating area plating options?
The contact mating area is plated with high-quality gold, available in thickness options of 6u", 15u", or 30u" depending on application requirements.
Is this RJ45 modular jack RoHS compliant?
Yes, it is RoHS compliant (specifically RoHS-5 classification, with lead in solder exemption).
