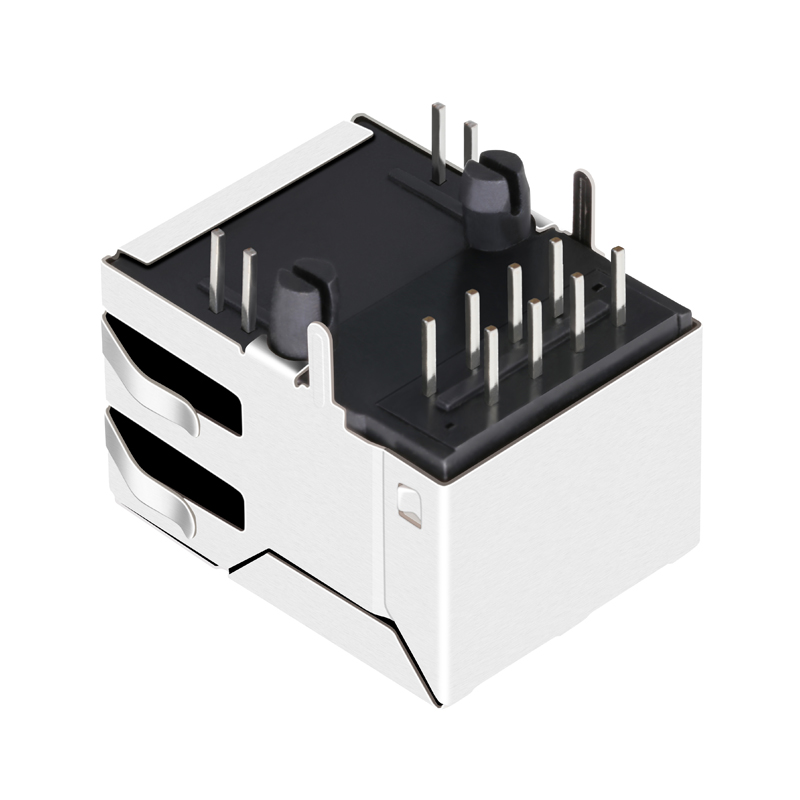

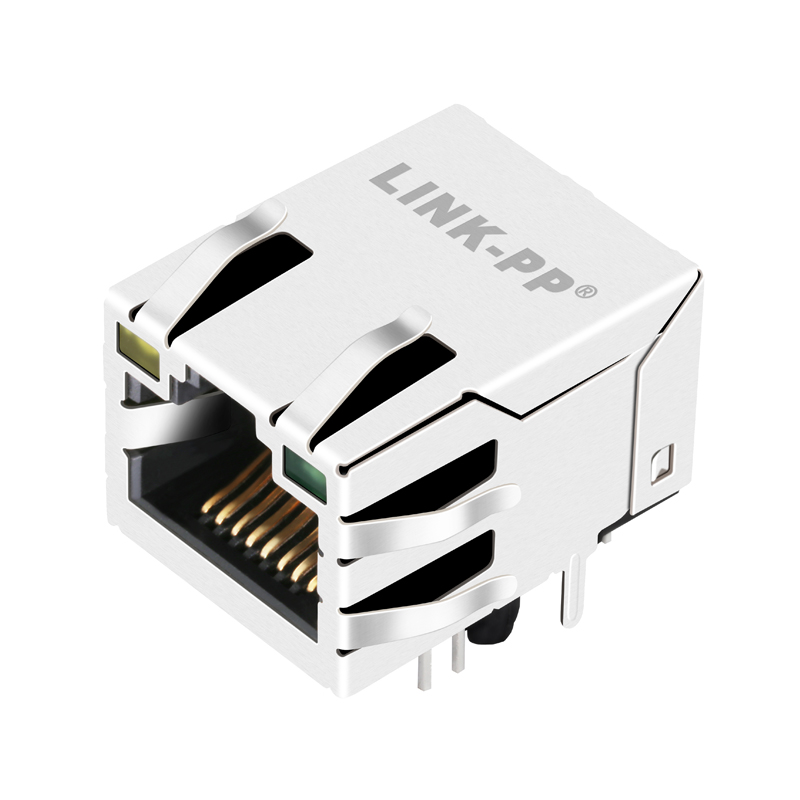

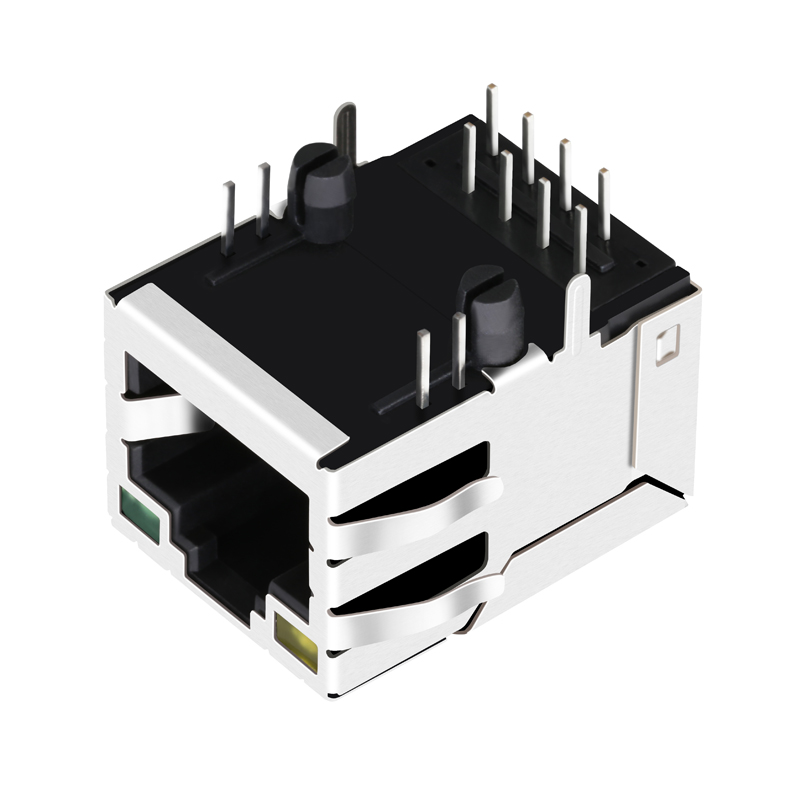

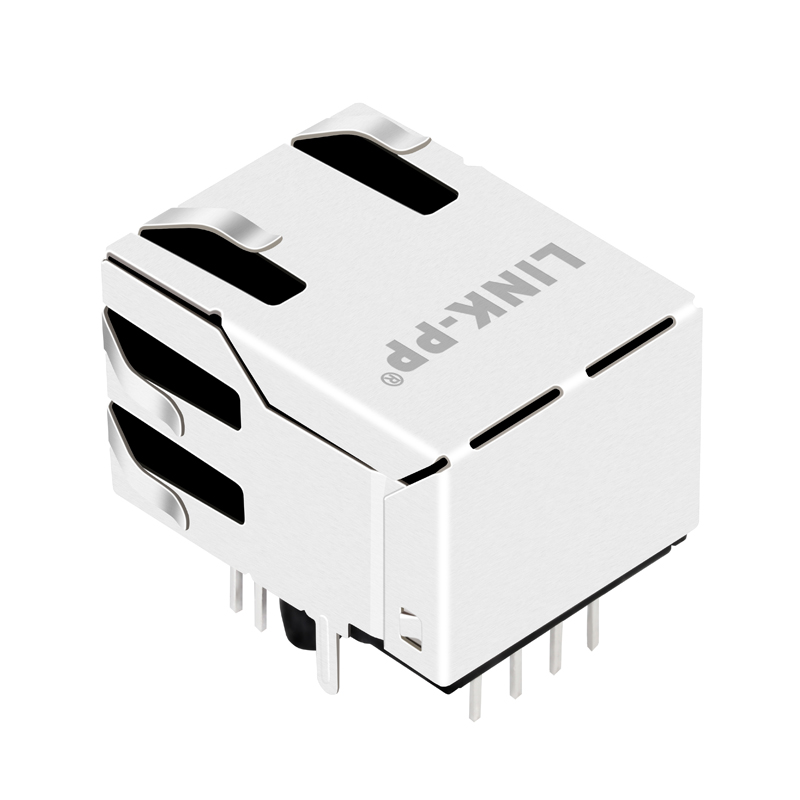

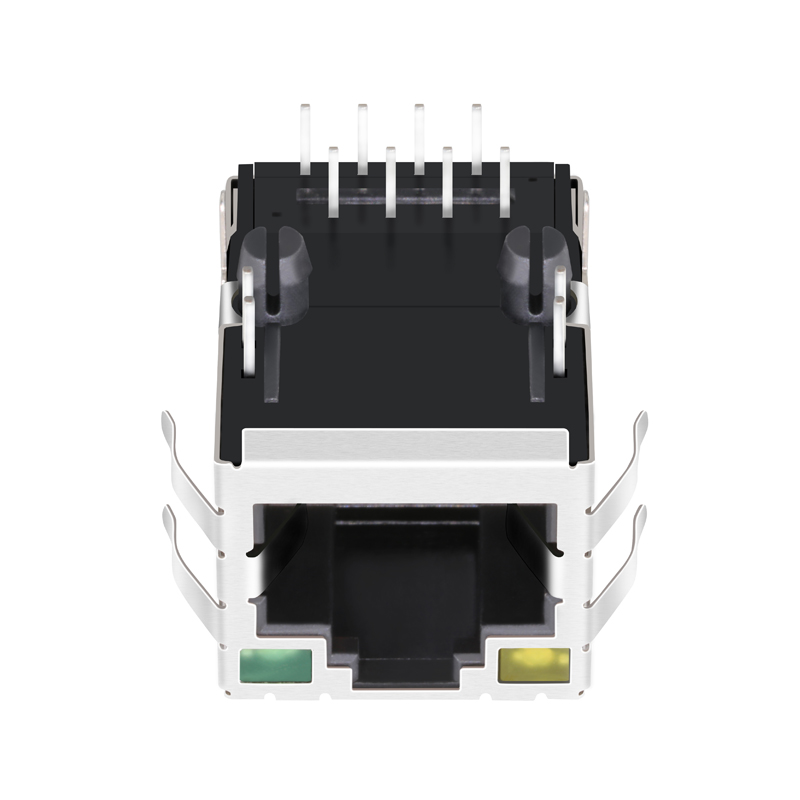

Entry Through-Hole PCB Mounting RJ45 Connector ARJ045-010156

Product Description

RJ45 Connector Overview

Entry Through-Hole PCB Mounting RJ45 Connector ARJ045-010156

Products Description
Item RJ45 Female Connector
Compatible With ARJ045-010156
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed Without Magnetics
Latch Down/Up
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutoMDIX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Product Technical Dimensions
Products Overview
Connector Category Gallery
Connector Drawing Detail
Production Measurement Detail
Side View Analysis
Internal Structure Blueprint
Mechanical Interface Diagram
Circuit Schematic Layout
Manufacturing Verification Specs
Factory Testing Lab
Quality Assurance Bench

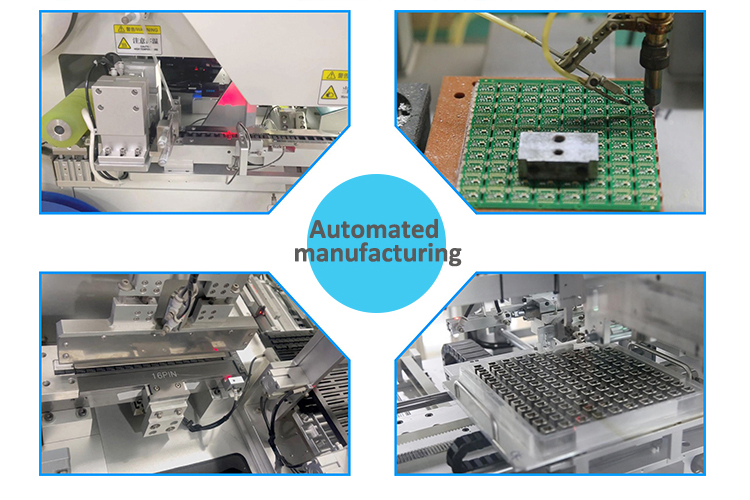

Automatic Production Line
High Precision Assembly Machinery

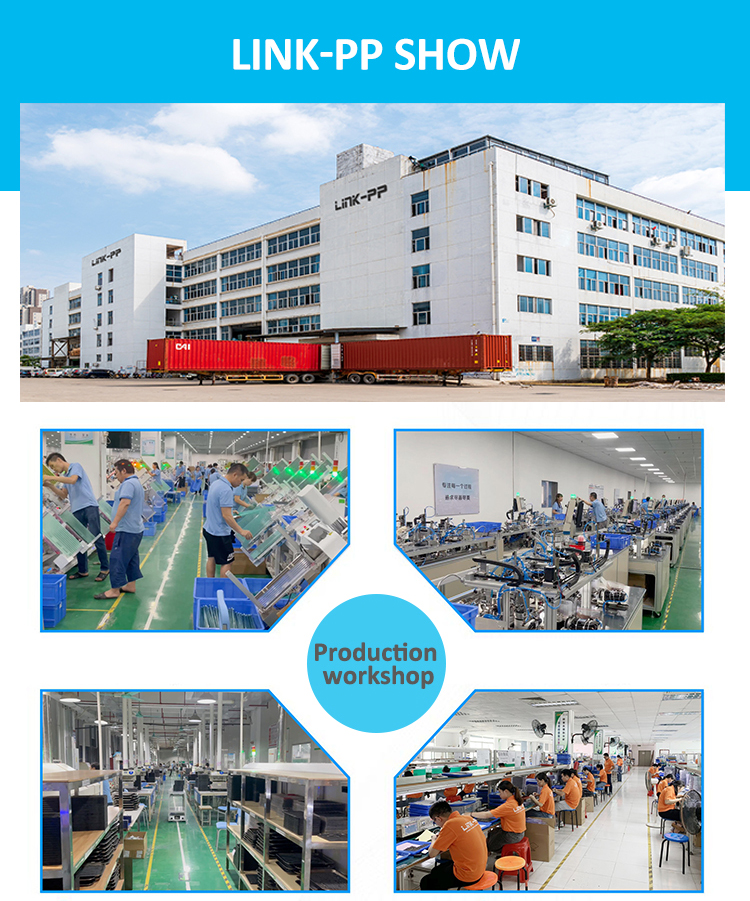

Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer manufacturer.
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you are responsible for covering the shipping fee.
3. What is your delivery time?
Items currently in stock are ready to ship immediately, while standard mass production orders take between 15 to 30 days.
4. What after-service can you offer?
We provide a one-year guarantee period on our products and offer 24-hour technical support online.
5. Can you accept OEM/ODM orders?
Yes, we gladly accept custom designs. Please reach out to us with your requirements for a detailed consultation.
6. What is your manufacturing advantage?
We boast 19 years of professional production experience and have been a trusted manufacturing partner for top-tier global hardware brands for many years.
