1000 BASE-T SMD Ethernet Transformer Modules HST-24054SXCR / HST-24056SCR

Product Description

Ethernet Transformer Module Banner

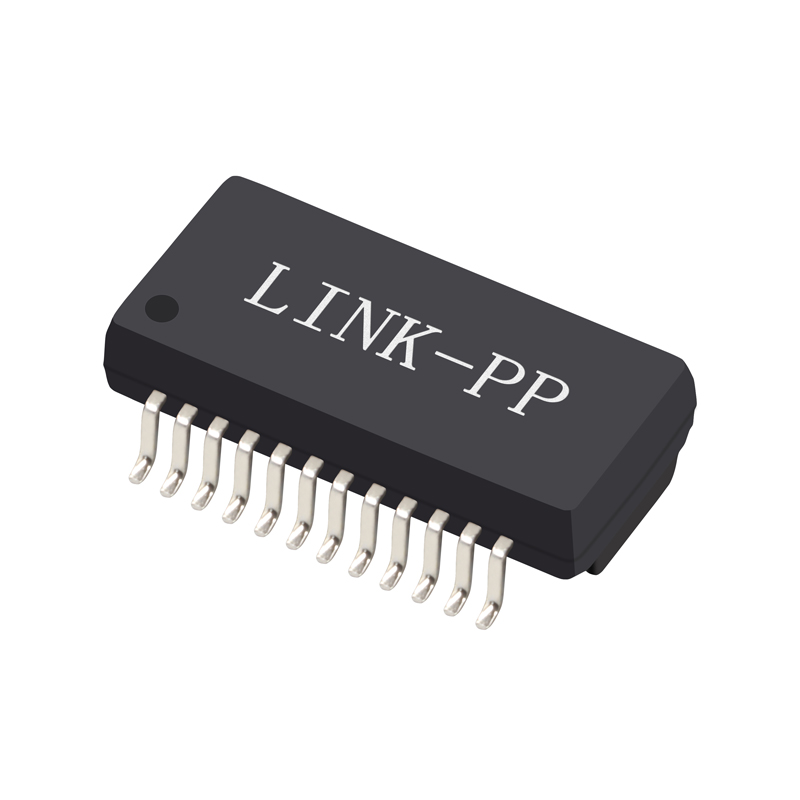

1000 BASE-T SMD Ethernet Transformer Modules HST-24054SXCR / HST-24056SCR

Products Description
Item Lan Transformer
Replaceable Brand Model HST-24054SXCR / HST-24056SCR
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Speed 1000 Base-t
Mounting Type SMT
Temperature 0℃ TO 70℃
AutoMDIX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C,S
Package Tape & Reel
Lan Transformer Details 1 Lan Transformer Details 2 Lan Transformer Details 3 Lan Transformer Details 4 Lan Transformer Details 5
Product Dimensions Diagram Schematic Diagram
Why Choose Us
Production Process 1 Production Process 2 Quality Standard 1 Quality Standard 2
Company Profile

We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and test equipments imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to delivery the goods within the short time. Moreover, we can provide the professional complete solution for magnetic components and strong technical support as well.

Main Products

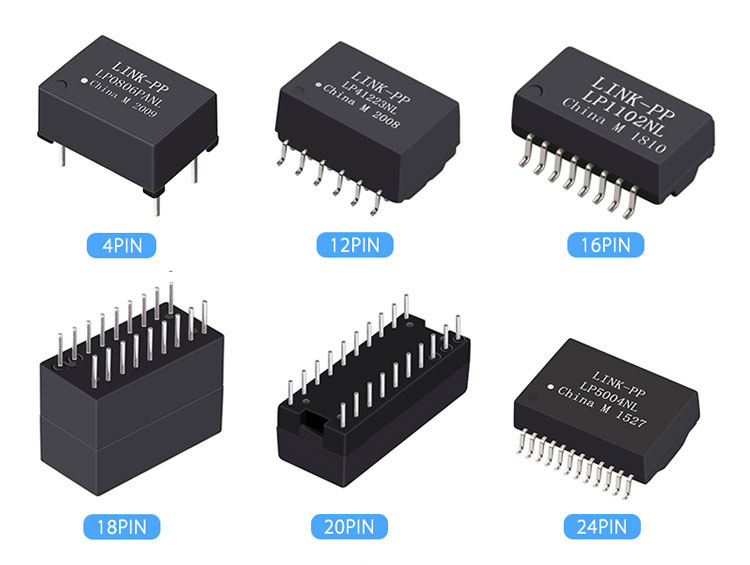

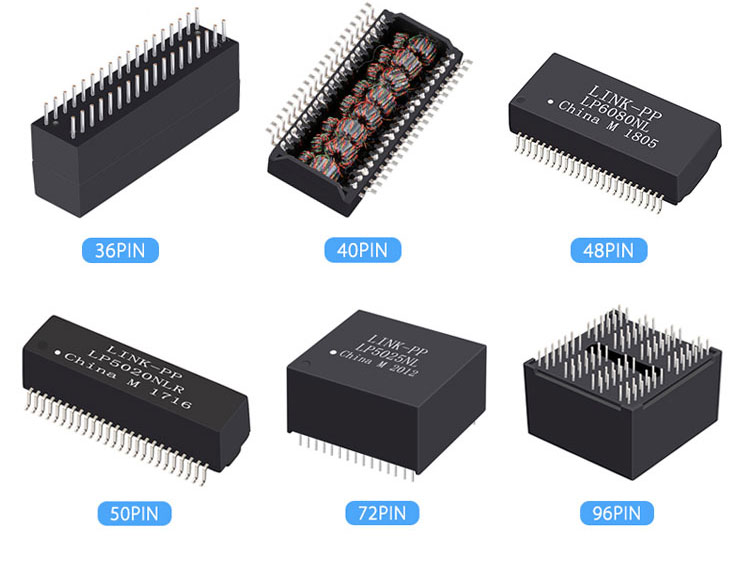

  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL and VDSL interface line transformer and splitter

Our products are widely used in networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem. We have exported our products to more than 30 countries and regions in the world. Our customers cover most of the countries in the world, including Germany, France, England, USA, Singapore, Korea, Canada and Japan.

Our engineering staff is dedicated to identifying, developing and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our faith of pursuing higher will convince you to be our longterm friend.

Factory Environment 1 Factory Environment 2 Production Facility 1 Production Facility 2
FAQ
Are you factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connector, lan transformer, RJ11 connector and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
What is your advantage?
19 years of production experience and we are a reliable manufacturer with extensive partnership experience.
