Product Description

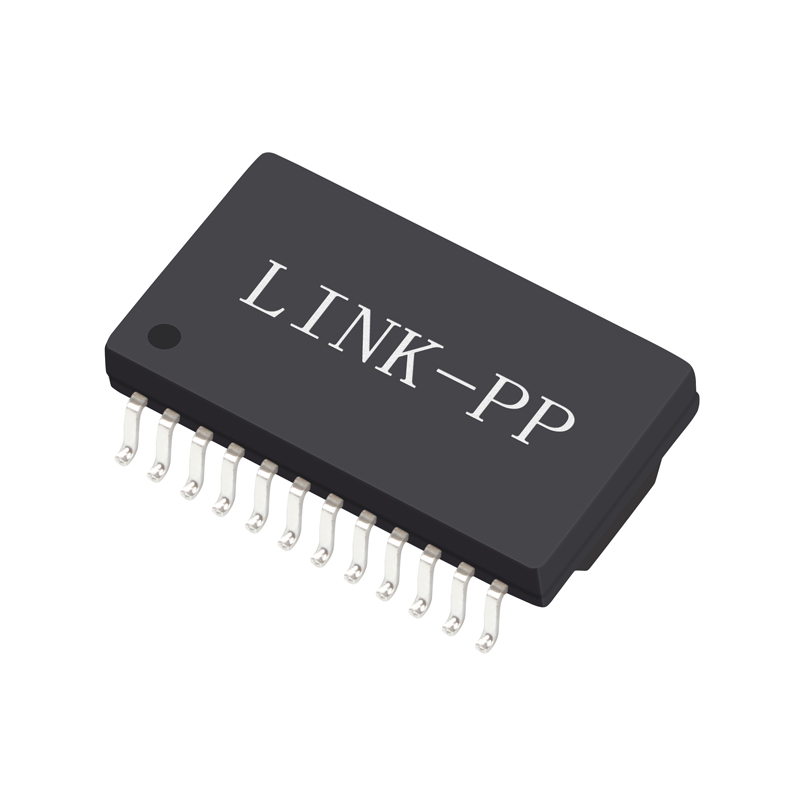

IEEE 802.3 1000BASE-T LAN Magnetic Transformer HST-24002SAR / HST-24002SXAR
LAN Magnetic Transformer
Products Description
Item Specification Details
Item Lan Transformer
Replaceable Brand Model HST-24002SAR / HST-24002SXAR
Part Status Active
Construction Open Frame
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1 Port
Speed 1000 Base-t
Cores per Port 8
Pin Number 24 Pin
Mounting Type SMT
Temperature 0°C to 70°C
AutoMDIX YES
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C, S
Package Tape & Reel
Transformer detail 1
Transformer detail 2
Transformer detail 3
Transformer detail 4
Transformer detail 5
Technical drawing 1
Technical drawing 2
Why Choose Us
Advantage 1
Advantage 2
Advantage 3
Advantage 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE, and UL. We own advanced manufacturing facilities and testing equipment imported from abroad. Established in 1997, we have around 2,000 staff at present. With an abundant production capacity of 3,000K per month, we are able to deliver goods within a short timeframe. Moreover, we can provide professional complete solutions for magnetic components alongside strong technical support.
Main Products:
  • 10/100/1000M LAN pulse transformer and filter
  • RJ45 connector with 10/100/1000M magnetic
  • T1/E1, T3/DS3/E3/STS-1 interface line transformer
  • ISDN, HDSL, ADSL, and VDSL interface line transformer and splitter
Our products are widely used in networking and communication equipment such as HUBs, PC cards, switches, routers, PC mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported our products to more than 30 countries and regions worldwide, including Germany, France, the UK, the USA, Singapore, Korea, Canada, and Japan.
Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for our customers' unique requirements. We trust that our strength in the field and our pursuit of excellence will convince you to build a long-term partnership with us.
Factory facility 1
Factory facility 2
Production line
Testing equipment
Frequently Asked Questions
Q1: Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, etc.
Q2: Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping fees must be covered by the recipient.
Q3: What is your delivery time?
Ready to ship for stock items, and 15-30 days for standard mass production orders.
Q4: What after-service do you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q5: Can you accept OEM/ODM orders?
Yes, please send your requirements to us so we can proceed with a detailed discussion.
Q6: What is your advantage?
We have over 19 years of professional production experience and work closely with global industry leaders.
