Industrial Single Mode QSFP28 100G 1310nm 20km DDM Duplex LC SMF Optical Transceiver Module

Product Description

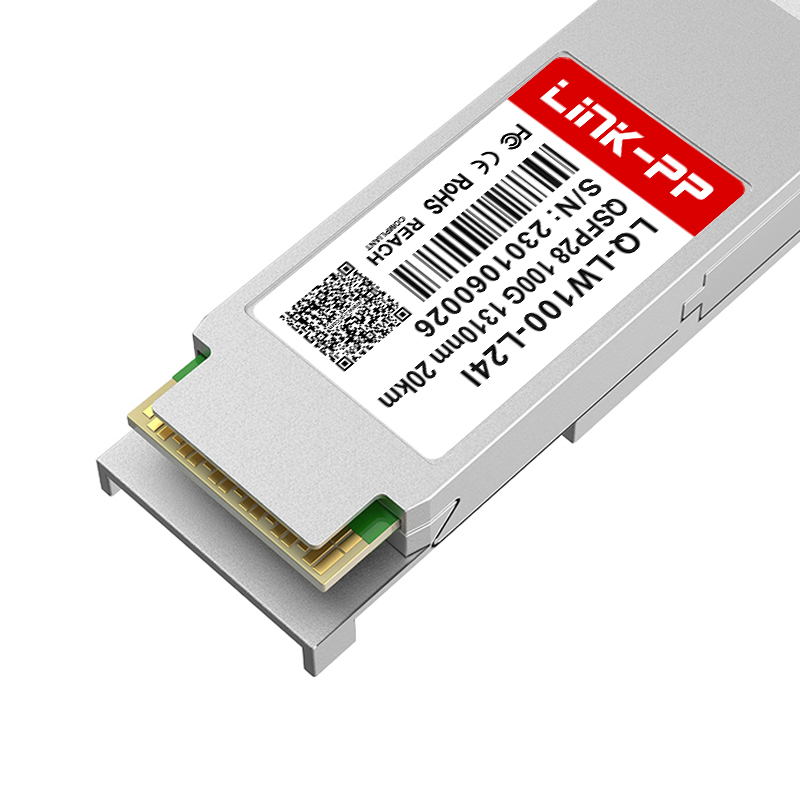

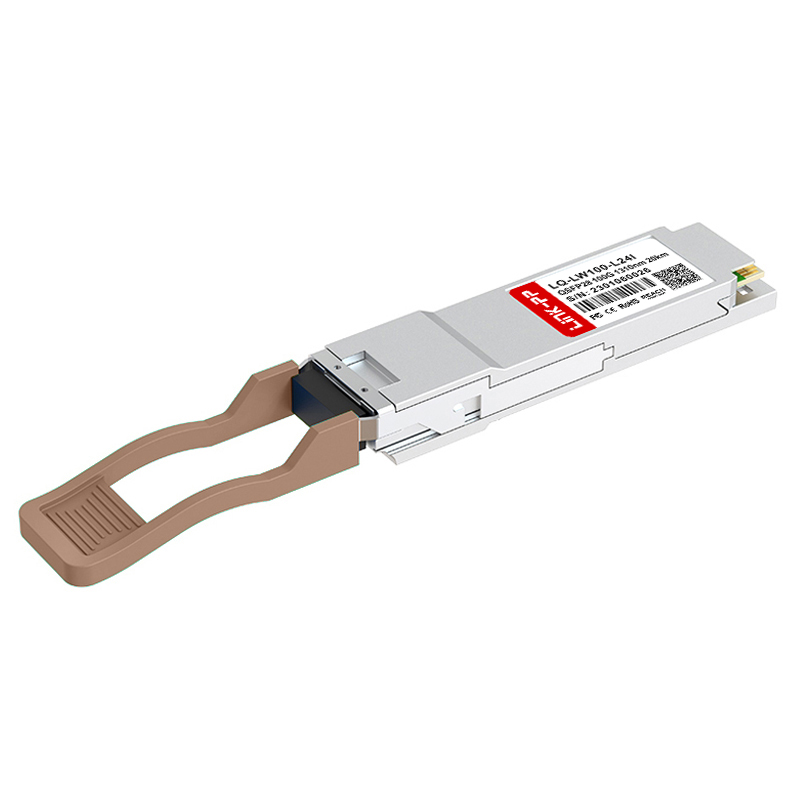

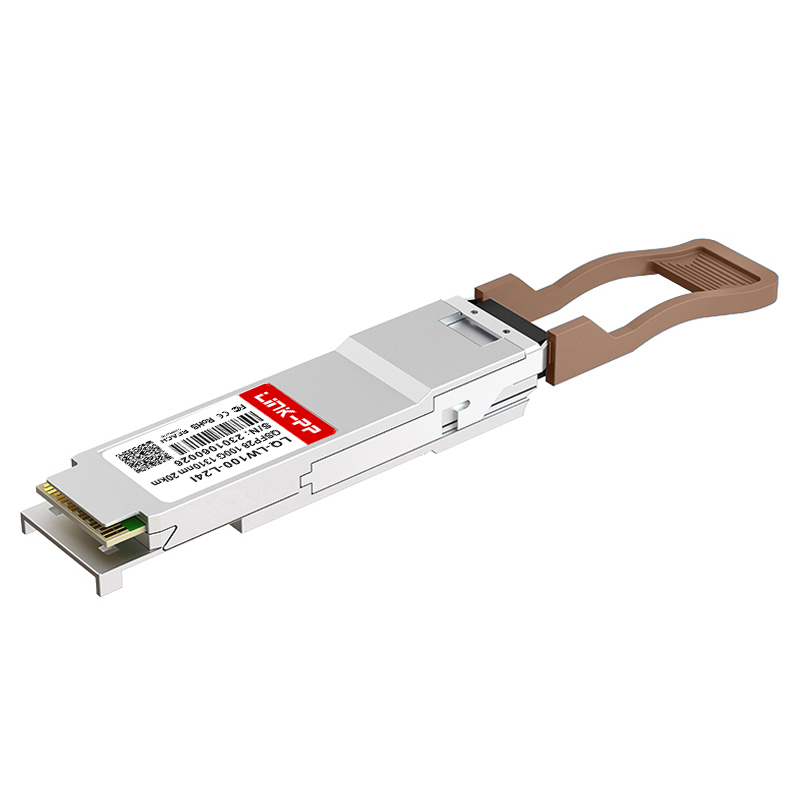

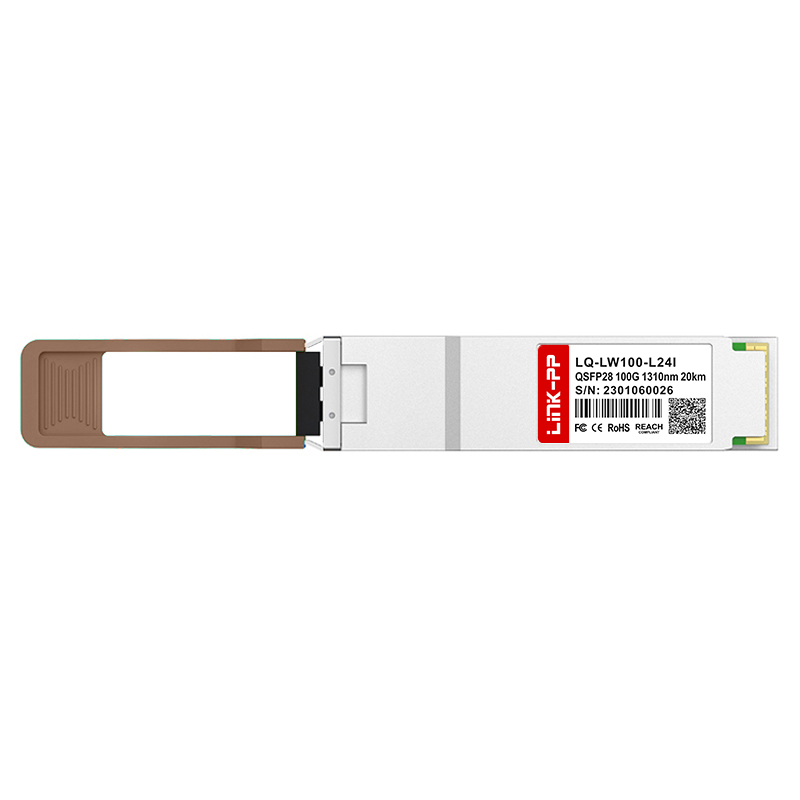

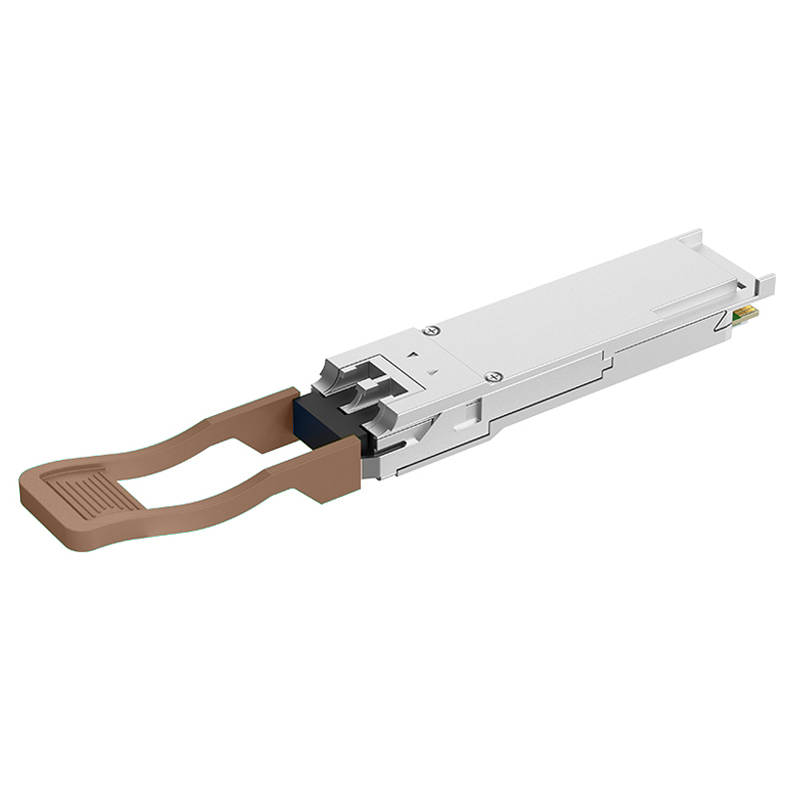

Industrial Single Mode QSFP28 100G 1310nm 20km DDM Duplex LC SMF Optical Transceiver Module
Part No. LQ-LW100-L24I
Form Factor QSFP28
Max Data Rate 100Gbps
Wavelength 1310nm
Max Cable Distance 20km
Connector Duplex LC
Media SMF
Transmitter Type EML
Receiver Type PIN
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols QSFP28 MSA, IEEE 802.3-2018, 4WDM-20, SFF-8661, SFF-8636
Temperature Range -40 to 85°C
Warranty 5 Years
Sample Available
View Our Solutions
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Overview
Optical Module Details
Optical Module Close-up
Transceiver Ports
Optical Module Interface
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering from all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Related Products SFP Cage
SFP Cage
Why Choose Us
Advantage 1 Advantage 2 Advantage 3 Advantage 4
Company Profile
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, RoHS, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Established in 1997, we have about 2000 employees at present. With the abundant production capacity of 3000K per month, we are able to deliver products within a short time.

In addition, we can provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture and sell products worldwide.
Factory Facility 1 Factory Facility 2
Frequently Asked Questions
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
4. What after-service can you offer?
We provide a one-year guarantee period and offer online technical support 24 hours a day.
5. Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
We possess over 19 years of professional manufacturing experience alongside high-standard quality certifications.
