Home > Rj45 Female Connector > RJHSE-5085 without Transformer Jack RJ45 Female Connector

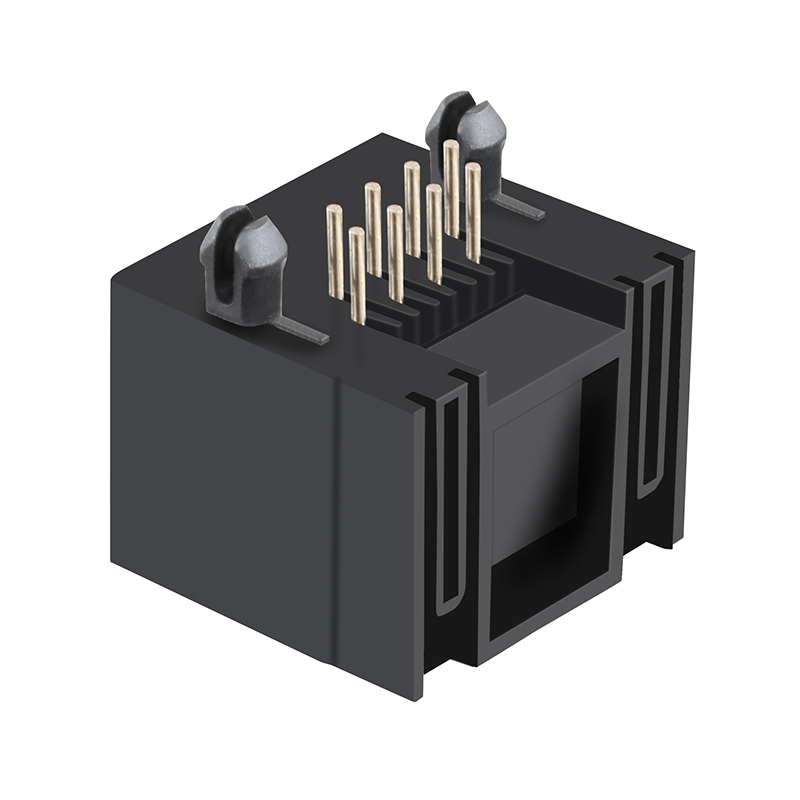

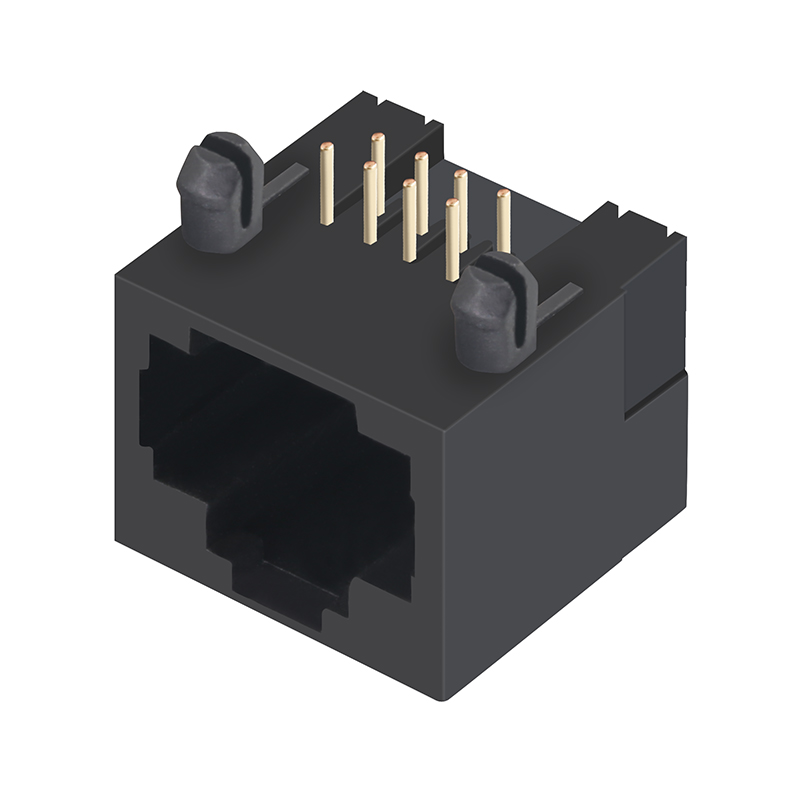

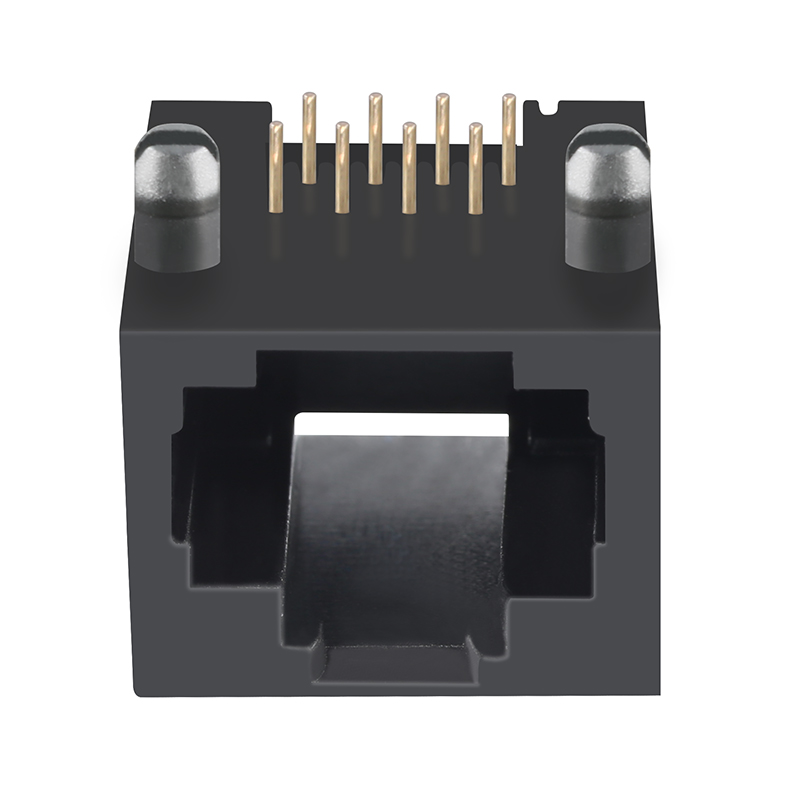

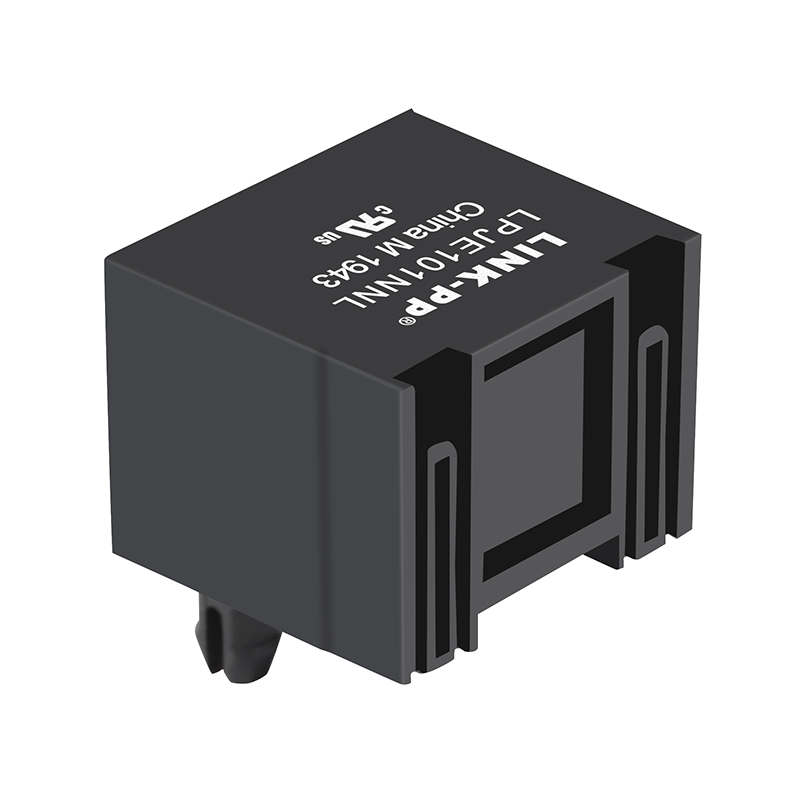

RJHSE-5085 without Transformer Jack RJ45 Female Connector
RJHSE-5085 without Transformer Jack RJ45 Female Connector
RJHSE-5085 without Transformer Jack RJ45 Female Connector
RJHSE-5085 without Transformer Jack RJ45 Female Connector
RJHSE-5085 without Transformer Jack RJ45 Female Connector
1 / 5
RJHSE-5085 without Transformer Jack RJ45 Female Connector
RJHSE-5085 without Transformer Jack RJ45 Female Connector
RJHSE-5085 without Transformer Jack RJ45 Female Connector
RJHSE-5085 without Transformer Jack RJ45 Female Connector
RJHSE-5085 without Transformer Jack RJ45 Female Connector

RJHSE-5085 without Transformer Jack RJ45 Female Connector

Send Inquiry

Product Description

RJHSE-5085 without Transformer Jack RJ45 Female Connector
RJHSE-5085 RJ45 Female Connector
Products Description
Item RJ45 Modular Jack
Part Number LPJE101NNL
Alternative Part Number RJHSE-5085
Part Status Active
Connector Type Jack
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Orientation 90° Angle (Right)
PCB Mount Angle Side Entry
Shield EMI Tabs Without
LED Option Without
PCB FR4
PCB Retaining Post T Post
Temperature 0°C to 70°C
Bst Circuit Yes
AutoMDIX Yes
Contact Mating Area Plating Gold 6u" / 15u" / 30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C

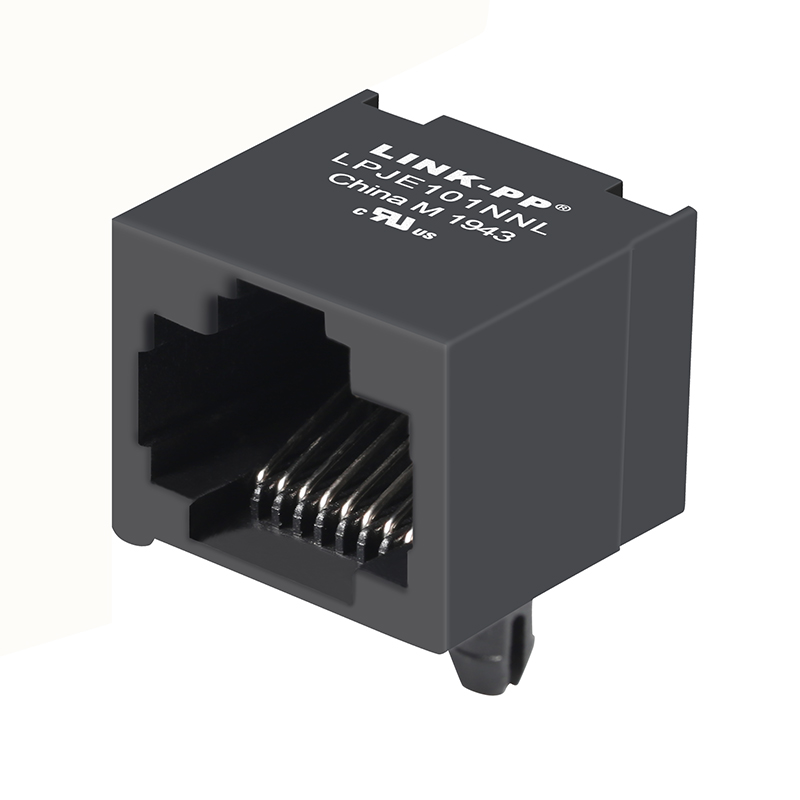

RJ45 Jack details 1
RJ45 Jack details 2
RJ45 Jack details 3
Dimensional Drawing 1
Dimensional Drawing 2
Electrical Specifications 1
Electrical Specifications 2
Product Options Mapping
Product Parameters Overview
Mechanical Structure Layout
Soldering Specifications
Product Schematic Diagrams
Performance Ratings
Packaging details
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, and more.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, with shipping fees covered by the buyer.
What is your delivery time?
In-stock items are ready to ship. For mass production orders, the delivery timeframe is typically 15 to 30 days.
What after-sales service do you offer?
We provide a one-year warranty period and 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we support OEM/ODM customization. Please send us your inquiry to discuss specifications and details.
What is your manufacturing experience?
We have over 19 years of professional production experience and serve as a reliable supply partner for global clients in the telecom sector.
Production standards and quality control
