Tab up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack

Product Description

SMT RJ45 Connector Product Showcase
Tab Up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack With Leds
Products Description
Item RJ45 Female Connector
Part Number LPJ3011ABNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

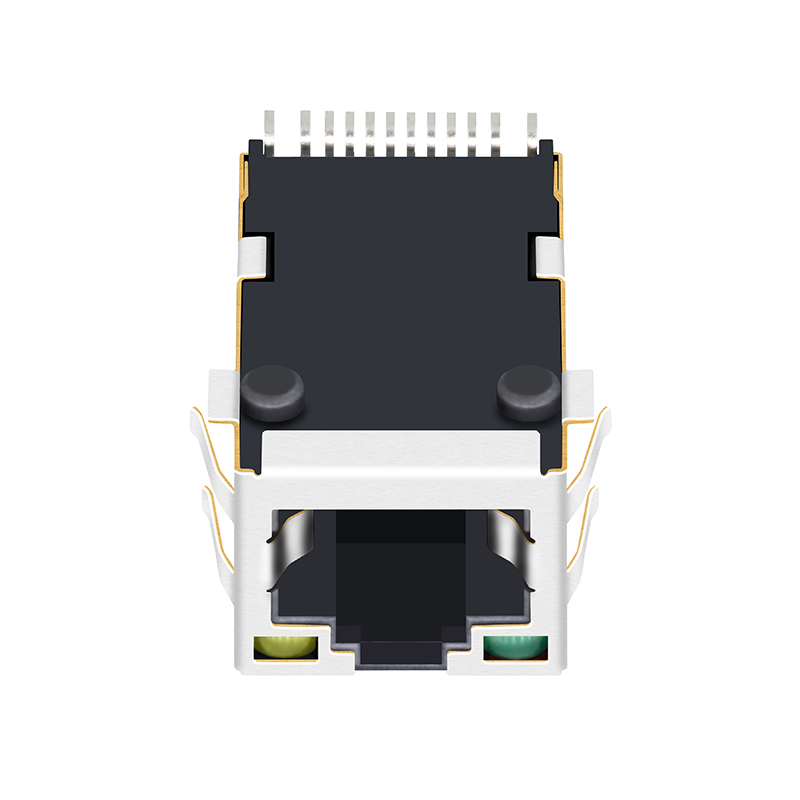

RJ45 SMT Jack Detail View 1

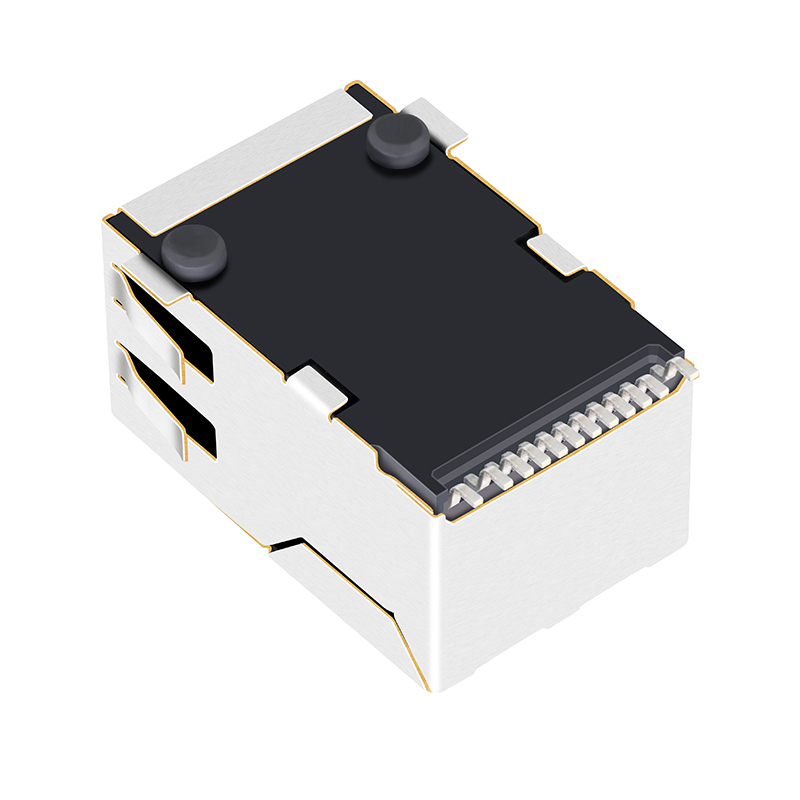

RJ45 SMT Jack Detail View 2

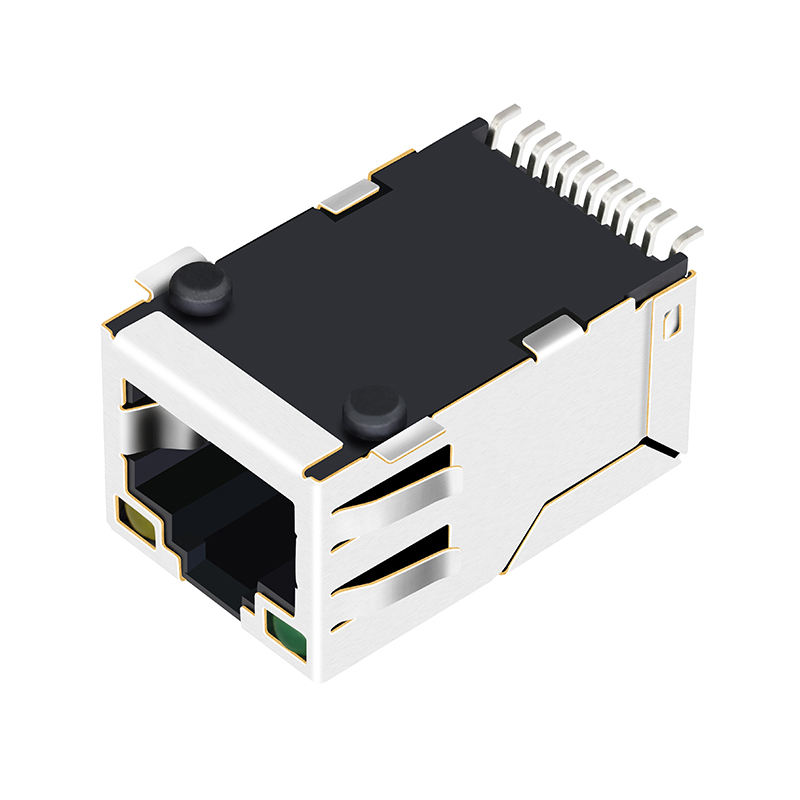

RJ45 SMT Jack Detail View 3

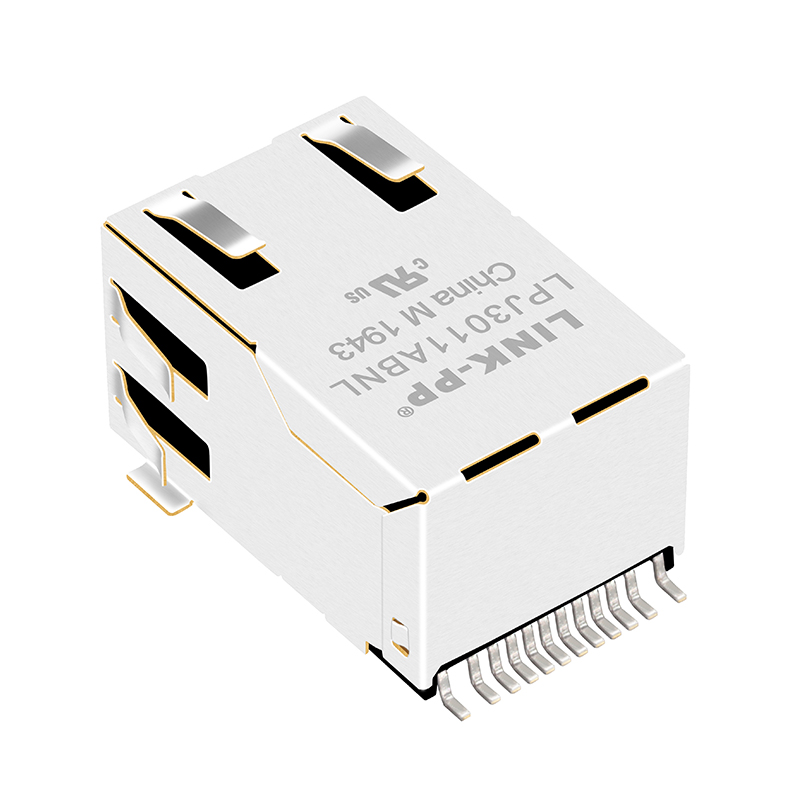

RJ45 SMT Jack Detail View 4
Product Categories Overview
Product Categories Overview Chart
Company Profile
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a leading provider of Ethernet RJ45 connectors and LAN transformers.
Manufacturing Facility 1
Manufacturing Facility 2
Quality Inspection
Testing Equipment
Automated Production Line
Warehouse and Logistics
Product Quality Control Certifications
Technical Specifications and Development
Frequently Asked Questions
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, though the shipping fee is covered by the customer.
3. What is your delivery time?
Items in stock are ready to ship immediately, while mass production orders typically require 15 to 30 days.
4. What after-sales service do you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, OEM and ODM projects are welcome. Please contact us with your specifications for a detailed discussion.
6. What is your competitive advantage?
We offer 19 years of professional manufacturing experience and have partnered with key industry leaders globally for many years.
