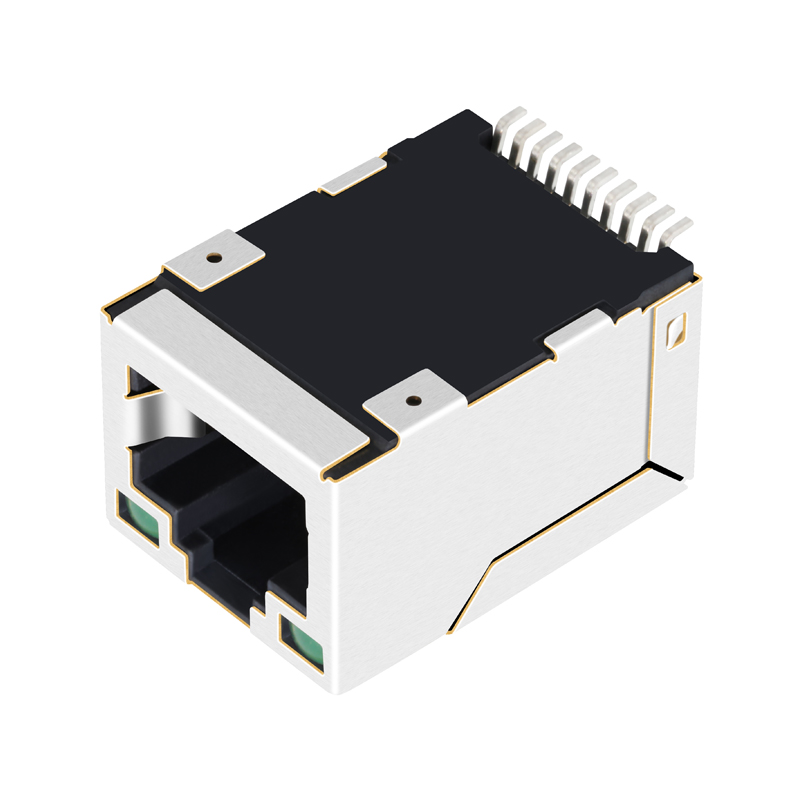

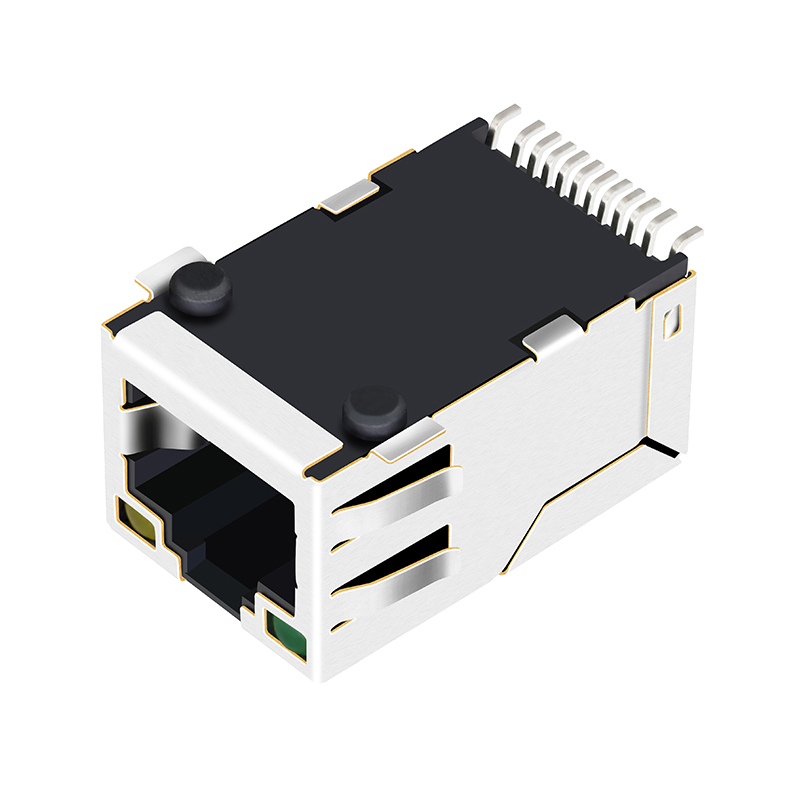

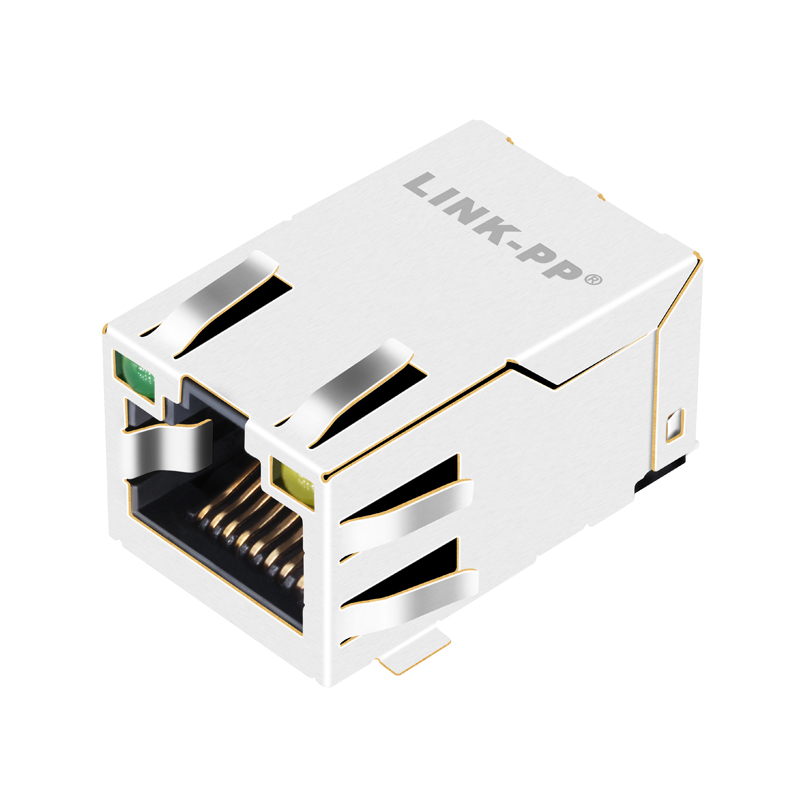

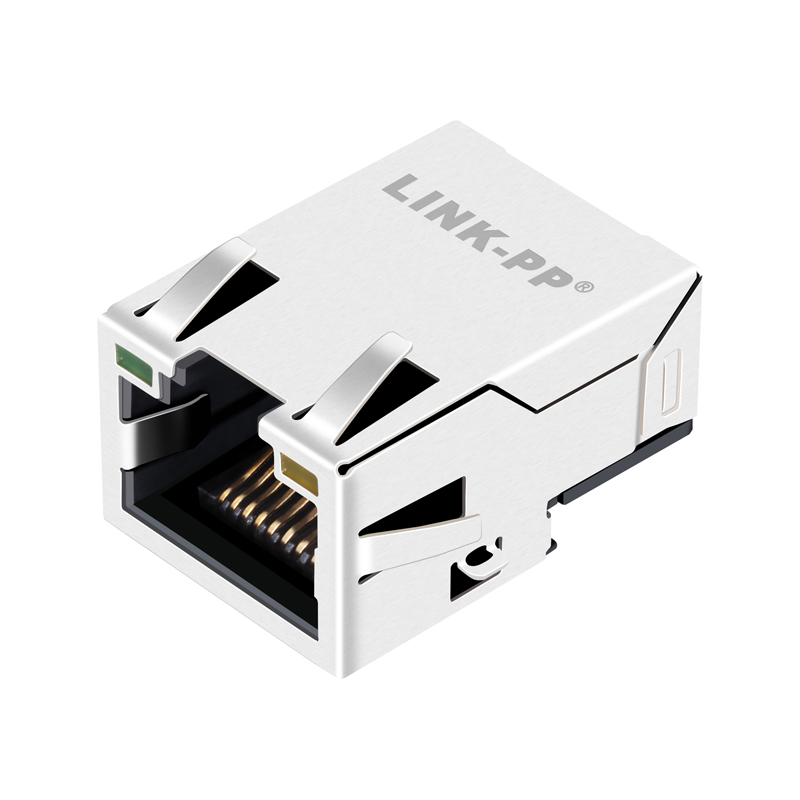

100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors

1 / 5

100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors

Send Inquiry

Product Description

Integrated Technology: RJ45 Connector with integrated transformer / common mode choke.
High Power: Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s.
Versatile Mounting: Available in SMT, THT and THT with USB options.
Standard Compliance: Fully compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEEE 802.3bt.
HPLE Products: Improved Common Mode Rejection due to additional NiZn cores.

Specification

Item	Value
Model Number	SMT RJ45 Connector
Part Status	Active
Connector Type	RJ45
Applications-Lan	Ethernet(PoE/Non_PoE)
Speed	10/100/1000 Base-T, AutoMDIX
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack	4/6/8/12
Shielding	Shielded, Emi Finger
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Down/Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	0°C ~ 70°C/-40°C ~ +85°C

Packing & Delivery

Standard Packaging Details

Package Type: Tray

Carton Size: 34.5 * 34.5 * 27 cm

G.W. / Carton: 6.9 kg

Qty / Carton: 550 pcs

SPQ: 110 pcs

N.W. / Pcs: 0.013 kg

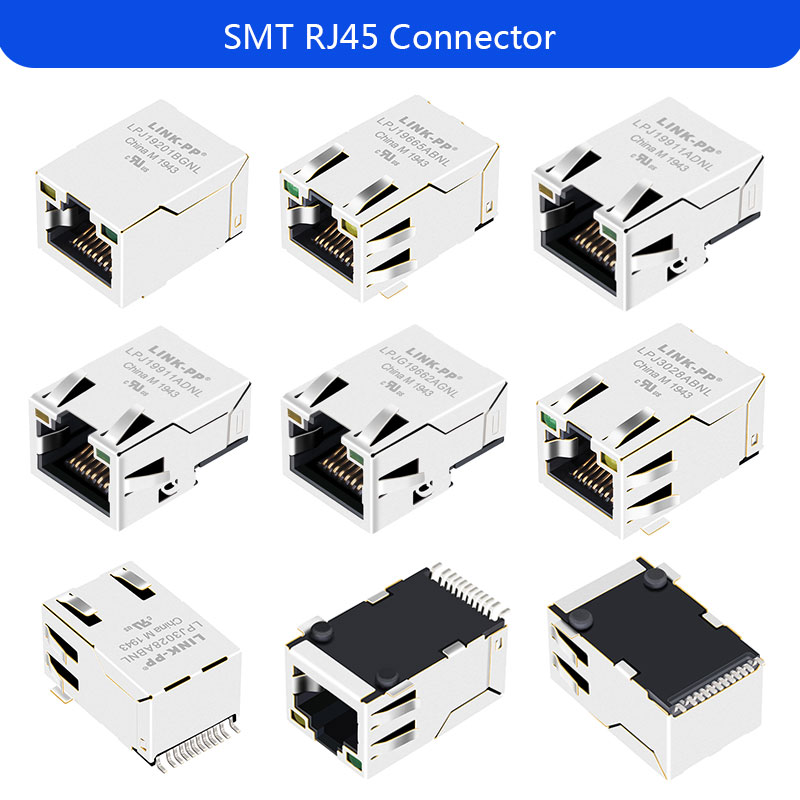

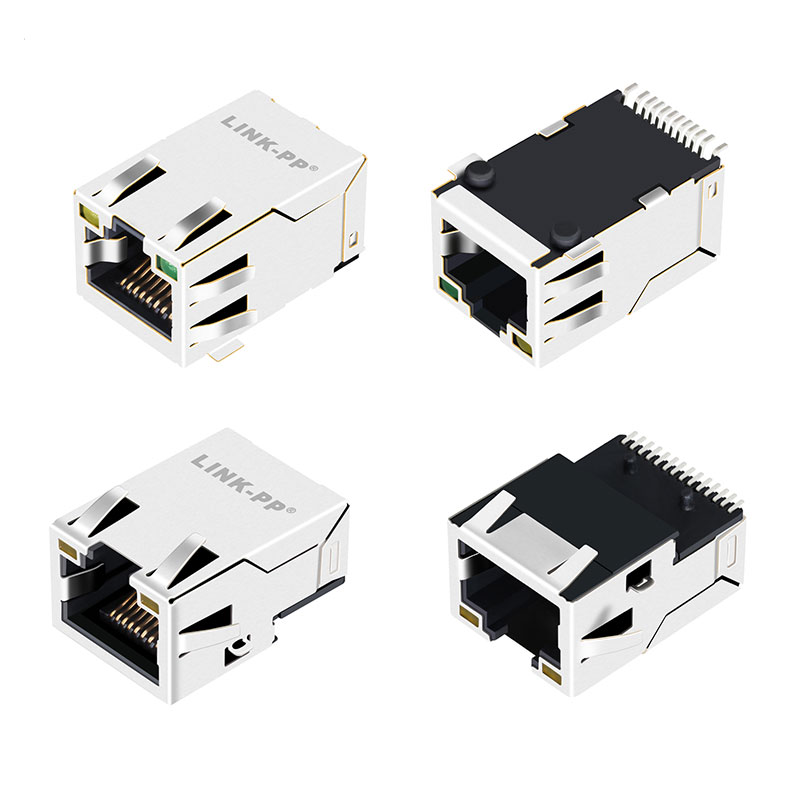

Showcase

FAQ

Who are we?

Established in 2012, we specialize in global distribution and supply, exporting to North America (21.00%), South America (17.00%), Southeast Asia (16.00%), Eastern Europe (16.00%), Africa (9.00%), Oceania (6.00%), and other regions worldwide.

How can we guarantee quality?

We ensure quality through a rigorous process: always providing a pre-production sample before mass production, and conducting a final inspection before shipment.

What can you buy from us?

Our product range includes RJ45 Magnetic connectors, LAN transformers, RJ11 Connectors, standard RJ45 Connectors, and SFP modules.

Why should you buy from us instead of other suppliers?

We offer 19 years of specialization in manufacturing RJ45 connectors and LAN transformers. Our processes are fully certified by SGS, ISO9001:2008, UL, REACH, and CE, supported by large-scale weekly production capacity to serve major global technology clients.

What services can we provide?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES;
Accepted Payment Currency: USD, EUR, JPY, CAD, AUD, HKD, GBP, CNY, CHF;
Accepted Payment Type: T/T, L/C, D/P, D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Languages Spoken: English, Chinese, Spanish, Japanese, Portuguese, German, Arabic, French, Russian, Korean, Hindi, Italian.
